- Vendor: TAKEX
- Type: ALARM SYSTEMS
- SKU: 5319

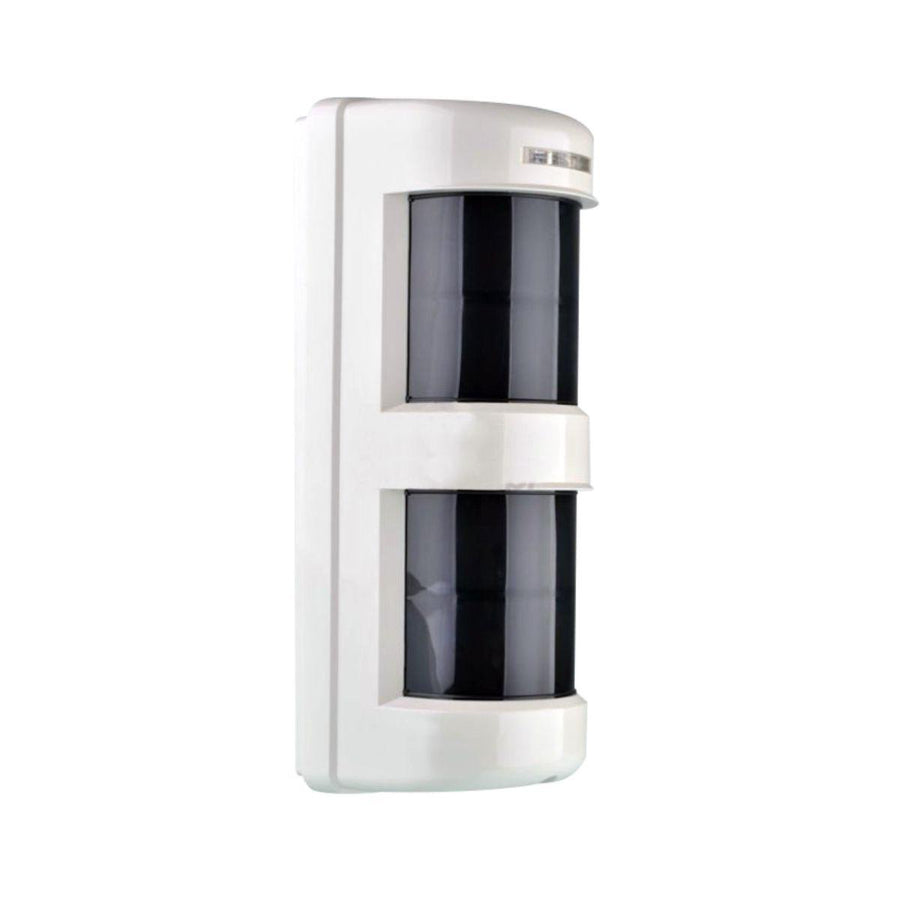

TAKEX 180 DEGREE 12M SINGLE WIRED BEAM - OMS12FE
Safe & Secure Payment Options
Visa & Mastercard
Payfast By Network
Float
PayJustNow
Yoco Payment
Happy Pay
Payflex
The OMS-12FE uses our reliable dual-zone detection system to create 180 degrees of volumetric protection with a range of 3 to 12m.
Equipped with 4 pyros, the detection field is divided into left and right zones which can be enabled/disabled as required for precise area control. The slim-profile housing features a back-tamper, and the clearly labelled option switches make installation a breeze.
FEATURES
-Pet friendly
| SPECIFICATIONS | |
|---|---|
| Detection system |
Passive infrared
|
| Coverage |
Horizontal detection
Angle: 180° Detection distance: 40' (12m) |
| Sensitive zone |
Horizontal zone: 14zones
Downward zone: 14zones |
| Area adjustment |
Horizontal: L/R 90°(selectable)
Detection distance: 10'～40' (3m～12m) (By adjusting vertical angle of downward curtain) |
| Supply voltage |
9 to 28V DC (non-polarity)
|
| Current consumption |
20mA Max.
|
| Alarm output |
Dry contact relay output N.C./N.O. selectable
*Contact capacity: 30V (AC/DC), 0.2A Max. (Resistive load) *Contact operation: Detection time (2sec) |
| Tamper output |
Dry contact relay output N.C.
*Contact capacity : 30V (AC/DC), 0.1A max. (Resistive load) |
| LED indicator |
Red LED:
Blinking When Initializing Lighting at alarm (option to disable) |
| Pulse count |
1/2/3/4 times (with a switch)
|
| Sensitivity adjustment |
*Approx. 30% -Approx. 170% (By Potentiometer)
|
| Mounting position |
Indoor / Outdoor
IP54 (Wall Mount) |
| Wiring |
Terminals
|
| Weight |
16.5oz (470g)
|
| Appearance |
Body: AES resin
Lens: PE resin |
| Mounting height |
0.8 - 1.2m
|
| ENVIRONMENTAL SPECIFICATION | |
|---|---|
| Ambient temperature |
-4°F to + 122°F (-20℃ to + 50℃)
|
| IP Rating |
IP54
|
Please note : This beam will only work on new/existing alarm systems and will have to be wired to it
What's in the box :
1 X Takex 180 Degree 12M Wired Beam
The OMS-12FE uses our reliable dual-zone detection system to create 180 degrees of volumetric protection with a range of 3 to 12m.
Equipped with 4 pyros, the detection field is divided into left and right zones which can be enabled/disabled as required for precise area control. The slim-profile housing features a back-tamper, and the clearly labelled option switches make installation a breeze.
FEATURES
-Pet friendly
| SPECIFICATIONS | |
|---|---|
| Detection system |
Passive infrared
|
| Coverage |
Horizontal detection
Angle: 180° Detection distance: 40' (12m) |
| Sensitive zone |
Horizontal zone: 14zones
Downward zone: 14zones |
| Area adjustment |
Horizontal: L/R 90°(selectable)
Detection distance: 10'～40' (3m～12m) (By adjusting vertical angle of downward curtain) |
| Supply voltage |
9 to 28V DC (non-polarity)
|
| Current consumption |
20mA Max.
|
| Alarm output |
Dry contact relay output N.C./N.O. selectable
*Contact capacity: 30V (AC/DC), 0.2A Max. (Resistive load) *Contact operation: Detection time (2sec) |
| Tamper output |
Dry contact relay output N.C.
*Contact capacity : 30V (AC/DC), 0.1A max. (Resistive load) |
| LED indicator |
Red LED:
Blinking When Initializing Lighting at alarm (option to disable) |
| Pulse count |
1/2/3/4 times (with a switch)
|
| Sensitivity adjustment |
*Approx. 30% -Approx. 170% (By Potentiometer)
|
| Mounting position |
Indoor / Outdoor
IP54 (Wall Mount) |
| Wiring |
Terminals
|
| Weight |
16.5oz (470g)
|
| Appearance |
Body: AES resin
Lens: PE resin |
| Mounting height |
0.8 - 1.2m
|
| ENVIRONMENTAL SPECIFICATION | |
|---|---|
| Ambient temperature |
-4°F to + 122°F (-20℃ to + 50℃)
|
| IP Rating |
IP54
|
Please note : This beam will only work on new/existing alarm systems and will have to be wired to it
What's in the box :
1 X Takex 180 Degree 12M Wired Beam
