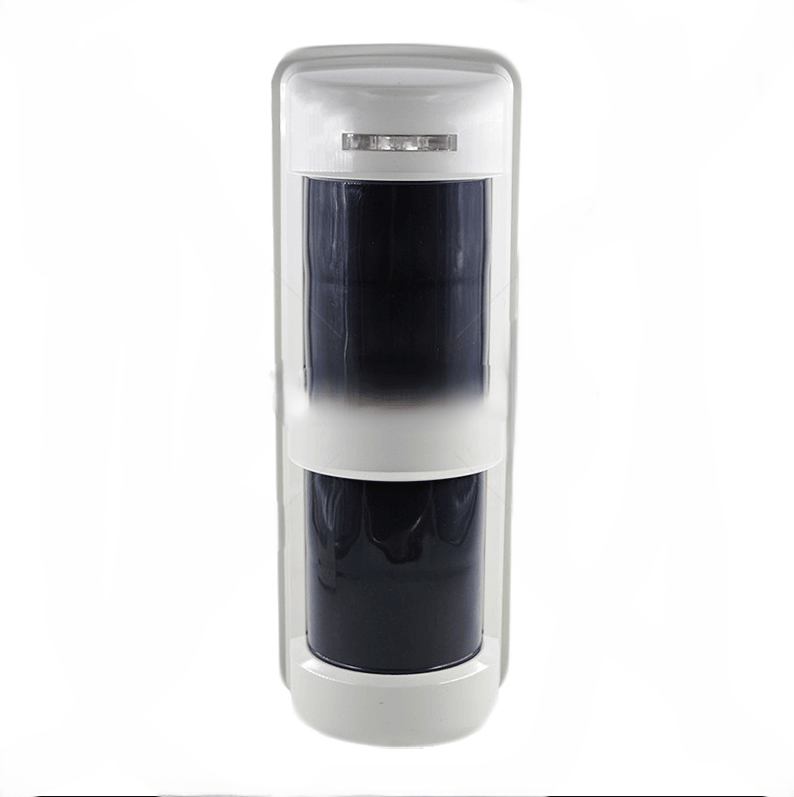

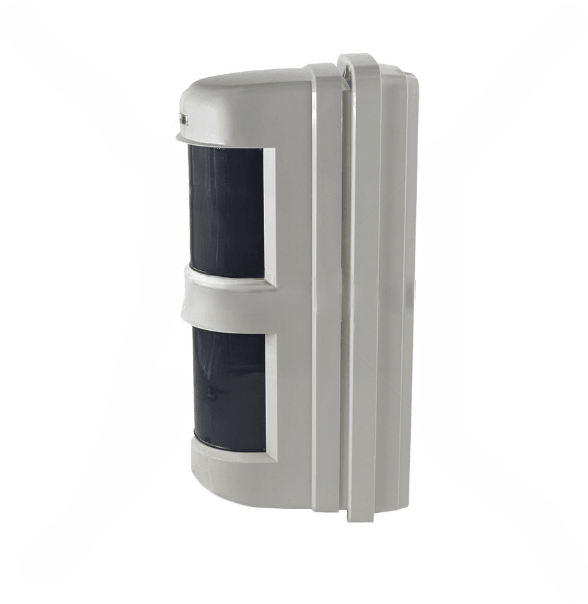

TAKEX 180 DEG WIRELESS DUAL PET OUTDOOR PIR
Experience long-lasting battery life with ultra-low current consumption and solid state (NO/NC) outputs for alarm and 3-stage tamper capabilities when deploying TAKEX 180 DEG WIRELESS DUAL PET OUTDOOR PIR in remote or hard-to-wire locations. Compatible with top wireless transmitters, the TX-114 Series detectors are the perfect choice for quick installation.
FEATURES:
- Dual-zone detection system
- 2-12m coverage
- Rotating sensor heads (±90° horizontal adjustment)
- Powered by 3V to 9VDC alkaline or lithium battery
- Compatible with numerous wireless transmitter units

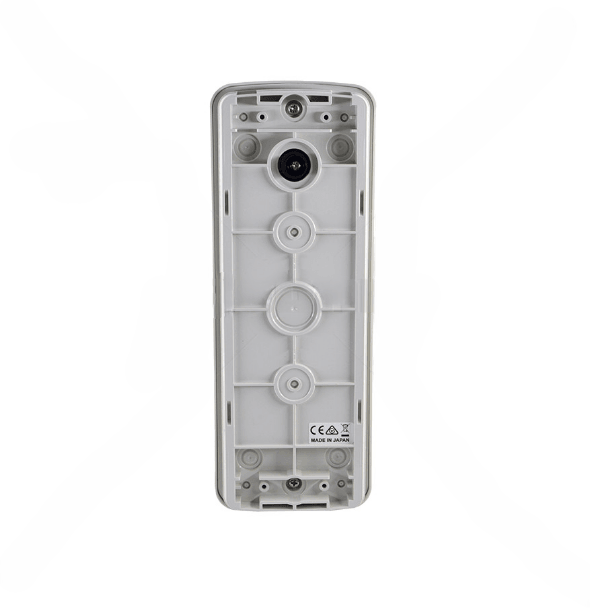

- Back box with back-tamper (TX-114TR/FR only)
- Selectable NO/NC relay output with 2 sec. to 5min. timer function
- AND/OR detection modes (TX-114FR only)
- IP54 housing
SPECS:
Detection system |
Passive infrared
|
Coverage |
Horizontal detection Angle: 90° Detection distance: 40' (12m) Horizontal zone: 7 zones Downward zone: 7 zones ×2
|
Mounting height |
0.8 - 1.2m
|
Area adjustment |
Horizontal: 90 degrees Detection distance: 6.6' to 40' (2m to 12m) (Adjustable by changing the vertical angle of downward curtain)
|
Supply voltage |
3V to 9VDC Alkaline or Lithium Battery (2.3V to 10VDC operation voltage)
|
Current consumption |
35μA 5mA/3V (Test mode)
|
Alarm output |
Solid State Switch N.C./N.O. selectable 10VDC · 0.01A Max One shot output when detecting objects (approx. 2sec)
|
Trouble output |
Real time output · when the unit suffers functional trouble. (from terminal of Alarm)
|
Tamper output |
Real time output · when the cover is detatched from the unit · when the unit is detatched from the installed wall or pole. · when compartment is separated from back plate
|
LED indicator |
Red LED: • Blinking for approx. 1min during warm-up • Lighting for 1sec at detection during walk-test (LED lights only in a test-mode) • Blinking when trouble alarm is issued (Lights once every 5 sec)
|
Pulse count |
Once/Three times selectable (by dip switch)
|
Sensitivity adjustment |
Approx. 30% to 170% (by rotary switch)
|
Alarm prohibition time |
10sec/120sec/300sec/900sec selectable (by dip switches)
|
Detection mode |
AND/OR selectable
|
Mounting position |
Indoor/Outdoor [Wall or Pole]
|
Wiring |
Terminals
|
Weight |
20oz (620g)
|
Appearance |
Body: AES resin Lens: PE resin
|
Accessory |
Mounting screw: 2pcs Adhesive sheet: 1pc Area masking sheet: 2pcs Back tamper disable collar: 1pc Battery holder: 1pc
|
ENVIRONMENTAL SPECIFICATION |
|
Ambient temperature |
-4°F to +122°F (-20°C to +50°C)
|
IP Rating |
IP54
|
