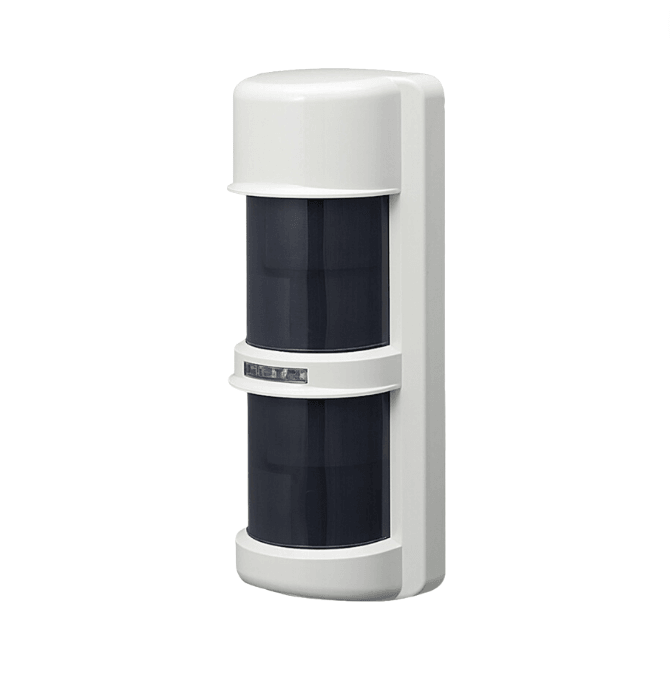

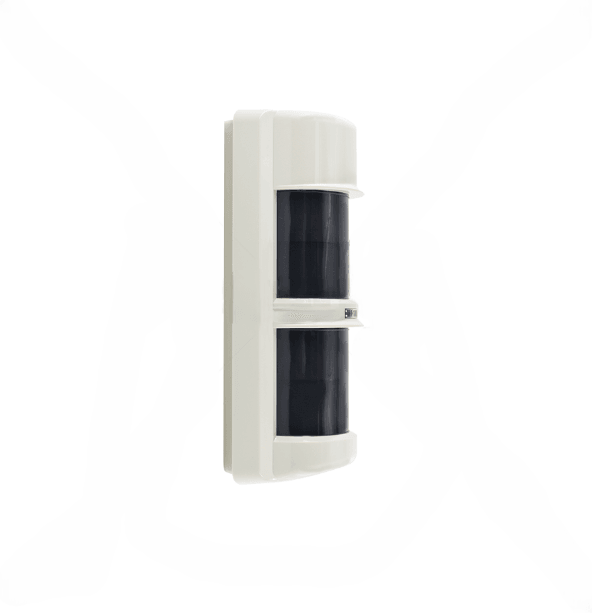

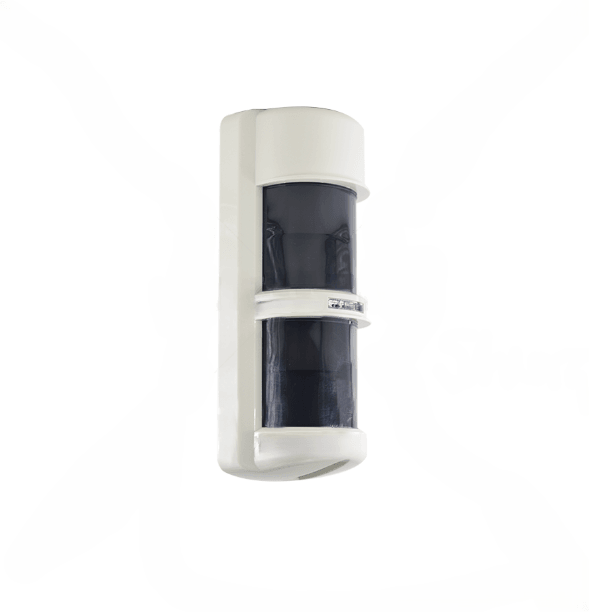

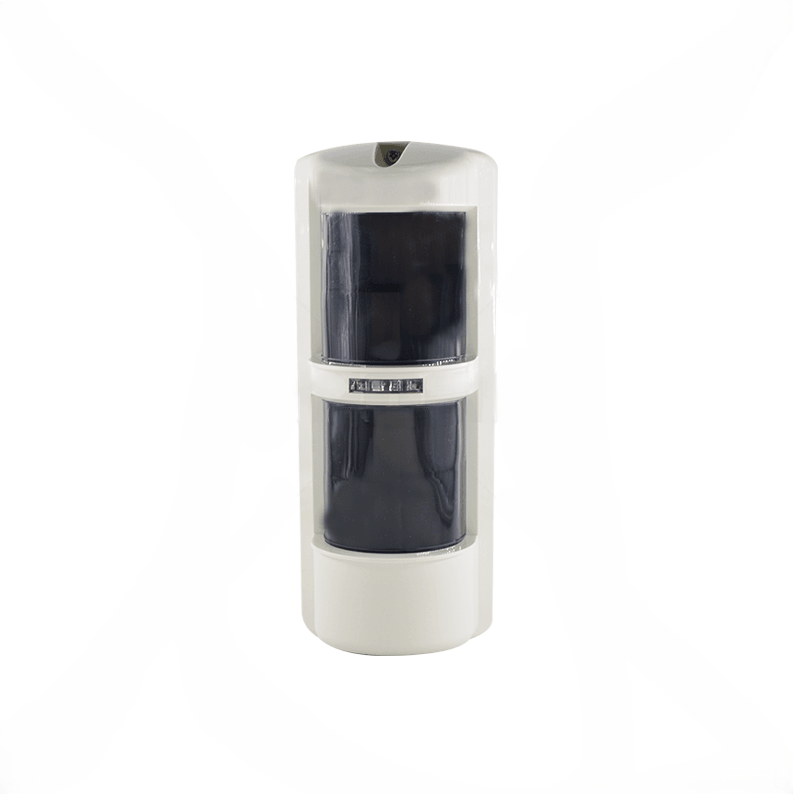

TAKEX 180 DEG DUAL OUTDOOR PIR OMS-12F

The TAKEX OMS-12FE features a dependable dual-zone detection system that offers a wide 180 degree coverage area, spanning 3 to 12m. It boasts 4 pyros and allows for specific control of left and right zones, with the option to enable or disable them as needed. The slim and labeled housing includes a back-tamper for added security, making installation a simple process.

FEATURES:

Dual-zone detection system
3-12m coverage
Fixed sensor heads
Easily enable/disable left or right detection areas
Supplied masking sheets allow precise area control
Front and back tampers
IP54 housing

SPECS:

TAKEX 180 DEG DUAL OUTDOOR PIR OMS-12F

FEATURES:

Dual-zone detection system
3-12m coverage
Fixed sensor heads
Easily enable/disable left or right detection areas
Supplied masking sheets allow precise area control
Front and back tampers
IP54 housing

SPECS:

Detection system	Passive infrared
Coverage	Horizontal detection Angle: 180° Detection distance: 40' (12m)
Sensitive zone	Horizontal zone: 14zones Downward zone: 14zones
Area adjustment	Horizontal: L/R 90°(selectable) Detection distance: 10'～40' (3m～12m) (By adjusting vertical angle of downward curtain)
Supply voltage	9 to 28V DC (non-polarity)
Current consumption	20mA Max.
Alarm output	Dry contact relay output N.C./N.O. selectable Contact capacity: 30V (AC/DC), 0.2A Max. (Resistive load) Contact operation: Detection time (2sec)
Tamper output	Dry contact relay output N.C. *Contact capacity : 30V (AC/DC), 0.1A max. (Resistive load)
LED indicator	Red LED: Blinking When Initialising Lighting at alarm (option to disable)
Pulse count	1/2/3/4 times (with a switch)
Sensitivity adjustment	*Approx. 30% -Approx. 170% (By Potentiometer)
Mounting position	Indoor / Outdoor IP54 (Wall Mount)
Wiring	Terminals
Weight	16.5oz (470g)
Appearance	Body: AES resin Lens: PE resin
Mounting height	0.8 - 1.2m

ENVIRONMENTAL SPECIFICATION
Ambient temperature	-4°F to + 122°F (-20℃ to + 50℃)
IP Rating	IP54

Detection system	Passive infrared
Coverage	Horizontal detection Angle: 180° Detection distance: 40' (12m)
Sensitive zone	Horizontal zone: 14zones Downward zone: 14zones
Area adjustment	Horizontal: L/R 90°(selectable) Detection distance: 10'～40' (3m～12m) (By adjusting vertical angle of downward curtain)
Supply voltage	9 to 28V DC (non-polarity)
Current consumption	20mA Max.
Alarm output	Dry contact relay output N.C./N.O. selectable Contact capacity: 30V (AC/DC), 0.2A Max. (Resistive load) Contact operation: Detection time (2sec)
Tamper output	Dry contact relay output N.C. *Contact capacity : 30V (AC/DC), 0.1A max. (Resistive load)
LED indicator	Red LED: Blinking When Initialising Lighting at alarm (option to disable)
Pulse count	1/2/3/4 times (with a switch)
Sensitivity adjustment	*Approx. 30% -Approx. 170% (By Potentiometer)
Mounting position	Indoor / Outdoor IP54 (Wall Mount)
Wiring	Terminals
Weight	16.5oz (470g)
Appearance	Body: AES resin Lens: PE resin
Mounting height	0.8 - 1.2m

ENVIRONMENTAL SPECIFICATION
Ambient temperature	-4°F to + 122°F (-20℃ to + 50℃)
IP Rating	IP54
