SPYDER EKO-VALVE® PIN W/ CUP SEAL
If your marker has an air leak down the barrel. Check the items below. Reference the manual as needed.
Issue:
Cup Seal:
-

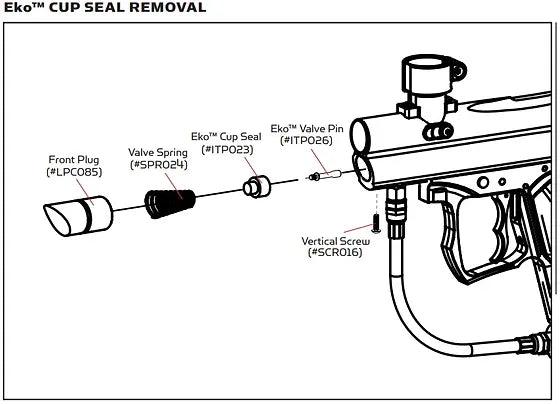

Unscrew the vertical frame screw that holds the front plug in place (ref page 11 of the manual) in order to remove it
-

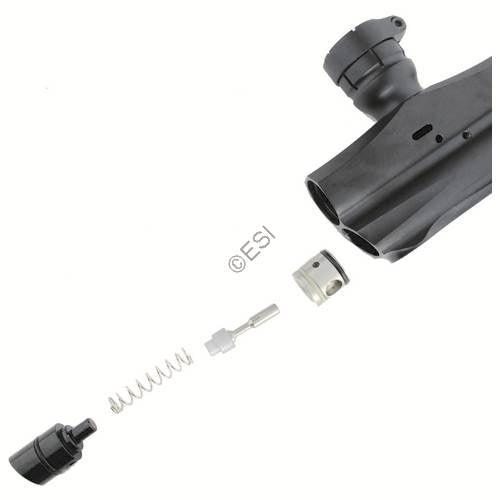

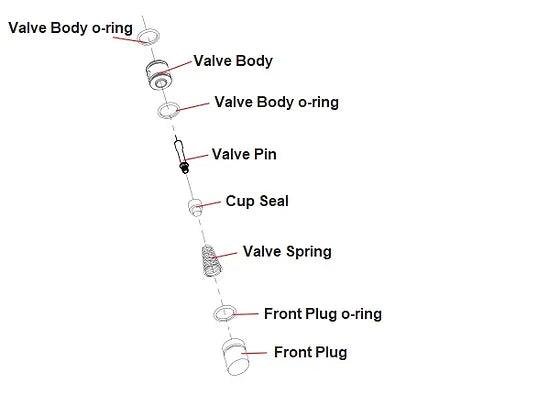

Next, you can remove the Valve Spring, Valve Pin, Cup Seal Guide and Cup Seal
-

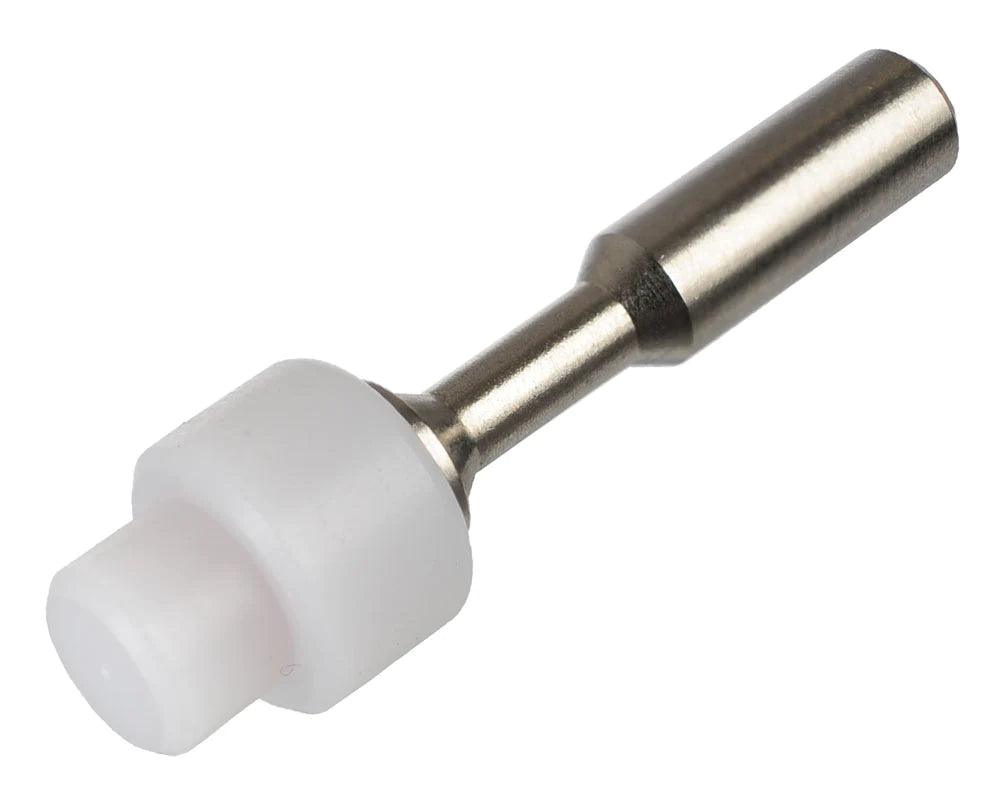

Inspect the Cup Seal for damage as this will generally be the cause of the issue. To replace it, unscrew it from the Valve Pin
-
Wipe everything down with a clean rag & inspect the Front Plug oring for damage. Replace if needed
-
Be sure to apply a drop of oil to the oring before re-assembling
-
Front Plug oring: #15mm - 80
-
Striker Bolt:
-
If the above doesn't fix your issue, try the following:
-
Start by removing your C02 & degassing your marker
-
With the bolt out, remove the Striker Plug by turning it clockwise
-
Next, remove the Striker Spring
-
To remove the rest of the components (Striker Bolt, Striker Buffer), squeeze & hold the trigger, then pop them out using a hammering type motion into your palm (reference the video)
-
Replace the Striker Bolt o-ring & apply a drop of oil
-
Note: Trigger is squeezed in order to prevent damage to the oring on the Striker Bolt during removal
-
Striker Bolt oring: #14.3mm x 1.7mm 70pu
-
-
Please have a look here, to see how these parts are installed / replaced;
Here's for the Victor, Xtra, Aggressor & MR100;
and here is The SONIX and XTRA models (which are the same);
If your marker has an air leak down the barrel. Check the items below. Reference the manual as needed.
Issue:
Cup Seal:
-
Unscrew the vertical frame screw that holds the front plug in place (ref page 11 of the manual) in order to remove it
-
Next, you can remove the Valve Spring, Valve Pin, Cup Seal Guide and Cup Seal
-
Inspect the Cup Seal for damage as this will generally be the cause of the issue. To replace it, unscrew it from the Valve Pin
-
Wipe everything down with a clean rag & inspect the Front Plug oring for damage. Replace if needed
-
Be sure to apply a drop of oil to the oring before re-assembling
-
Front Plug oring: #15mm - 80
-
Striker Bolt:
-
If the above doesn't fix your issue, try the following:
-
Start by removing your C02 & degassing your marker
-
With the bolt out, remove the Striker Plug by turning it clockwise
-
Next, remove the Striker Spring
-
To remove the rest of the components (Striker Bolt, Striker Buffer), squeeze & hold the trigger, then pop them out using a hammering type motion into your palm (reference the video)
-
Replace the Striker Bolt o-ring & apply a drop of oil
-
Note: Trigger is squeezed in order to prevent damage to the oring on the Striker Bolt during removal
-
Striker Bolt oring: #14.3mm x 1.7mm 70pu
-
-
Please have a look here, to see how these parts are installed / replaced;
Here's for the Victor, Xtra, Aggressor & MR100;
and here is The SONIX and XTRA models (which are the same);
