The ET Drive 500 12 V is a residential sliding-gate motor system designed for gates up to approximately 500 kg. This kit combines the Drive 500 operator with remote-control components, battery backup and nylon rack for a practical gate-automation package.
Key Features
- Suitable for sliding gates up to approximately 500 kg
- 12 V DC motor
- Gate speed up to approximately 28 m/min depending on gate load and power conditions
- Maximum duty cycle approximately 25% with mains supply present
- Up to approximately 100 operations from a healthy 7 Ah-class backup battery within the first 24 hours of a power failure under specified test conditions
- Electronic anti-crushing / gate-profiling safety
- Built-in ET BLU MIX rolling-code receiver platform
- Gate and beam tamper-alarm monitoring
- PIN-lockable programming
- Manual-release facility for power-loss situations
Specifications
- Model: ET Drive 500
- Motor voltage: 12 V DC
- Rated gate mass: up to 500 kg
- Primary supply for Drive 500 configuration: 16 V AC at 1 A, 50-60 Hz
- Operating temperature: approximately -10°C to +50°C
- Receiver frequency: approximately 433.92 MHz

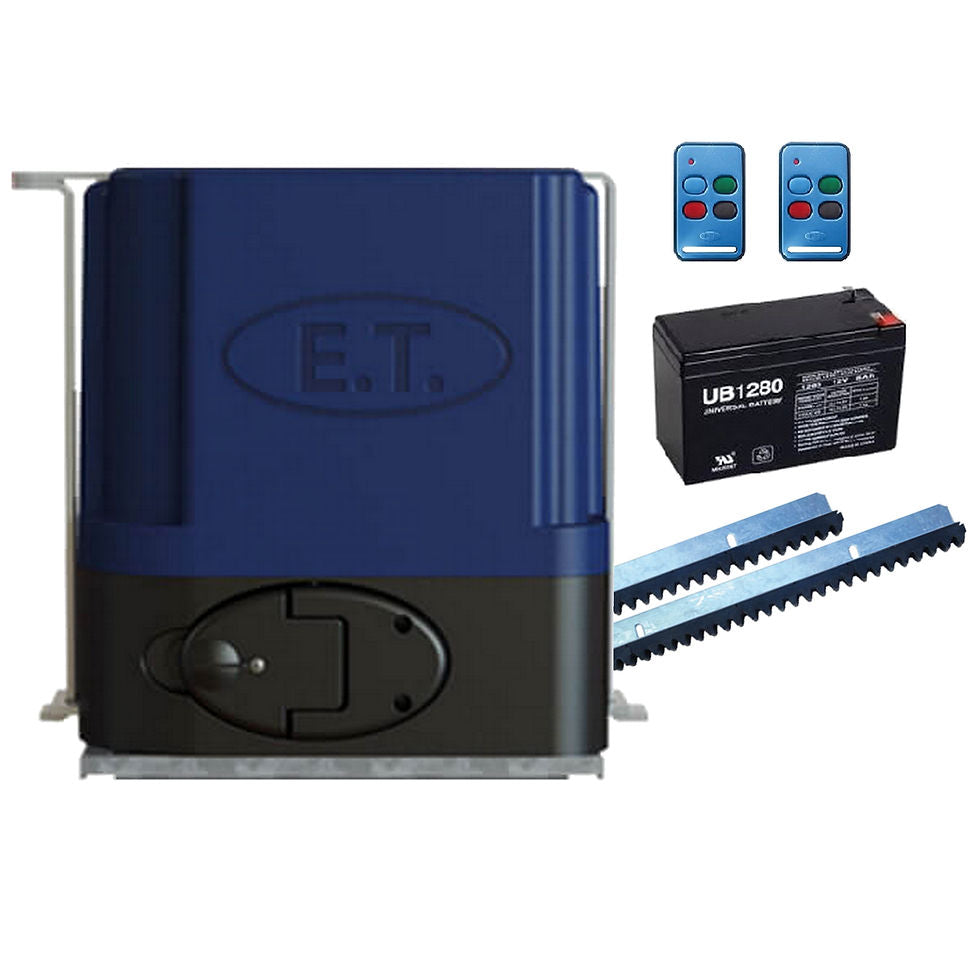

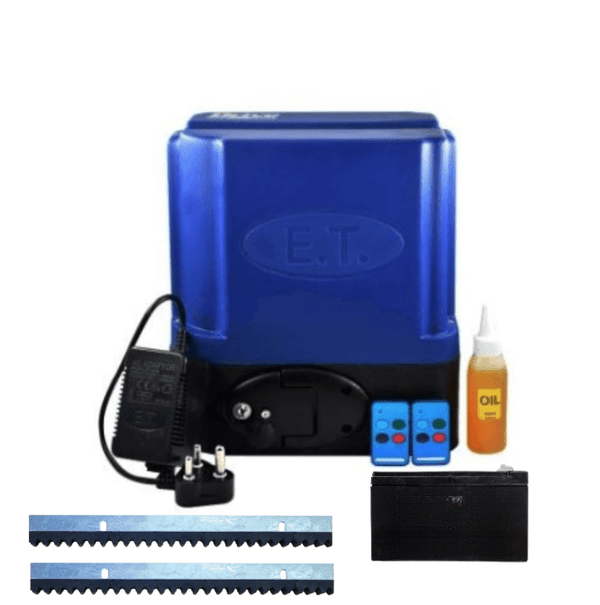

What's in the Box
- 1 x ET Drive 500 12 V sliding-gate motor
- 2 x TX4 remote transmitters
- 1 x RX1CH receiver
- 1 x Backup battery
- 1 x Nylon rack set as supplied with the kit
Installation note: Gate condition, rack length, power feed, safety beams and mounting requirements must be confirmed for the installation site.
