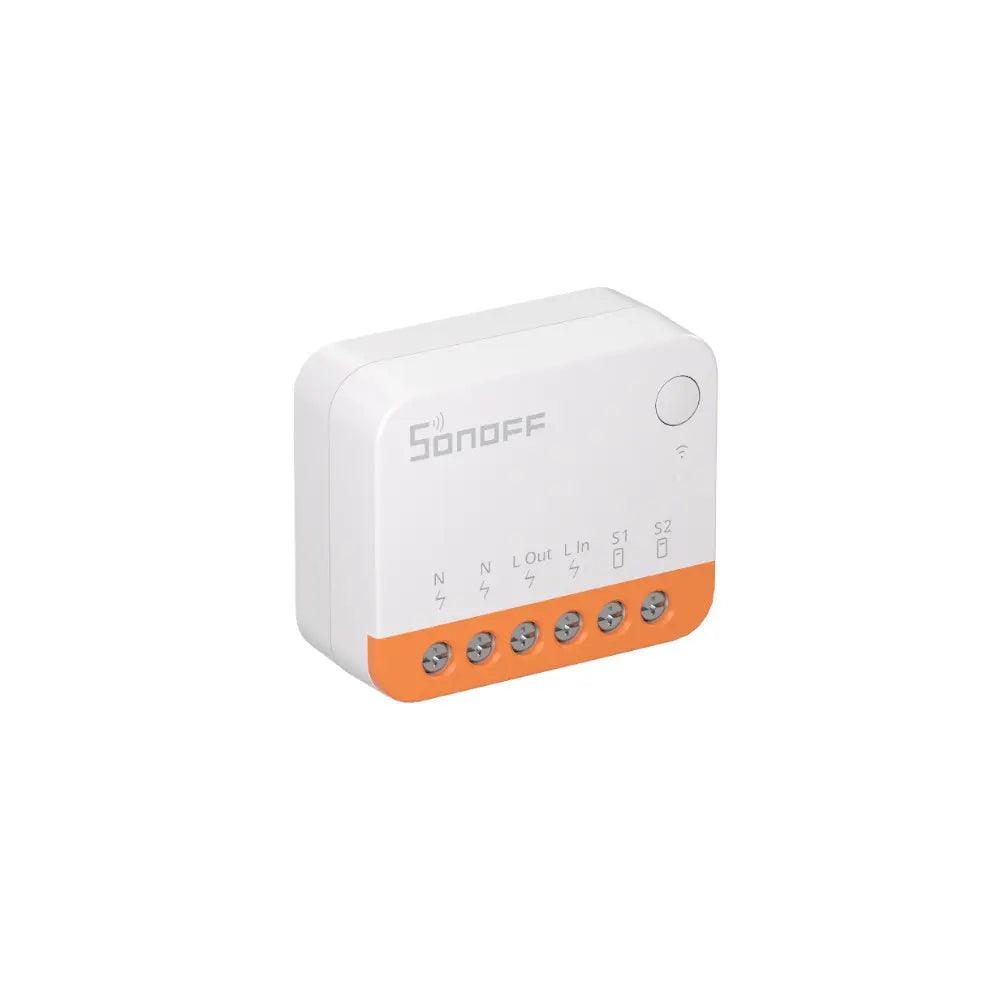

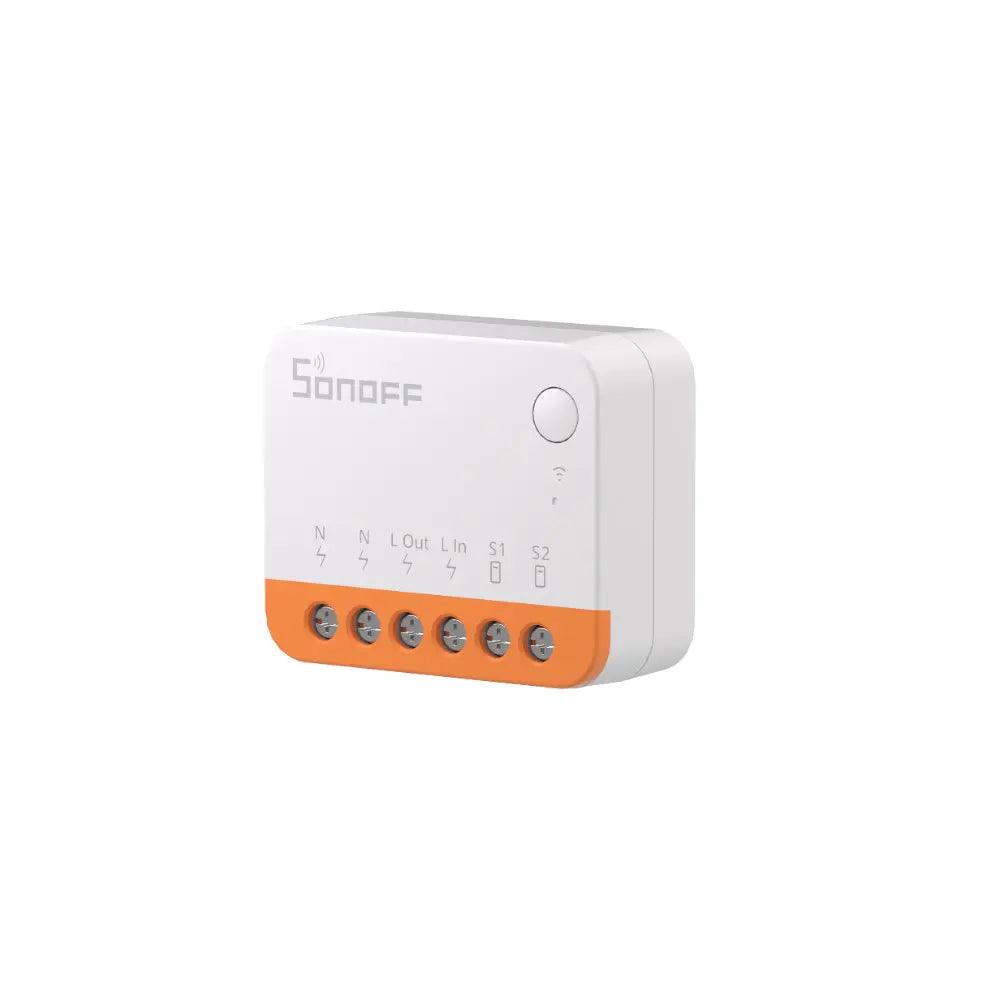

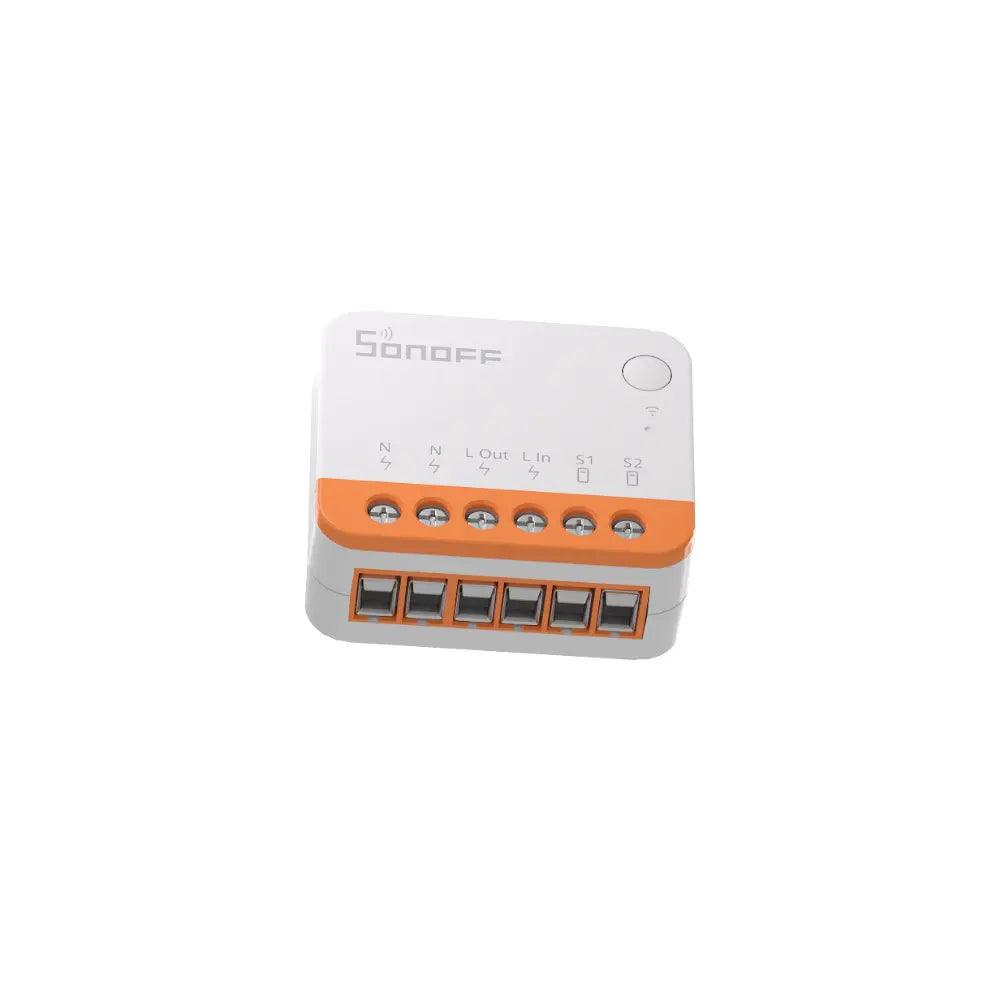

SONOFF MINI R4 EXTREME

Description

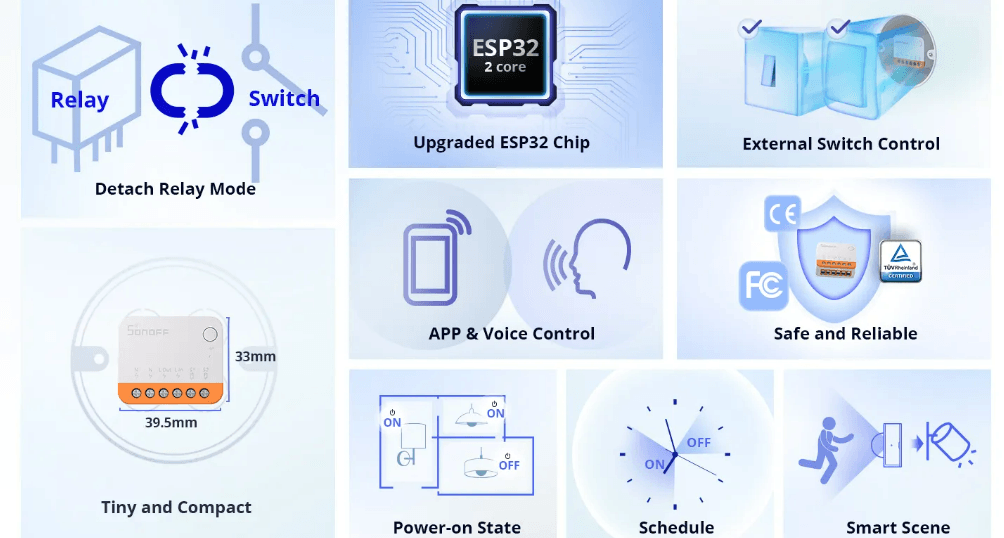

Features

• Super Tiny Size-  Its compact size allows it to be installed in various mounting boxes, including the smallest European standard.

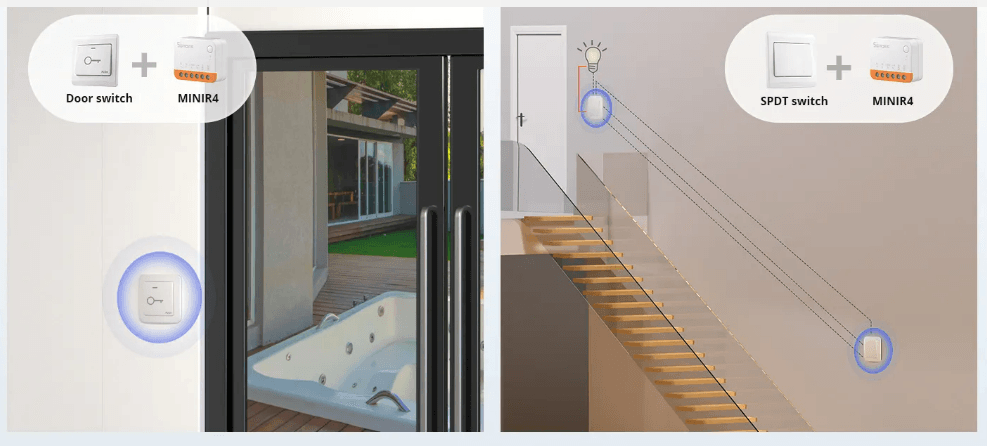

• External Switch Control-  Easily connect to the momentary switch, door exit switch, SPDT switch, latching switch, and even dry contact sensors.
• Detach Relay Mode-  MINIR4 has “detach relay” mode, which means the states of the external switches and relay are separated, so operating the external switch button won’t affect the relay state.
• eWeLink-Remote Control–  MINIR4 is a smart switch with the gateway function of “eWeLink-Remote”. You can add “eWeLink-Remote” sub-devices, R5 and S-MATE, after pairing with MINIR4. Both R5 and S-MATE can act as remote controllers to control MINIR4 locally through the eWeLink-Remote signal.
• Safe & Reliable-  TÜV, CE, and FCC certifications ensure a safer and more reliable product.

ICASA Approved

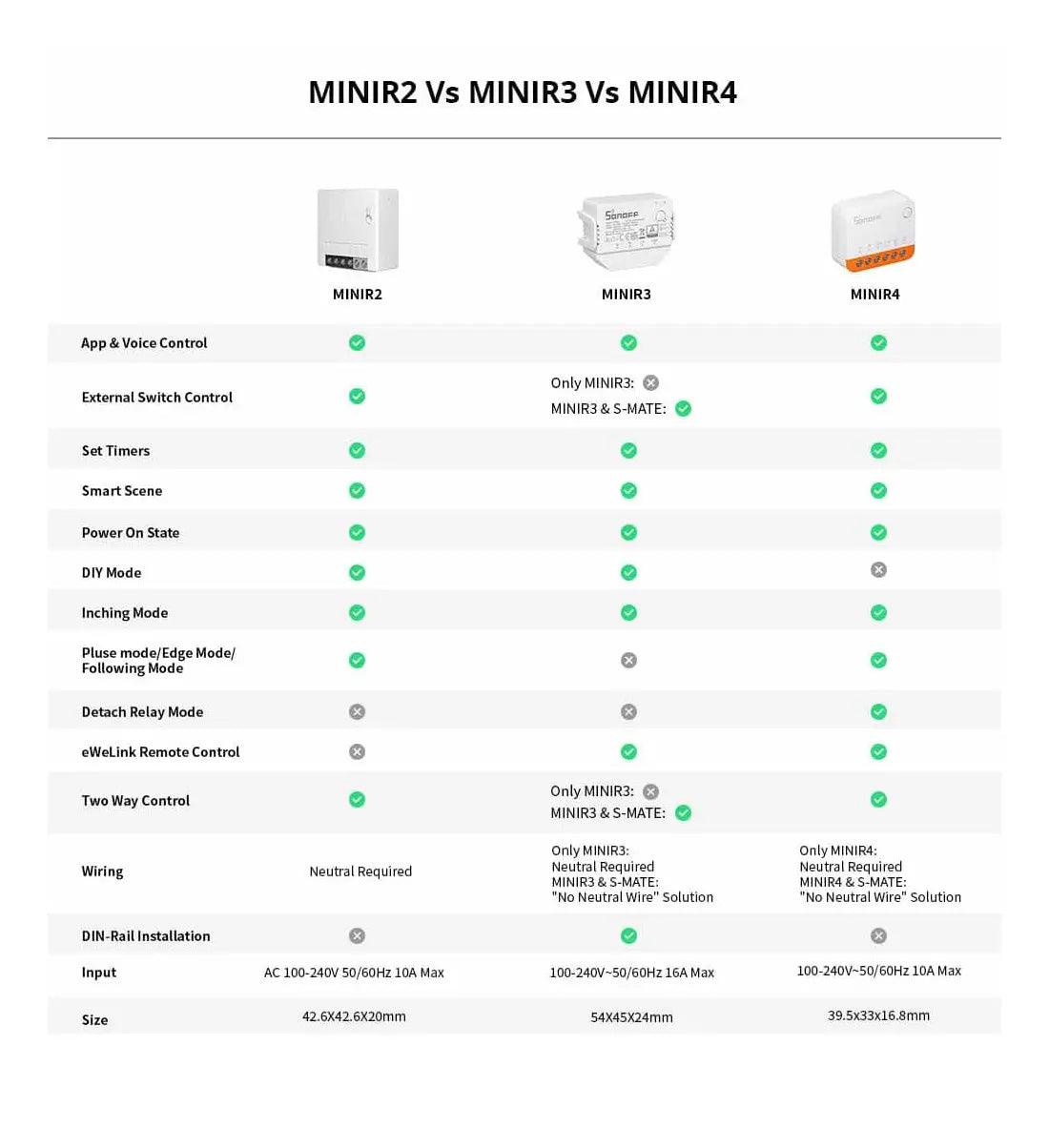

Specifications

• Brand: SONOFF
• Model: MINIR4
• Wi-Fi: IEEE 802.11b/g/n 2.4GHz
• Input: 100-240V~50/60Hz 10A Max
• Output: 100-240V~50/60Hz 10A Max
• Casing Material: PC V0
• Dimension: 39.5x33x16.8mm




What's in the box :

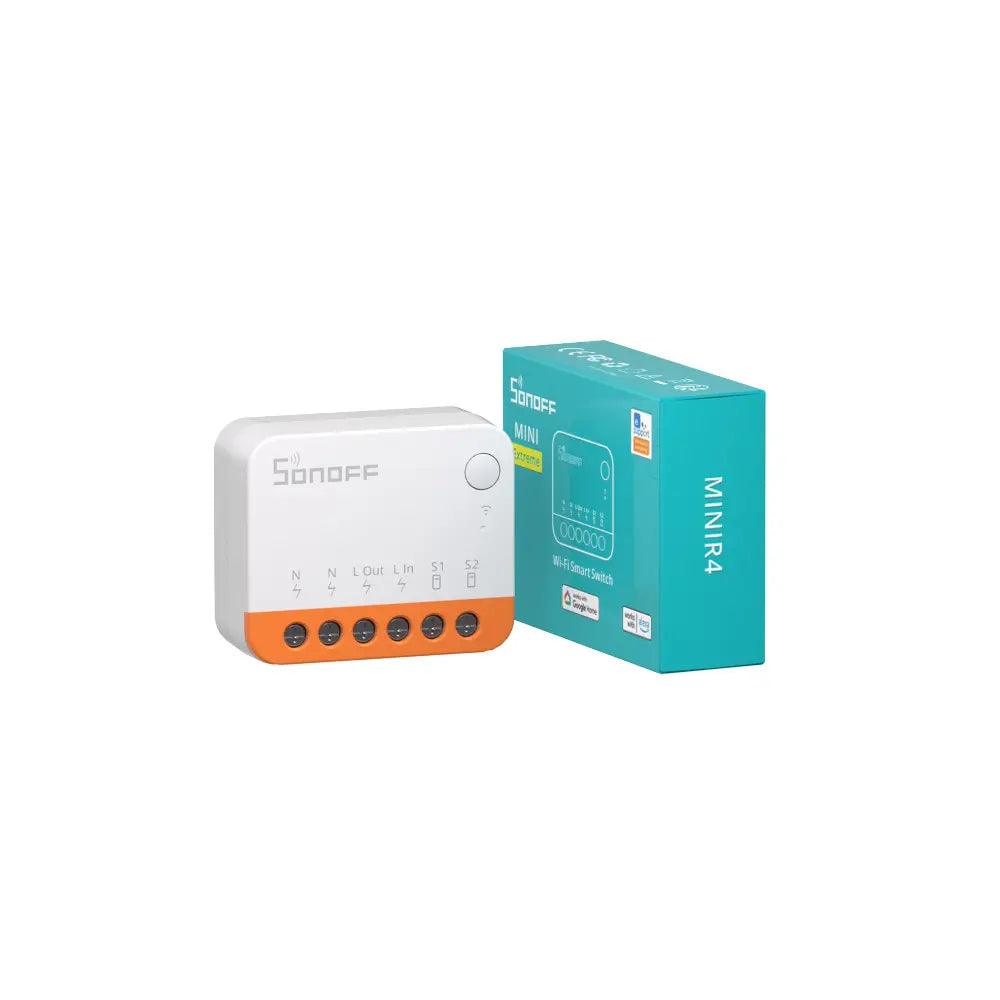

1 X Sonoff Mini R4 Wi-Fi Smart Switch
1 X Quick Start Up Guide
