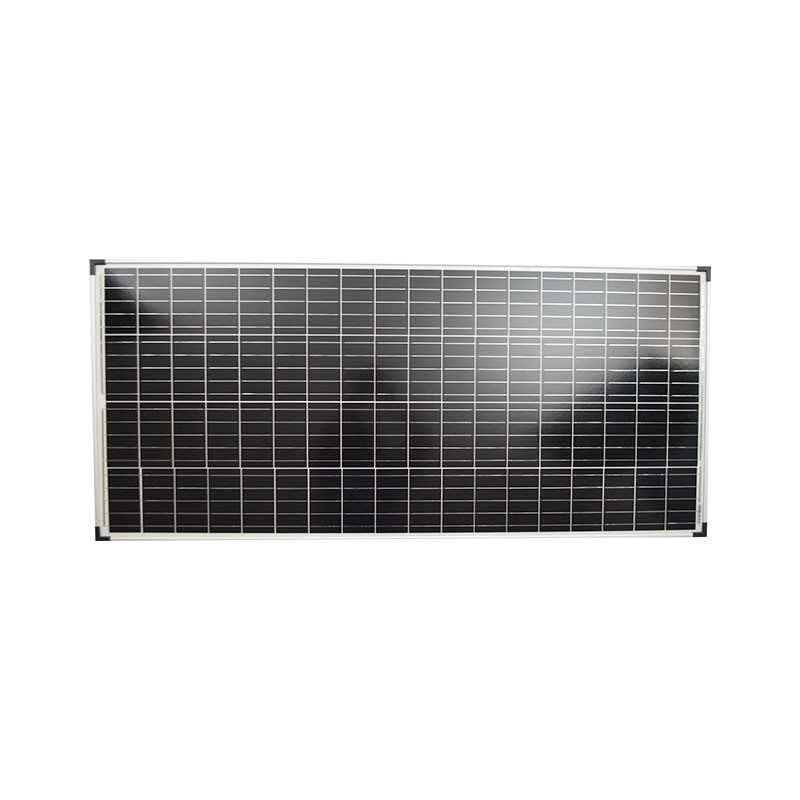

The Sola-Prod SO50-350 is a 350 W, 72-cell monocrystalline photovoltaic panel for compatible off-grid, backup-power, security and solar-energy installations. It is supplied with a factory-fitted junction box, pre-terminated MC4 leads and an integrated protection diode for straightforward connection to suitable solar equipment.
Key Features
- 350 W rated maximum power
- 72-cell monocrystalline construction
- 36 V class solar module
- Factory-fitted junction box
- Pre-terminated MC4 leads
- Integrated protection diode
- Aluminium-framed module for fixed solar installations
Electrical Specifications
- Part number: SO50-350
- Manufacturer code: SS-350W36V
- Maximum power: 350 W
- Maximum power voltage (Vmp): 35.2 V
- Maximum power current (Imp): 9.95 A
- Open-circuit voltage (Voc): 43.6 V
- Short-circuit current (Isc): 10.5 A
- Dimensions: approximately 1755 x 1038 x 35 mm
System note: Confirm charge-controller/inverter voltage limits, array configuration, mounting hardware and cable sizing for the installation. Mounting brackets, charge controllers, batteries and extension cabling are not assumed to be included.
What's in the Box
- 1 x Sola-Prod SO50-350 350 W monocrystalline solar panel with factory-fitted junction box, MC4 leads and protection diode
