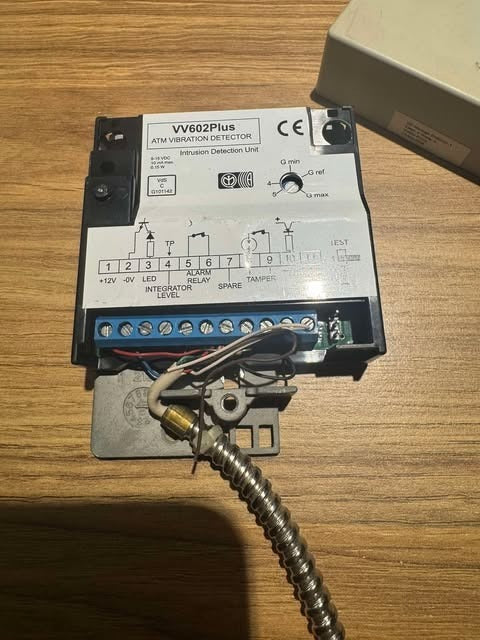

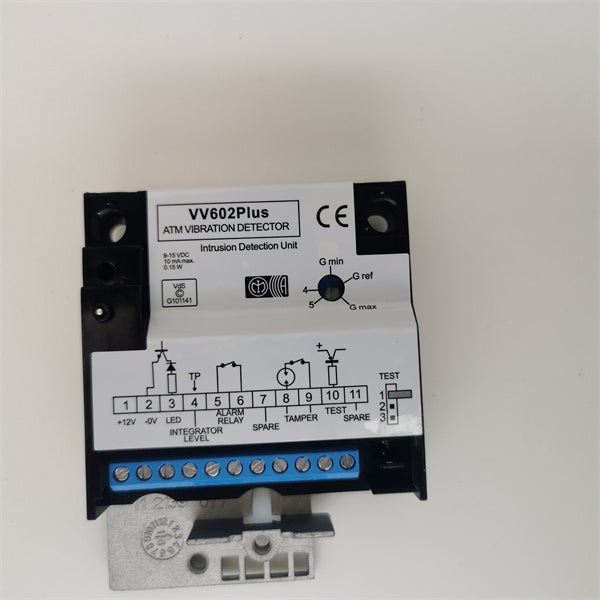

ARITECH VV602PLUS ATM & NIGHT SAFE SEISMIC DETECTOR is a vibration/seismic intrusion detector designed specifically for automatic teller machines (ATMs) and night safe deposit boxes. Its signal processing is engineered to distinguish normal operating vibration from attack-related vibration.
KEY FEATURES
- Designed for ATMs and night safe deposit boxes
- Advanced seismic/vibration attack detection
- Adjustable sensitivity with 5 steps of approximately 6 dB each
- Detection range: approximately 3 to 14 m radius, application dependent
- LED alarm indication
- Low-voltage alarm threshold: 7.5 V
- Tamper protection against opening, removal, drilling and elevated temperature
- Test output supported
TECHNICAL SPECIFICATIONS
- Power supply: 9 to 15 VDC
- Current consumption: approximately 8.6 mA
- Alarm contact: Form A solid-state relay
- Dimensions: approximately 81 x 101 x 28 mm
- Net weight: approximately 380 g
- Colour: Grey, RAL 7035
- Operating temperature: -20°C to +55°C
- Relative humidity: 0 to 90% non-condensing
- Ingress protection: IP30
WHAT'S IN THE BOX
1 x ARITECH VV602PLUS ATM / NIGHT SAFE SEISMIC DETECTOR
Installation and system compatibility should be confirmed by a qualified security-system installer.
