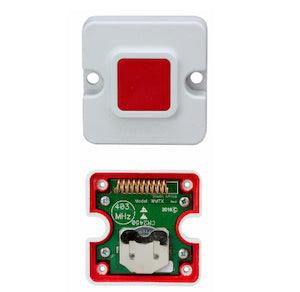

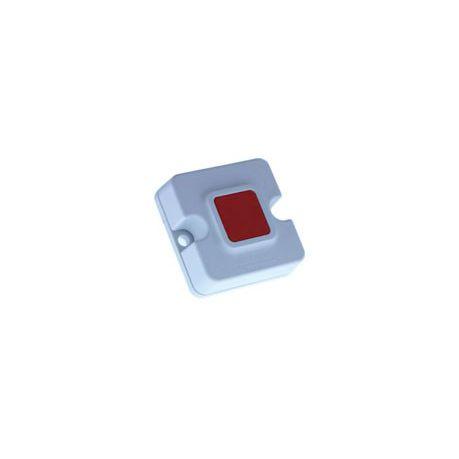

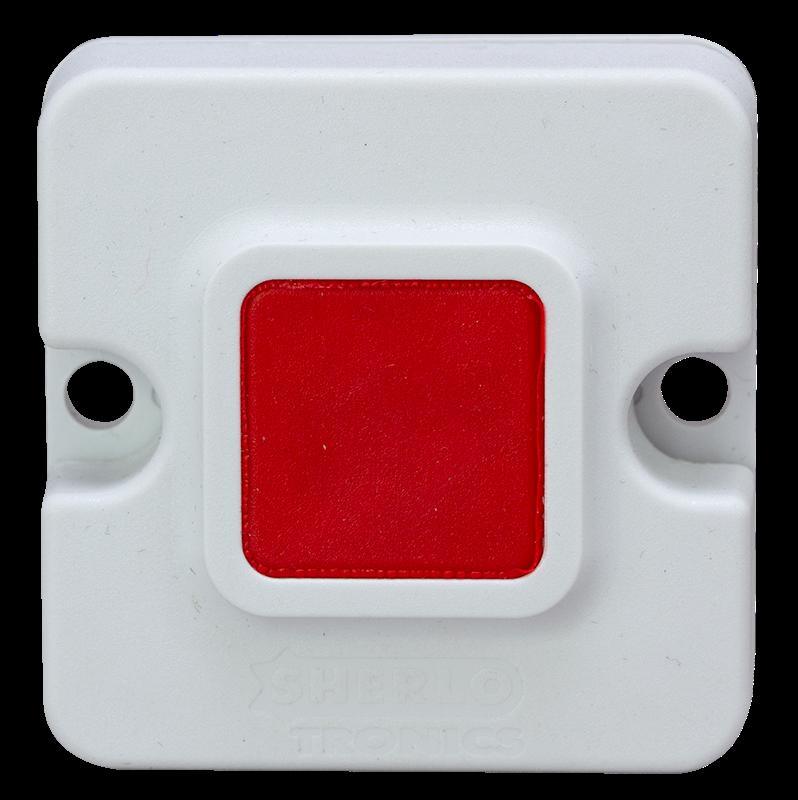

Wall Mount Transmitter

(Weatherproof)

Key Features

• Code-Hopping Encryption
• Audible Piezo output
• Weather-proof / Splash-proof housing
• 3V Long-Life Lithium battery
• 60,000 Activations
• Frequency stability controlled +/- 75KHz
• Wireless

Transmitter Usage

• Under the counter Panic button
• Nursing home Panic button
• Bathroom Panic button
• Shower Panic button
• Door release button
• Doorbell button

Technical specifications

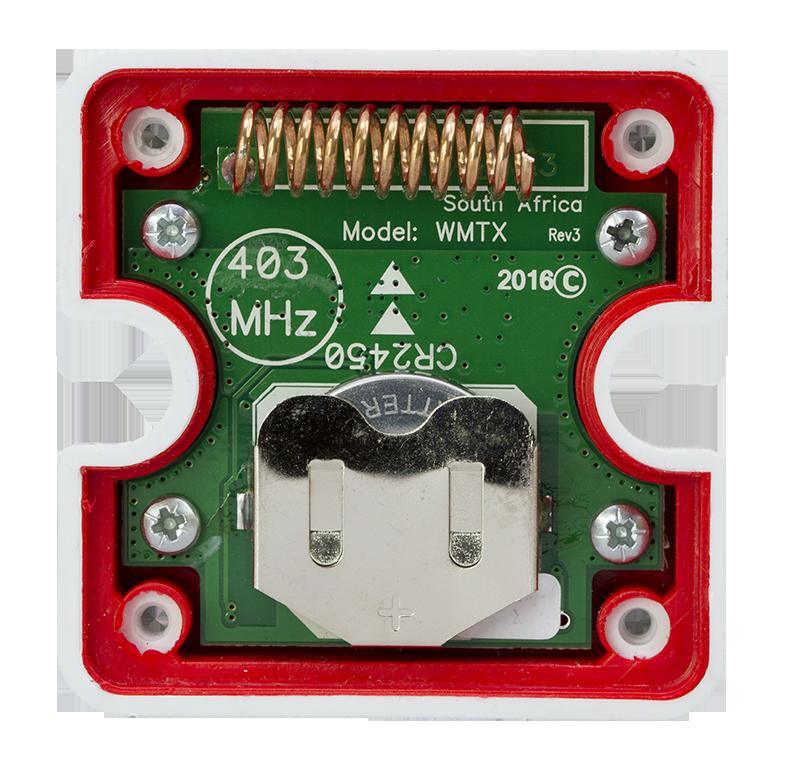

• Model : WMTX
• Encryption type : Code hopping (Dual code)
• Transmission frequency : 403 / 433MHz
• Transmission method : OOk
• Transmission range: 150m (Open air) 40m (indoors)
• Voltage range: 2.0V to 3.6 VDC
• Battery type: CR2450 Lithium
• Sleep mode current consumption:< = 1uA
• Current consumption on TX: < = 20mA
• Operating Temperature: -7C to 49C
• Dimension (lxbxh): 60 x 60 x 25mm
• Gross weight : 55g
