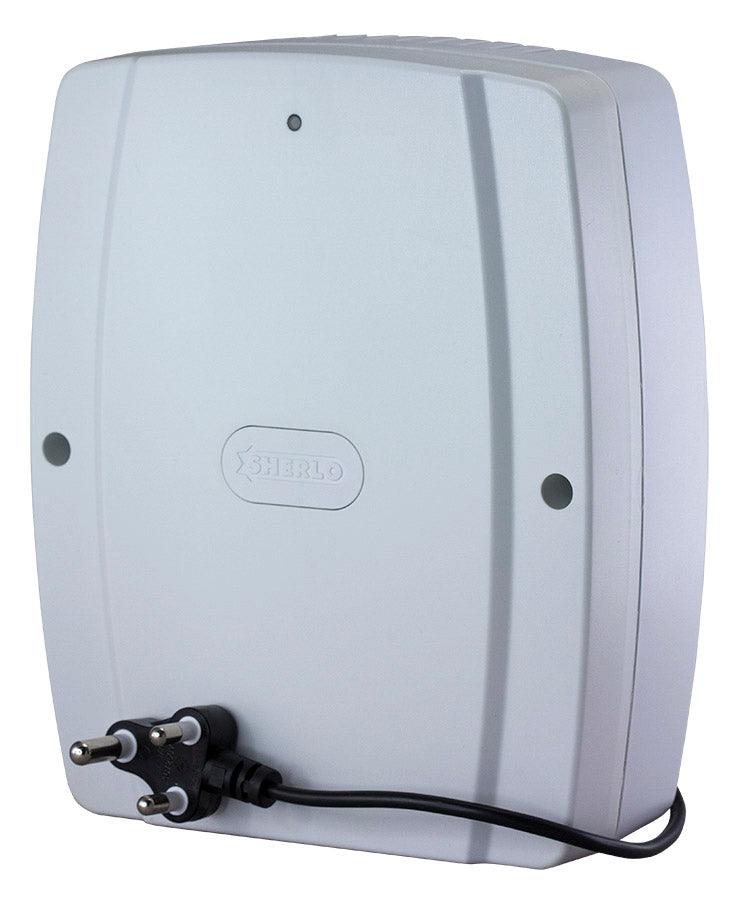

Product Specifications
- Housing Fits Standard 17A/H Battery.
- Microprocessor Controlled Charging Output
- Low battery switches off at 10V DC.
- Tri-color LED Indication
LED colors to indicate the following
GREEN = Mains are on
ORANGE = mains failure, Battery is good
RED = Mains failure battery low (11.5VDC)
OFF = Mains failure batter switched off.
- Buzzer tones on battery low and AC Fail
- Resettable Fuse Protection On Output
- 6x Individually Fused
- ABS Plastic Enclosure
Product Features
- Microprocessor Controlled charging output.
- Low battery switches off at 10V DC.
- Buzzer tones on battery low and AC Fail.
- Resettable Fuse protection on output.
- Fuse protection on AC input.
- ABS Plastic enclosure
Application usage
- Alarm Panel Battery Backup
- CCTV Battery Backup
- Backup Power Supply For Door Controller
- Maglock For An Access Control solutions
Technical Specifications
-
Input Voltage Range: 110V ~ 230V AC 50HZ
-
Output Voltage: 13.8v ~ 14.2v
-
Max Current output: 6.4A DC OR 70 Watts
-
Relay Contact rating: 10A
-
AC Fail output rating: 140mA Positive Switching
-
Operating temp: -3c to 60c
-
Dimensions(lxbxh): 315 x 230 x 100mm
-
Gross Weight:1.30Kg
