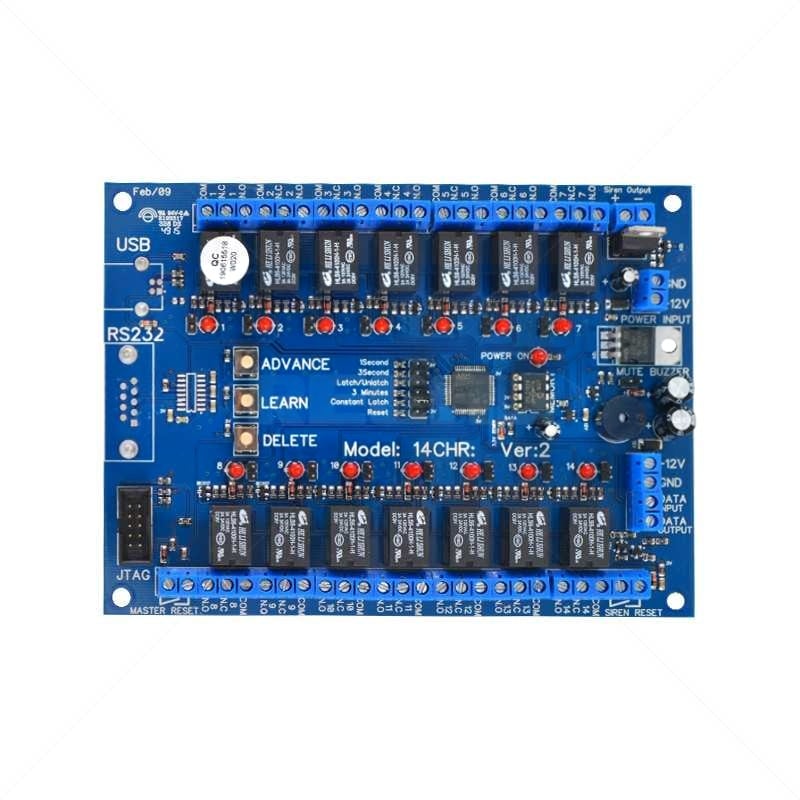

14-Channel Code-Hopping Relay Expander Module
Expand your access control system with this 14-channel relay expander module featuring advanced code-hopping encryption. Requires connection to a compatible data receiver.
Features
-
14 relay outputs: 1A contact rating each
-
Memory: 64 remotes per channel
- Programmable timing: 1 sec, 3 sec, latching, or 3-minute constant latch
- Hardwired reset capability
- Dedicated siren output
- LED outputs with onboard 1kΩ resistors
Technical Specifications
-
Encryption: Code-hopping
-
Input voltage: 12-24V DC
-
Operating temperature: -3°C to 65°C
-
Relay contact rating: 1A
