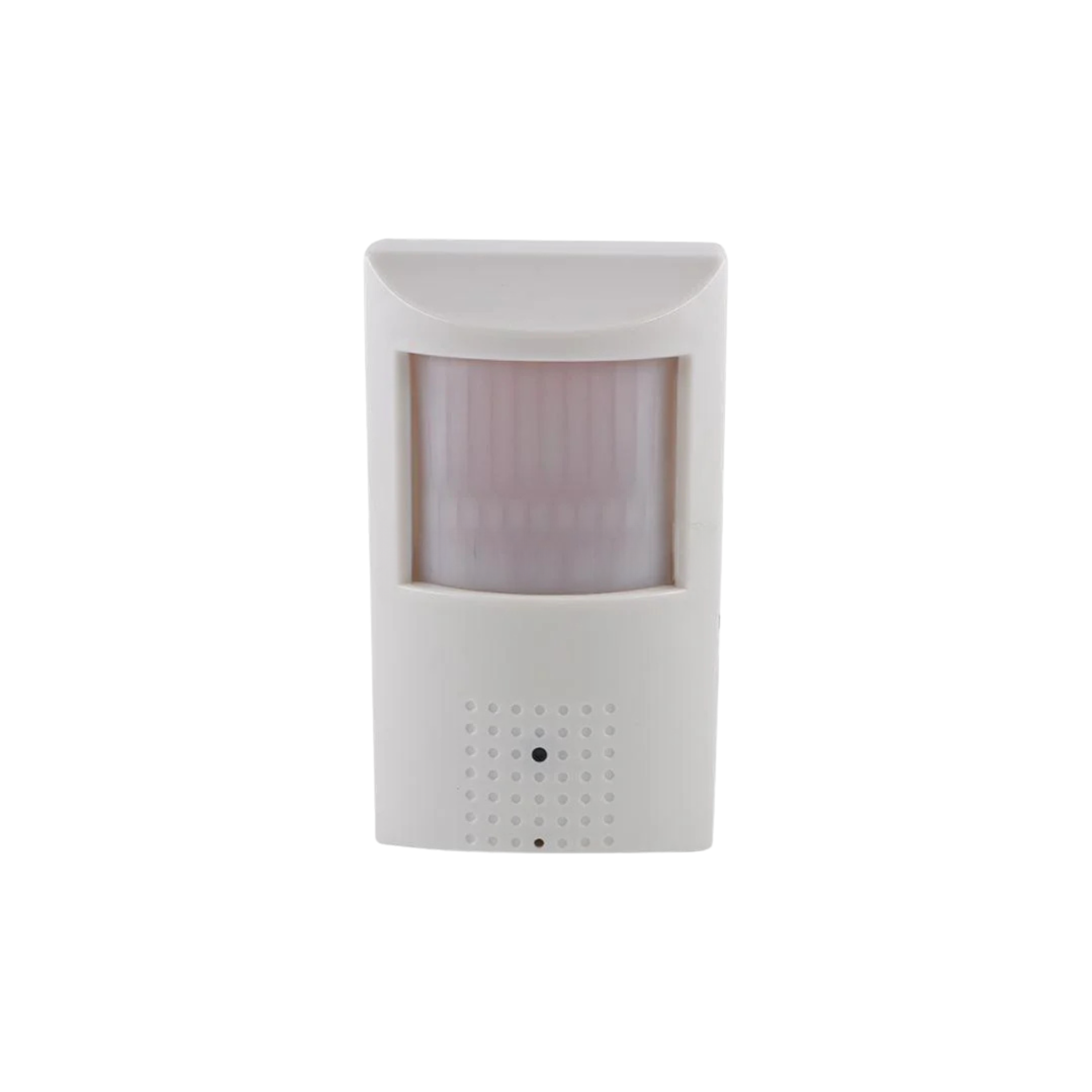

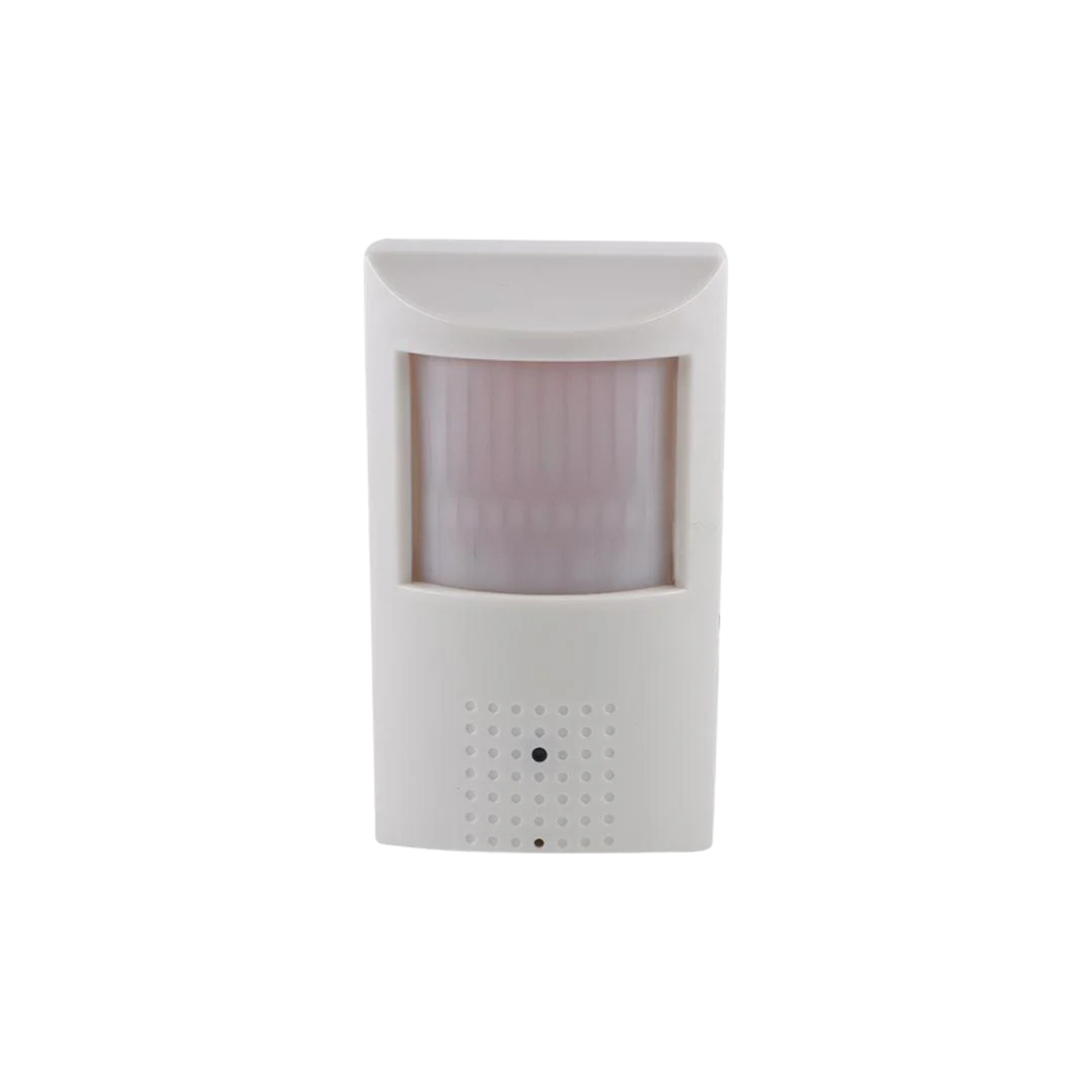

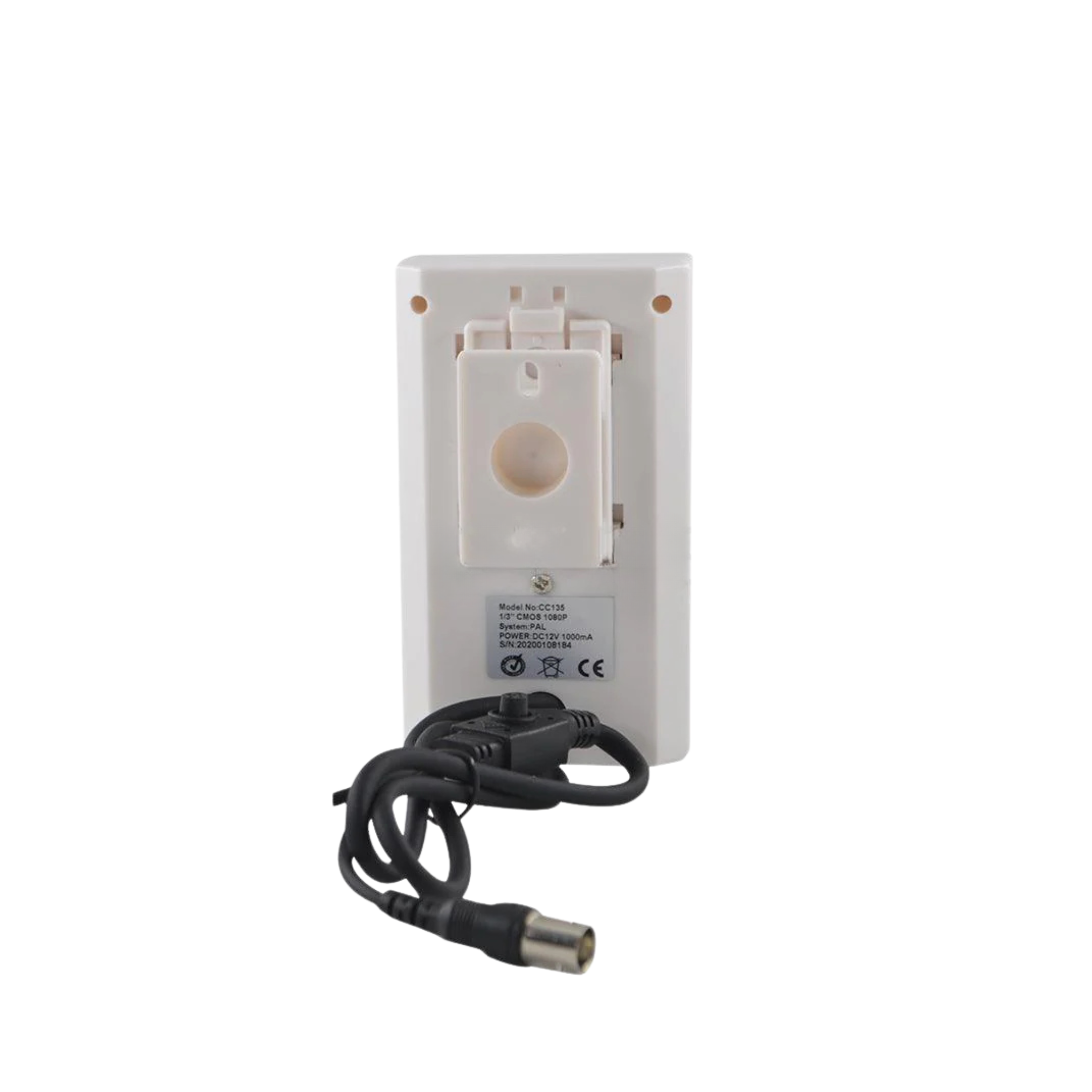

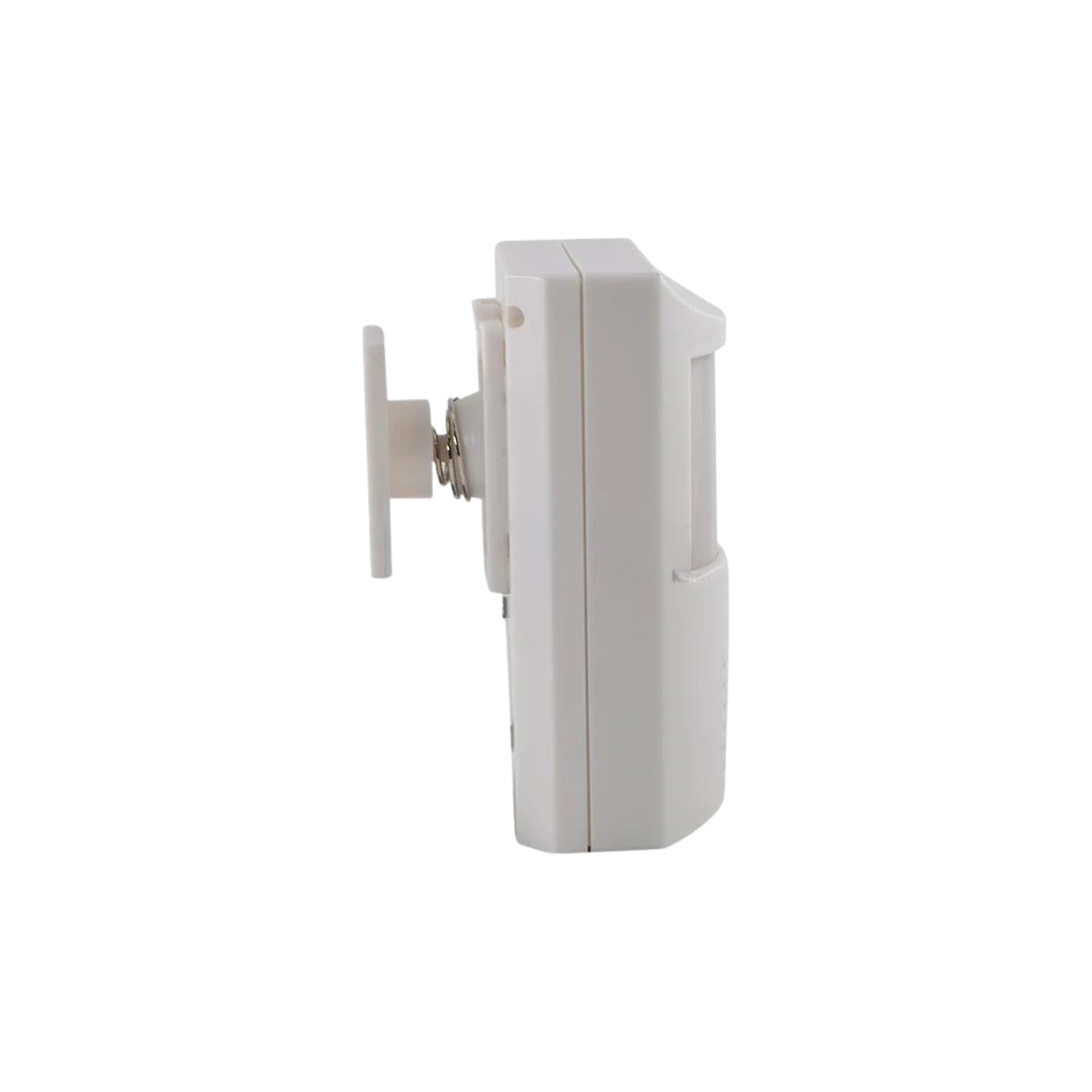

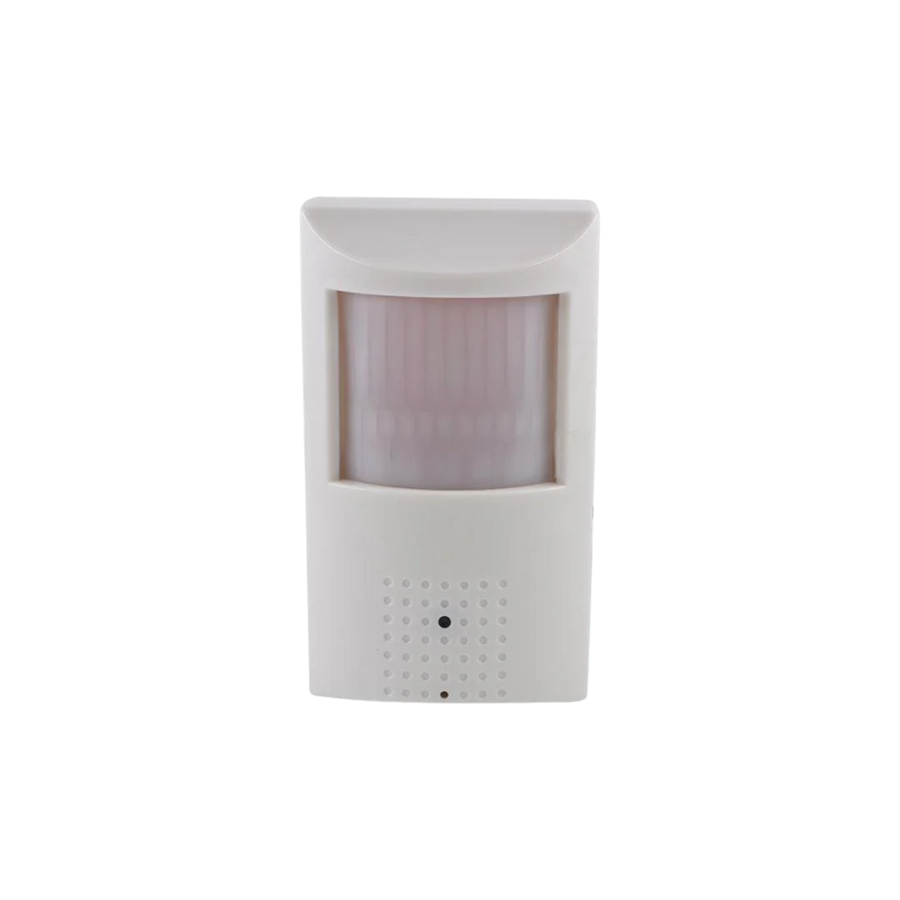

High-definition covert surveillance in a compact form. The Securi-Prod 1080P covert camera features a 3.7 mm pinhole lens with an integrated PIR motion-detector and selectable 4-in-1 video output (AHD, TVI, CVI & CVBS). Ideal for indoor covert or semi-covert security applications, it provides full HD footage while blending into discreet mounting locations.
Why this camera stands out
-
Selectable 4-in-1 video modes: AHD, TVI, CVI or CVBS compatibility allows seamless integration into most HD-analogue CCTV systems.
-
3.7 mm pinhole lens: Offers a wide-angle view while maintaining a compact, unobtrusive profile.
-
1080P resolution: Full HD output for clear images and meaningful detail.
-
Working PIR sensor: Built-in passive infrared motion detection helps trigger recording, alert systems or conserve storage.
-
Tamper and NO/NC contact: Gives your system an alarm-linked feature for tampering detection.
Key specifications
-
Image sensor: 1/3″ IMX322 CMOS sensor
-
Minimum illumination: ± 0.1 Lux @ F1.2
-
Lens: Fixed 3.7 mm pinhole lens
-
Video output: AHD / CVI / TVI / CVBS selectable
-
Operating voltage: 12 V DC (±10%)
-
Operating temperature: -10 °C to +50 °C
-
Dimensions: 90 mm (L) × 60 mm (W) × 50 mm (H)
-
Warranty: 12-month manufacturer limited warranty
Typical applications
- Covert indoor surveillance in retail, offices or private spaces
- Hidden or discrete camera installations where minimal profile is needed
- Supplementing HD-analogue CCTV systems with a low-footprint camera
Installation instructions
- Confirm power supply is stable 12 V DC with proper current rating and wiring.
- Mount the camera where the 3.7 mm pinhole lens has line of sight to your desired field of view and the PIR sensor can detect motion.
- Ensure the recorder or DVR is set to the correct video format matching your system (AHD/TVI/CVI/CVBS).
What’s in the box
- 1 × Securi-Prod 1080P Camera with Working PIR — 3.7 mm lens (4-in-1)
