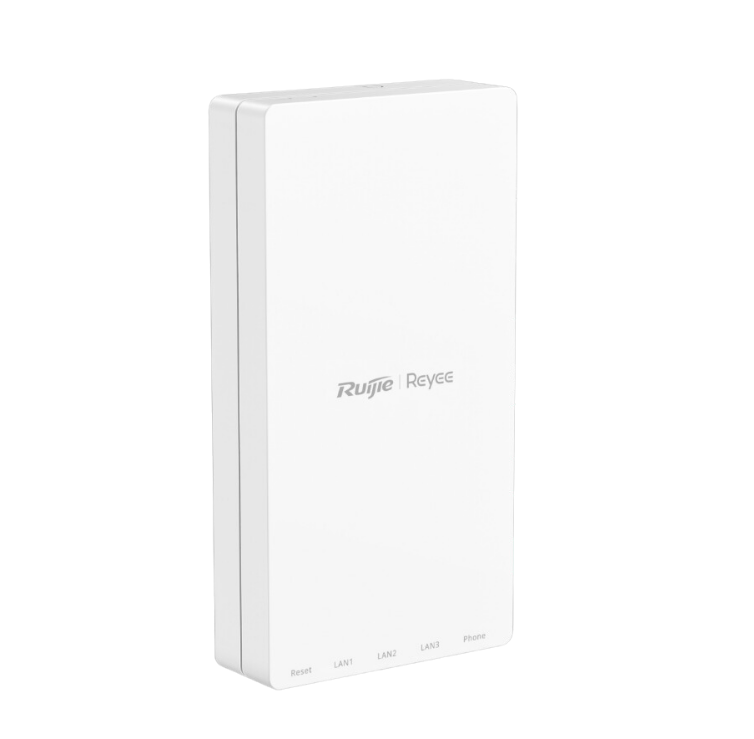

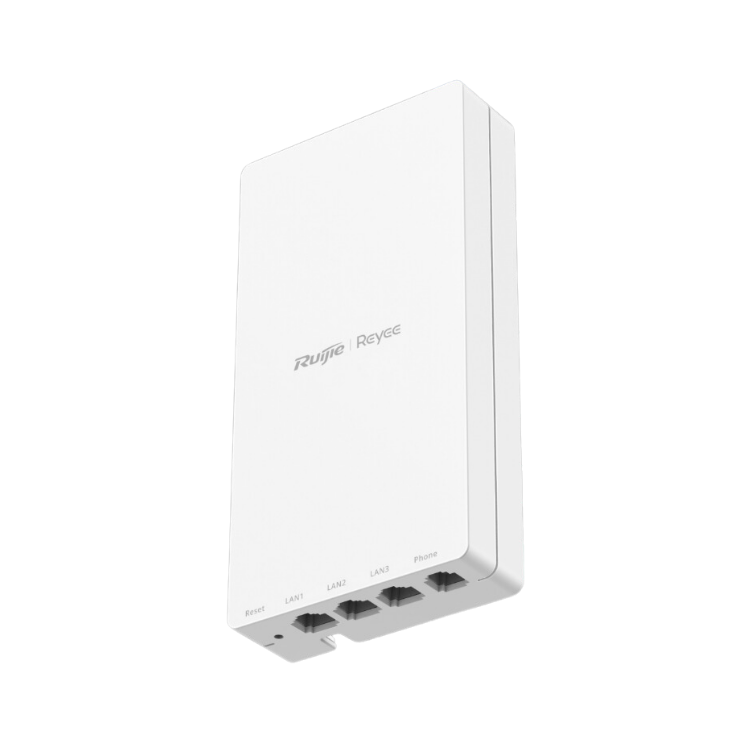

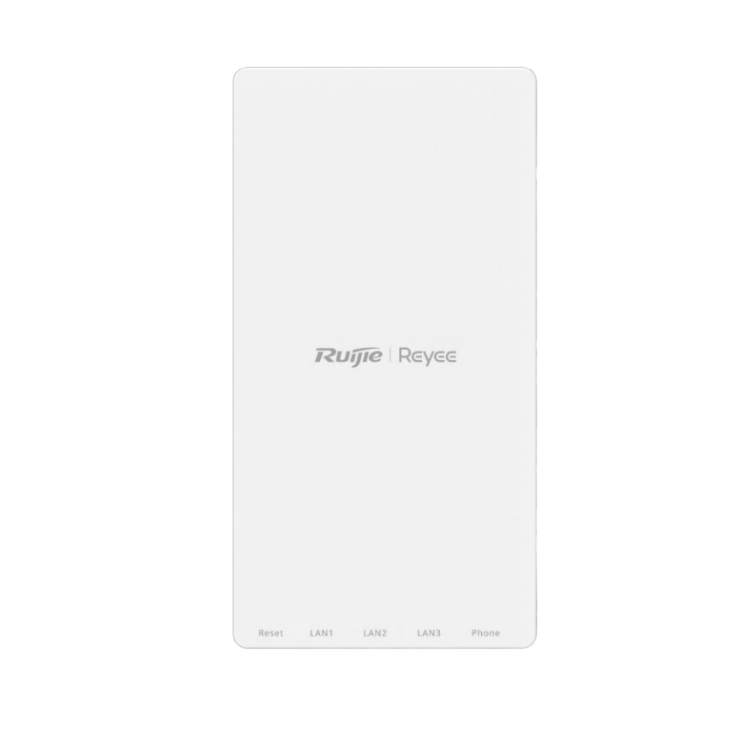

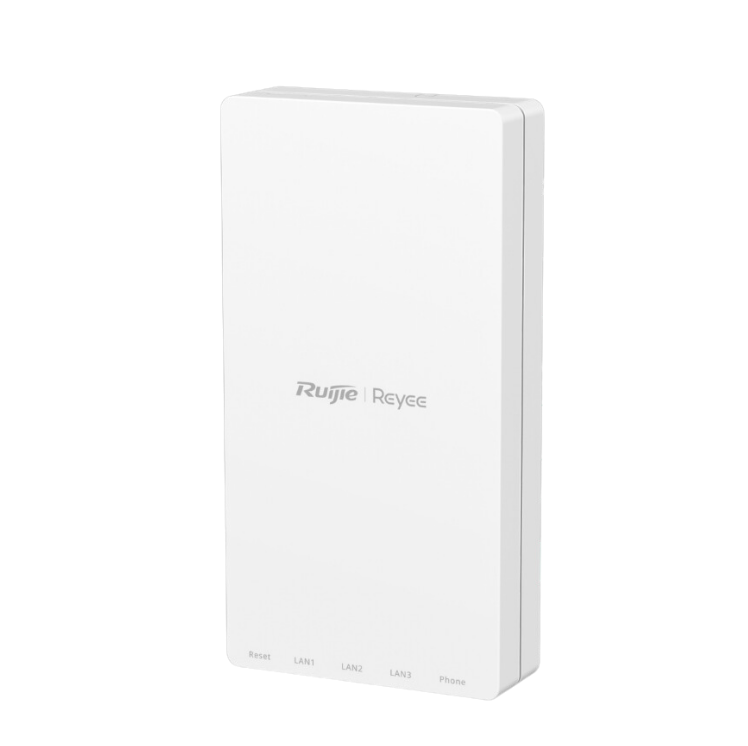

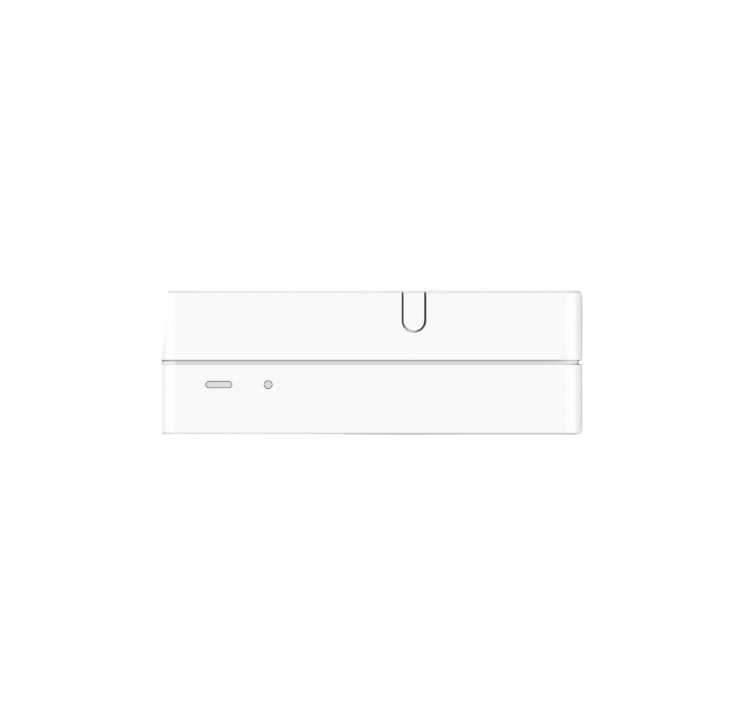

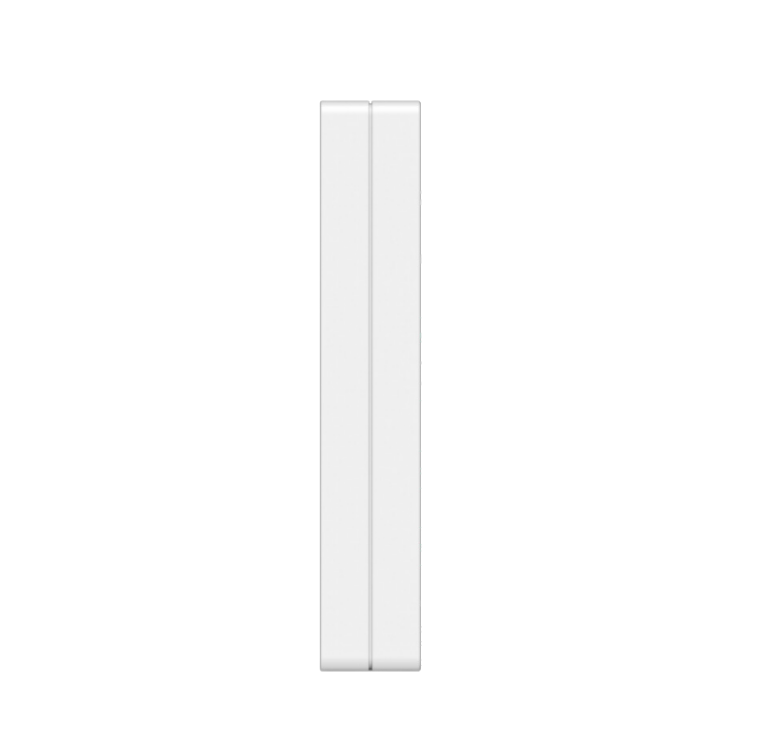

RUJIE 5GHZ AC1200 PRE PAIRED KIT
Discover the incredible capabilities of the RUJIE 5GHZ AC1200 PRE PAIRED KIT. This powerful access point is designed to support multiple services such as Wi-Fi, IPTV, and telephony over a single fiber connection.
With AI-driven roaming between Ethernet and e-Lighten APs, smooth connectivity is guaranteed, making it perfect for hotels, resorts, and educational institutions. Easily deploy and manage the device through Ruijie Cloud, allowing for centralized control of network configuration, monitoring, and troubleshooting.
Plus, customizable battery options allow for extended use, making network infrastructure simpler and delivering reliable, high-speed wireless performance.
FEATURES:
-
Passive Optical Networking Support
-
Integrating Phone, IPTV, and Wi-Fi Services
- Wi-Fi 5, AC1200
- AI Roaming
- Free Cloud Management
SPECS:
Wireless Data Rate |
2.4 GHz: 300 Mbps, 5 GHz: 867 Mbps, Max: 1167 Mbps |
Number of Spatial Streams |
2.4 GHz: 2x2 MIMO, 5 GHz: 2x2 MIMO |
2.4 GHz Wi-Fi Protocols |
Wi-Fi 4: IEEE 802.11b/g/n |
5 GHz Wi-Fi Protocols |
Wi-Fi 4: IEEE 802.11a/n, Wi-Fi 5: IEEE 802.11ac Wave 2 |
2.4 GHz Recommended Wi-Fi Range |
15 m (49.21 ft.) |
5 GHz Recommended Wi-Fi Range |
15 m (49.21 ft.) |
Dimensions (W x D x H) |

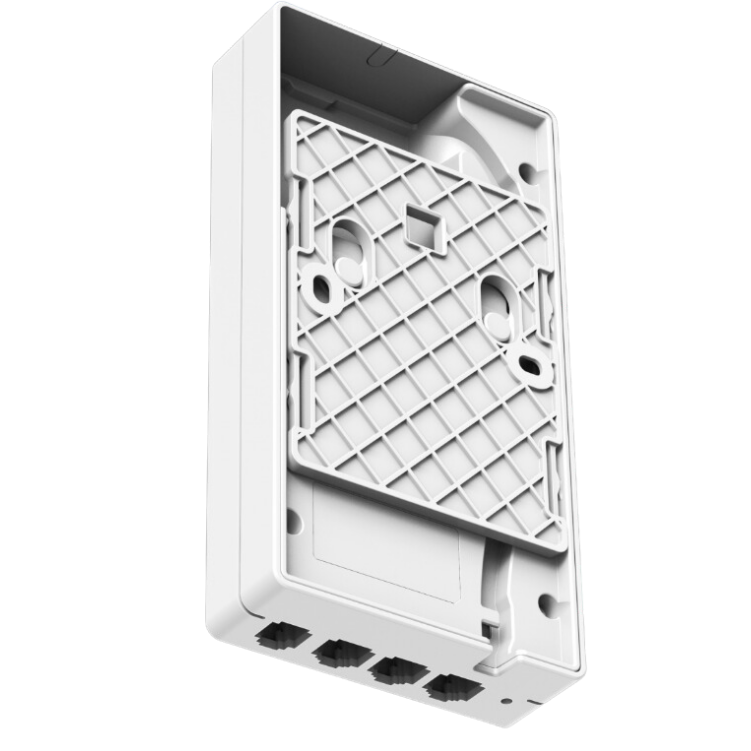

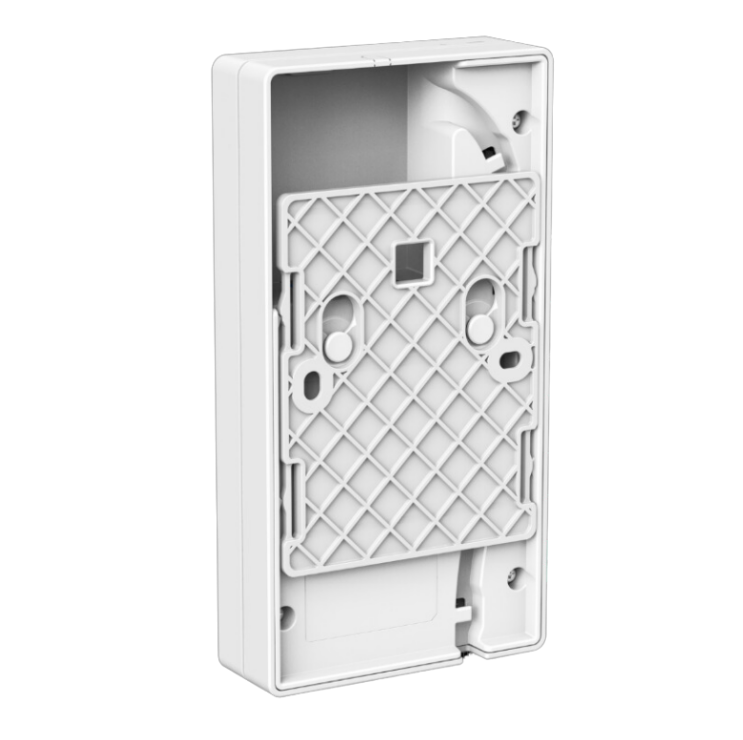

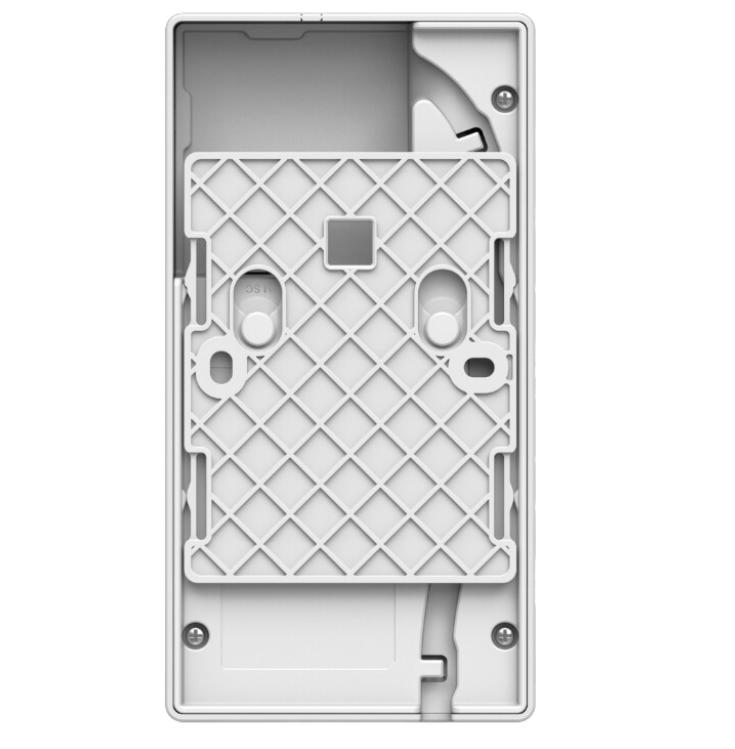

165 mm x 86 mm x 29 mm (6.5 in. x 3.39 in. x 1.14 in.) excluding mounting bracket |

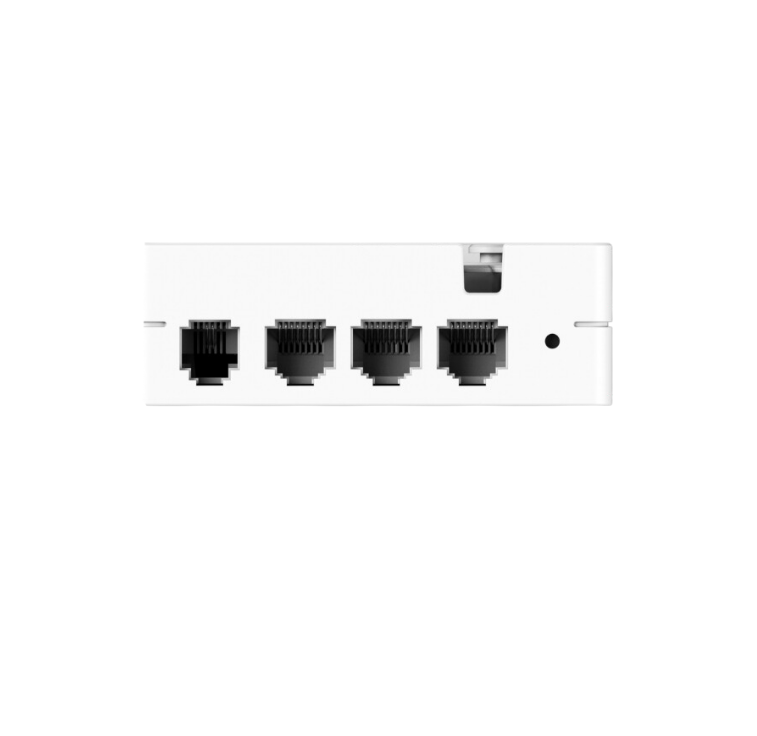

Phone & IPTV Ports |
0 (Transparent Transmission Ports) |
Power Supply Options |

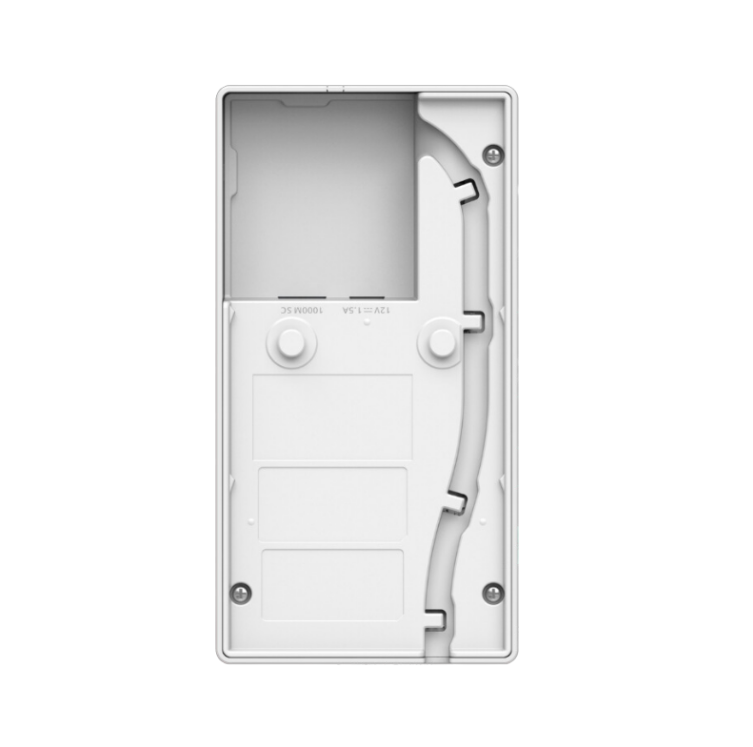

DC: 12 V/1.5 A |
Max. Power Consumption |
< 12.95 W |
Operating Temperature |
0°C to 40°C (32°F to 104°F) |
Recommended Wireless Client Load |
32 (8 on 2.4 GHz, 24 on 5 GHz) |
AP Group |
Yes, max. 8 AP groups |
Client Disconnect (Low RSSI) |
Yes |
Multi-Link Operation (MLO) |
No |
MRU (Multiple Resource Units) |
No |
WMM (Wi-Fi Multimedia) |
Yes |
Wireless Intelligent Optimization (WIO) |
Yes |
Quick Roaming (802.11r) |
No |
AP Portal Authentication |
No |
Password Authentication |
No |
Max. Blocklists/Allowlists per WLAN |
256 |
Max. Blocklists/Allowlists per SSID |
256 |
Global Blocklists/Allowlists |
256 |
SSID-based Blocklist/Allowlist |
Yes |
Default Login Address/Password |
One-Device: 10.44.77.254/eweb.ruijie.com.cn; Network-wide: 10.44.77.253/Password: admin |
Management via Web Interface |
Yes |
Management via Ruijie Reyee App |
Yes |
Management via Ruijie Cloud |
Yes |
