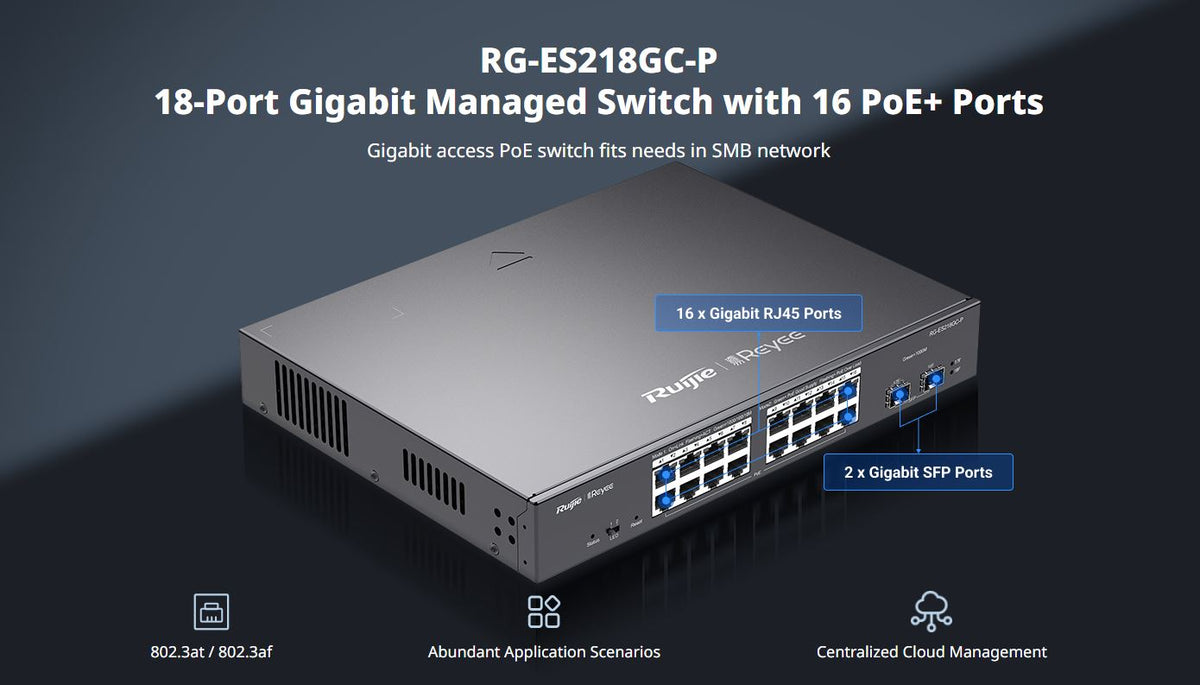

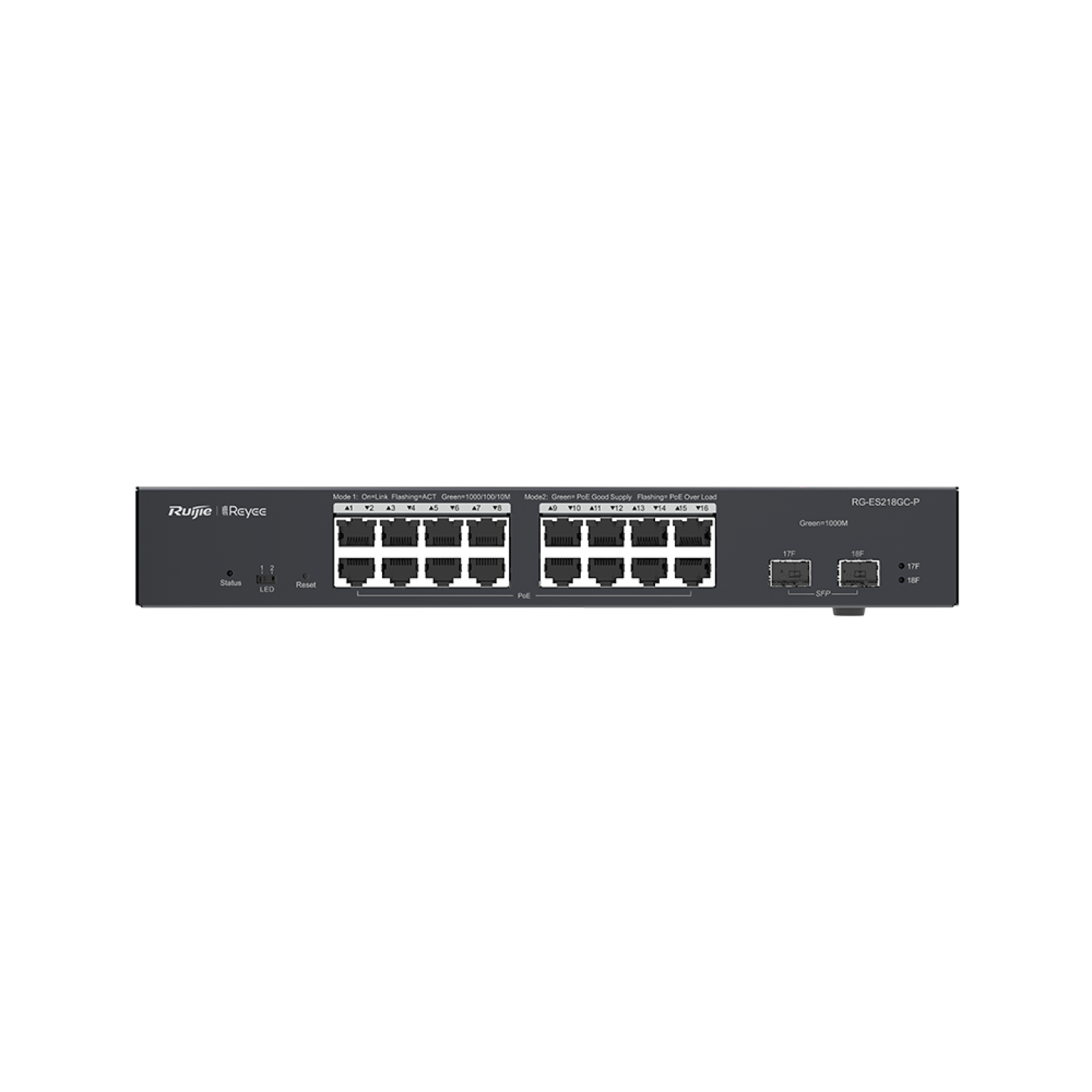

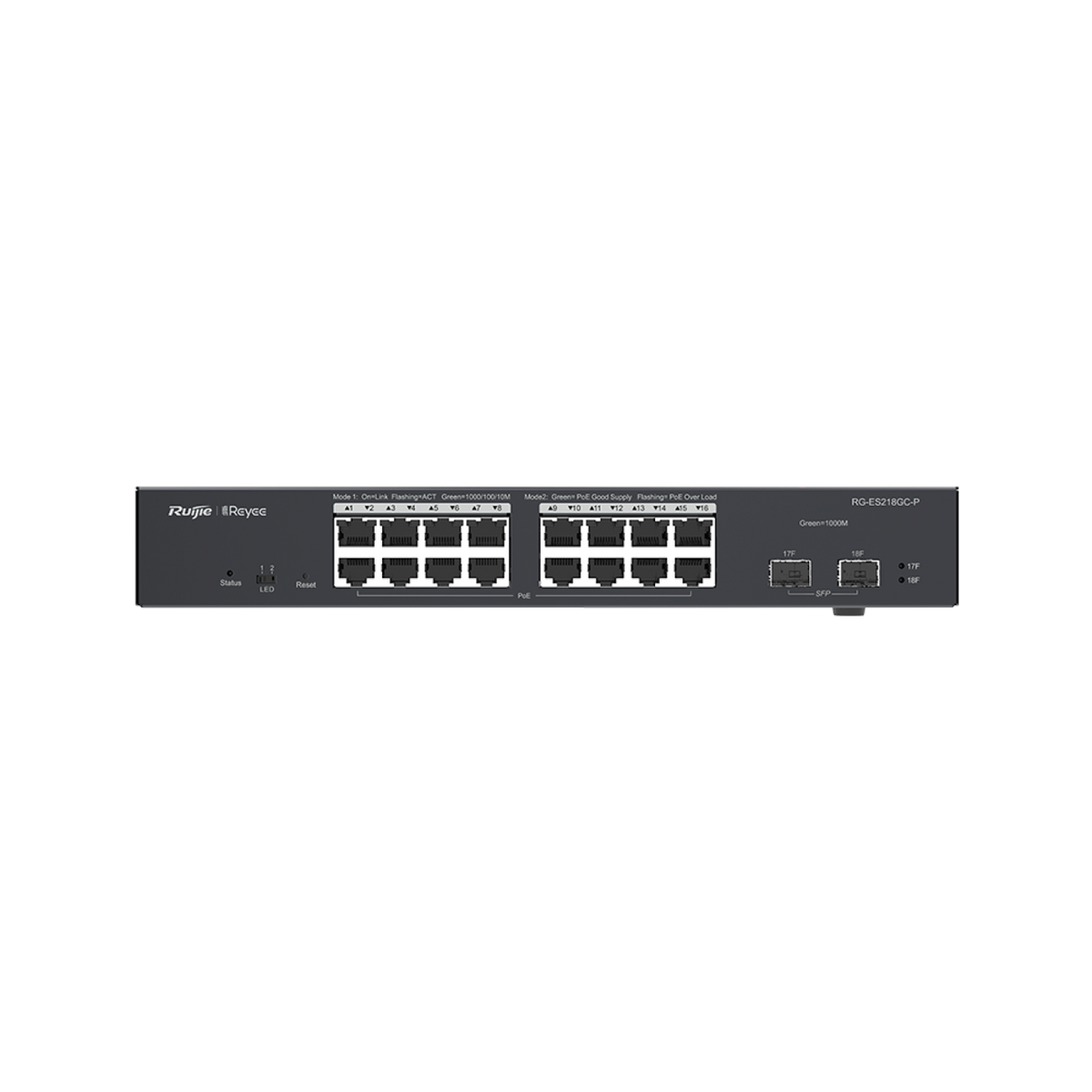

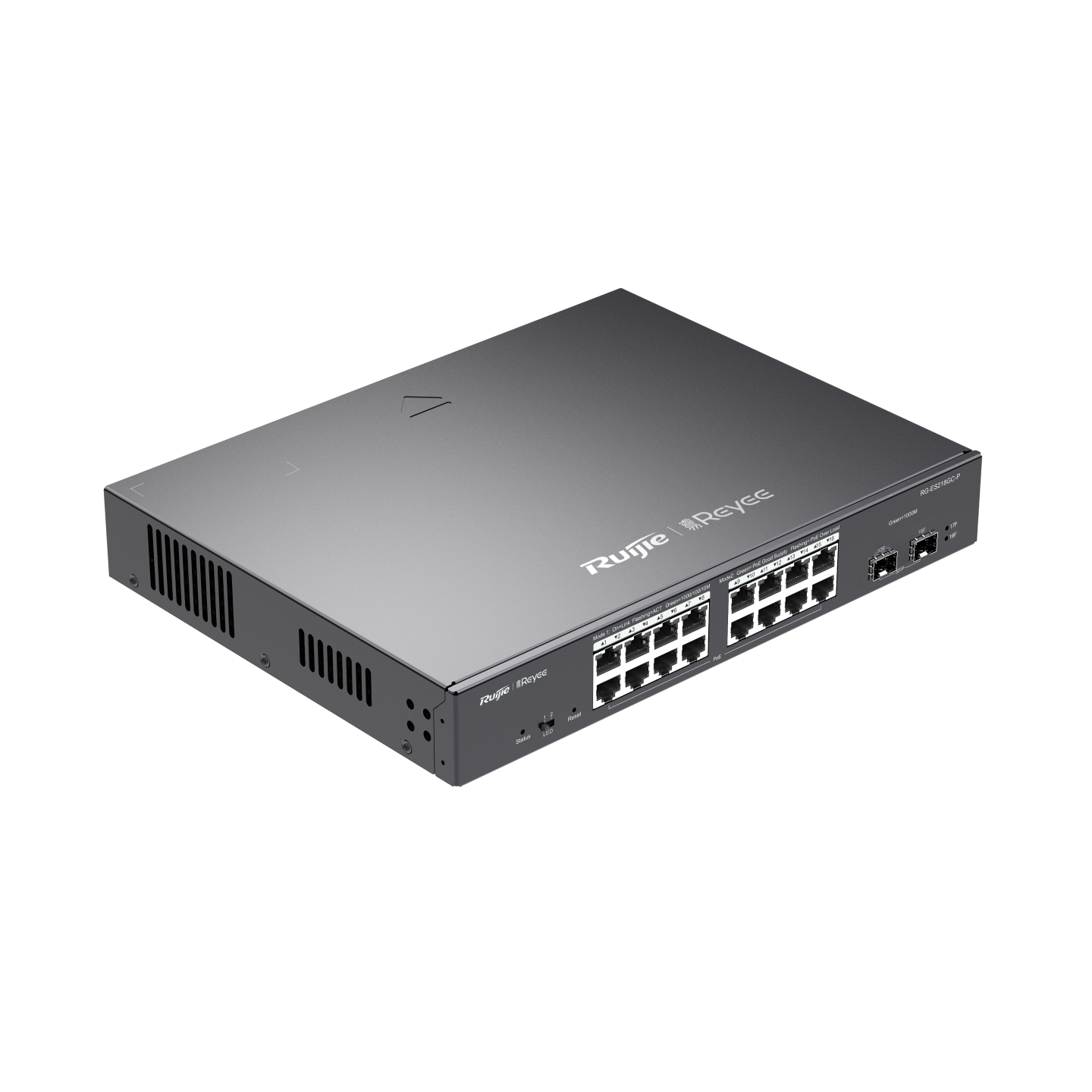

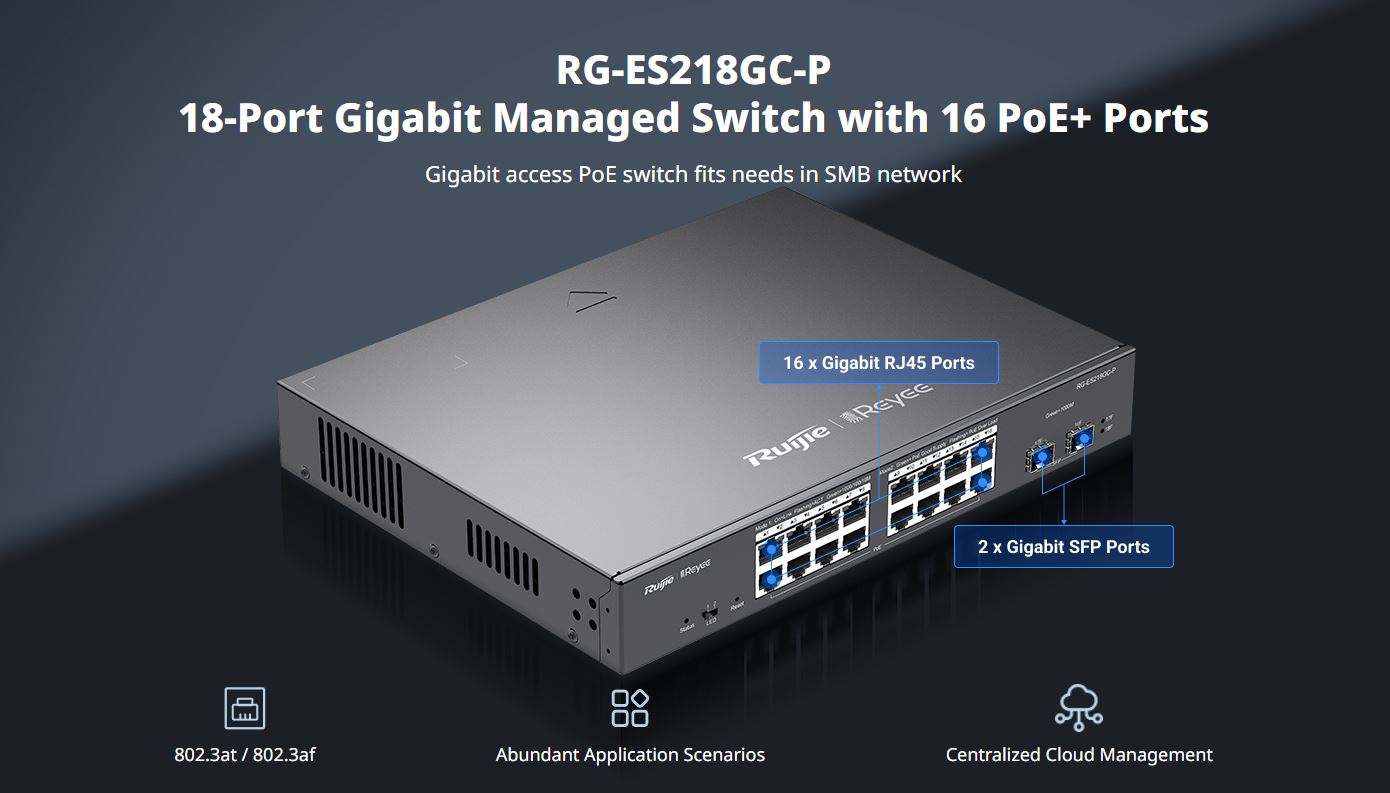

RG-ES218GC-P 18-Port Gigabit Smart Cloud Managed PoE Switch
Secure, smart and streamlined switching for CCTV networks. The RG-ES218GC-P is an 18-port gigabit cloud-managed switch with 16 PoE+ ports and a 240 W PoE budget. Built for CCTV and small-business surveillance, it gives installers and homeowners remote management, IP-camera optimization and extended-distance transmission for reliable uptime.
Why installers and homeowners choose this switch
-
Power and simplicity: 16 × PoE+ ports (240 W total) to run multiple IP-cameras without extra injectors.
-
Remote management: Cloud-managed platform for monitoring, provisioning and troubleshooting from anywhere.
-

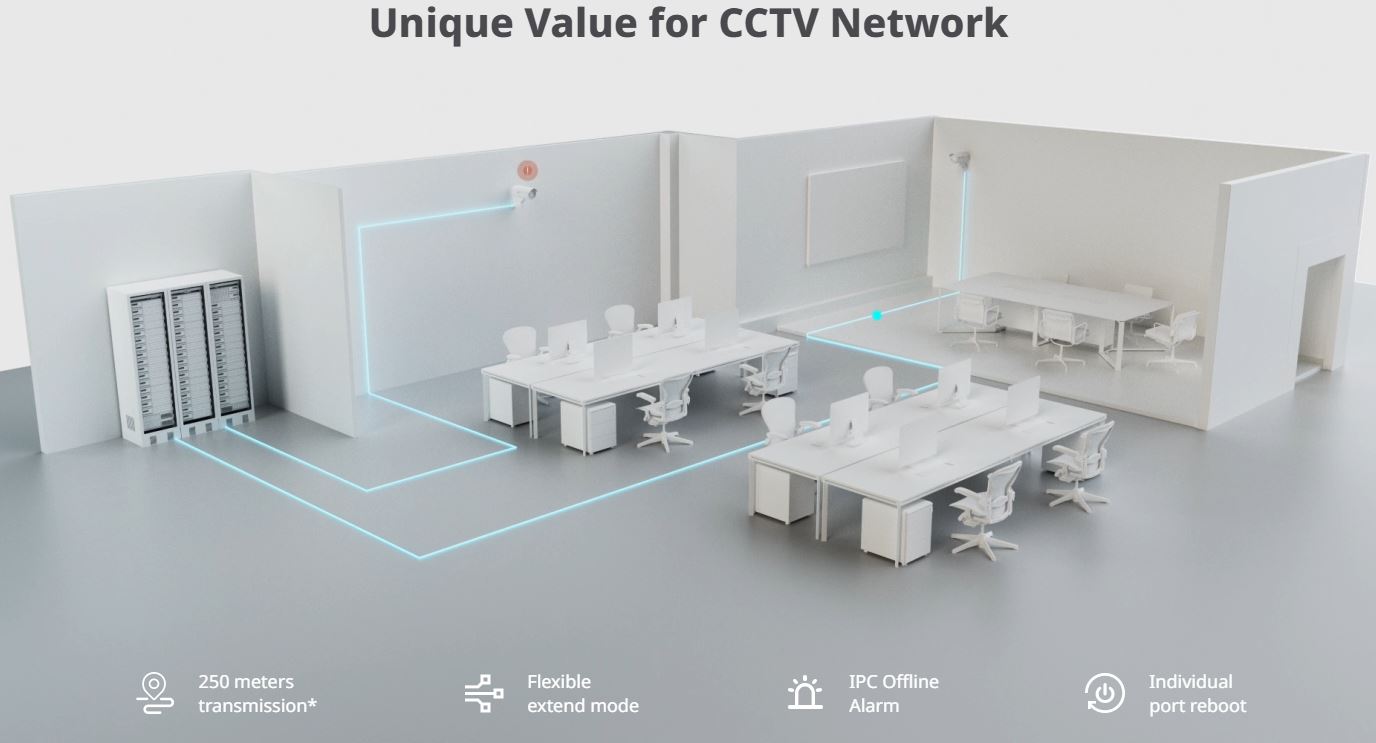

CCTV-optimized features: IP-camera recognition, extended 250 m transmission mode and individual port reboot for fast recovery.
-
Scalable performance: Gigabit traffic, SFP uplinks and 36 Gbps switching capacity to support higher-resolution cameras and future expansion.
-
Resilience: Automatic loop prevention and cloud alerts reduce downtime and help protect your investment.
Specifications & features
| Model |
RG-ES218GC-P |
| PoE ports |
16 × 10/100/1000 Base-T RJ45 (PoE/PoE+) |
| Uplink |
2 × 1 G SFP ports |
| PoE budget |
240 W total |
| Switching capacity |
36 Gbps |
| Forwarding rate |
26.8 Mpps |
| Extended transmission |
Up to 250 m mode for longer camera runs |
| Management |
Cloud-managed with zero-touch provisioning, logging and alerts |
| Environmental |
Operating temp: 0 °C to 40 °C |
| Warranty |
3 year warranty |
| Package size & weight |
419 mm × 301 mm × 123 mm; ≈ 3.5 kg |
Suitable for
-
Residential CCTV: Power multiple outdoor and indoor cameras (entry gate, garage, yard, pool) and link to an NVR or cloud service.
-
Small retail & offices: Reliable surveillance for stores, offices and workshops with fibre or Ethernet uplinks.
-
Installers: Fast deployment with camera auto-recognition and individual port reboot to reduce site visits.
Quick installation tips
- Mount the switch in a ventilated rack or cabinet and label each PoE port by camera zone for faster maintenance.
- Use CAT6/CAT6A for best performance, especially when using extended-distance mode (up to 250 m).
- Enable VLANs to separate CCTV traffic from office or guest Wi-Fi for improved security and performance.
- Use a UPS and surge protection at the switch if your area experiences load-shedding or frequent power surges.
Frequently asked questions
Can this switch power any modern IP camera?
Yes — it supports 802.3af and 802.3at (PoE+), covering most cameras including those with heaters and IR. Check each camera's power draw to ensure the total does not exceed the 240 W budget.
Is extra software or license needed?
No extra license is required for basic cloud management. Provisioning, monitoring and remote configuration are handled via the manufacturer's cloud platform.
Can I mix CCTV and office data on this switch?
Yes — mixing is possible. For best performance and security, configure VLANs to keep CCTV traffic separate from office or guest networks.
Is it reliable for South African power conditions?
The unit operates on standard supply voltages. For South African conditions we recommend using a UPS and surge protection to guard against load-shedding and transient surges.
Ready to strengthen your CCTV network? Add the RG-ES218GC-P to your cart now to power and manage up to 16 cameras from a single, cloud-ready switch — built for installers and homeowners who want dependable, low-maintenance surveillance.
What's in the Box
- 1 x RG-ES218GC-P.18-PORT GIG SMART CLOUD MANAGED POE
