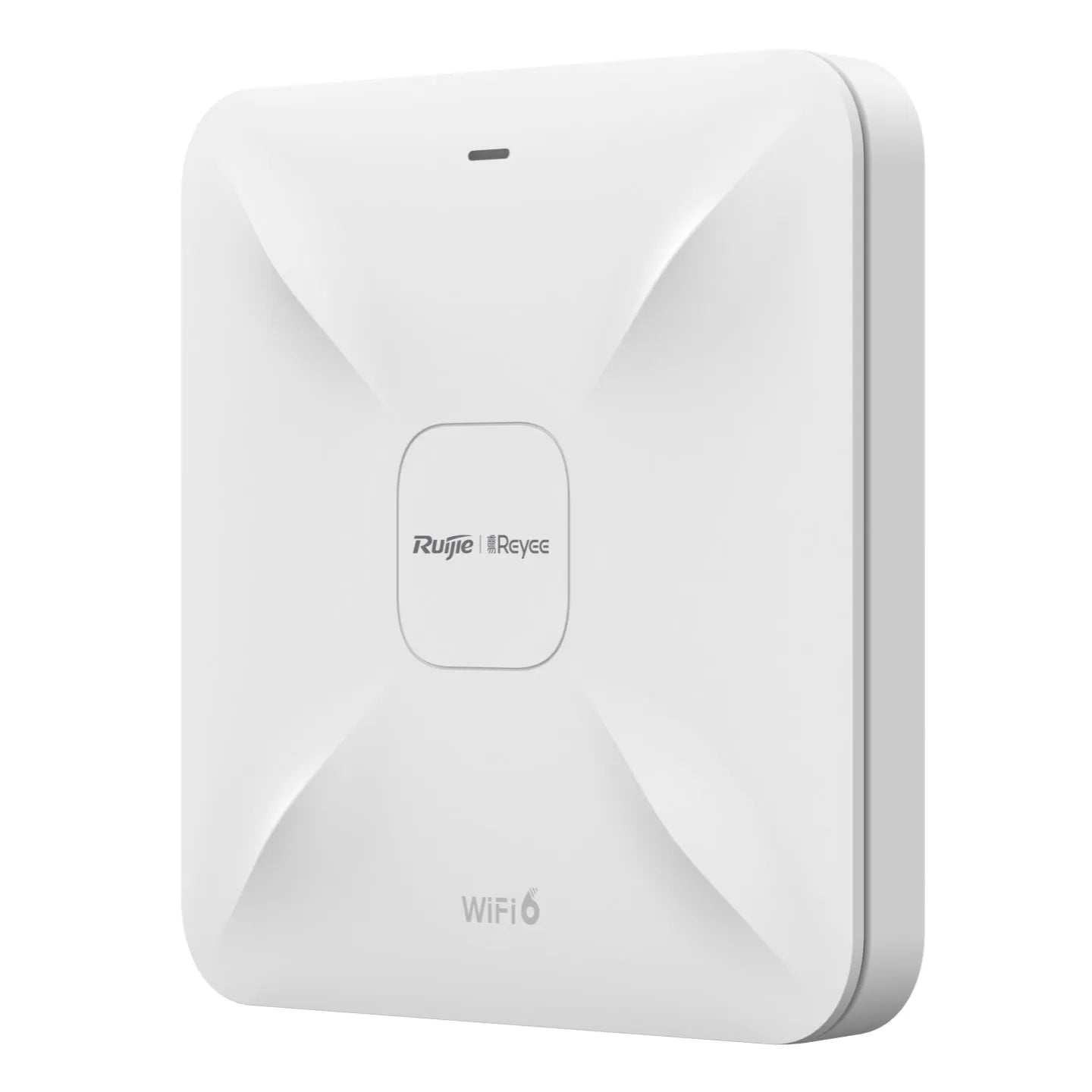

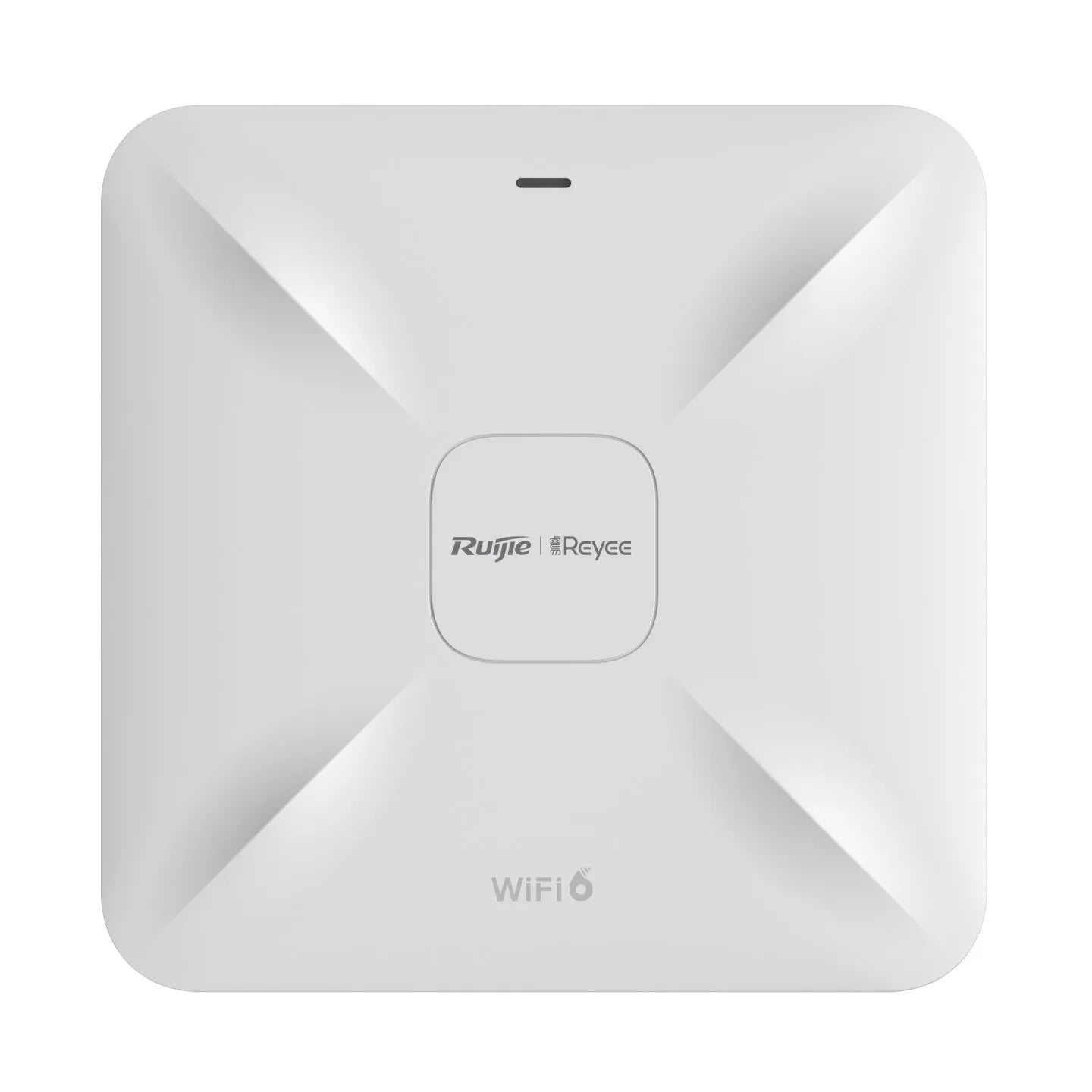

Ruijie Reyee RG‑RAP2260(G) AX1800 Ceiling Access Point
The RG‑RAP2260(G) brings powerful Wi‑Fi 6 (802.11ax) performance to indoor ceiling installations. Offering up to 1.775 Gbps of combined dual‑band throughput, this robust access point is ideal for busy offices, schools, retail, and service environments. Client‑friendly features like cloud-based setup, Reyee Mesh compatibility, and high client capacity make it a flexible and reliable networking solution.
Key Features & Specifications
Wi‑Fi Standard & Speed: Supports 2×2 Wi‑Fi 6 with combined throughput of up to 1.775 Gbps (574 Mbps @ 2.4 GHz; 1 201 Mbps @ 5 GHz)
Dual‑Band MU‑MIMO: 2×2 spatial streams on both bands for efficient multi-user performance
Client Capacity: Supports up to 512 clients, with around 100 recommended for optimal performance

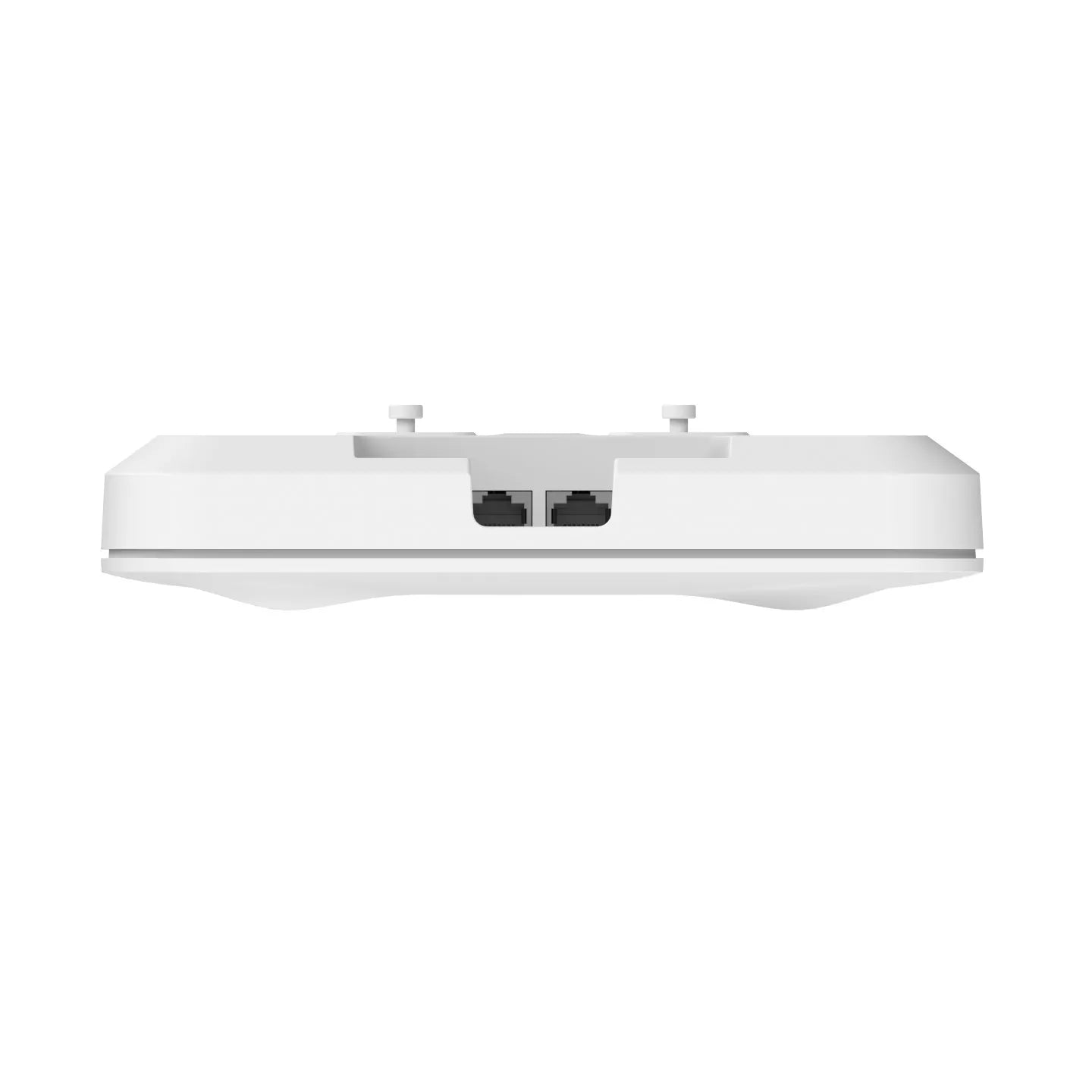

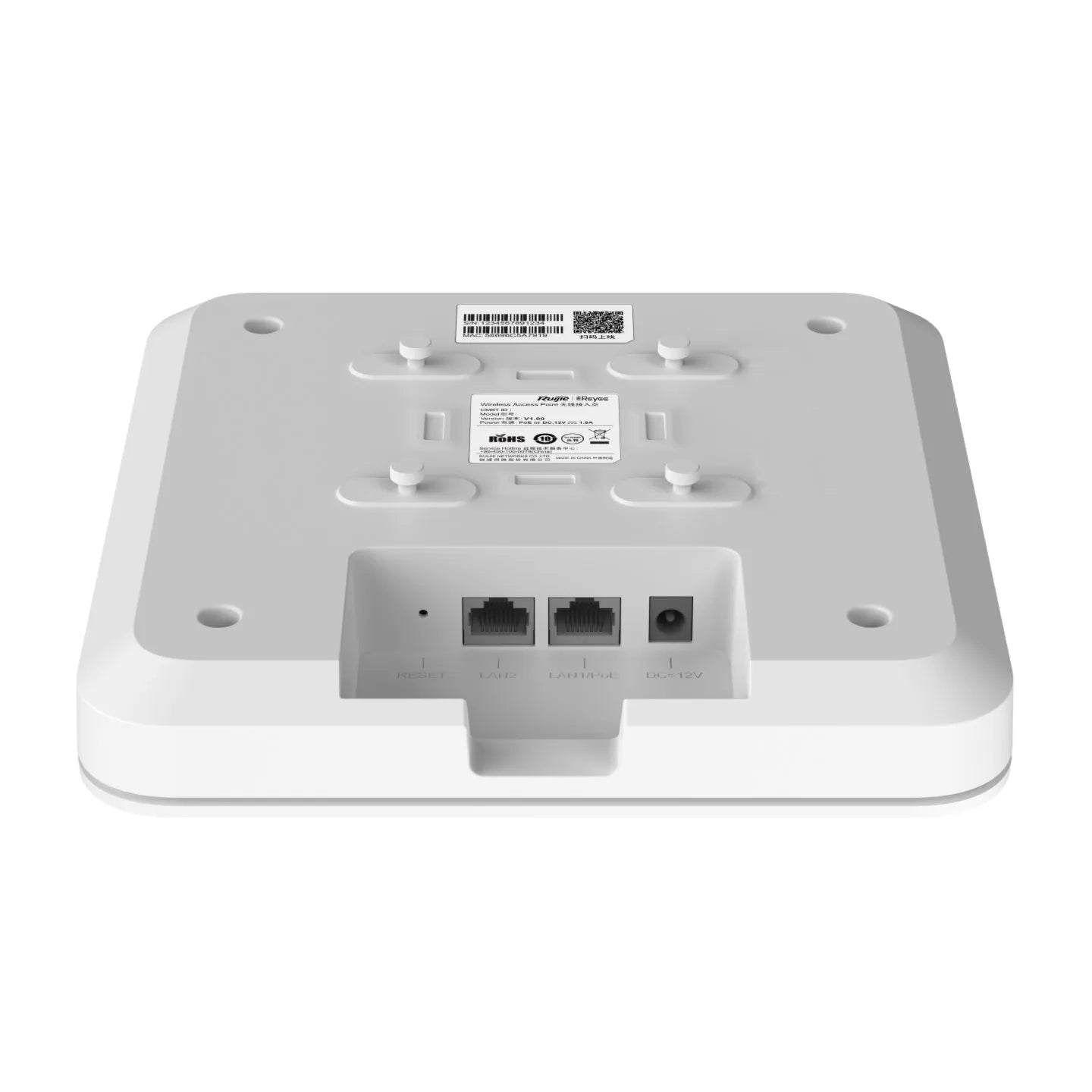

LAN Ports & PoE: Dual Gigabit Ethernet uplinks; supports 802.3at PoE or 12 VDC power
Coverage & Antennas: Built-in omnidirectional antennas (3 dBi each) with reflective aluminum panel for enhanced indoor coverage
Battery & Power Usage: Consumes under 15.5 W
Form Factor: Compact ceiling design (194 × 194 × 35 mm), weighing ~0.56 kg—fits standard ceiling mounting systems
Advanced Features: Supports Reyee Mesh, Layer‑3 roaming, VLAN, QoS, WPA3/WPA2, and Roaming (802.11k/v/r)
Durability & Certification: Flame-retardant casing, CE/ROHS approved; operates reliably from 0–40 °C
What’s in the Box
1 × Ruijie Reyee RG‑RAP2260(G) Ceiling Access Point
1 × Ceiling/Pole Mount Bracket
1 × Quick Start Guide
