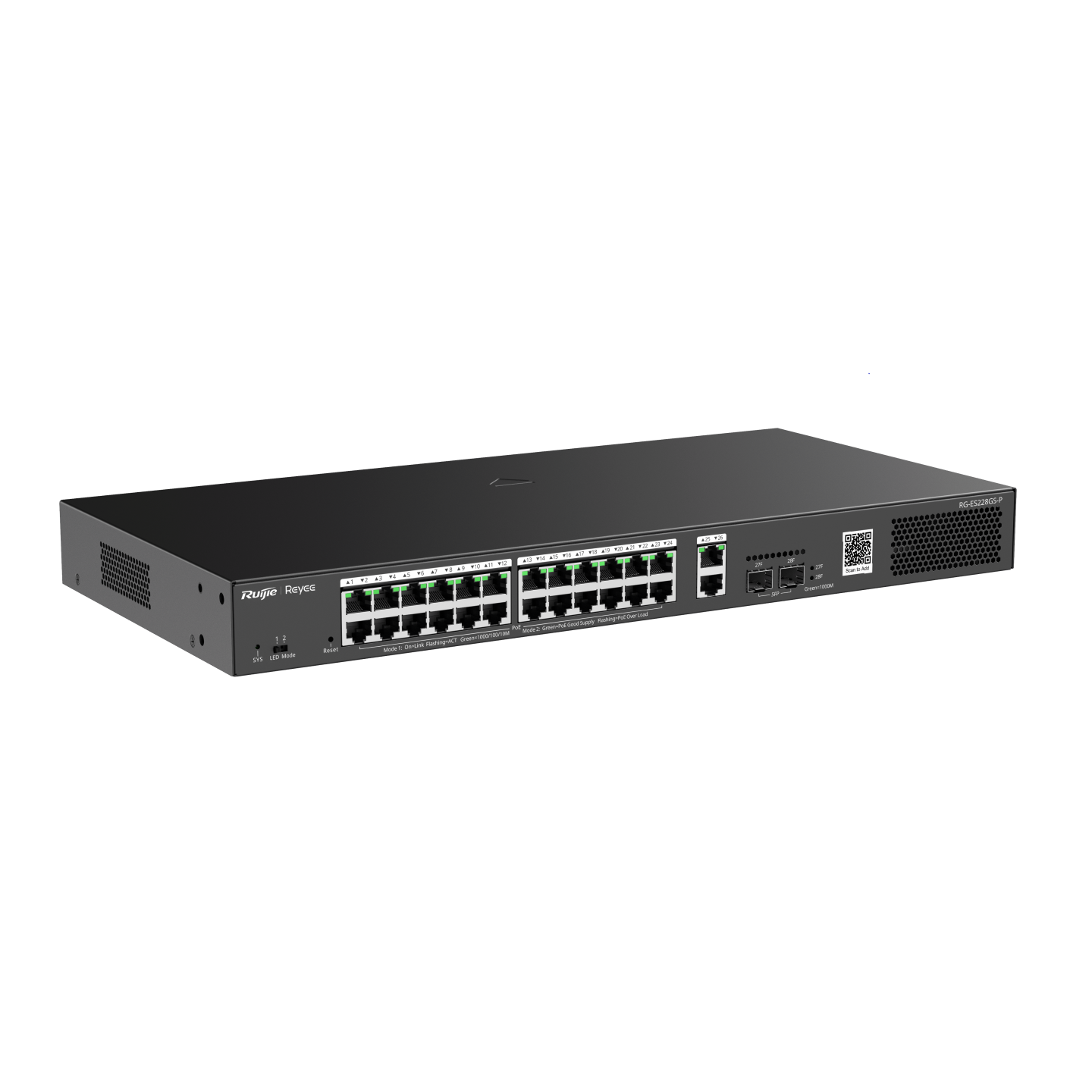

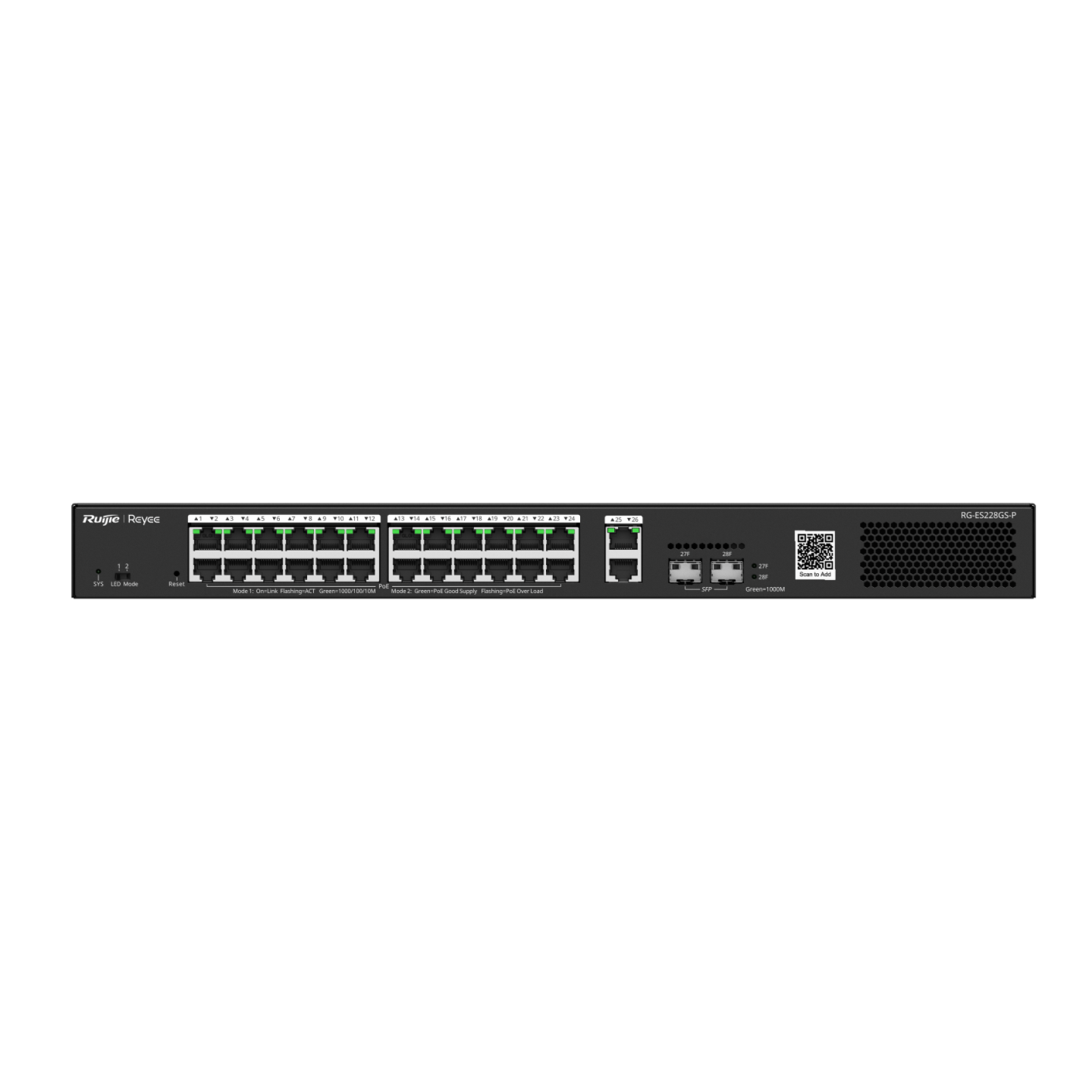

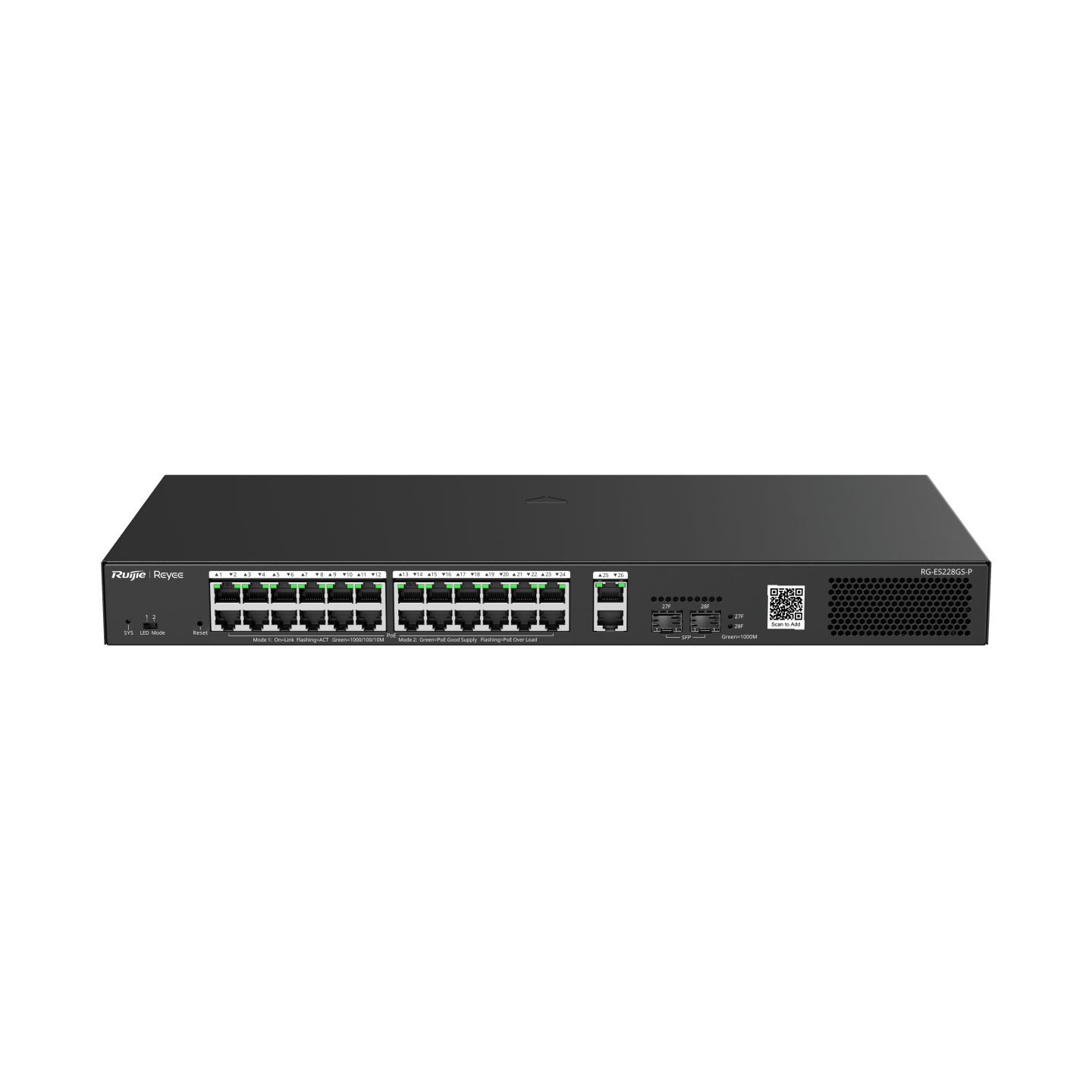

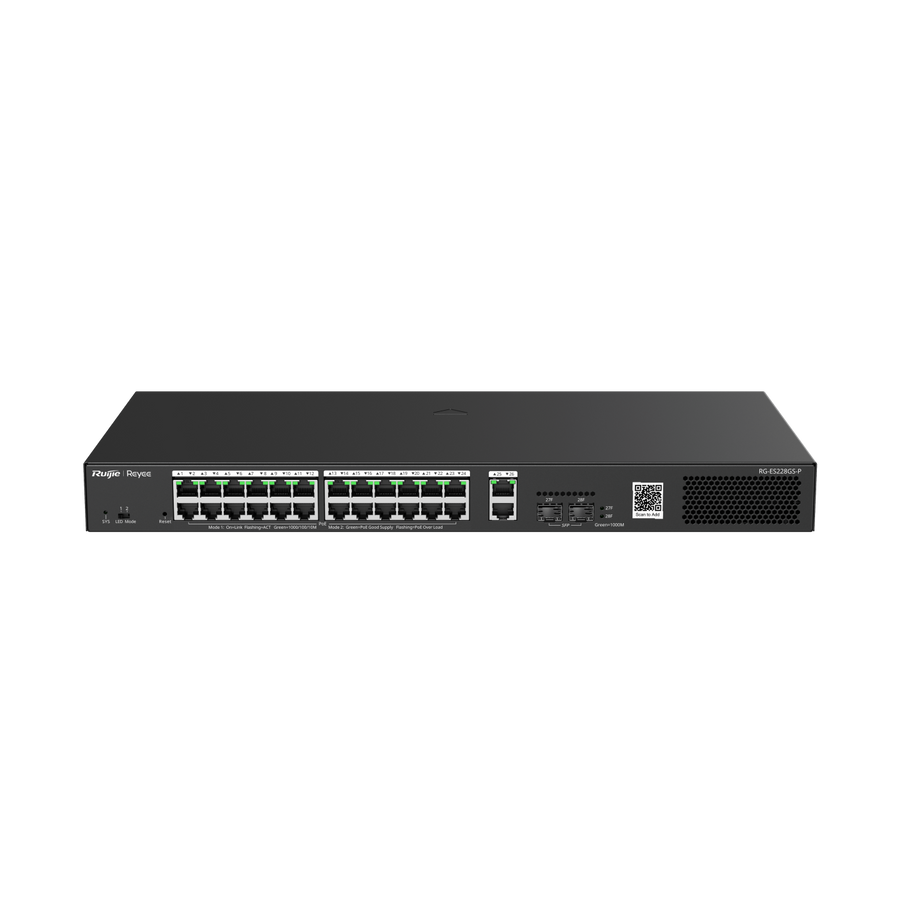

REYEE 28‑Port Gigabit Smart Cloud‑Managed PoE Switch
High‑performance switching for CCTV, Wi‑Fi & business networks
This Reyee 28‑port Gigabit PoE switch combines robust power delivery, full‑speed Gigabit switching and cloud management — making it an excellent choice for medium to large CCTV deployments, Wi‑Fi access point rollouts and office networks. With 24 PoE/PoE+ ports and 4 uplinks, it powers devices directly and lets you manage the network remotely via the Reyee cloud platform.
What’s great about this switch
-

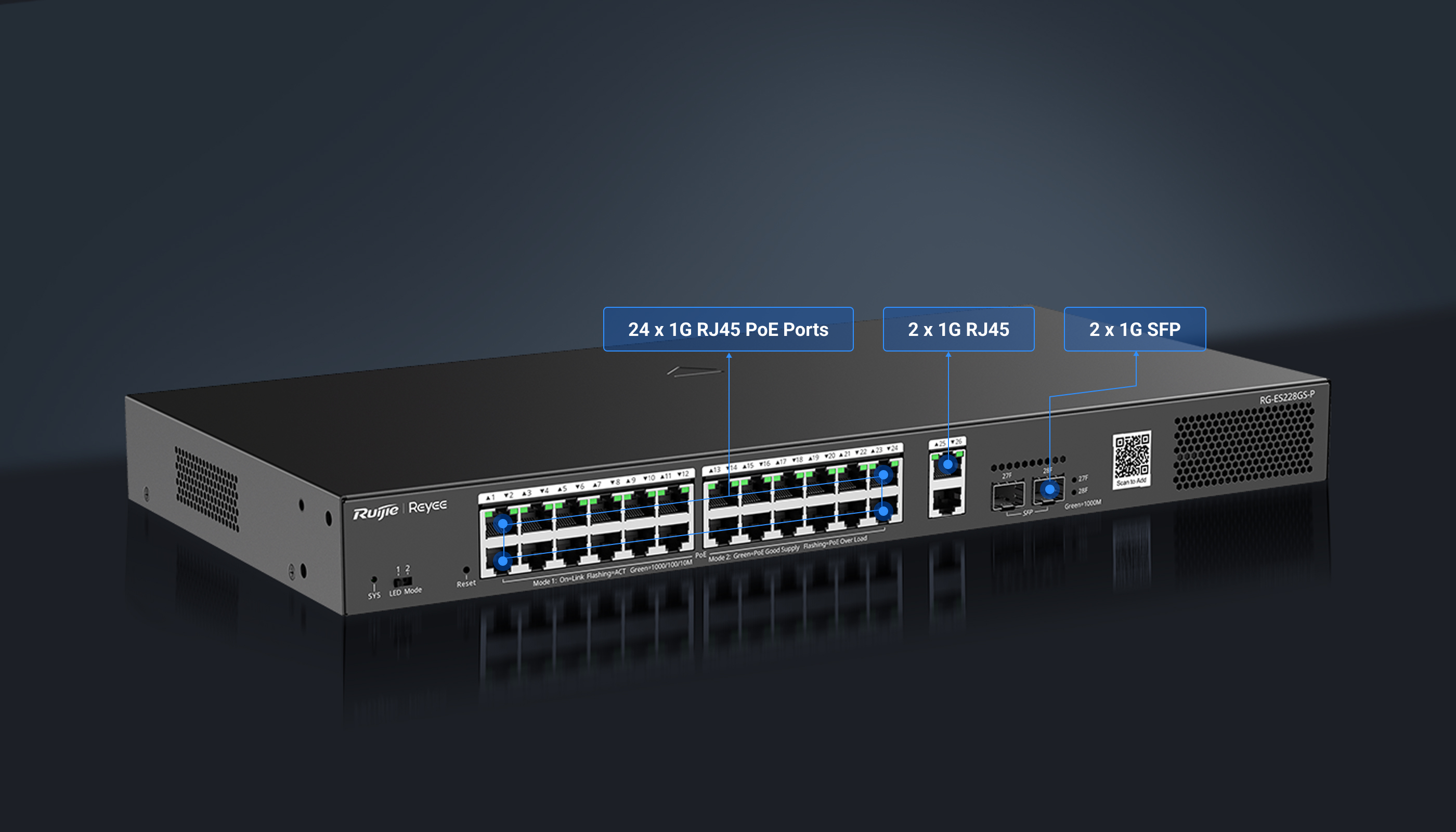

24 × PoE/PoE+ Gigabit ports: Power cameras, APs and VoIP devices without extra adapters (IEEE 802.3af/at).
-
4 × Gigabit uplink ports: Connect NVRs, core switches or servers with full Gigabit throughput.
-
Cloud management: Remote monitoring, port control, PoE power allocation and alerts via the Reyee cloud portal or app.
-
High PoE budget: Supports multiple high‑draw devices such as PTZ cameras and Wi‑Fi 6 APs.
-
Layer‑2 smart features: VLANs, QoS, port isolation, port mirroring and loop prevention for stable networks.
-
Designed for installers: Auto‑discovery, easy provisioning and monitoring for multi‑site deployments.
Key specifications
-
Ports: 24 × Gigabit PoE/PoE+ RJ45 ports; 4 × Gigabit uplink ports (RJ45 / SFP depending on model)
-
PoE standard: IEEE 802.3af / 802.3at (auto‑detect)
-
PoE management: Per‑port power control, scheduling and total power budget monitoring
-
Switching performance: Full Gigabit switching capacity; high forwarding rate for video and data
-
Management: Cloud (Reyee) management, web UI, app control, firmware updates via cloud
-
Layer‑2 features: VLAN, QoS, IGMP snooping, port mirroring, storm control, loop detection
-
Security & stability: Port isolation, storm control, overload protection, port‑based access control
-
Form factor: Metal housing; 19‑inch rack mountable
-
Cooling: Low‑noise fan or fanless variants (model dependent)
-
Power input: Standard AC input; high PoE power budget (model dependent)
-
Operating environment: Designed for commercial installations; suitable operating temperature for SA climates
Ideal applications
- Large CCTV installations (NVRs + cameras)
- Enterprise or campus Wi‑Fi rollouts (APs & controllers)
- Offices with VoIP phones and desktop devices
- Hotels, lodges, schools and retail chains
- Warehouse and industrial sites with multiple PoE devices
Why install this Reyee switch?
It brings installer‑friendly cloud management, a big PoE budget and enterprise‑grade L2 features in a single box — reducing onsite complexity and making multi‑site management straightforward. Perfect when you need predictable power for cameras and APs and want remote control over port behaviour and PoE allocation.
Quick installation tips
- Plan your PoE budget: add up required power per device (PTZs draw more) to ensure the switch supports the total load.
- Use the uplink ports to aggregate to your core network or connect directly to an NVR for CCTV systems.
- Enable VLANs and QoS to prioritise video traffic for smoother playback and recording.
- Register the switch in the Reyee cloud platform for remote monitoring and firmware management.
