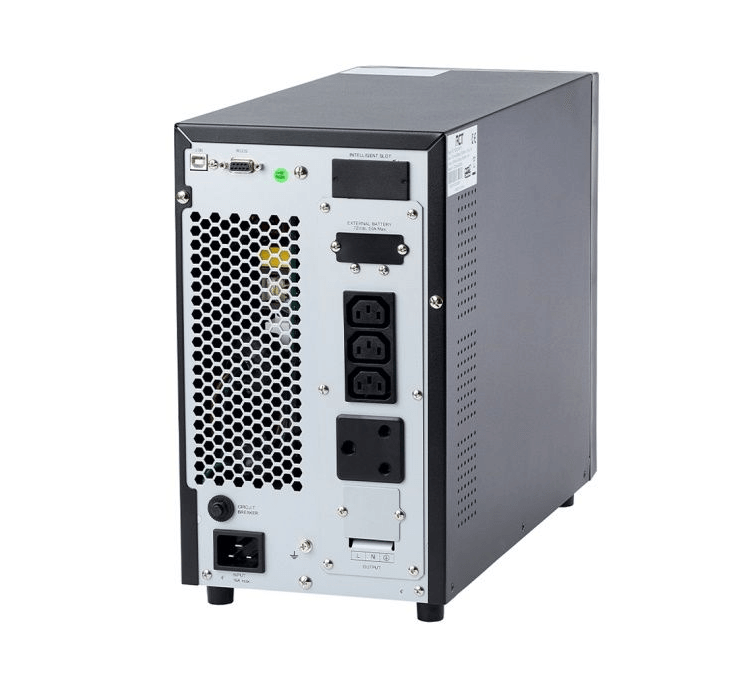

RCT 3000VA/2400W ONLINE TOWER UPS
The RCT Online Tower UPS is an essential investment for any business. With the ability to charge up to 90% of battery capacity in just 4 hours, this UPS is designed to provide reliable power whenever you need it most.
Its built-in Microprocessor control ensures top-notch reliability, while the included free monitoring software and Overload, discharge, and overcharge protection give you peace of mind. Don't hesitate - choose the RCT 3000VA/2400W ONLINE TOWER UPS today!
FEATURES:
- Zero transfer time between AC mode to battery mode
- 4 Hours recharge time to recover to 90% capacity
- Pure sine waveform
SPECIFICATIONS:
Capacity |
3000 VA / 2400 W |
Phase |
Single phase with ground |
Input Voltage Range |
55-150 VAC or 110-300 VAC (Based on load at 50%) 85-140VAC or 160-280VAC (Based on load at 100%) |
Nominal Voltage |
100/110/115/120/127VAC or 200/208/220/230/240VAC |
Frequency Range |
40Hz - 70 Hz |
Power Factor |
> 0.99 Nominal Voltage (100% load) |
Voltage Regulation |
1% |
Output Voltage |
100/110/115/120/127VAC or 200/208/220/230/240VAC |
Frequency Range (Batt. Mode) |
50 Hz 0.25 Hz or 60 Hz 0.3 Hz |
AC Mode To Battery Mode |
Zero |
Inverter To Bypass |
4 ms (Typical) |
Waveform (Batt. Mode) |
Pure Sine Wave |
Current Crest Ratio |
3::1 |
Harmonic Distortion |
< 3% THD (Linear Load) < 6% THD (Non-linear Load) |
Frequency Range (Synchronized Range) |
4753 Hz or 5763 Hz |
Battery Mode Efficiency |
0.88 |
AC Mode Efficiency |
0.9 |
Battery Type |
12 V / 9 AH |
Charging Current (Max.) |
1A |
Charging Voltage |
82.1 VDC ± 1% |
Typical Recharge Time |
4 hours recover to 90% capacity |
LCD |
Load level, Battery level, AC mode, Battery mode, Bypass mode, and Fault indicators |
Battery Mode |
Sounding every 4 seconds |
Low Battery |
Sounding every second |
Overload |
Sounding twice every second |
Fault |
Continuously sounding |
Operating Humidity |
20~90% RH 0- 40C (non-condensing) |
Noise Level |
Less than 50dB @ 1 Meter |
Dimension, D X W X H (mm) |
397 x 145 x 220 |
Net Weight (kg) |
27.6 |
Optional SNMP |
Power management from SNMP manager and web browser |
Smart RS-232/USB |
Supports Windows 2000/2003/XP/Vista/2008, Windows 7/8/10, Linux, and MAC |
Waveform |
Pure sine |
