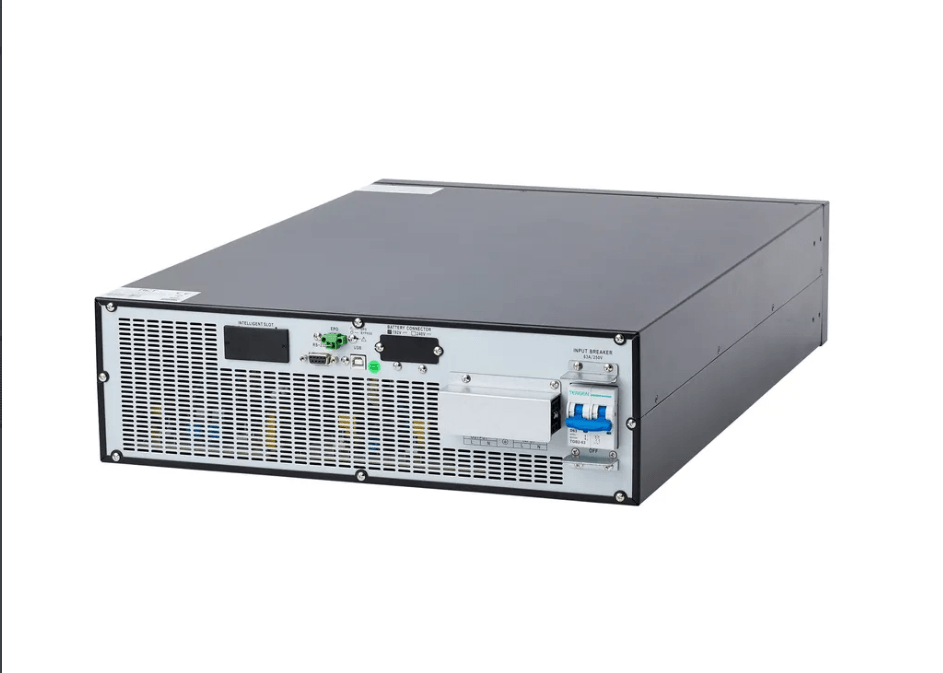

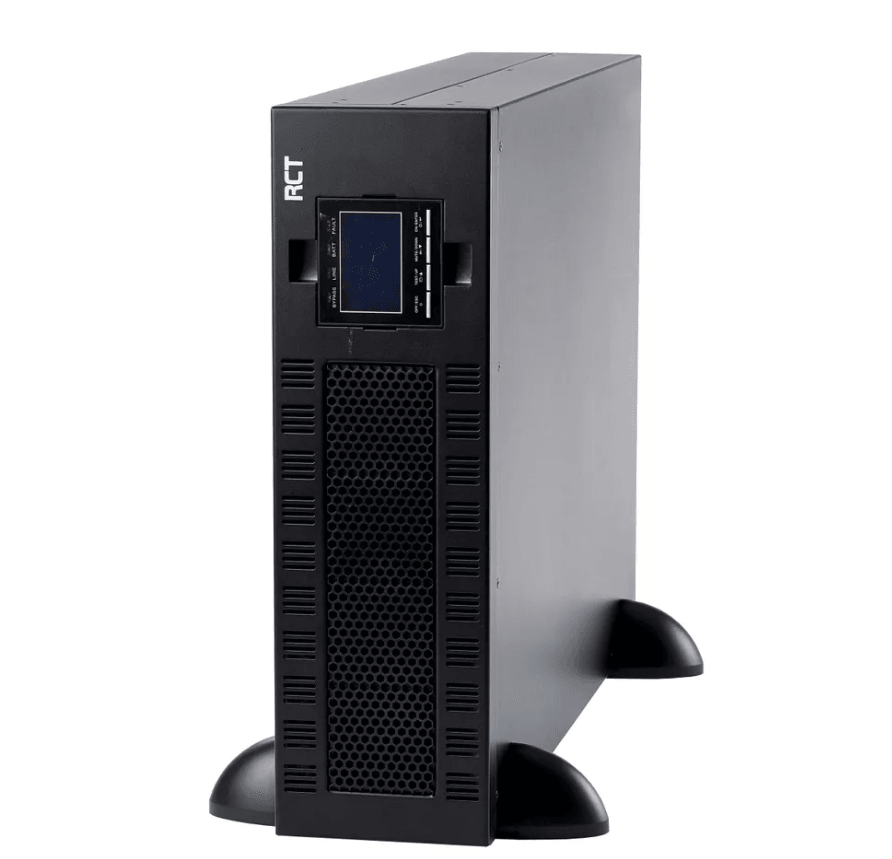

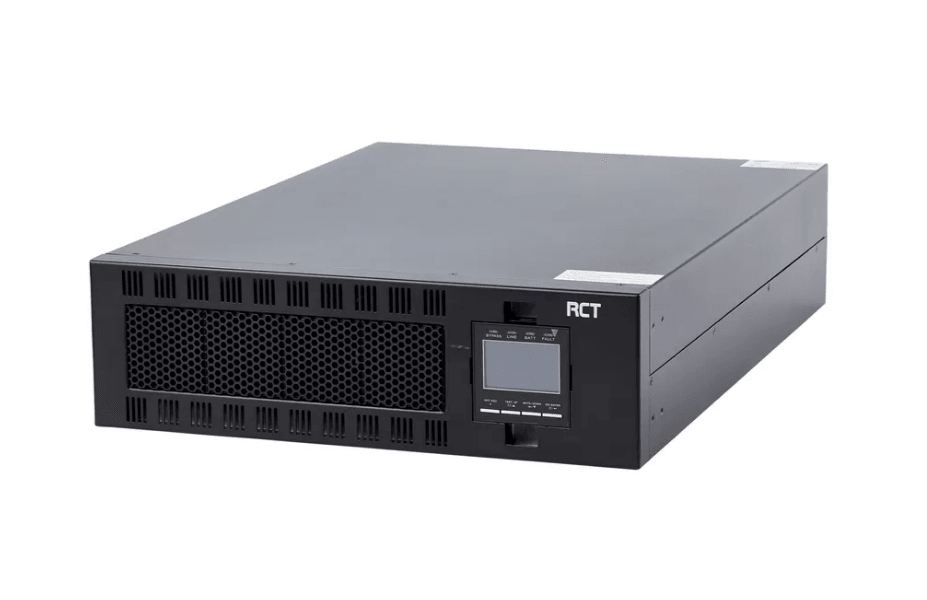

RCT 10000VA/8000W ONLINE RACKMOUNT UPS
Unlock the full potential of your technology with the RCT 10000VA On-Line Sine Wave 3U Rackmount UPS (RCT-10000-WPRU). This powerful UPS boasts a wide input voltage range and converter mode for ultimate versatility.
Within just 9 hours, you can charge your device up to 90%, thanks to the built-in Microprocessor control that guarantees exceptional reliability.
As an added bonus, enjoy free monitoring software and the peace of mind that comes with overload, discharge, and overcharge protection. Empower your devices and elevate your experience with the RCT 10000VA On-Line Rackmount UPS.
FEATURES & SPECS:
Capacity: 10000 VA / 8000 W
Input Voltage: 208/220/230/240 VAC
Voltage Range: 110-300 VAC @ 50% load, 176-300 VAC 100% load
Frequency Range: 46~54 Hz or 56~64 Hz
Power Factor: ≥ 0.99 @ nominal voltage (100% load)
Output Voltage: 208/220/230/240 VAC
AC Voltage Regulation (Batt. Mode): ±1%
Frequency Range (Synchronized Range): 46~54 Hz or 56~64 Hz
Frequency Range (Batt. Mode): 50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz
Current Crest Ratio: 3:1 (max.)
Harmonic Distortion: ≤ 3 % THD (Linear Load) ; ≤ 5 % THD (Non-linear Load)
Transfer Time AC Mode to Batt. Mode: Zero
Inverter to Bypass: Zero
Waveform (Batt. Mode): Pure Sinewave
Efficiency AC Mode: 93 %
Battery Mode: 91 %
Standard Model Battery Type: 12V / 9 Ah
Numbers: 16
Typical Recharge Time: 9 hours recover to 90% capacity
Charging Current (max.): 1 A / 2 A
Charging Voltage218.4 VDC ± 1%
Long-run ModelBattery TypeDepending on the applications running
Numbers16~20 (Adjustable)
Charging Current (max.)1A/2A/4A/6A (Adjustable, 6 A is only available for 16pcs batteries)
Charging Voltage218.4 VDC ± 1% (Based on 16pcs batteries)
IndicatorsLCD DisplayUPS Status, Load Level, Battery Level, Input/Output Voltage, Discharge timer and Fault conditions
AlarmBattery ModeSounding every 4 seconds
Low BatterySounding every second
OverloadSounding every twice second
FaultContinuously Sounding
PhysicalStandard ModelDimensions, D X W X H(mm)UPS Unit: 580x438x88 [3U]Battery Pack: 580x438x88 [3U]
Net Weight (kgs)UPS Unit: 18Battery Pack: 51
Long-run ModelDimensions, D X W X H(mm)580 x 438 x 133[3U]
Net Weight (kgs)18
EnvironmentHumidity0-95 % RH @ 0- 40° (non-condensing)
Noise LevelLess than 58dB @ 1 meter
ManagementSmart RS-232 and USBSupports Windows® 2000/2003/XP/Vista/2008. Windows® 7/8, Linus and MAC
Optional SNMPPower management from SNMP manager and web browser
