Microprocessor-Controlled Battery Charger PSU

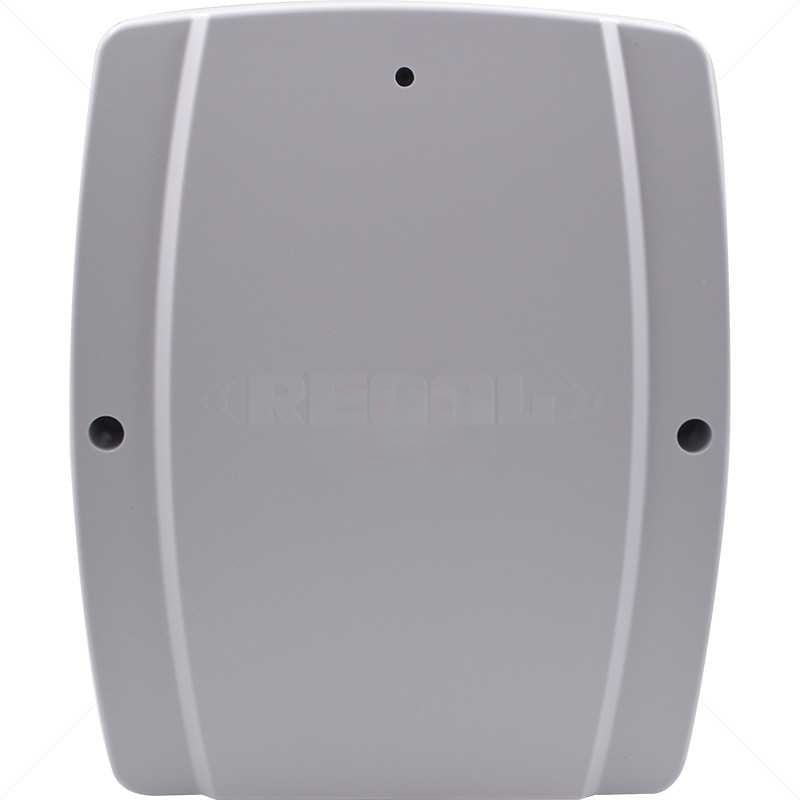

Microprocessor-controlled power supply with intelligent charging for 12VDC 17Ah batteries. Features low battery cutoff at 10VDC, audible alerts, and comprehensive fuse protection in an ABS plastic enclosure.
Protection Features
- Low battery auto-shutoff at 10VDC
- Buzzer alerts for battery low and AC failure
- Resettable fuse on output
- Fuse protection on AC input
Electrical Specifications
-
Input Voltage: 110V-230V AC 50Hz
-
Output: 13V-14.4V adjustable (for 12VDC 17Ah battery)
-
Maximum Output: 6.4A DC / 70W
-
Relay Contact Rating: 10A
-
AC Fail Output: 140mA positive switching
Physical Specifications
-
Operating Temperature: -3°C to 60°C
-
Enclosure: ABS Plastic
-
Dimensions: 275mm x 225mm x 97mm
-
Weight: 1.13kg (gross)
