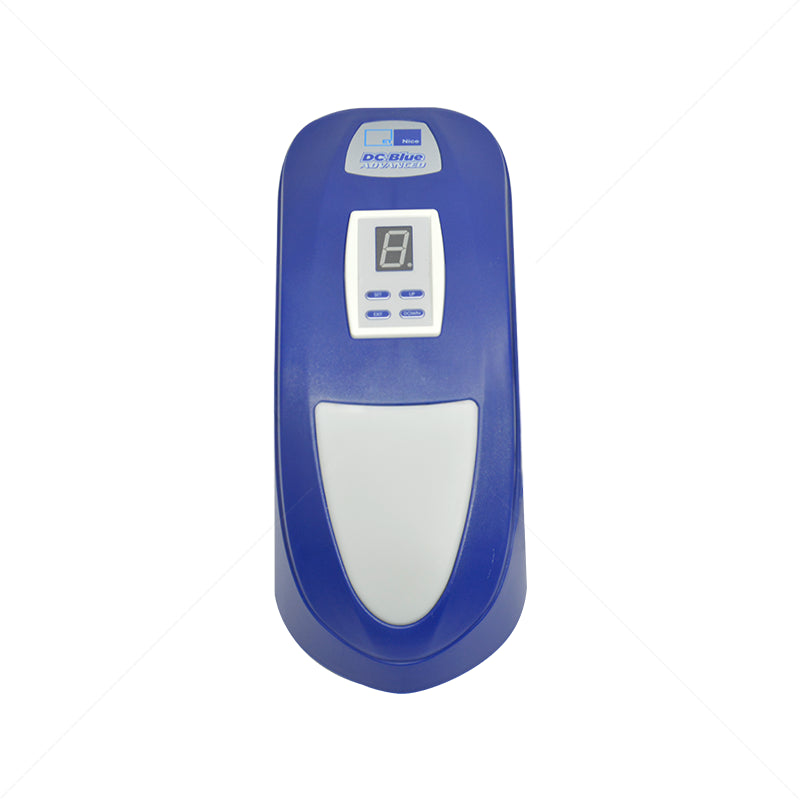

Sectional & One-Piece Door Motor
Versatile 24VDC motor supporting doors up to 15m² with extensive duty cycle and battery backup functionality.
Technical Specifications
-
Input Voltage: 220-240VAC 50Hz-60Hz
-
Motor Supply: 24VDC (not battery dependent)
-
Duty Cycle: 50 full cycles per 24 hours
-
Battery Operations: 100 cycles within 24 hours without AC
-
Maximum Door Size: 15m²
-
Compatible Doors: Spring-balanced sectional overhead and one-piece doors
-
Running Distance: Up to 3m
-
Maximum Pull Force: 1000N (before safety governing)
