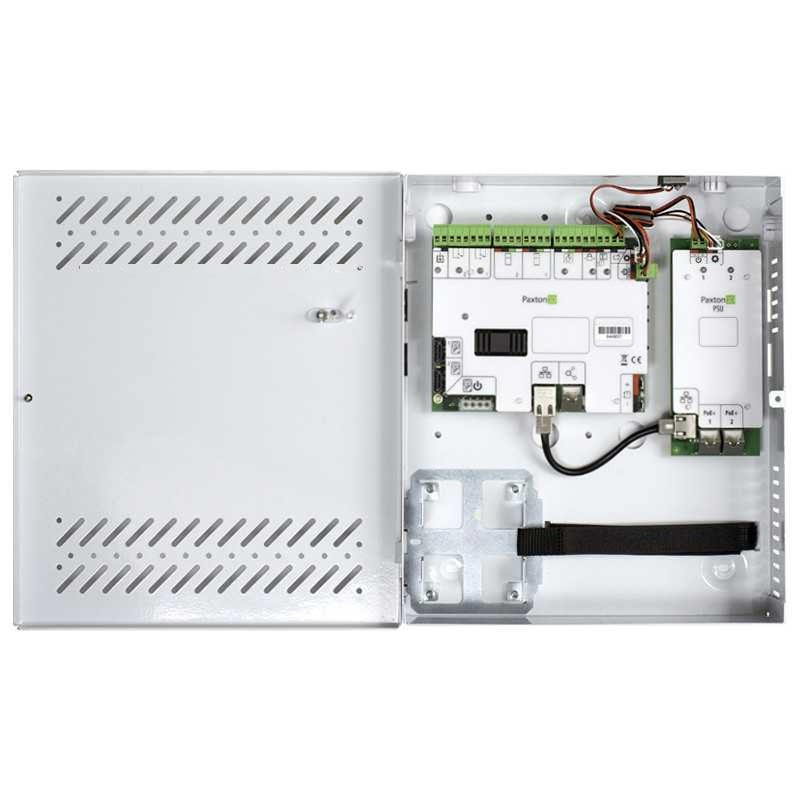

PAXTON10 Video Controller with RAID Storage
Advanced PAXTON10 video-enabled controller featuring 2x SATA ports with RAID1 mirroring for data redundancy. PoE-powered via IEEE 802.3at Type 2 with included splitter.
I/O Configuration
-
Inputs: 1x RQE, 1x Door Contact, 1x Tamper, 1x Auxiliary (Digital)
-
Outputs: 2x Relays, 1x Lock & LED Power
-
Reader Inputs: 2
-
Storage: 2x SATA ports (RAID1 supported)
Power & Communication
-
Communication: TCP/IP & RS485
-
PoE Input: 42.5-57V DC, 25.5W (IEEE 802.3at Type 2)
-
Power Consumption: 8.3W Maximum
-
Enclosure: Plastic with PoE Splitter
-
Operating Temperature: 0°C to 45°C
-
Dimensions: 275mm x 320mm x 70mm
See attachments for product sheet.
