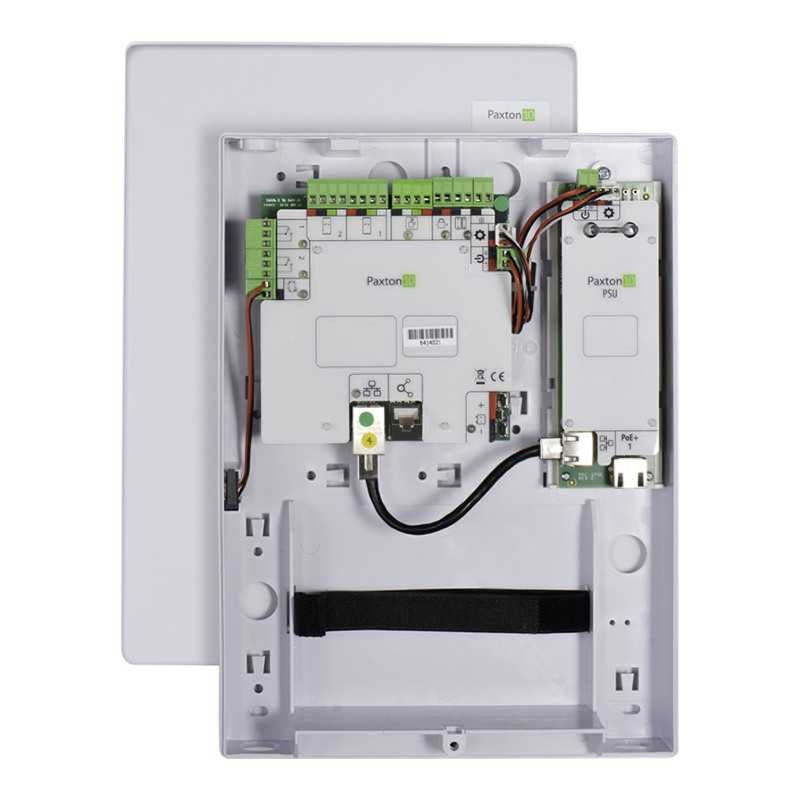

PAXTON10 Door Controller with PoE
Power-over-Ethernet enabled PAXTON10 controller in a plastic enclosure with integrated PoE splitter. Supports IEEE 802.3at Type 2 for simplified single-cable installation.
Input & Output Features
-
Inputs: 1x RQE, 1x Door Contact, 1x Tamper, 1x Auxiliary (Digital)
-
Outputs: 2x Relays, 1x Lock & LED Power
-
Reader Inputs: 2
Power & Connectivity
-
Communication: TCP/IP & RS485
-
PoE Input: 36-57V DC, 25.5W (IEEE 802.3at Type 2)
-
Power Consumption: 5.6W Maximum
-
Enclosure: Plastic with PoE Splitter included
-
Operating Temperature: 0°C to 45°C
-
Dimensions: 236mm x 322mm x 77mm
Refer to attachments for product sheet.
