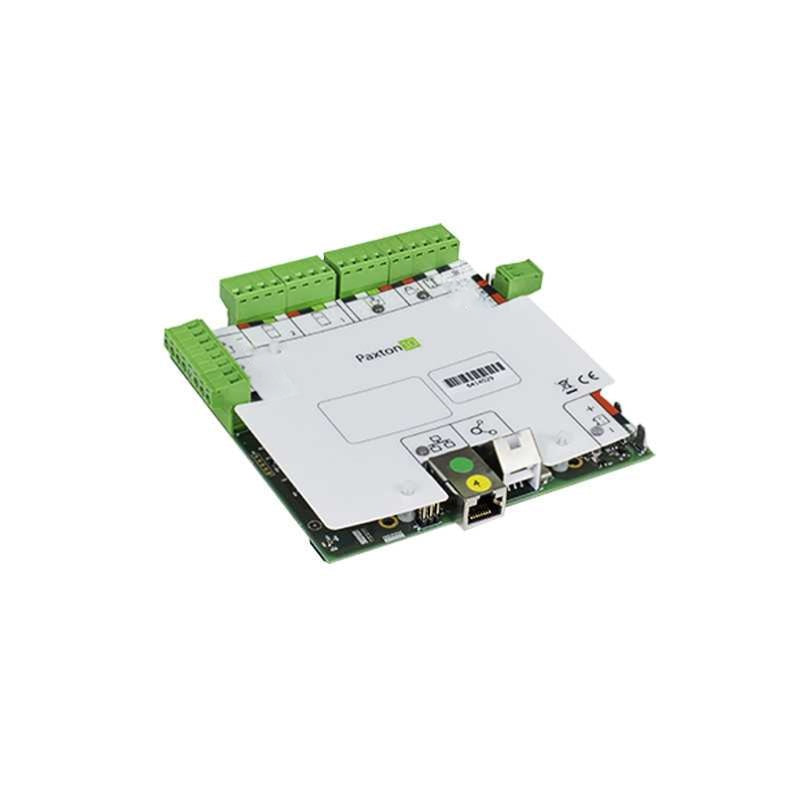

PAXTON10 Door Controller
This PAXTON10 access control unit features comprehensive I/O capabilities with TCP/IP and RS485 communication. Designed for professional door access management with versatile input and output options.
Inputs & Outputs
-
Inputs: 1x RQE, 1x Door Contact, 1x Tamper, 1x Auxiliary (Digital)
-
Outputs: 2x Relays, 1x Lock & LED Power
-
Reader Inputs: 2
Power & Performance
-
Power Input: 100-240V AC 50/60Hz 1.2A
-
Max Power Consumption: 5.6W
-
Operating Temperature: 0°C to 45°C
Refer to attachments for the product sheet.
