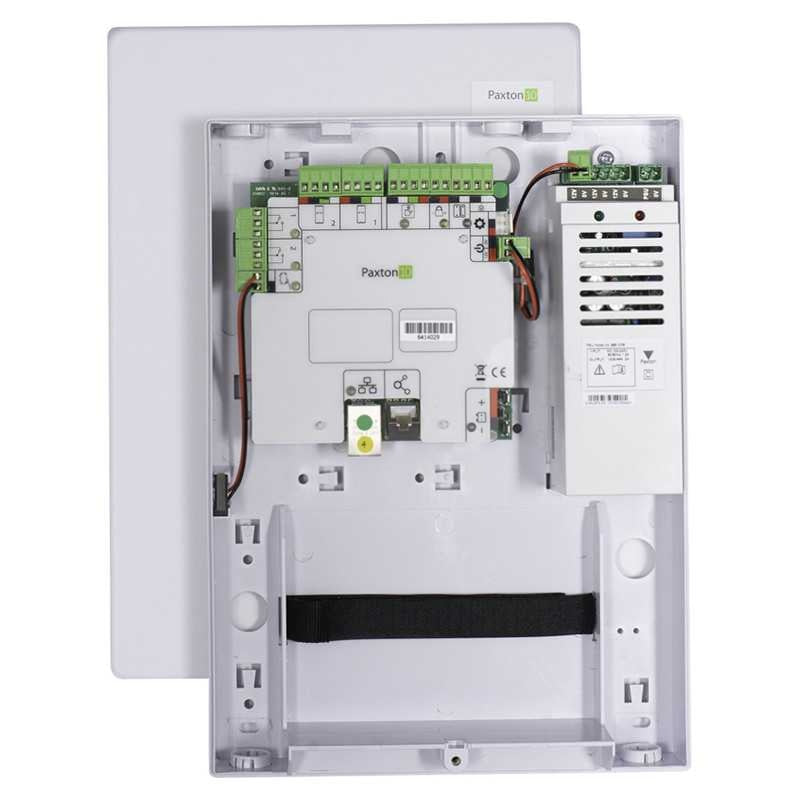

PAXTON10 Door Controller with Plastic Enclosure
Complete PAXTON10 access control solution housed in a plastic enclosure with integrated 12VDC 2A power supply. Features robust TCP/IP and RS485 connectivity for flexible installation.
Input & Output Configuration
-
Inputs: 1x RQE, 1x Door Contact, 1x Tamper, 1x Auxiliary (Digital)
-
Outputs: 2x Relays, 1x Lock & LED Power
-
Reader Inputs: 2
Technical Specifications
-
Communication: TCP/IP & RS485
-
Power Input: 100-240V AC 50/60Hz 1.2A
-
Power Consumption: 5.6W Maximum
-
Enclosure: Plastic with 12VDC 2A PSU included
-
Operating Temperature: 0°C to 45°C
-
Dimensions: 236mm x 322mm x 77mm
See attachments for full product sheet.
