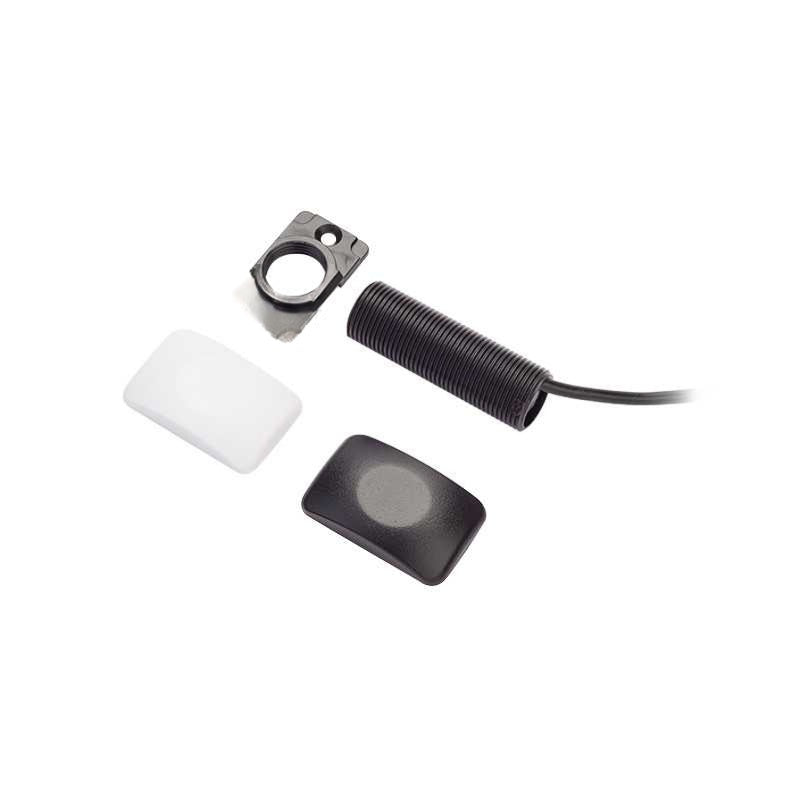

Paxton Net2 Switch2 Reader Module
Paxton Net2 reader with 125 kHz frequency and IP67 protection rating. Features integrated request-to-exit (RQE) input and lock output for streamlined door control.
Technical Specifications
-
Frequency: 125 kHz
-
Protection: IP67
-
Communication: Clock & data, 600μs bit period
-
Operation: RQE input & lock output integrated
-
Power: 11–14VDC, 160mA maximum
-
Module Dimensions: 30mm x 48mm x 9mm
-
Barrel Diameter: 19.5mm (65mm length)
Refer to attachments for product sheet.
