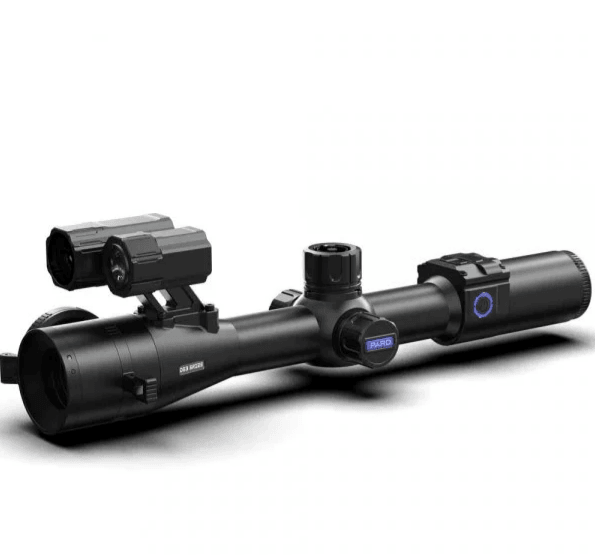

PARD DIGITAL CAMERA DS35-50RF/850
The exterior of the DS35LRF may resemble a traditional day scope, but don't be fooled - it's actually a versatile day and night scope equipped with cutting-edge technology.
Stay ahead of the competition with the first-of-its-kind 800 x 800 Circular LTPS display, delivering incredible picture resolution when paired with the highly sensitive CMOS 0.001 low lux image sensor.
Choose between resolutions of 2560 x 1440 (2K) or 1920 x 1080 to suit your needs. Thanks to the built-in ballistic calculator and 1200 yds LRF, this scope empowers users to achieve greater accuracy and hunt smarter through the use of innovative technology.
SPECS:
Model
|
DS35 50mm
|
Sensor
|
|
Type
|
|
Resolution(px)
|
2560*1440
|
Pixel size(um)
|
2.9um
|
Sensitivity(lux)
|
0.001lux
|
Frame rate(fps)
|
30fps(night); 60fps (day)
|
Image Engine
|
PARD VLEA
|
Optics
|
|
Objective lens
|
50mm F2.4
|
Optical Magnification(x)
|
4x
|
Digital zoom(x)
|
2x
|
PIP(x)
|
2x
|
Continuous digital zoom
|
4-16x
|
Field of view (HxV)
|
4.8º
|
|
4.8º
|
|
6.8º
|
Focus range
|
5m-∞
|
Eye relief(mm)
|
100mm
|
Exit pupil(mm)
|
10mm
|
Diopter adjustment(°)
|
TBD
|
IR Illuminator
|
|
IR Type
|
VCSEL
|
IR power
|
5W
|
IR illuminating level
|
3 levels
|
IR distance(m)
|
350m
|
IR Wavelength(nm)
|
850nm/950nm
|
Display
|
|
Type
|
IPS LCD
|
Resolution(px)
|
800*800
|
Reticle Style
|
6
|
Reticle Color
|
white,yellow,green
|
Color mode
|
Color,Mono BW,Mono Green,Mono Yellow
|
Photo / Video
|
|
Photo resolution(px)
|
1920*1080
|
Photo format
|
JPG
|
Video resolution(px)
|
1920*1080
|
Video format
|
MP4
|
Storage(GB)
|
TF card(128GB)
|
Main function
|
|
Red dot
|
–
|
Mute button
|
–
|
PIP
|
Yes
|
LRF detection range(yds)
|
1000yds(LRF version)
|
Ballistic calculator
|
Yes
|
Range unit selection
|
meter/yard
|
Gyroscope
|
Yes
|
Self-activated recording
|
Yes
|
Auto recording
|
Yes
|
Loop recording
|
Yes
|
Time stamp
|
Yes
|
Record audio
|
Yes
|
Beep sound
|
Yes
|
Exposure compensation
|
Yes
|
Interfaces
|
|
USB Type-C
|
TYPE C
|
HDMI Output
|
Yes
|
Connections
|
|
WiFi
|
Yes
|
Supported Apps
|
PardVision
|
Power Supply
|
|
Battery type
|
Lithium Ion18650
|
Output voltage(V)
|
3.7
|
Operating time(h,max)
|
8
|
External power supply(V)
|
USB Type-C
|
Environmental characteristic
|
|
Degree of protection
|
IP67
|
Operating temp(°C)
|
-20 – 50
|
Recoil Power(J)
|
1000G
|
Material
|
|
Housing
|
Aluminium Alloy
|
Objective lens
|
Glass
|
Measurement
|
|
Product dimension(L x W x H, mm)
|
L350mm*W88mm*H95mm(W/O Long Eyepiece)
L410mm*W88mm*H95mm(W/ Long Eyepiece)
|
N.W/pcs(without battery, g)
|
680g(W/O Battery)
|
