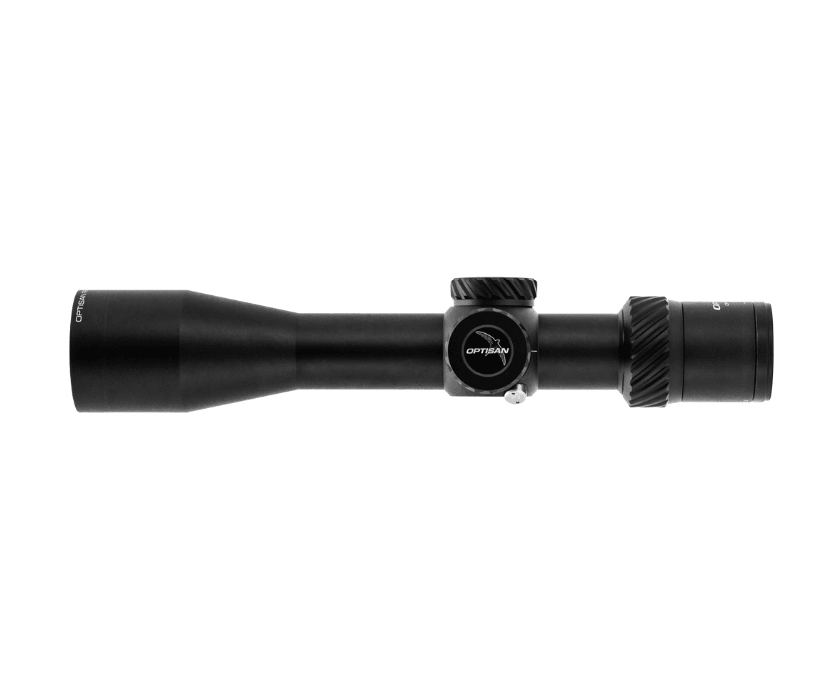

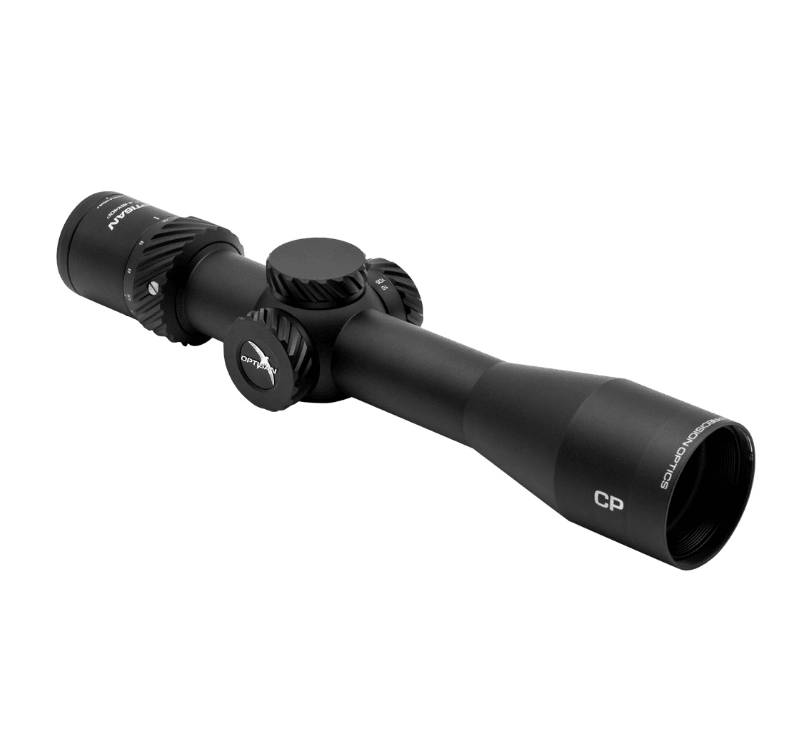

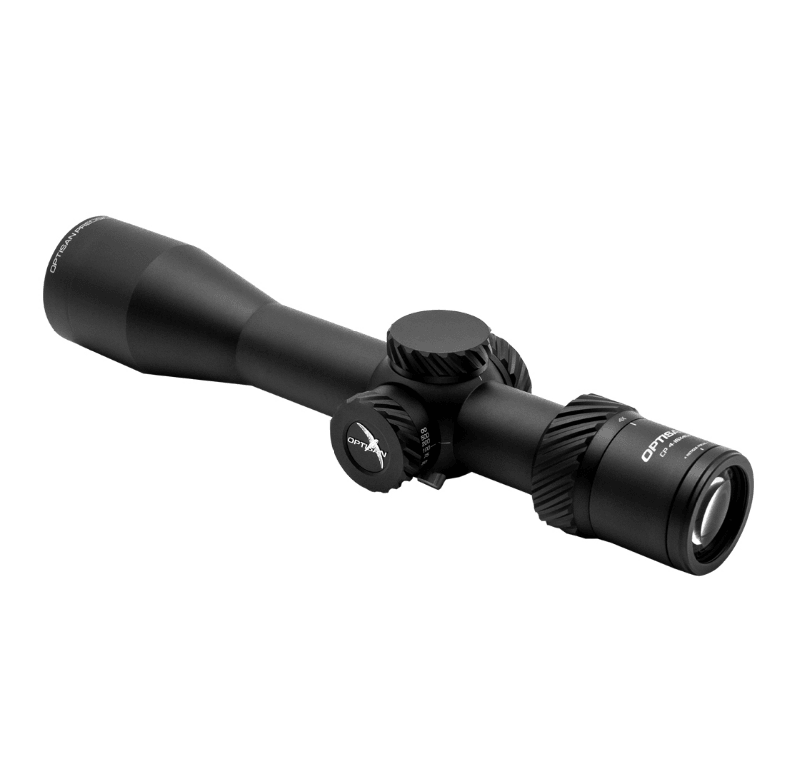

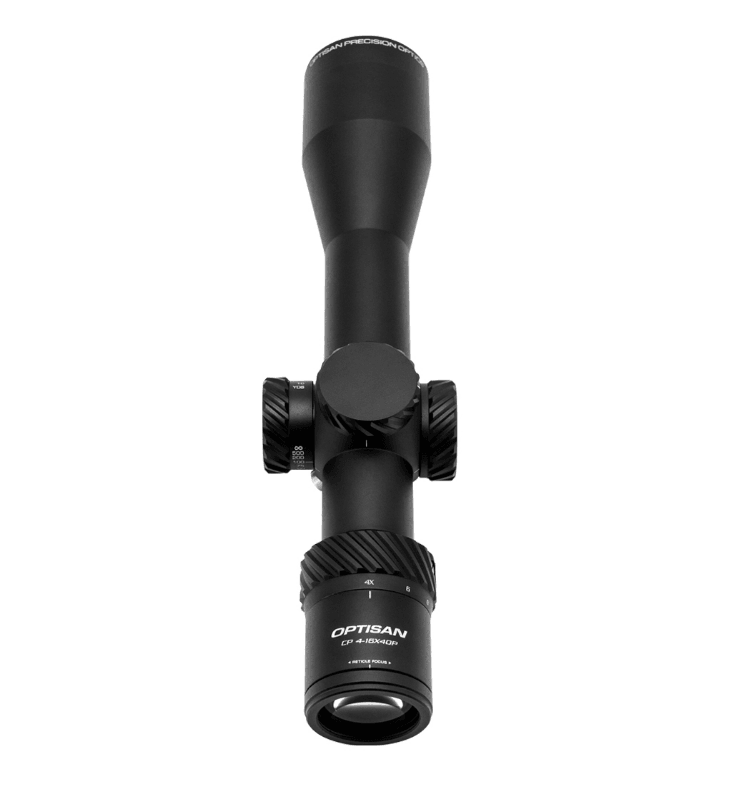

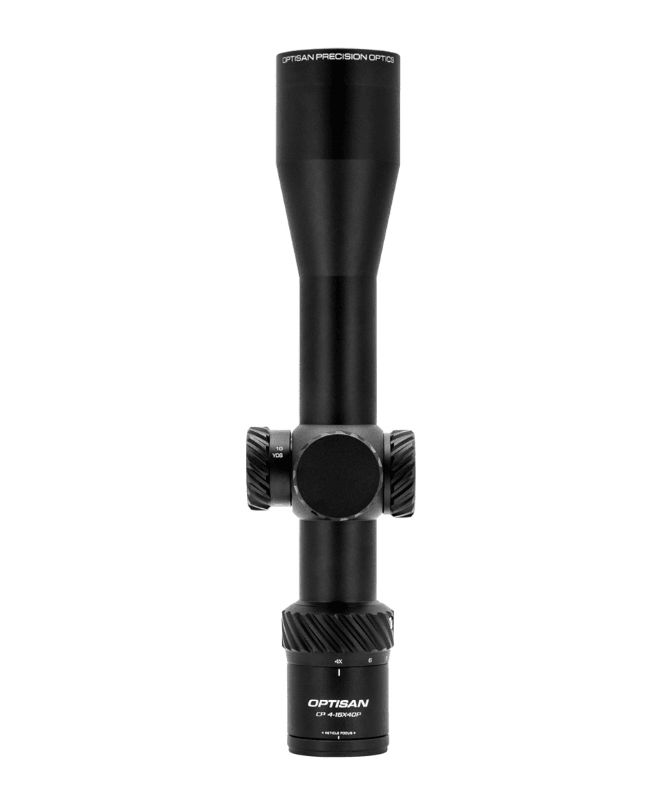

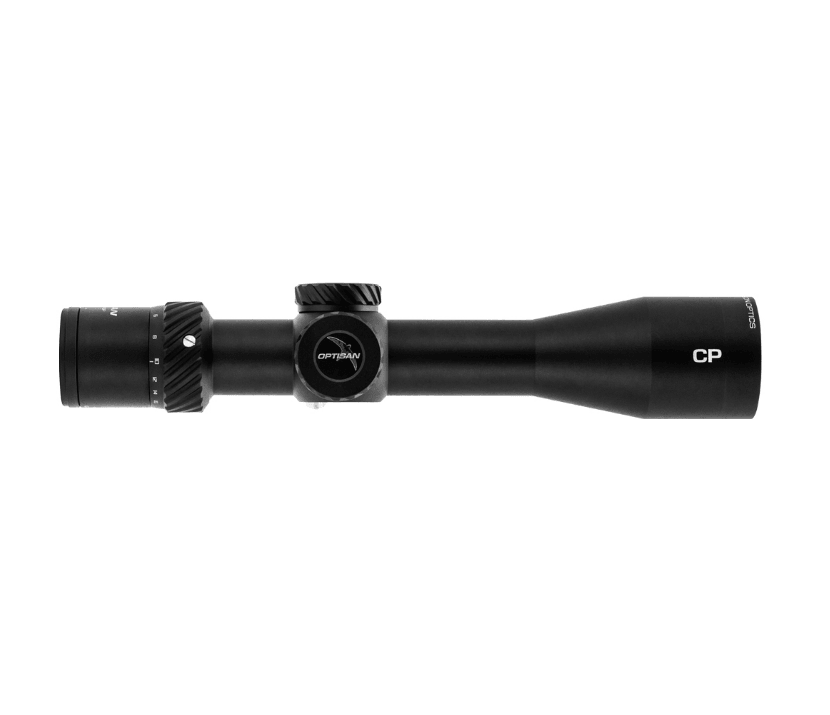

OPTISAN 4008 SCOPE-CP 4-16X40 (MH10)
OPTISAN 4008 SCOPE-CP 4-16X40 (MH10)
Compact design
At just 25.4 cm long and weighing less than 0.48 kg, the CP is the ideal companion for compact and lightweight rifles.
Minimized Parallax error
Equipped with a 32mm objective lens, the CP effectively reduces the impact of Parallax error, resulting in minimal shift of impact as you change your head position or distance to target.
This means you can shoot targets at various distances without experiencing any shift in point of impact, making it a valuable asset in competitive shooting scenarios.
Additionally, the parallax adjustment range of the CP ranges from 10 yards up to 500 yards to infinity, ensuring optimal performance across varying shooting distances.
Springer Rated
Champion shooters have field-tested this rugged rifle scope for over a year on a springer rifle, proving its ability to withstand double direction recoil of up to 6000j post-barrel muzzle velocity. It’s not just limited to air rifles, as it’s also designed to hold centerfire firearms with ease.

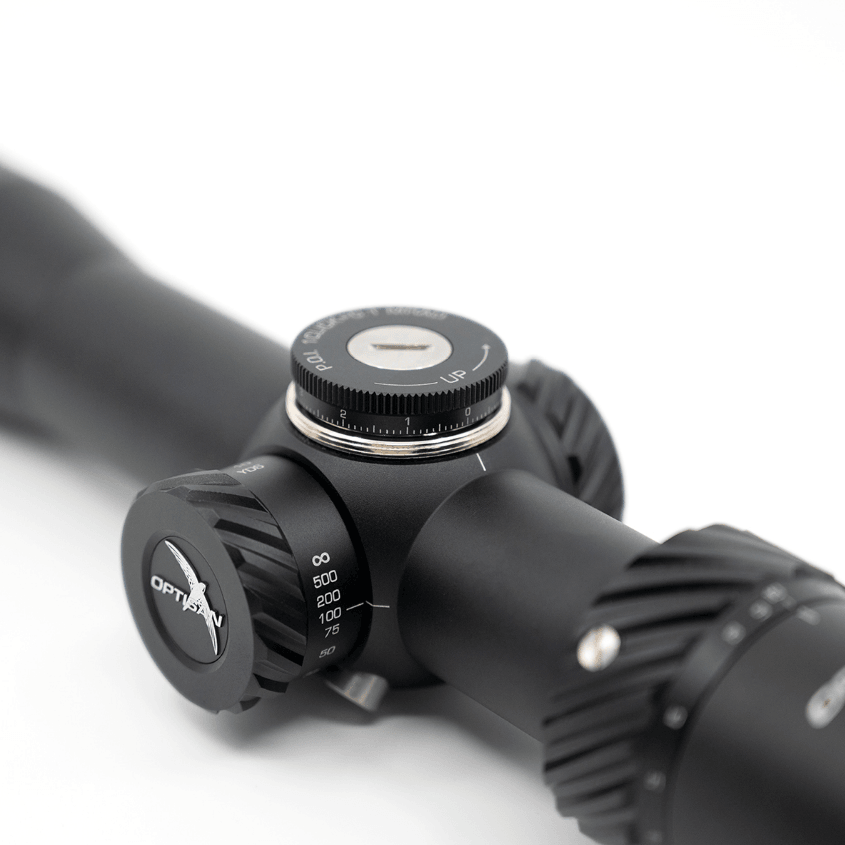

Sleek Design with Extremely low-profile turret
All stainless steel extremely low-profile turret with 10 MRAD of adjustment per turn. No obstruction of view even when the night vision eyepiece is attached.
SPECS:
OPTICAL DATA |
|
Magnification (High) |
16X |
Magnification (Low) |
4X |
Objective Diameter (mm) |
40mm |
Outer dia. Objective (mm) |
48mm |
FOV (min.mag - max.mag) (ft@100yds) |
26.2ft - 6.5ft |
FOV (min.mag - max.mag) (m@100m) |
8.73m-2.16m |
FOV (min.mag - max.mag) (degree) |
4.99° - 1.25° |
Eye relief (min.mag - max.mag) (in) |
3.5'' - 3.3" |
Eye relief (min.mag - max.mag) (mm) |
88.9mm - 83.8mm |
Exit Pupil (min.mag - max.mag) (mm) |
10mm - 2.5mm |
Diopter Range (dpt) |
+/- 2.0 dpt |
Parallax Adjustment |
10 yds - infinity |
Coating |
Fully multi-coated |
MECHANICAL DATA |
|
Tube Construction |
One-piece tube, aircraft aluminum |
Elevation Adjustment (value per click) |
0.1 MRAD |
Windage Adjustment (value per click) |
0.1 MRAD |
Turret Style (Elevation) |
Low profile, toolless resettable zero |
Turret Style (Windage) |
Low profile, toolless resettable zero |
Travel Per Rotation |
10 MRAD |
Elevation adj. range |
≥ 18 MRAD |
Windage adj. range |
≥ 18 MRAD |
Eye Piece Diameter (in) |
1.55'' |
Eye Piece Diameter (mm) |
39.5mm |
Eye Piece Length (in) |
1.08'' |
Eye Piece Length (mm) |
27.5mm |
Mounting Length rear (mm) |
55.7mm |
Mounting Length front (mm) |
30.0mm |
Tube Dia. (mm) |
30mm |
Length (in) |
10.55'' |
Length (mm) |
268mm |
Weight (g) |
530g |
Weight (oz) |
18.69oz |
Surface Finish |
Matte Black |
ENVIRONMENT DATA |
|
Functional temperature |
-20 ~ 50 degree celcius |
Storage temperature |
-20 ~ 50 degree celcius |
Submersion tightness |
IPX7 |
RETICLE DATA |
|
Reticle |
MRAD-MH10 |
Calibrated Ranging Power |
10X |
Focal plane |
Second Focal Plane |
Illumination |
Non-illuminated |
