- 30mm Main Body Tube
- Compact, Lightweight design
- First Focal Plane Reticle
- Aircraft Grade Aluminium
- Side Parallax: 10yds-Infinity
- Fully Multi-Coated Lenses

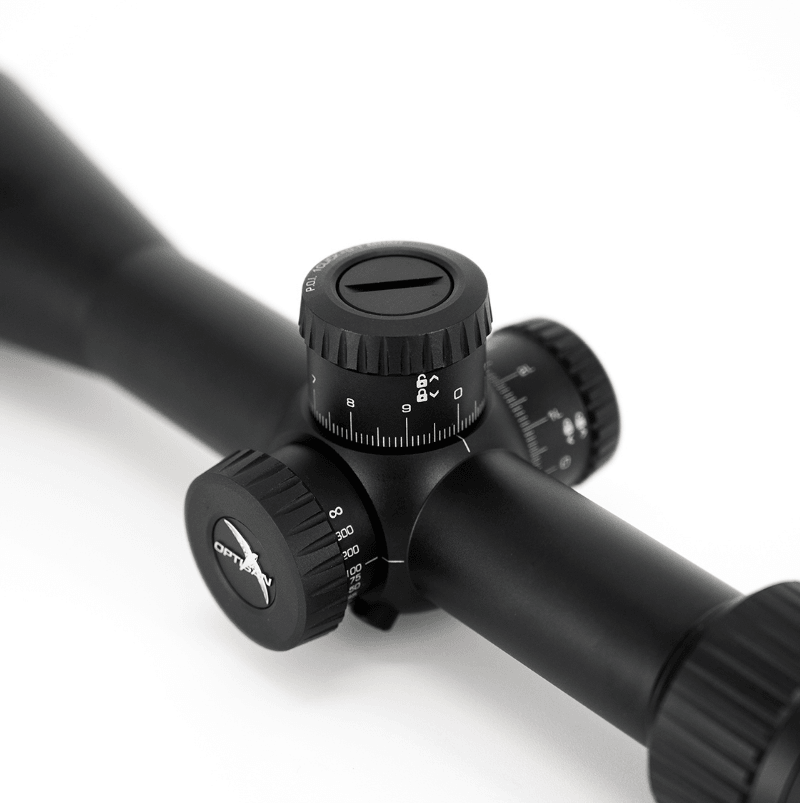

- Tool-free Resettable Turrets with 6 MRAD / 15 MOA per Revolution
- Hard Mechanical Zero-Stop

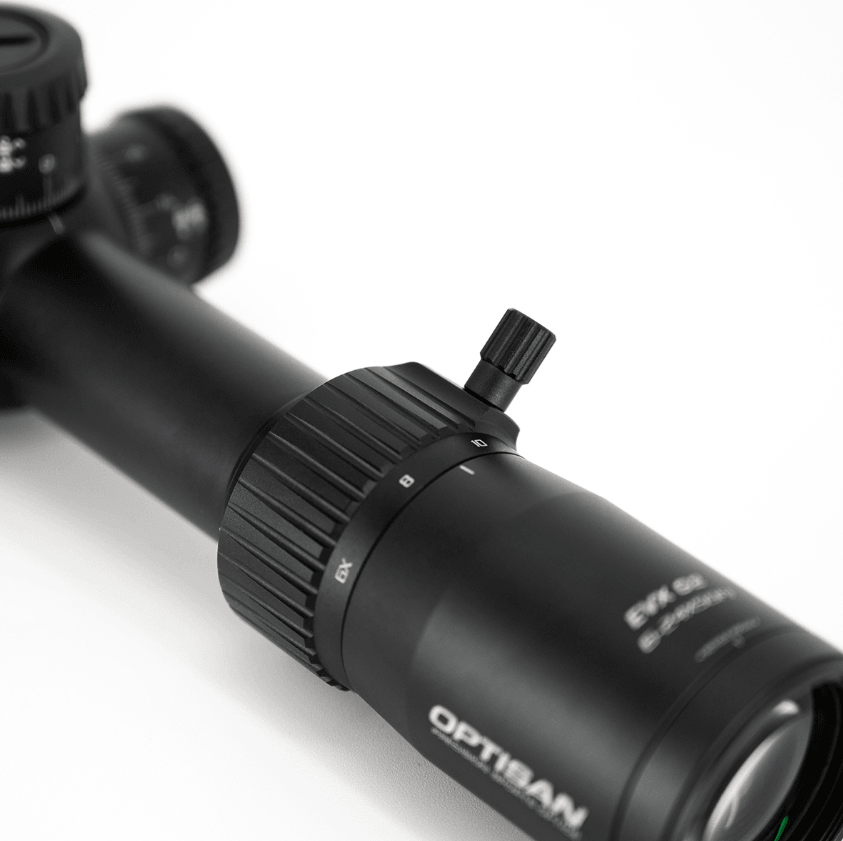

- Removable Magnification Throw Lever
- Waterproof, Fogproof, Shockproof & Nitrogen Purged

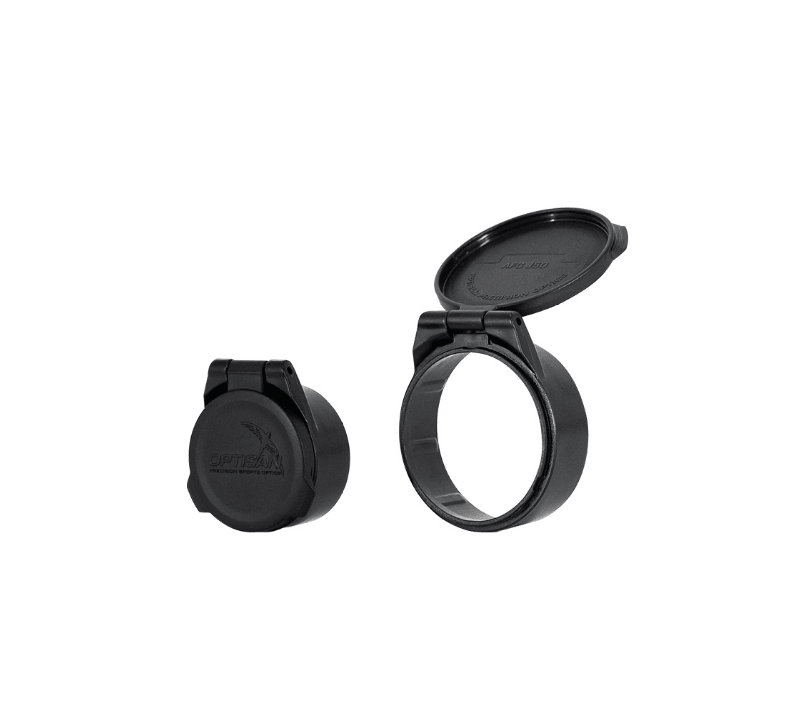

- Sunshade, Lens Cloth & Rubber Lens Caps included
SPECS:
|
OPTICAL DATA |
||
|
Magnification (High) |
24X |
|
|
Magnification (Low) |
6X |
|
|
Objective Diameter (mm) |
50mm |
|
|
Outer dia. Objective (mm) |
58mm |
|
|
FOV (min.mag - max.mag) (ft@100yds) |
19.4ft - 4.9ft |
|
|
FOV (min.mag - max.mag) (m@100m) |
6.46m - 1.63m |
|
|
FOV (min.mag - max.mag) (degree) |
3.70° - 0.94° |
|
|
Eye relief (min.mag - max.mag) (in) |
3.8'' - 3.5'' |
|
|
Eye relief (min.mag - max.mag) (mm) |
96.5mm - 88.9mm |
|
|
Exit Pupil (min.mag - max.mag) (mm) |
8.3mm - 2.1mm |
|
|
Diopter Range (dpt) |
+/- 2.0 dpt |
|
|
Parallax Adjustment |
10 yds - infinity |
|
|
Coating |
Fully multi-coated |
|
|
MECHANICAL DATA |
||
|
Tube Construction |
One-piece tube, aircraft aluminum |
One-piece tube, aircraft aluminum |
|
Elevation Adjustment (value per click) |
1/4 MOA |
0.1 MRAD |
|
Windage Adjustment (value per click) |
1/4 MOA |
0.1 MRAD |
|
Turret Style (Elevation) |
Lockable Dialing Turret |
Lockable Dialing Turret |
|
Turret Style (Windage) |
Lockable Dialing Turret |
Lockable Dialing Turret |
|
Travel Per Rotation |
20 MOA |
10 MRAD |
|
Elevation adj. range |
>= 52 MOA |
≥ 15.40 MRAD |
|
Windage adj. range |
>= 47 MOA |
≥ 13.90 MRAD |
|
Eye Piece Diameter (in) |
1.73'' |
1.73'' |
|
Eye Piece Diameter (mm) |
44mm |
44mm |
|
Eye Piece Length (in) |
2.15'' |
2.15'' |
|
Eye Piece Length (mm) |
51.2mm |
51.2mm |
|
Mounting Length rear (mm) |
57.5mm |
57.5mm |
|
Mounting Length front (mm) |
57.5mm |
57.5mm |
|
Tube Dia. (mm) |
30mm |
30mm |
|
Length (in) |
14.33'' |
14.33'' |
|
Length (mm) |
364mm |
364mm |
|
Weight (g) |
802g |
802g |
|
Weight (oz) |
28.28oz |
28.28oz |
|
Surface Finish |
Matte Black |
Matte Black |
|
ENVIRONMENT DATA |
||
|
Functional temperature |
-20 ~ 50 degree celcius |
-20 ~ 50 degree celcius |
|
Storage temperature |
-20 ~ 50 degree celcius |
-20 ~ 50 degree celcius |
|
Submersion tightness |
IPX7 |
IPX7 |
|
RETICLE DATA |
||
|
Reticle |
F1MOA24 |
F1MRAD24 |
|
Calibrated Ranging Power |
Not applicable |
Not applicable |
|
Focal plane |
First Focal Plane |
First Focal Plane |
|
Illumination |
Non-illuminated |
Non-illuminated |
