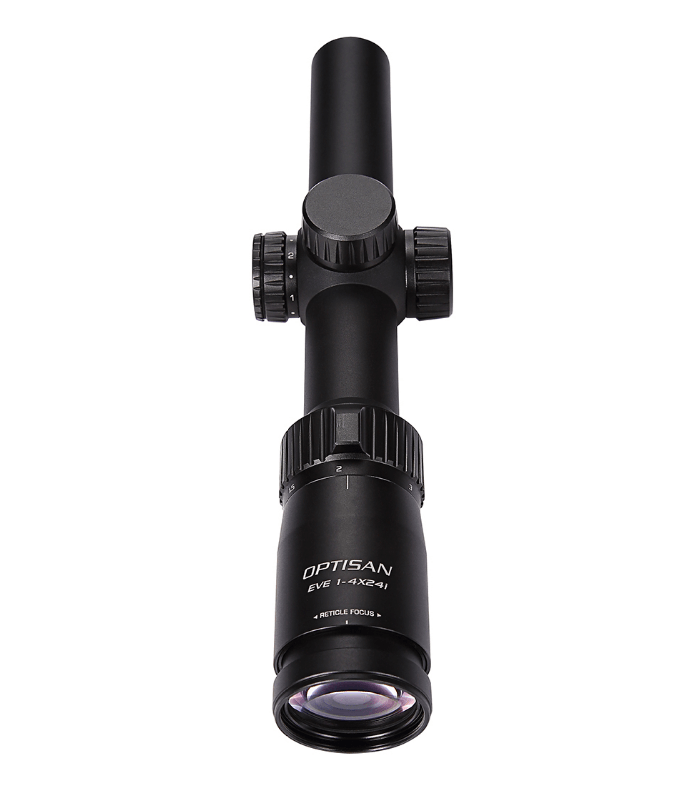

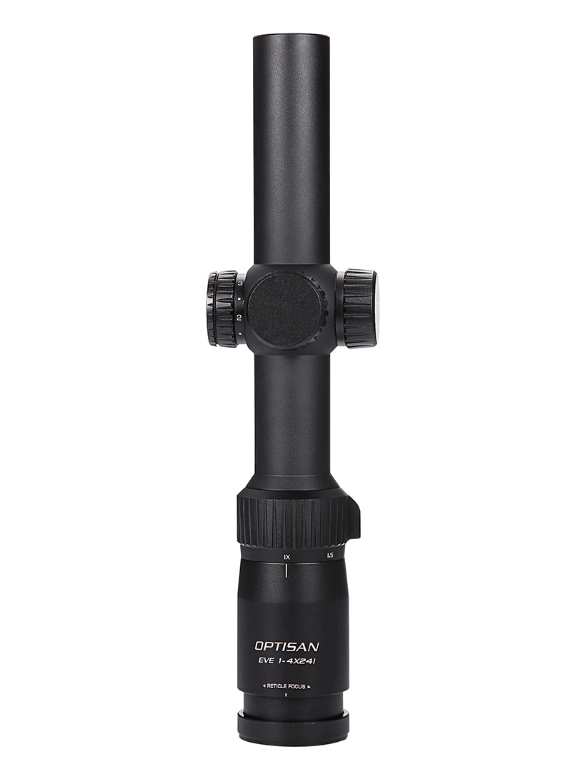

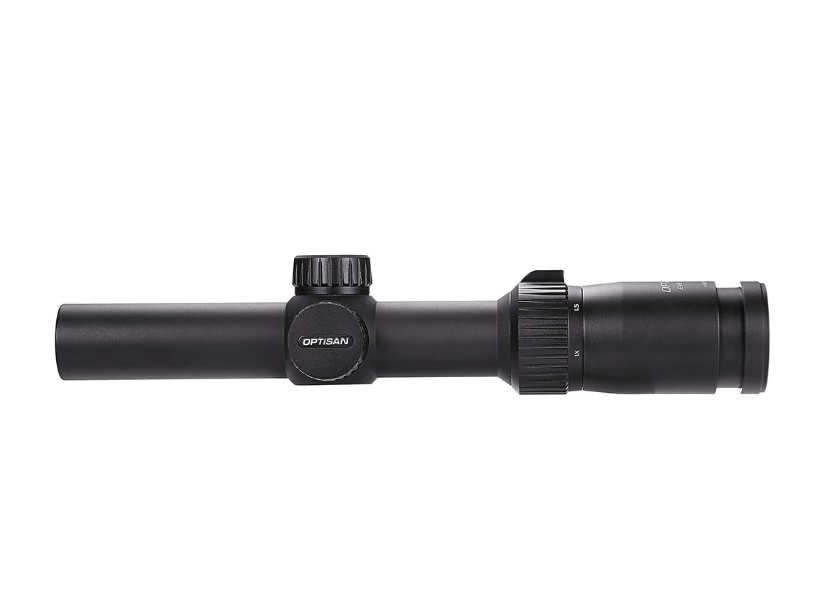

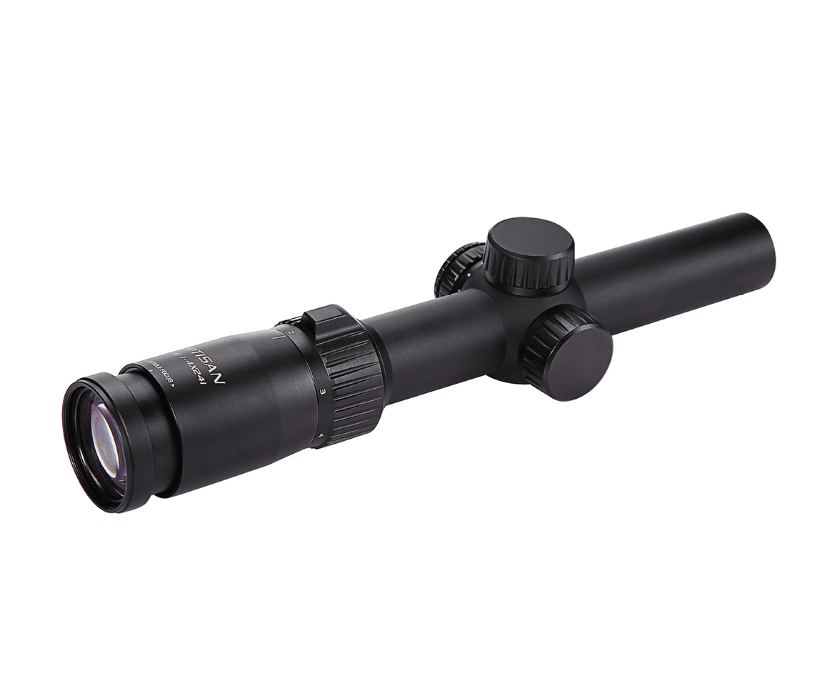

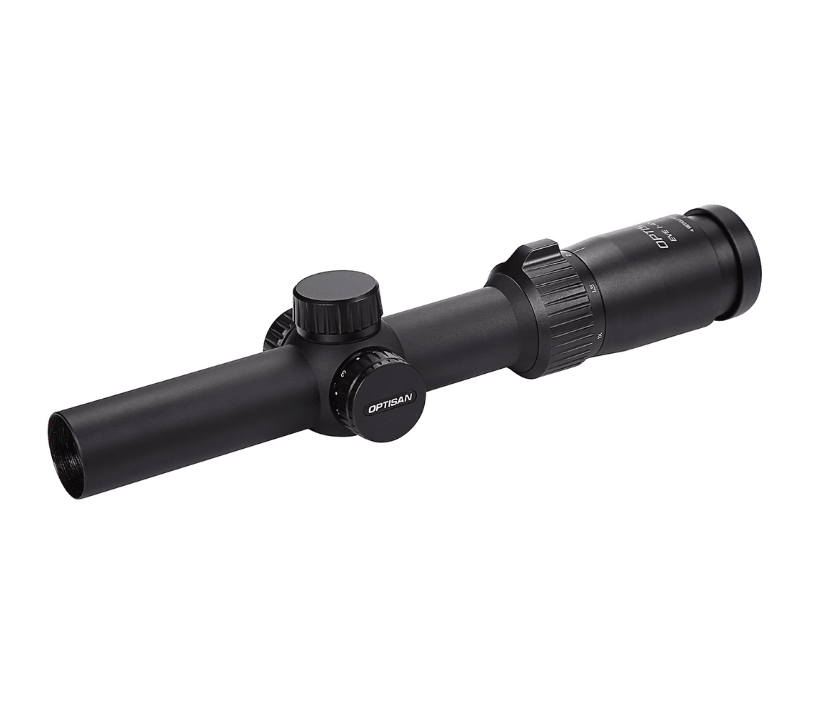

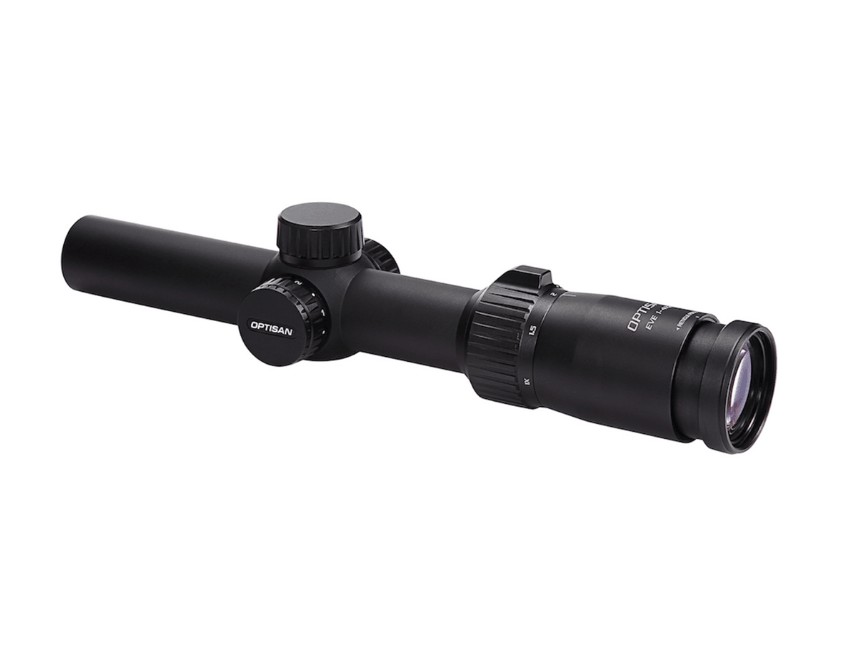

OPTISAN 37578 EVE 1-4X24I
OPTICAL DATA |
||
Magnification (High) |
4X |
|
Magnification (Low) |
1X |
|
Objective Diameter (mm) |
24mm |
|
Outer dia. Objective (mm) |
30mm |
|
FOV (min.mag - max.mag) (ft@100yds) |
103.1ft - 25.4ft |
|
FOV (min.mag - max.mag) (m@100m) |
34.36mm - 8.46mm |
|
FOV (min.mag - max.mag) (degree) |
18.97° - 4.84° |
|
Eye relief (min.mag - max.mag) (in) |
4.33'' - 3.93'' |
|
Eye relief (min.mag - max.mag) (mm) |
109.9mm - 99.82mm |
|
Exit Pupil (min.mag - max.mag) (mm) |
24mm - 6mm |
|
Diopter Range (dpt) |
+/- 2.0 dpt |
|
Parallax Adjustment |
Free at 100 yds |
|
Coating |
Fully multi-coated |
|
MECHANICAL DATA |
||
Tube Construction |
One-piece tube, aircraft aluminum |
One-piece tube, aircraft aluminum |
Elevation Adjustment (value per click) |
0.5 MOA |
0.5 MOA |
Windage Adjustment (value per click) |
0.5 MOA |
0.5 MOA |
Turret Style (Elevation) |
Low profile, toolless resettable zero |
Low profile, toolless resettable zero |
Turret Style (Windage) |
Low profile, toolless resettable zero |
Low profile, toolless resettable zero |
Travel Per Rotation |
30 MOA |
30 MOA |
Elevation adj. range |
≥ 25 MOA |
≥ 25 MOA |
Windage adj. range |
≥ 25 MOA |
≥ 25 MOA |
Eye Piece Diameter (in) |
1.73'' |
1.73'' |
Eye Piece Diameter (mm) |
44mm |
44mm |
Eye Piece Length (in) |
2'' |
2'' |
Eye Piece Length (mm) |
51.2mm |
51.2mm |
Mounting Length front (mm) |
87mm |
87mm |
Mounting Length rear (mm) |
47mm |
47mm |
Tube Dia. (mm) |
30mm |
30mm |
Length (in) |
10.24'' |
10.24'' |
Length (mm) |
266mm |
266mm |
Weight (g) |
478g |
478g |
Weight (oz) |
16.86oz |
16.86oz |
Surface Finish |
Matte Black |
Matte Black |
ENVIRONMENT DATA |
||
Functional temperature |
-20 ~ 50 degree celcius |
-20 ~ 50 degree celcius |
Storage temperature |
-20 ~ 50 degree celcius |
-20 ~ 50 degree celcius |
Submersion tightness |
IPX7 |
IPX7 |

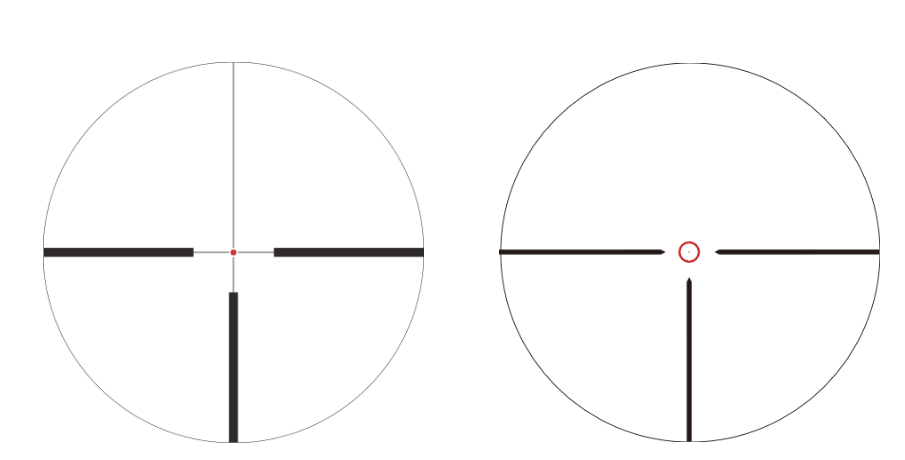

RETICLE DATA |
||
Reticle |
MOA-CQB4 |
MOA-G4A4 |
Calibrated Ranging Power |
4X |
4X |
Focal plane |
Second Focal Plane |
Second Focal Plane |
Illumination |
6 Steps illumination with off setting in between |
6 Steps illumination with off setting in between |
OPTICAL DATA |
||
Magnification (High) |
4X |
|
Magnification (Low) |
1X |
|
Objective Diameter (mm) |
24mm |
|
Outer dia. Objective (mm) |
30mm |
|
FOV (min.mag - max.mag) (ft@100yds) |
103.1ft - 25.4ft |
|
FOV (min.mag - max.mag) (m@100m) |
34.36mm - 8.46mm |
|
FOV (min.mag - max.mag) (degree) |
18.97° - 4.84° |
|
Eye relief (min.mag - max.mag) (in) |
4.33'' - 3.93'' |
|
Eye relief (min.mag - max.mag) (mm) |
109.9mm - 99.82mm |
|
Exit Pupil (min.mag - max.mag) (mm) |
24mm - 6mm |
|
Diopter Range (dpt) |
+/- 2.0 dpt |
|
Parallax Adjustment |
Free at 100 yds |
|
Coating |
Fully multi-coated |
|
MECHANICAL DATA |
||
Tube Construction |
One-piece tube, aircraft aluminum |
One-piece tube, aircraft aluminum |
Elevation Adjustment (value per click) |
0.5 MOA |
0.5 MOA |
Windage Adjustment (value per click) |
0.5 MOA |
0.5 MOA |
Turret Style (Elevation) |
Low profile, toolless resettable zero |
Low profile, toolless resettable zero |
Turret Style (Windage) |
Low profile, toolless resettable zero |
Low profile, toolless resettable zero |
Travel Per Rotation |
30 MOA |
30 MOA |
Elevation adj. range |
≥ 25 MOA |
≥ 25 MOA |
Windage adj. range |
≥ 25 MOA |
≥ 25 MOA |
Eye Piece Diameter (in) |
1.73'' |
1.73'' |
Eye Piece Diameter (mm) |
44mm |
44mm |
Eye Piece Length (in) |
2'' |
2'' |
Eye Piece Length (mm) |
51.2mm |
51.2mm |
Mounting Length front (mm) |
87mm |
87mm |
Mounting Length rear (mm) |
47mm |
47mm |
Tube Dia. (mm) |
30mm |
30mm |
Length (in) |
10.24'' |
10.24'' |
Length (mm) |
266mm |
266mm |
Weight (g) |
478g |
478g |
Weight (oz) |
16.86oz |
16.86oz |
Surface Finish |
Matte Black |
Matte Black |
ENVIRONMENT DATA |
||
Functional temperature |
-20 ~ 50 degree celcius |
-20 ~ 50 degree celcius |
Storage temperature |
-20 ~ 50 degree celcius |
-20 ~ 50 degree celcius |
Submersion tightness |
IPX7 |
IPX7 |
RETICLE DATA |
||
Reticle |
MOA-CQB4 |
MOA-G4A4 |
Calibrated Ranging Power |
4X |
4X |
Focal plane |
Second Focal Plane |
Second Focal Plane |
Illumination |
6 Steps illumination with off setting in between |
6 Steps illumination with off setting in between |
