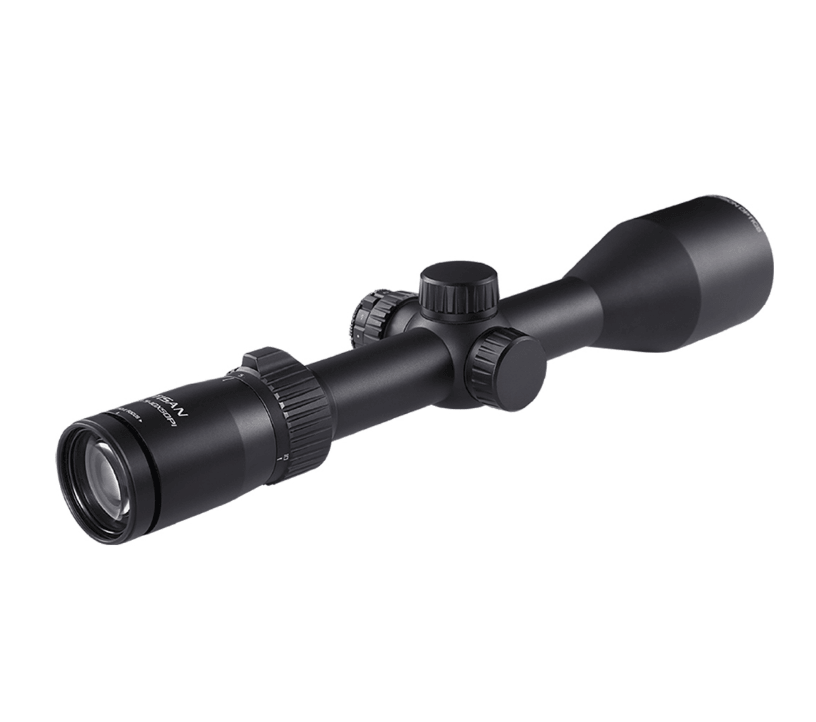

OPTISAN 37570 EVE 3-12X56PI

OPTISAN 37570 EVE 3-12X56PI

The new EVE rifle scope series from Optisan combines precision engineering and design to deliver unrivaled performance. Serving as the successor to the popular Mamba, this line boasts a 25% larger field of view, enhanced resolution, and superior color adjustment capabilities.

Illuminated in red and easily adjustable, the reticle (2nd focal plane) adds to the overall functionality of the Optisan 37570 EVE 3-12X56PI.

Designed to tackle any hunting challenge with rugged precision, the EVE line is a must-have for passionate hunters. This classic hunting scope excels in low light conditions, making it ideal for dawn and dusk hunts.

With a simple and clean German No.4 reticle that minimally obscures the target and a precise red dot for shots up to 300 yards, the Optisan 37570 EVE 3-12X56PI is truly a hunter's dream.

FEATURES:

• Second focal plane
• Fully multi-coated lenses
• Aircraft-grade multi coated aluminum housing
• Lab dry Argon gas filled for long lasting air tightness
• Lockable windage and elevation with finger resettable scale
• Illuminated reticle brightness control

SPECIFICATIONS:

OPTICAL DATA

• Magnification (High) 12X
• Magnification (Low) 3X
• Objective Diameter (mm) 56mm
• Outer dia. Objective (mm) 65mm
• FOV (min.mag）(ft/100yds) 36.7
• FOV (max.mag）(ft/100yds) 9.2
• Eye relief (in) 3.8” – 3.5”
• Exit Pupil (Max mag.） (mm) 4.5mm
• Exit Pupil (min. mag.） (mm) 18.6mm
• Diopter Range (dpt) +2/-2
• Parallax Adjustment 10yds – infinity (100yds parallax free)
• Coating Fully Multi-coated

MECHANICAL DATA

• Tube Construction One-piece tube, aircraft aluminum
• Elevation Adjustment (value per click) 0.1 mrad
• Windage Adjustment (value per click) 0.1 mrad
• Turret Style (Elevation) Low profile, tooless resettable zero
• Turret Style (Windage) Low profile, tooless resettable zero
• Travel Per Rotation 6 mil
• Elevation adj. range >= 15 mil
• Windage adj. range >= 15 mil
• Eye Piece Diameter (in) 1.73”
• Eye Piece Diameter (mm) 44mm
• Eye Piece Length (in) 2”
• Eye Piece Length (mm) 51.2mm
• Mounting Length rear (mm) 58mm
• Mounting Length front (mm) 48mm
• Tube Dia. (mm) 30mm
• Length (in) 13.46”
• Length (mm) 342mm
• Weight (g) 772g
• Weight (oz) 27.23oz
• Surface Finish Matte Black

ENVIRONMENT DATA

• Functional temperature -20 ~ 50 degree celsius
• Storage temperature -20 ~ 50 degree celsius
• Submersion tightness JIS 7

RETICLE DATA

• Reticle MIL-G4Ai12X
• Calibrated Ranging Power 12X
• Focal plane Second
• Illumination 6 Steps illumination with off setting in between
