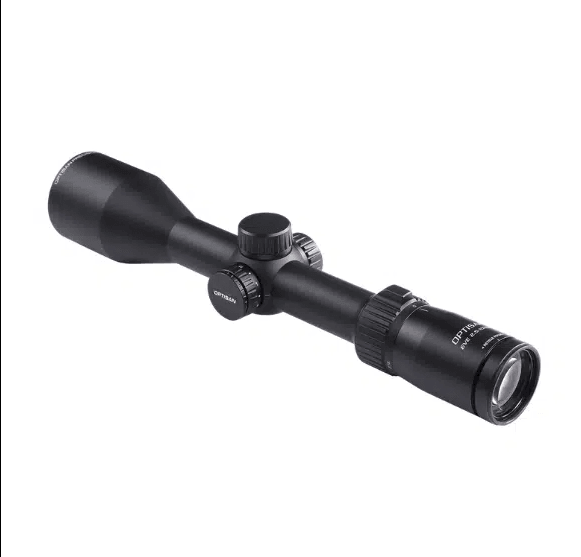

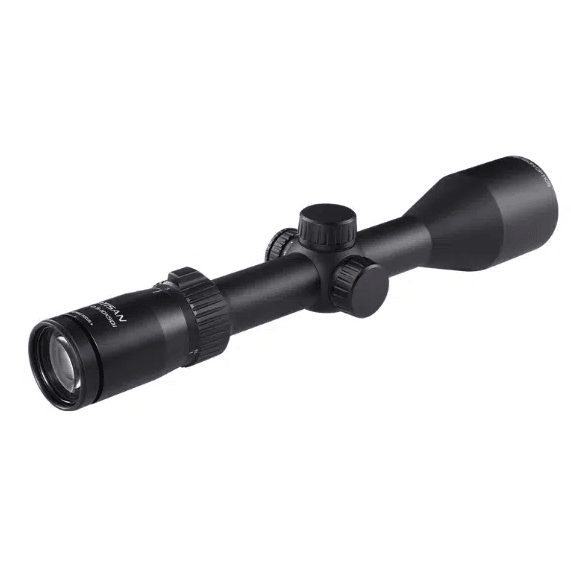

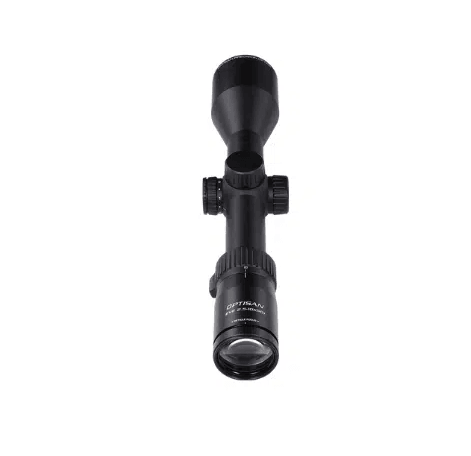

OPTISAN 37569 EVE 2.5 10X50I

OPTISAN 37569 EVE 2.5 10X50I

Elevate your hunting game with the Optisan 37569 EVE 2.5-10X50I. This versatile scope combines rugged precision with a wide field of view at 2.5X and precise shot placement at 10X.

The simple and clean German No.4 reticle allows for quick target acquisition, while the fine aiming red dot enables precise shots up to 300 yards. Experience the ultimate hunting companion with Optisan.

 -  PLEASE NOTE THAT PICTURES ARE USED FOR ILLUSTRATION PURPOSE ONLY          AND MAY VARY FROM ACTUAL PRODUCT.

OPTICAL DATA

• Magnification (High) 10X
• Magnification (Low) 2.5X
• Objective Diameter (mm) 50mm
• Outer dia. Objective (mm) 59mm
• FOV (min.mag）(ft/100yds) 42
• FOV (max.mag）(ft/100yds) 10.5
• Eye relief (in) 3.8” – 3.5”
• Exit Pupil (Max mag.） (mm) 5mm
• Exit Pupil (min. mag.） (mm) 20mm
• Diopter Range (dpt) +2/-2
• Parallax Adjustment Parallax free at 100yds
• Coating Fully Multi-coated

MECHANICAL DATA

• Tube Construction One-piece tube, aircraft aluminium
• Elevation Adjustment (value per click) 0.1 mrad
• Windage Adjustment (value per click) 0.1 mrad
• Turret Style (Elevation) Low profile, tooless resettable zero
• Turret Style (Windage) Low profile, tooless resettable zero
• Travel Per Rotation 6 mil
• Elevation adj. range >= 15 mil
• Windage adj. range >= 15 mil
• Eye Piece Diameter (in) 1.73”
• Eye Piece Diameter (mm) 44mm
• Eye Piece Length (in) 2”
• Eye Piece Length (mm) 51.2mm
• Mounting Length rear (mm) 58mm
• Mounting Length front (mm) 48mm
• Tube Dia. (mm) 30mm
• Length (in) 13.26”
• Length (mm) 337mm
• Weight (g) 664g
• Weight (oz) 23.42oz
• Surface Finish Matte Black

ENVIRONMENT DATA

• Functional temperature -20 ~ 50 degree celsius
• Storage temperature -20 ~ 50 degree celsius
• Submersion tightness JIS 7

RETICLE DATA

• Reticle MIL-G4Ai10X
• Calibrated Ranging Power 10X
• Focal plane Second
• Illumination 6 Steps illumination with off setting in between
