OPTISAN 37568 EVE2.5-10X50PI

OPTISAN 37568 EVE2.5-10X50PI

Unleash the full potential of your shots with the groundbreaking EVE2.5-10X50PI rifle scope from Optisan. Engineered for unparalleled precision and peak performance, the EVE delivers an expanded field of view, heightened resolution, and superior color adjustment compared to the Mamba.

Featuring an illuminated red reticle (2nd focal plane) that allows for effortless adjustments, the EVE is a game-changing addition to your arsenal.

features:

• Second focal plane
• Fully multi-coated lenses
• Aircraft-grade multi coated aluminum housing
• Lab dry Argon gas filled for long lasting air tightness
• Lockable windage and elevation with finger resettable scale
• Illuminated reticle brightness control

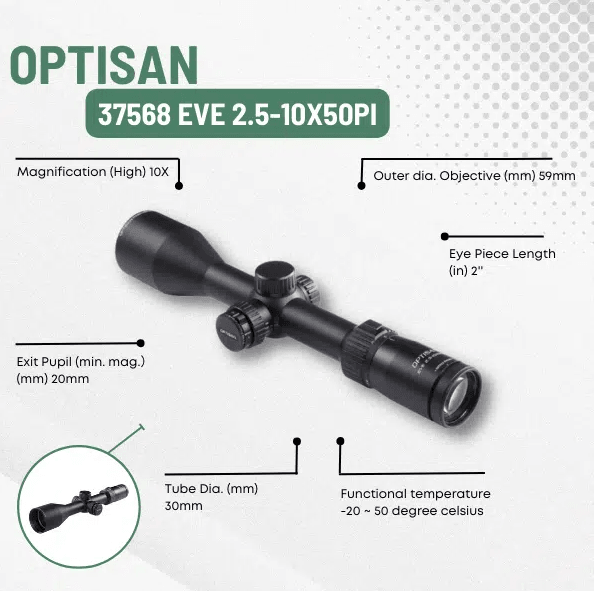

OPTICAL DATA

• Magnification (High) 10X
• Magnification (Low) 2.5X
• Objective Diameter (mm) 50mm
• Outer dia. Objective (mm) 59mm
• FOV (min.mag）(ft/100yds) 42
• FOV (max.mag）(ft/100yds) 10.5
• Eye relief (in) 3.8” – 3.5”
• Exit Pupil (Max mag.） (mm) 5mm
• Exit Pupil (min. mag.） (mm) 20mm
• Diopter Range (dpt) +2/-2
• Parallax Adjustment 10yds – infinity (100yds parallax free)
• Coating Fully Multi-coated

MECHANICAL DATA

• Tube Construction One-piece tube, aircraft aluminium
• Elevation Adjustment (value per click) 0.1 mrad
• Windage Adjustment (value per click) 0.1 mrad
• Turret Style (Elevation) Low profile, toolless resettable zero
• Turret Style (Windage) Low profile, toolless resettable zero
• Travel Per Rotation 6 mil
• Elevation adj. range >= 15 mil
• Windage adj. range >= 15 mil
• Eye Piece Diameter (in) 1.73”
• Eye Piece Diameter (mm) 44mm
• Eye Piece Length (in) 2”
• Eye Piece Length (mm) 51.2mm
• Mounting Length rear (mm) 58mm
• Mounting Length front (mm) 48mm
• Tube Dia. (mm) 30mm
• Length (in) 13.26”
• Length (mm) 337mm
• Weight (g) 726g
• Weight (oz) 25.60oz
• Surface Finish Matte Black

ENVIRONMENT DATA

• Functional temperature -20 ~ 50 degree celsius
• Storage temperature -20 ~ 50 degree celsius
• Submersion tightness JIS 7

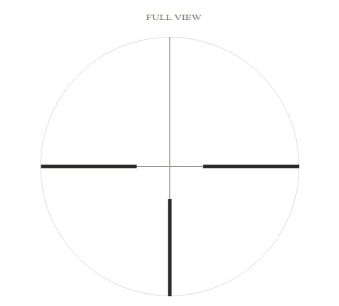

RETICLE DATA

• Reticle MIL-G4Ai10X
• Calibrated Ranging Power 10X
• Focal plane Second
• Illumination 6 Steps illumination with off setting in between
