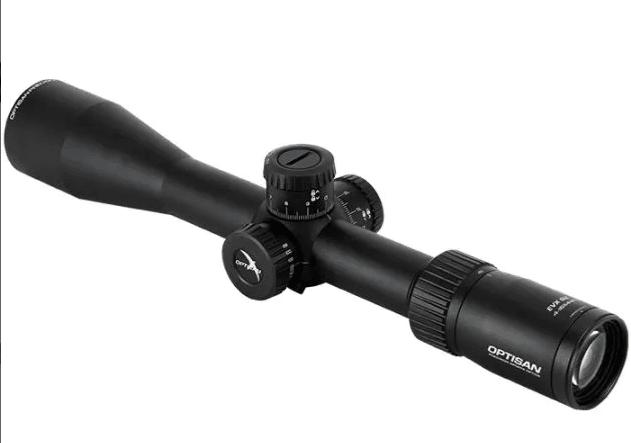

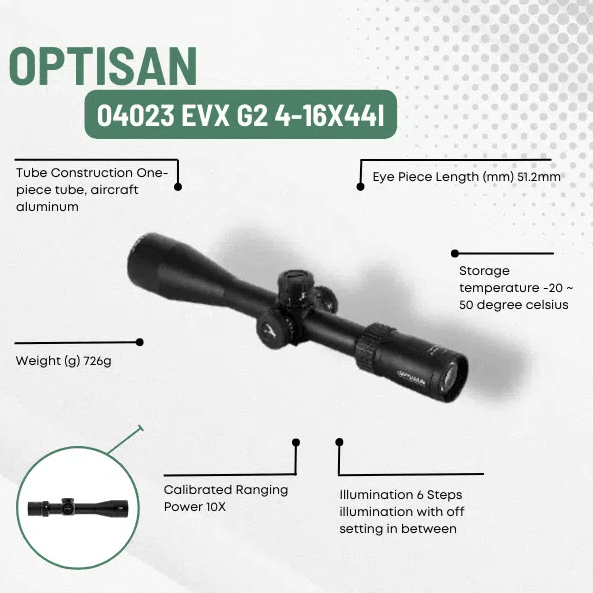

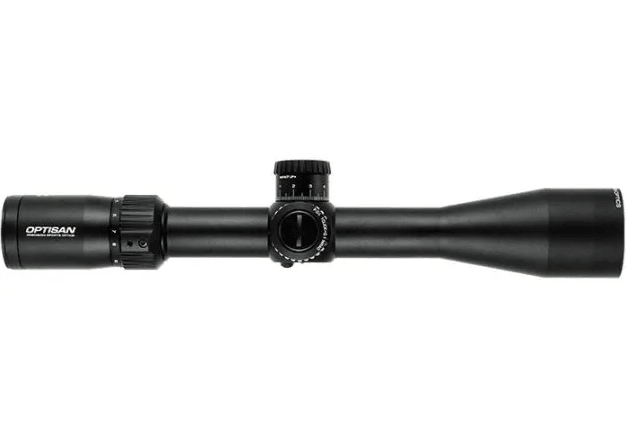

OPTISAN 04023EVX G2 4-16X44I
OPTISAN 04023EVX G2 4-16X44I
The Optisan 04023EVX G2 4-16X44I is the result of co-development with top shooters, ensuring it can handle the challenges of the field and excel in competition. With meticulous testing and ongoing improvements, it's no wonder this optic has earned the approval of European champion shooters.
Each of the 90-150 components undergoes over 200 quality control checks, all done in-house, before becoming part of your shooting system. The EVX line has been re-engineered and now surpasses the first generation flagship Viper line from 2006.
It's designed and engineered for sub-MOA precision in both shooting and hunting, and has been field-tested to be reliable for calibers up to .308 and .300WM. The new GEN II optical system boasts a 25% larger field of view and a generous eye box, making it perfect for quick target acquisition.
OPTICAL DATA
- Magnification (High) 16X
- Magnification (Low) 4X
- Objective Diameter (mm) 44mm
- Outer dia. Objective (mm) 53mm
- FOV (min.mag(ft/100yds) 27.2
- FOV (max.mag(ft/100yds) 6.8
- Eye relief (in) 3.8” – 3.5”
- Exit Pupil (Max mag. (mm) 2.75mm
- Exit Pupil (min. mag. (mm) 11mm
- Diopter Range (dpt) +2/-2
- Parallax Adjustment 10yds – infinity (100yds parallax free)
- Coating Fully Multi-coated
MECHANICAL DATA
- Tube Construction One-piece tube, aircraft aluminum
- Elevation Adjustment (value per click) 0.1 mrad
- Windage Adjustment (value per click) 0.1 mrad
- Turret Style (Elevation) Push pull lockable
- Turret Style (Windage) Push pull lockable
- Travel Per Rotation 4.8 mil
- Elevation adj. range >= 15 mil
- Windage adj. range >= 15 mil
- Eye Piece Diameter (in) 1.73”
- Eye Piece Diameter (mm) 44mm
- Eye Piece Length (in) 2”
- Eye Piece Length (mm) 51.2mm
- Mounting Length rear (mm) 58mm
- Mounting Length front (mm) 59.3mm
- Tube Dia. (mm) 30mm
- Length (in) 14.25”
- Length (mm) 362mm
- Weight (g) 726g
- Weight (oz) 25.6oz
- Surface Finish Matte Black
ENVIRONMENT DATA
- Functional temperature -20 ~ 50 degree celsius
- Storage temperature -20 ~ 50 degree celsius
- Submersion tightness JIS 7
RETICLE DATA
- Reticle SFPMH10X
- Calibrated Ranging Power 10X
- Focal plane Second
- Illumination 6 Steps illumination with off setting in between
OPTISAN 04023EVX G2 4-16X44I
The Optisan 04023EVX G2 4-16X44I is the result of co-development with top shooters, ensuring it can handle the challenges of the field and excel in competition. With meticulous testing and ongoing improvements, it's no wonder this optic has earned the approval of European champion shooters.
Each of the 90-150 components undergoes over 200 quality control checks, all done in-house, before becoming part of your shooting system. The EVX line has been re-engineered and now surpasses the first generation flagship Viper line from 2006.
It's designed and engineered for sub-MOA precision in both shooting and hunting, and has been field-tested to be reliable for calibers up to .308 and .300WM. The new GEN II optical system boasts a 25% larger field of view and a generous eye box, making it perfect for quick target acquisition.
OPTICAL DATA
- Magnification (High) 16X
- Magnification (Low) 4X
- Objective Diameter (mm) 44mm
- Outer dia. Objective (mm) 53mm
- FOV (min.mag(ft/100yds) 27.2
- FOV (max.mag(ft/100yds) 6.8
- Eye relief (in) 3.8” – 3.5”
- Exit Pupil (Max mag. (mm) 2.75mm
- Exit Pupil (min. mag. (mm) 11mm
- Diopter Range (dpt) +2/-2
- Parallax Adjustment 10yds – infinity (100yds parallax free)
- Coating Fully Multi-coated
MECHANICAL DATA
- Tube Construction One-piece tube, aircraft aluminum
- Elevation Adjustment (value per click) 0.1 mrad
- Windage Adjustment (value per click) 0.1 mrad
- Turret Style (Elevation) Push pull lockable
- Turret Style (Windage) Push pull lockable
- Travel Per Rotation 4.8 mil
- Elevation adj. range >= 15 mil
- Windage adj. range >= 15 mil
- Eye Piece Diameter (in) 1.73”
- Eye Piece Diameter (mm) 44mm
- Eye Piece Length (in) 2”
- Eye Piece Length (mm) 51.2mm
- Mounting Length rear (mm) 58mm
- Mounting Length front (mm) 59.3mm
- Tube Dia. (mm) 30mm
- Length (in) 14.25”
- Length (mm) 362mm
- Weight (g) 726g
- Weight (oz) 25.6oz
- Surface Finish Matte Black
ENVIRONMENT DATA
- Functional temperature -20 ~ 50 degree celsius
- Storage temperature -20 ~ 50 degree celsius
- Submersion tightness JIS 7
RETICLE DATA
- Reticle SFPMH10X
- Calibrated Ranging Power 10X
- Focal plane Second
- Illumination 6 Steps illumination with off setting in between
