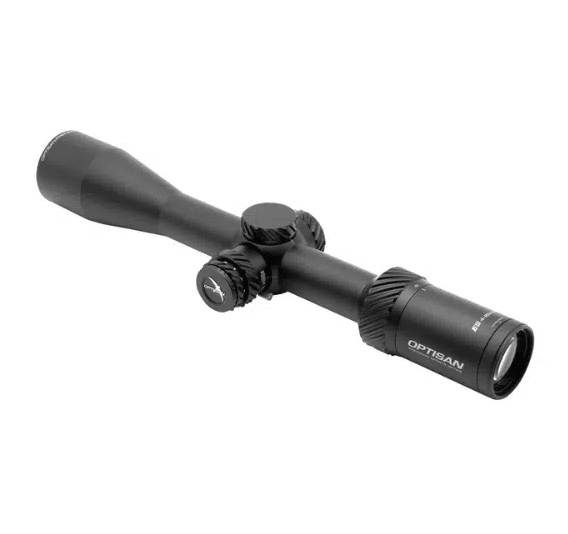

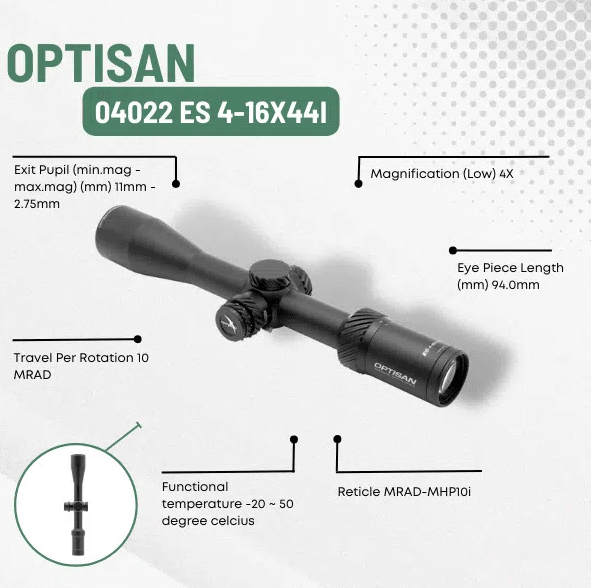

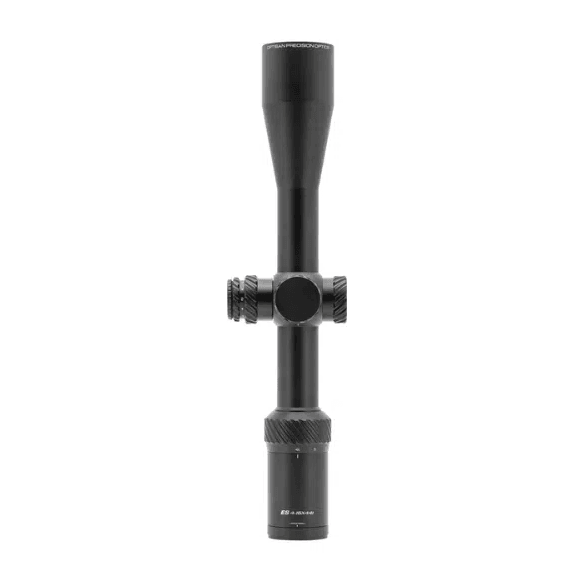

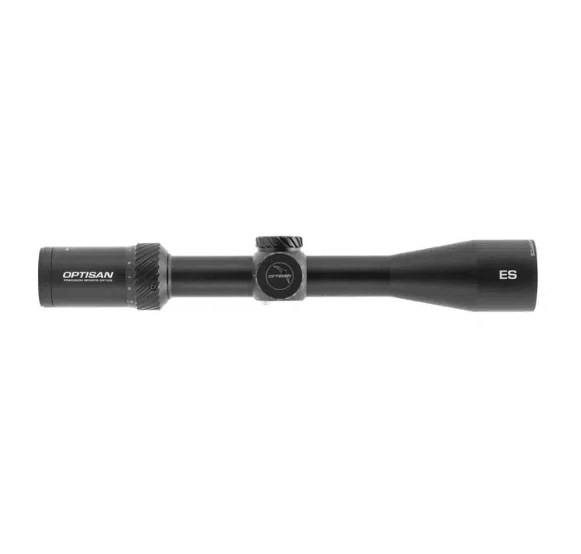

OPTISAN 04022 ES 4-16X44I
Optisan 04022 ES 4-16X44I is designed and engineered for extreme precision shooting. This exceptional line features the same top-notch optical system and exceptional machining and assembly standards, ensuring high resolution at high power while maintaining a wide eye box for shooters.
With a capacity to withstand muzzle velocities of up to 6000j post-barrel, the ES riflescope boasts a stainless steel capped turret that produces a satisfying audible clicking sound, providing positive feedback to the shooter. Its toolless reset-to-zero design and capped turret protect it from outdoor elements, making it the perfect choice for any shooting adventure.
Available in MIL/MIL (10 MIL per turn) matching turret and reticle configuration, the ES scope also comes equipped with the latest MHP mil-hash reticle, carefully crafted to minimize obstructions and provide long-range holdover capabilities. Trust Optisan 04022 ES 4-16X44I to elevate your shooting game and bring your vision to life!
OPTICAL DATA
- Magnification (High) 16X
- Magnification (Low) 4X
- Objective Diameter (mm) 44mm
- Outer dia. Objective (mm) 52mm
- FOV (min.mag – max.mag) (ft@100yds) 27.2ft – 6.8ft
- FOV (min.mag – max.mag) (m@100m) 9.06m – 2.26m
- FOV (min.mag – max.mag) (degree) 5.18° – 1.3°
- Eye relief (min.mag – max.mag) (in) 3.8” – 3.5”
- Eye relief (min.mag – max.mag) (mm) 96.52mm – 88.9mm
- Exit Pupil (min.mag – max.mag) (mm) 11mm – 2.75mm
- Diopter Range (dpt) +/- 2.0 dpt
- Parallax Adjustment 10 yds – infinity
- Coating Fully multi-coated
MECHANICAL DATA
- Tube Construction One-piece tube, aircraft aluminium
- Elevation Adjustment (value per click) 0.1 MRAD
- Windage Adjustment (value per click) 0.1 MRAD
- Turret Style (Elevation) Low profile, toolless resettable zero
- Turret Style (Windage) Low profile, toolless resettable zero
- Travel Per Rotation 10 MRAD
- Elevation adj. range ≥ 18 MRAD
- Windage adj. range ≥ 18 MRAD
- Eye Piece Diameter (in) 1.73”
- Eye Piece Diameter (mm) 44mm
- Eye Piece Length (in) 3.70”
- Eye Piece Length (mm) 94.0mm
- Mounting Length rear (mm) 57.6mm
- Mounting Length front (mm) 59.6mm
- Tube Dia. (mm) 30mm
- Length (in) 13.94”
- Length (mm) 352mm
- Weight (g) 702g
- Weight (oz) 24.76oz
- Surface Finish Matte Black
ENVIRONMENT DATA
- Functional temperature -20 ~ 50 degree celcius
- Storage temperature -20 ~ 50 degree Celsius
- Submersion tightness IPX7

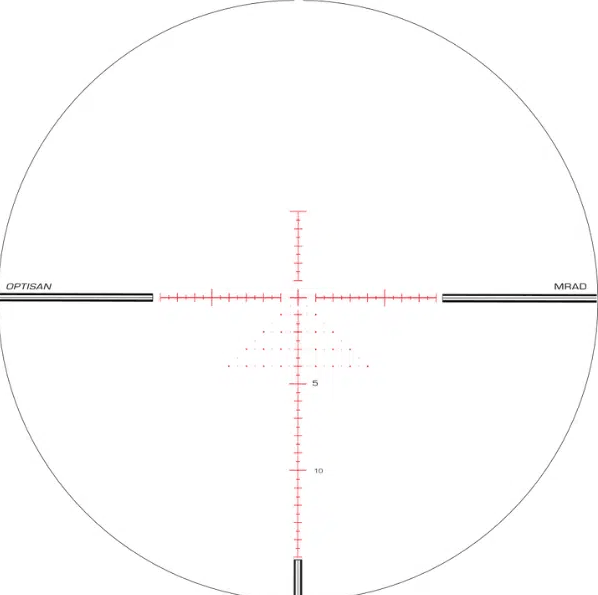

RETICLE DATA
- Reticle MRAD-MHP10i
- Calibrated Ranging Power 10X
- Focal plane Second Focal Plane
- Illumination 6 Steps illumination with off setting in between
OPTISAN 04022 ES 4-16X44I
Optisan 04022 ES 4-16X44I is designed and engineered for extreme precision shooting. This exceptional line features the same top-notch optical system and exceptional machining and assembly standards, ensuring high resolution at high power while maintaining a wide eye box for shooters.
With a capacity to withstand muzzle velocities of up to 6000j post-barrel, the ES riflescope boasts a stainless steel capped turret that produces a satisfying audible clicking sound, providing positive feedback to the shooter. Its toolless reset-to-zero design and capped turret protect it from outdoor elements, making it the perfect choice for any shooting adventure.
Available in MIL/MIL (10 MIL per turn) matching turret and reticle configuration, the ES scope also comes equipped with the latest MHP mil-hash reticle, carefully crafted to minimize obstructions and provide long-range holdover capabilities. Trust Optisan 04022 ES 4-16X44I to elevate your shooting game and bring your vision to life!
OPTICAL DATA
- Magnification (High) 16X
- Magnification (Low) 4X
- Objective Diameter (mm) 44mm
- Outer dia. Objective (mm) 52mm
- FOV (min.mag – max.mag) (ft@100yds) 27.2ft – 6.8ft
- FOV (min.mag – max.mag) (m@100m) 9.06m – 2.26m
- FOV (min.mag – max.mag) (degree) 5.18° – 1.3°
- Eye relief (min.mag – max.mag) (in) 3.8” – 3.5”
- Eye relief (min.mag – max.mag) (mm) 96.52mm – 88.9mm
- Exit Pupil (min.mag – max.mag) (mm) 11mm – 2.75mm
- Diopter Range (dpt) +/- 2.0 dpt
- Parallax Adjustment 10 yds – infinity
- Coating Fully multi-coated
MECHANICAL DATA
- Tube Construction One-piece tube, aircraft aluminium
- Elevation Adjustment (value per click) 0.1 MRAD
- Windage Adjustment (value per click) 0.1 MRAD
- Turret Style (Elevation) Low profile, toolless resettable zero
- Turret Style (Windage) Low profile, toolless resettable zero
- Travel Per Rotation 10 MRAD
- Elevation adj. range ≥ 18 MRAD
- Windage adj. range ≥ 18 MRAD
- Eye Piece Diameter (in) 1.73”
- Eye Piece Diameter (mm) 44mm
- Eye Piece Length (in) 3.70”
- Eye Piece Length (mm) 94.0mm
- Mounting Length rear (mm) 57.6mm
- Mounting Length front (mm) 59.6mm
- Tube Dia. (mm) 30mm
- Length (in) 13.94”
- Length (mm) 352mm
- Weight (g) 702g
- Weight (oz) 24.76oz
- Surface Finish Matte Black
ENVIRONMENT DATA
- Functional temperature -20 ~ 50 degree celcius
- Storage temperature -20 ~ 50 degree Celsius
- Submersion tightness IPX7
RETICLE DATA
- Reticle MRAD-MHP10i
- Calibrated Ranging Power 10X
- Focal plane Second Focal Plane
- Illumination 6 Steps illumination with off setting in between
