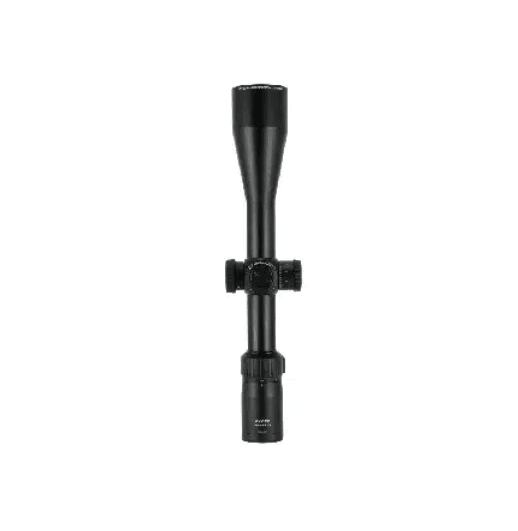

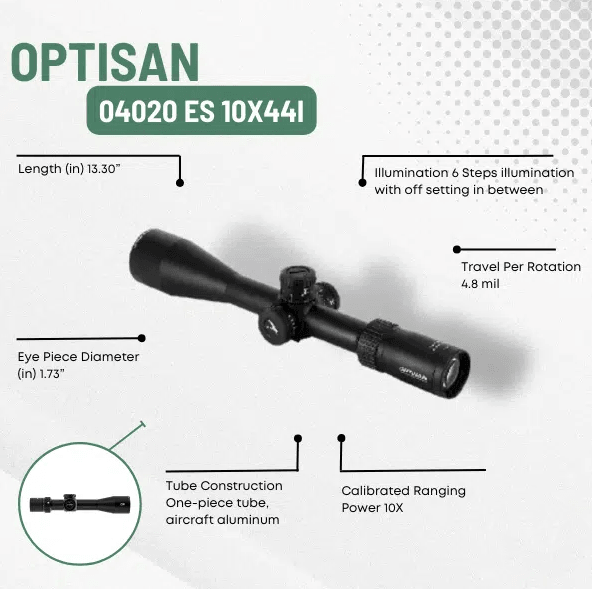

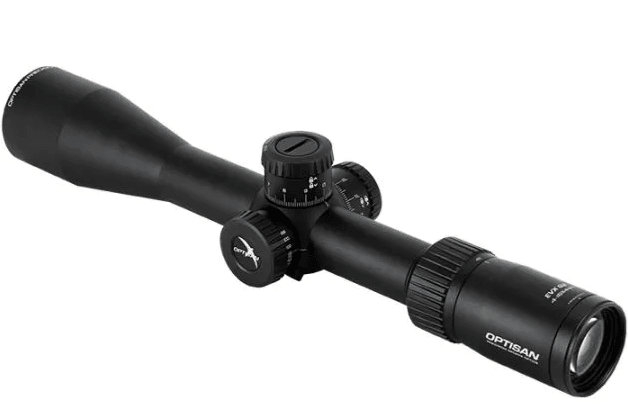

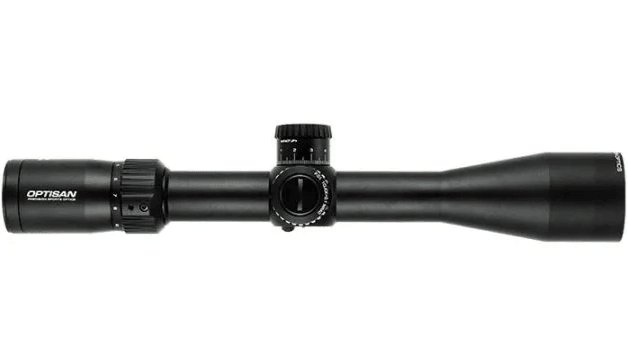

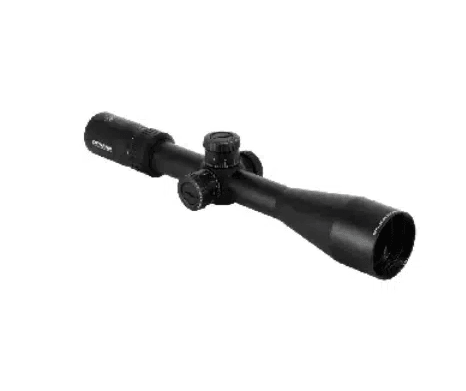

OPTISAN 04020 ES 10X44I
OPTISAN 04020 ES 10X44I
Discover unparalleled precision and durability with OPTISAN 04020 ES 10X44I. Through a partnership with top shooters, our co-developed shooting systems excel in the field and competition.
With meticulous testing and continuous improvements, our products have earned the approval of European champion shooters. Our 90-150 components undergo more than 200 quality control points before becoming part of your shooting system.
And our line of EVX optics, redesigned to surpass the flagship Viper line, are field-tested and hold up to .308 and .300WM. With a 25% larger field of view and consistent eye relief throughout the magnification range, our GEN II optics make quick target acquisition effortless.
And now, our EVX range is available in both first and second focal planes, featuring matching mil/mil turret and reticle options and a redesigned mil-hash reticle for long-range holdover capabilities. Elevate your shooting experience with Optisan.
OPTICAL DATA
- Magnification (High) 10X
- Magnification (Low) 10X
- Objective Diameter (mm) 44mm
- Outer dia. Objective (mm) 53mm
- FOV (min.mag)(ft/100yds) 11
- FOV (max.mag)(ft/100yds) 11
- Eye relief (in) 3.8”
- Exit Pupil (Max mag.) (mm) 4.4mm
- Exit Pupil (min. mag.) (mm) 4.4mm
- Diopter Range (dpt) +2/-2
- Parallax Adjustment 10yds – infinity (100yds parallax free)
- Coating Fully Multi-coated
MECHANICAL DATA
- Tube Construction One-piece tube, aircraft aluminum
- Elevation Adjustment (value per click) 0.1 mrad
- Windage Adjustment (value per click) 0.1 mrad
- Turret Style (Elevation) Push pull lockable
- Turret Style (Windage) Push pull lockable
- Travel Per Rotation 4.8 mil
- Elevation adj. range >= 15 mil
- Windage adj. range >= 15 mil
- Eye Piece Diameter (in) 1.73”
- Eye Piece Diameter (mm) 44mm
- Eye Piece Length (in) 2.8”
- Eye Piece Length (mm) 72.2mm
- Mounting Length rear (mm) 65mm
- Mounting Length front (mm) 50mm
- Tube Dia. (mm) 30mm
- Length (in) 13.30”
- Length (mm) 338mm
- Weight (g) 693g
- Weight (oz) 24.4oz
- Surface Finish Matte Black
ENVIRONMENT DATA
- Functional temperature -20 ~ 50 degree celsius
- Storage temperature -20 ~ 50 degree celsius
- Submersion tightness JIS 7
RETICLE DATA
- Reticle SFPMH10X
- Calibrated Ranging Power 10X
- Focal plane Second
- Illumination 6 Steps illumination with off setting in between
OPTISAN 04020 ES 10X44I
Discover unparalleled precision and durability with OPTISAN 04020 ES 10X44I. Through a partnership with top shooters, our co-developed shooting systems excel in the field and competition.
With meticulous testing and continuous improvements, our products have earned the approval of European champion shooters. Our 90-150 components undergo more than 200 quality control points before becoming part of your shooting system.
And our line of EVX optics, redesigned to surpass the flagship Viper line, are field-tested and hold up to .308 and .300WM. With a 25% larger field of view and consistent eye relief throughout the magnification range, our GEN II optics make quick target acquisition effortless.
And now, our EVX range is available in both first and second focal planes, featuring matching mil/mil turret and reticle options and a redesigned mil-hash reticle for long-range holdover capabilities. Elevate your shooting experience with Optisan.
OPTICAL DATA
- Magnification (High) 10X
- Magnification (Low) 10X
- Objective Diameter (mm) 44mm
- Outer dia. Objective (mm) 53mm
- FOV (min.mag)(ft/100yds) 11
- FOV (max.mag)(ft/100yds) 11
- Eye relief (in) 3.8”
- Exit Pupil (Max mag.) (mm) 4.4mm
- Exit Pupil (min. mag.) (mm) 4.4mm
- Diopter Range (dpt) +2/-2
- Parallax Adjustment 10yds – infinity (100yds parallax free)
- Coating Fully Multi-coated
MECHANICAL DATA
- Tube Construction One-piece tube, aircraft aluminum
- Elevation Adjustment (value per click) 0.1 mrad
- Windage Adjustment (value per click) 0.1 mrad
- Turret Style (Elevation) Push pull lockable
- Turret Style (Windage) Push pull lockable
- Travel Per Rotation 4.8 mil
- Elevation adj. range >= 15 mil
- Windage adj. range >= 15 mil
- Eye Piece Diameter (in) 1.73”
- Eye Piece Diameter (mm) 44mm
- Eye Piece Length (in) 2.8”
- Eye Piece Length (mm) 72.2mm
- Mounting Length rear (mm) 65mm
- Mounting Length front (mm) 50mm
- Tube Dia. (mm) 30mm
- Length (in) 13.30”
- Length (mm) 338mm
- Weight (g) 693g
- Weight (oz) 24.4oz
- Surface Finish Matte Black
ENVIRONMENT DATA
- Functional temperature -20 ~ 50 degree celsius
- Storage temperature -20 ~ 50 degree celsius
- Submersion tightness JIS 7
RETICLE DATA
- Reticle SFPMH10X
- Calibrated Ranging Power 10X
- Focal plane Second
- Illumination 6 Steps illumination with off setting in between
