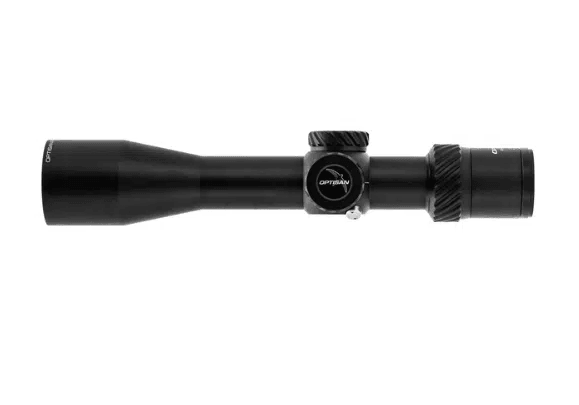

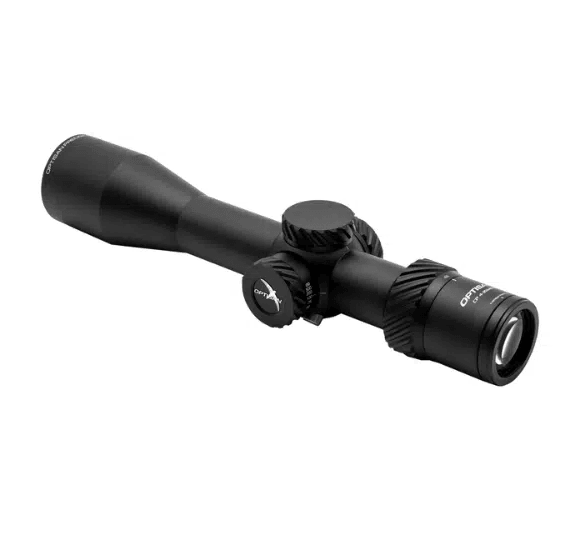

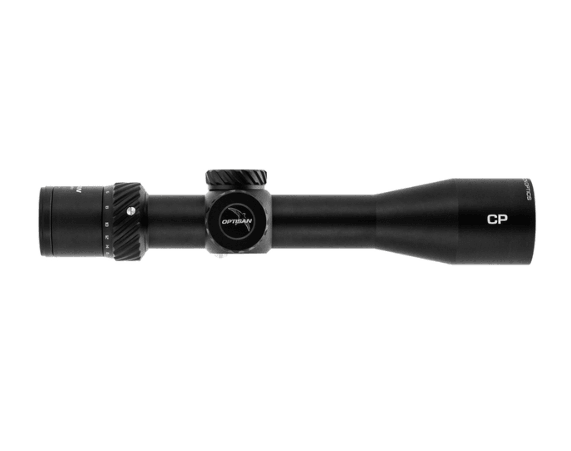

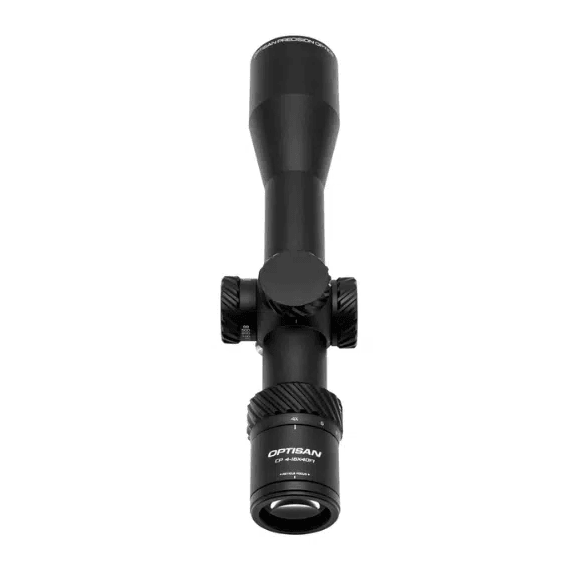

OPTISAN 04010 CP 4-16X40F1

OPTISAN 04010 CP 4-16X40F1

Discover the power of the OPTISAN 04010 CP 4-16X40F1. With a 40mm objective lens, this scope effectively minimizes Parallax error, ensuring consistent accuracy even as you change your head position or target distance.

Its impressive parallax adjustment range of 10 yards up to 500 yards to infinity offers unmatched versatility, making it an ideal choice for competitive shooting. Weighing only 530g and measuring just 27 cm in length, the CP is the perfect companion for compact and lightweight rifles. Don't miss out on this game-changing scope!

OPTICAL DATA

• Magnification (High) 16X ±5%
• Magnification (Low) 4X ±5%
• Objective Diameter (mm) 40mm
• Outer dia. Objective (mm) 48mm
• FOV (min.mag）(ft/100yds) 26.20
• FOV (max.mag）(ft/100yds) 6.55
• Eye relief (in) 3.5” – 3.3”
• Exit Pupil (Max mag.） (mm) 2.5 mm
• Exit Pupil (min. mag.） (mm) 10 mm
• Diopter Range (dpt) +/- 2.0
• Parallax Adjustment 10yds – infinity (100yds pa free)
• Coating Fully Multi-coated

MECHANICAL DATA

• Tube Construction One-piece tube, aircraft aluminum
• Elevation Adjustment (value per click) 1/4 moa
• Windage Adjustment (value per click) 1/4 moa
• Turret Style (Elevation) Low profile
• Turret Style (Windage) Low profile
• Travel Per Rotation 10 mrad
• Elevation adj. range ≥ 18 mrad
• Windage adj. range ≥ 18 mrad
• Eye Piece Diameter (in) 1.55”
• Eye Piece Diameter (mm) 39.5 mm
• Eye Piece Length (in) 1.08”
• Eye Piece Length (mm) 27.55 mm
• Mounting Length rear (mm) 55.70 mm
• Mounting Length front (mm) 30.00 mm
• Tube Dia. (mm) 30 mmLength (in) 10.55”
• Length (mm) 268mm
• Weight (g) 530g
• Weight (oz) 18.69 oz
• Surface Finish Matte Black

ENVIRONMENT DATA

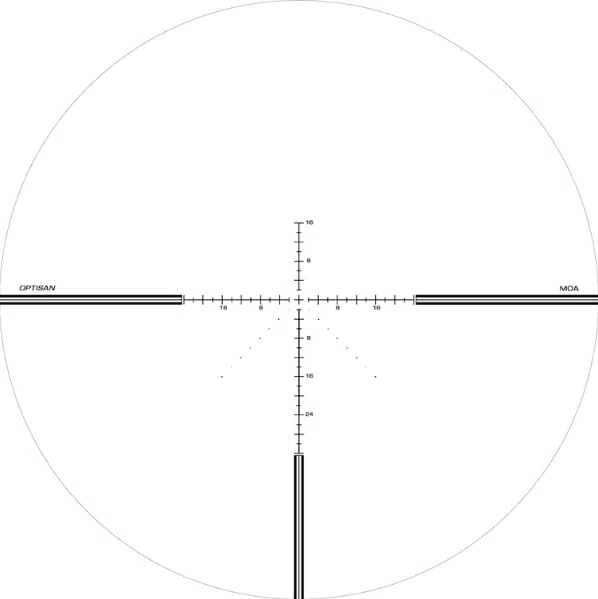

RETICLE DATA

• Reticle F1MOA16
• Focal plane FFP
• Illumination Non-illuminated
