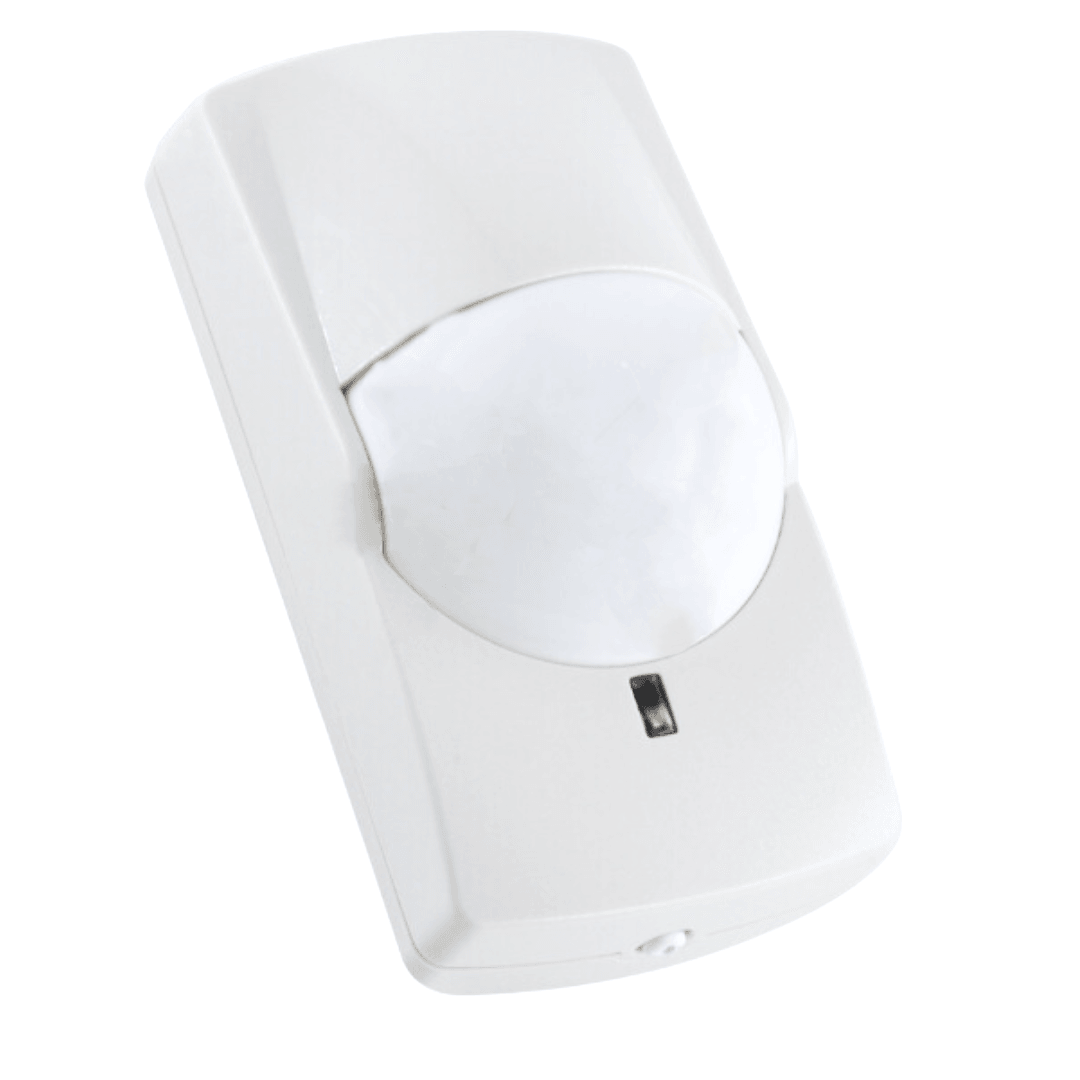

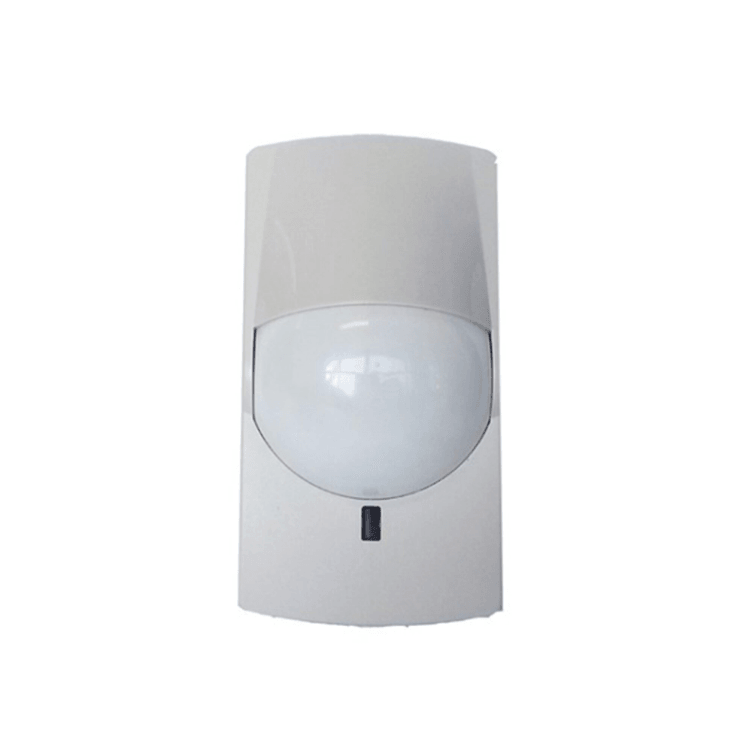

OPTEX Xwave wireless indoor detector

Pleasing aesthetics and solid detection performance suitable for standard indoor domestic and commercial installations, including those with small pets.

Meet the OPTEX WNX40 INDOOR PIR WIRELESS. A top-notch, innovative sensor that utilizes passive infrared technology to provide unparalleled accuracy for your indoor motion detection needs. Feel safe and confident in your space with this reliable and efficient solution.

With a wide coverage area of 12m x 12m (40ft. x 40ft.) and an impressive 85° wide detection angle, this detector can effectively monitor a substantial area. It boasts an astonishing 78 detection zones, thanks to its precision PIR (Passive Infrared) method. Whether it’s a residential living room, a commercial office, or any indoor environment, the OPTEX X-wave ensures that no movement goes unnoticed.

Mounting this sensor is a breeze, with a flexible range of 1.5 to 2.4 meters (5 to 8 feet) from the ground. You can customize the sensitivity to your exact needs, with a remarkable 2°C (3.6°F) at 0.6m/sec. (2ft./sec.), ensuring accurate detection without false alarms. Additionally, the detection speed ranges from 0.3 to 1.5m/sec. (1 to 5 ft/sec.), further enhancing its adaptability.

Customization is at your fingertips with the switchable LED alarm indicator, allowing you to choose between visual notifications. The OPTEX Xwave operates with incredible efficiency, providing an alarm period of approximately 2.5 seconds and an alarm output of N.C., 28VDC, 0.2A max. For added security, a tamper switch is integrated, which triggers when the cover is removed, enhancing the detector’s reliability.

Choose between two pulse count options, approximately 20 seconds or 2 seconds, depending on your preferences. The warm-up period is a mere one minute, ensuring that the detector is operational promptly. It operates on a power input of 9.5 to 16V DC, drawing a maximum current of 18mA at 12V DC, making it energy-efficient and cost-effective.

Rest easy knowing that the OPTEX Xwave is immune to RFI interference up to 20V/m, guaranteeing uninterrupted performance. Whether for residential or commercial security, this detector is the epitome of cutting-edge technology and reliability. Invest in the OPTEX Xwave Wireless Indoor PIR Detector for unmatched indoor protection.

FEATURES & SPECIFICATIONS:

• Quad zone logic with digital target recognition for small pet tolerance
• Improved RF and white light immunity
• Advanced temperature compensation logic
• small pet friendly, 12 x 12m.
• Detection Method : Passive Infrared
• Coverage : 12m x 12m (40ft. x 40ft.) 85° Wide
• Detection Zones : 78 zones (PIR)
• Mounting Height : 1.5 – 2.4m (5 – 8ft.)
• Sensitivity : 2°C (3.6°F) at 0.6m/sec. (2ft./sec.)
• Detection Speed : 0.3 – 1.5m/sec. (1 – 5 ft/sec.)
• LED Alarm Indicator : Switchable ON/OFF
• Alarm Period : Approx. 2.5 sec
• Alarm Output : N.C., 28VDC, 0.2A max.
• Tamper Switch : N.C., Open when cover is removed (N.C., 28V DC, 0.1A max.
• Pulse Count : Approx.20 sec. 2 or 4
• Warm Up Period : Approx. 1 min..
• Power Input : 9.5 ~ 16V DC
• Current Draw : 18mA (max.) at 12V DC
• RFI Interference : No alarm 20V/m
