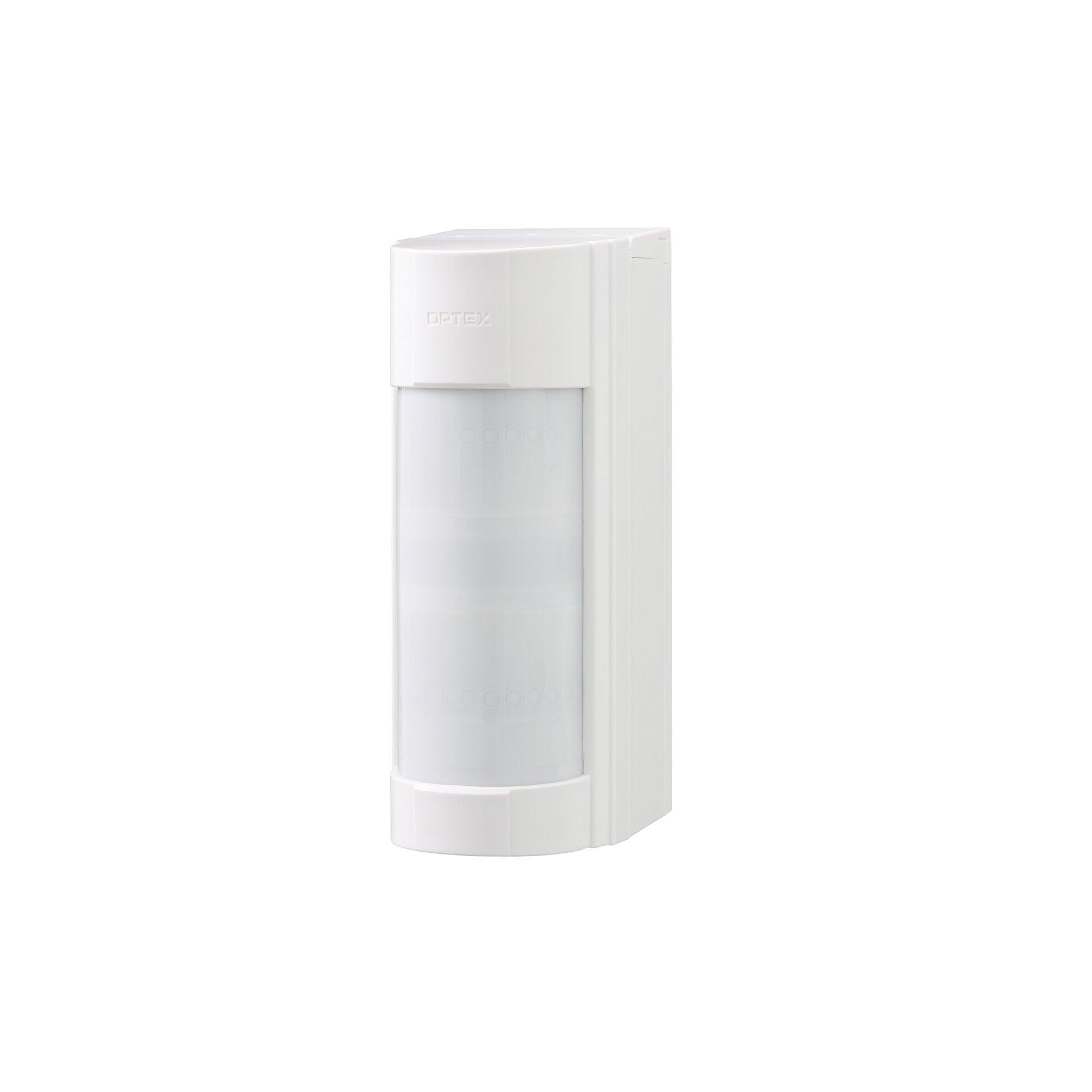

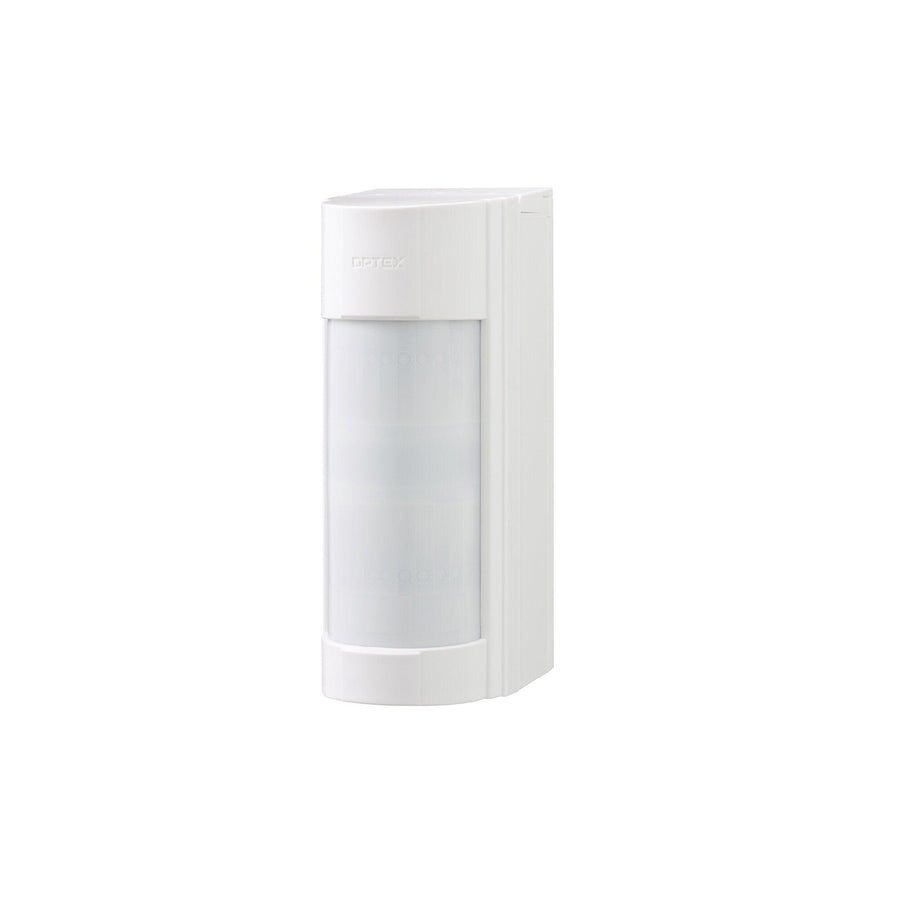

OPTEX VXI WIRELESS OUTDOOR PIR

OPTEX VXI WIRELESS OUTDOOR PIR

The VXI-R is our wireless motion detector. It is part of our top-selling outdoor intrusion detection sensor series. With a range of 12m, it offers dependable motion detection for both residential and commercial use.

The sensor, which should be installed at a height of 1.2m, has dual PIRs that create a double layer of detection. This means the sensor will only activate when both layers are triggered. Our PIR VXI sensors are designed to be pet-friendly and use digital analysis to prevent false alarms.

Digital analysis for enhanced reliability

The VXI sensors features a digital microprocessor which analyses the infrared emissions received and differentiate the ones generated by human from the ones generated by sunlight, animals, vegetation sway, or weather conditions. This intelligence makes the risk of false alarm very low.

Flexible detection coverage

The detection length of the VXI sensors can be set to 12m, 8.5m, 6m, 5.5m or 2.5m to adapt to the site configuration. The sensor comes as well with a choice of pre-cut masking templates to modify the detection areas and only focus on the points of interest.

The convenience of wireless

The VXI-R sensor can be powered by a variety of universal batteries including CR123, CR2 and 1/2 AA. Its housing can accommodate most wireless radio transmitters available in the market. This makes it easy to add a VXI sensor onto the shed, garage or any outer buildings and link it to an existing wireless alarm panel extend an a sensor easy to install in remote or temporary locations.

Applications

• Buildings
• Approach
• House
• Garage
• Driveway

Key Features

• 12m battery-powered PIR for approach detection
• Digital signal analysis to greater reliability
• Accommodates most wireless transmitters

SPECIFICATIONS:
