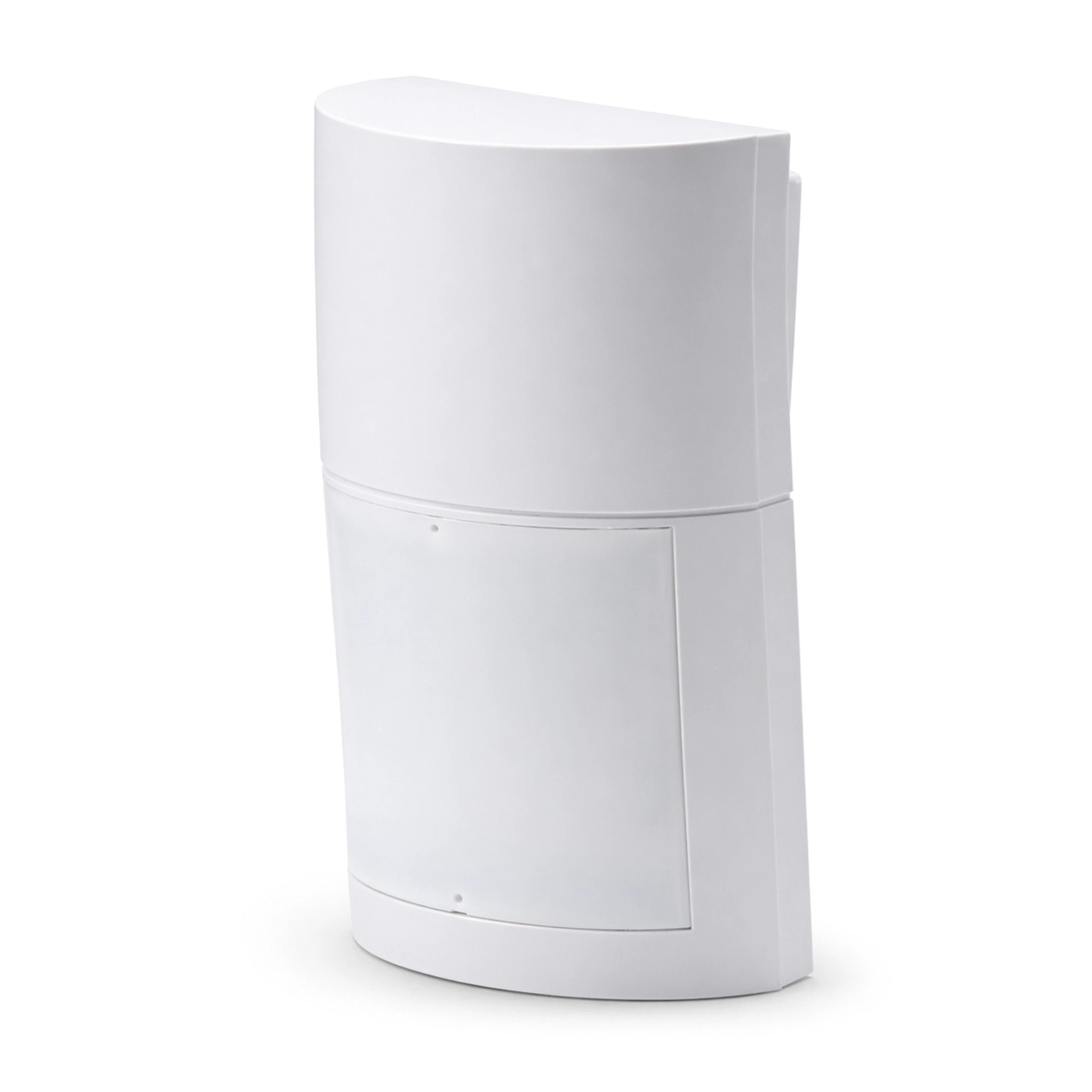

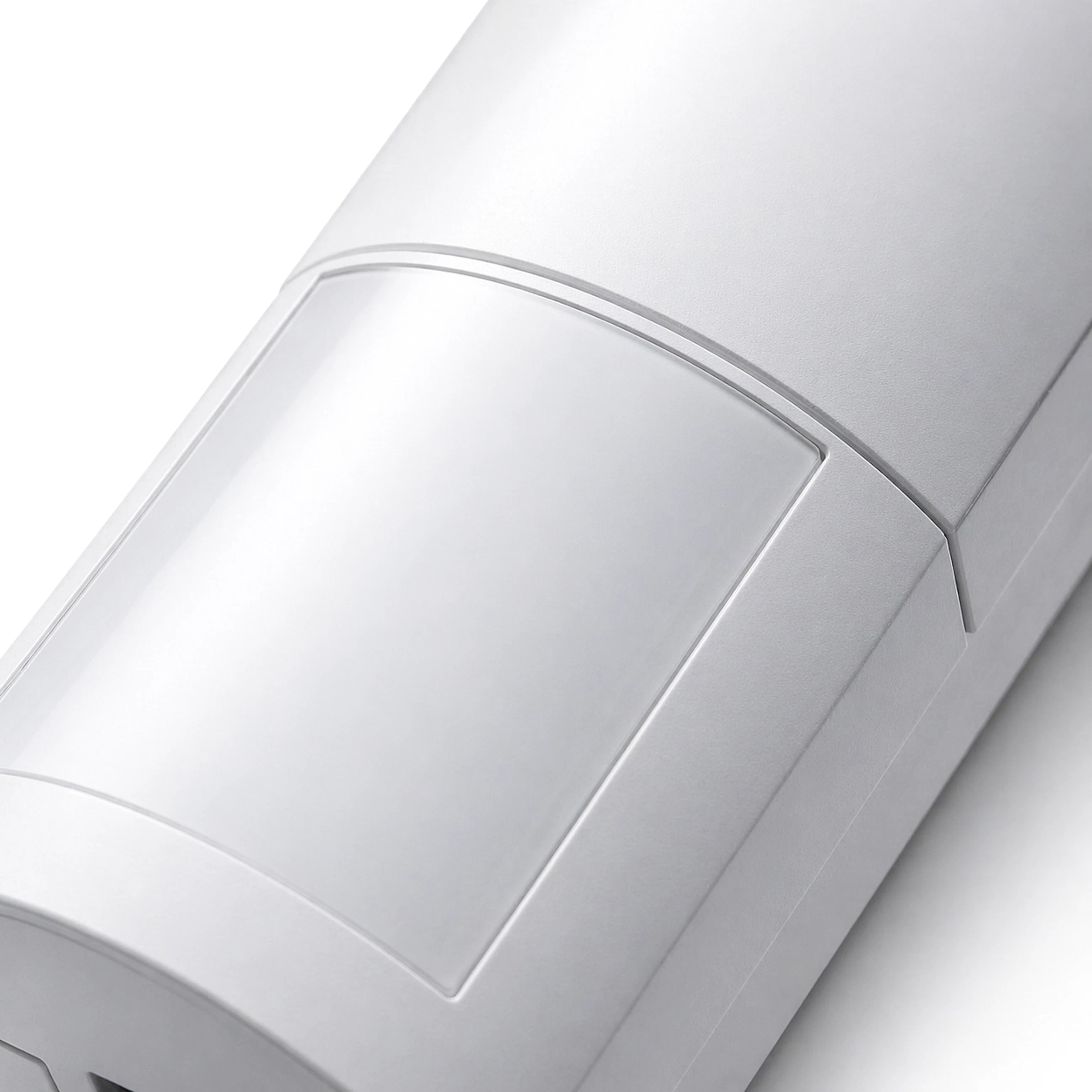

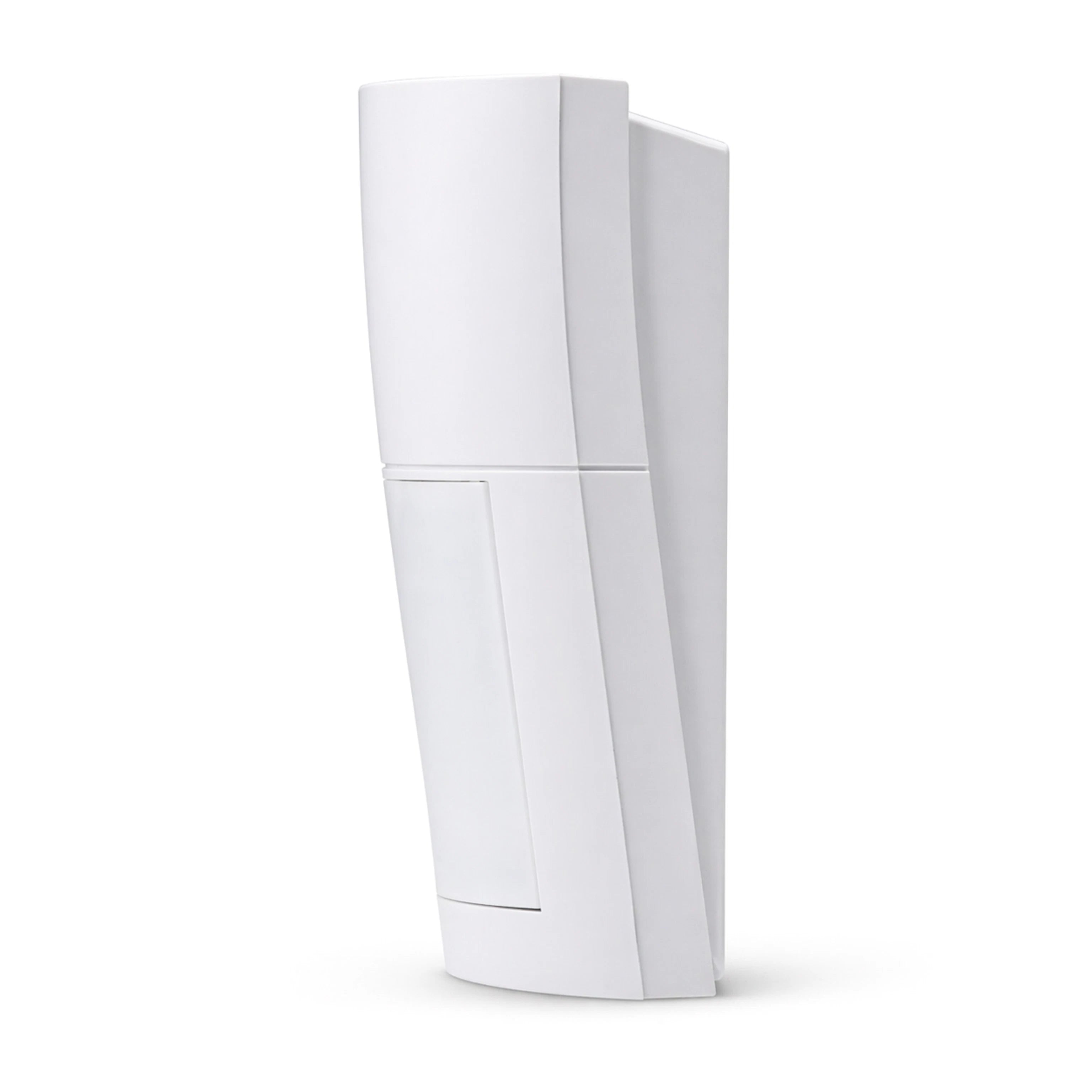

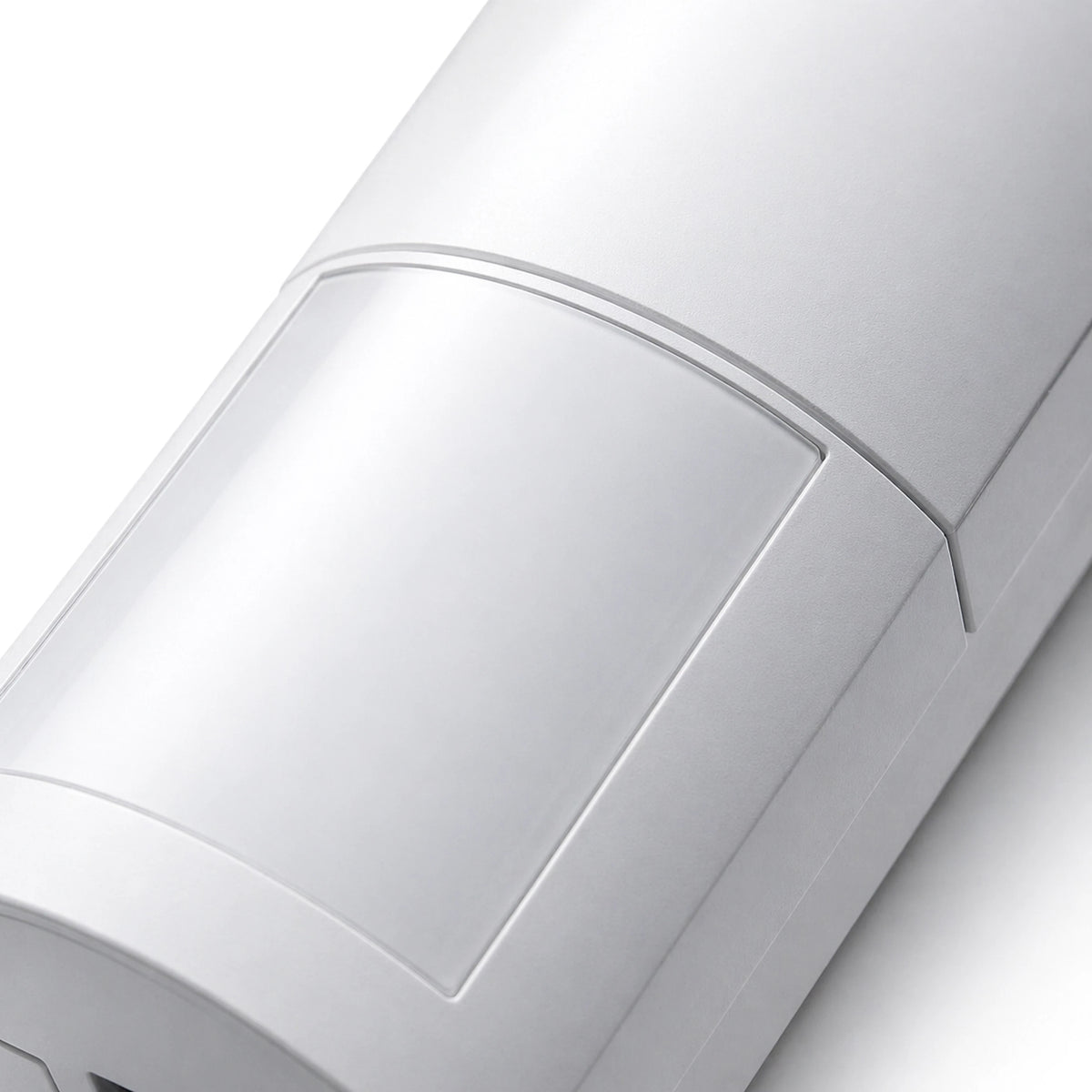

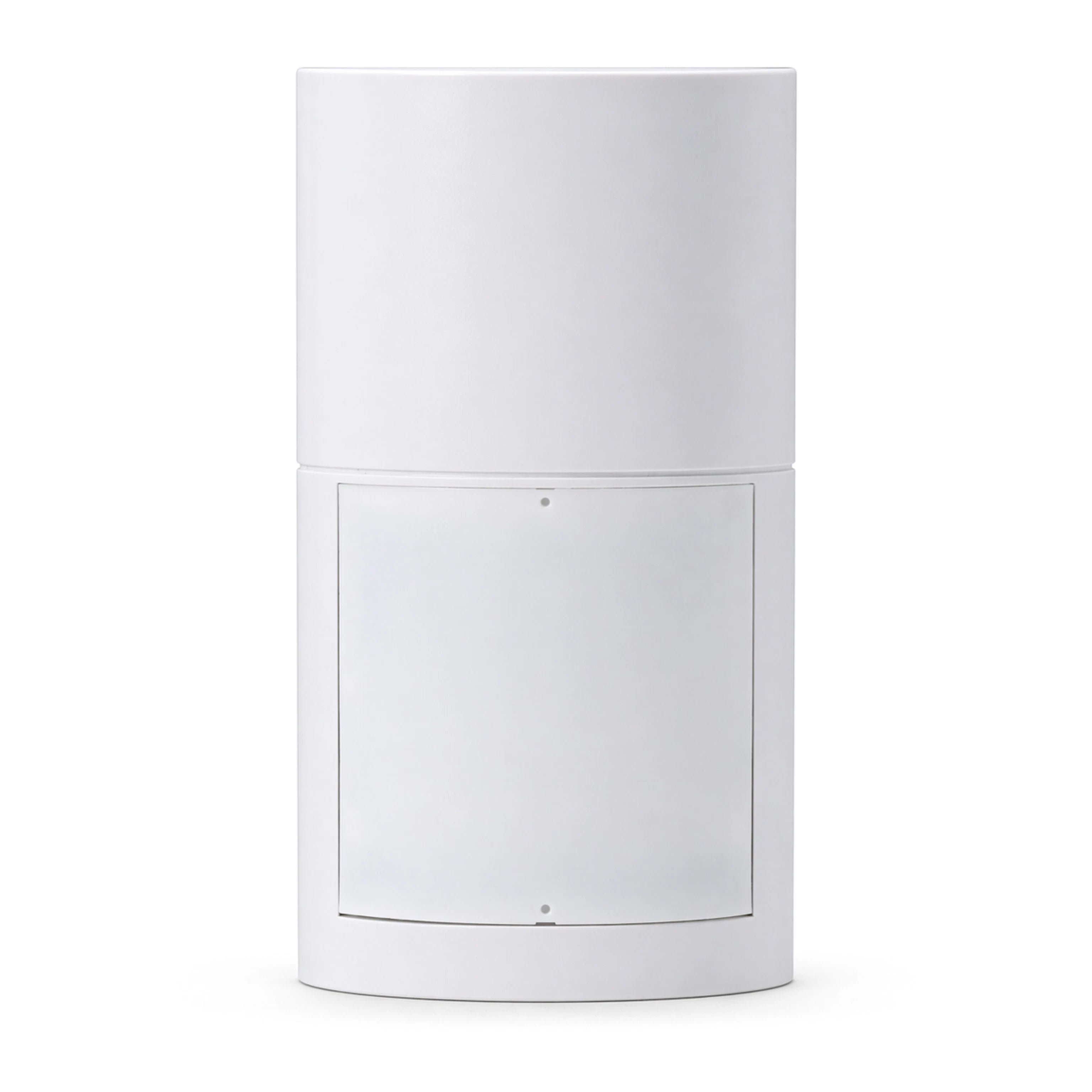

The OPTEX QXI-ST is a hardwired outdoor passive infrared (PIR) detector from the QX Infinity series. It provides a wide 120° detection area up to 12 m and is designed for residential, commercial, warehouse and perimeter-security applications.
Key Features
- Hardwired outdoor PIR detector
- 12 m / 40 ft detection range
- 120° wide-angle coverage
- Quad-element sensing technology
- Selectable high or low mounting
- SMDA logic to reduce nuisance alarms
- Double conductive shielding
- UV-resistant ASA housing
- Automatic walk-test mode
- IP54 protection
Technical Specifications
- Model: QXI-ST
- Detection method: Passive infrared
- Coverage: 12 m, 120° wide
- Power input: 9.5-16 VDC
- Current draw: 20 mA max. at 12 VDC
- Operating temperature: -40°C to +60°C
- Mounting height: 2.2-2.7 m high mount or 0.8-1.2 m low mount
- Alarm output: N.C./N.O. switchable, 28 VDC 0.1 A max.
- Tamper output: N.C., 28 VDC 0.1 A max.
What's in the Box
- 1 x OPTEX QXI-ST outdoor PIR detector
- Mounting screws
- Lock screw
- Area masking strips
