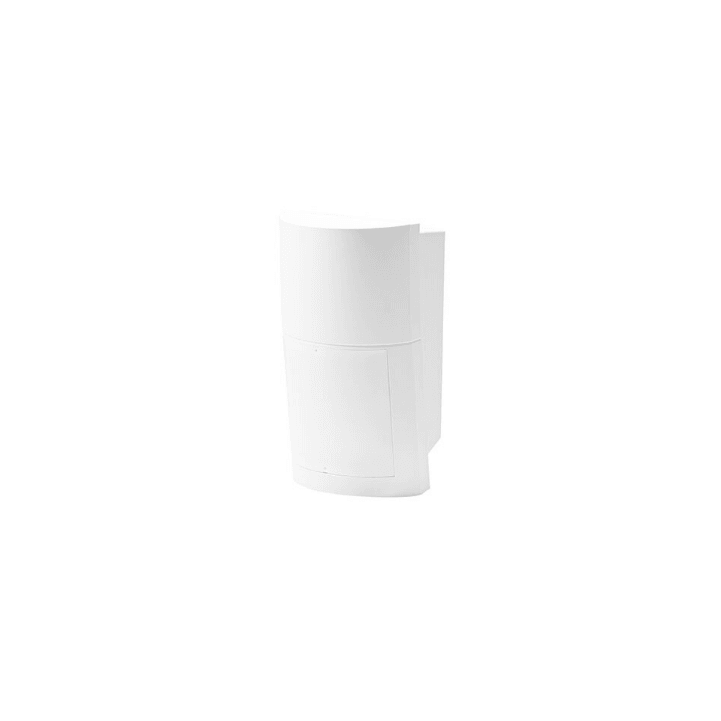

OPTEX INFINITY 120 WIRELESS OUTDOOR PIR
Safe & Secure Payment Options
Visa & Mastercard
Payfast By Network
Float
PayJustNow
Yoco Payment
Happy Pay
Payflex
OPTEX INFINITY 120 WIRELESS OUTDOOR PIR
The QX Infinity (QXI) series is a range of outdoor PIRs and dual-technology sensors providing 120° wide and 12m (40ft) detection area, which can be adjusted with the masking strips provided. Sleek and compact, the QXI sensors are small and well suited to any residential or commercial building as they provide reliable, animal tolerant intrusion and motion detection to trigger alarm panel of CCTV camera. QXI-R is the wireless model.
Selectable mounting height
The QXI outdoor intrusion sensors can be installed at a high mount between 2.2 and 2.7m creating a multi-level volumetric detection pattern, allowing it to ignore small animals. In environments with larger animals, the sensor can be mounted between 0.8 and 1.2m height, to provide a pet alley.
Detection analysis to filter out false alarms
The QXI outdoor intruder sensors are designed to be not affected by environment or small animals. The alarm will not be triggered by changes of weather, vegetation sways or pets in the detection area, contributing to reliable outdoor detection. Additionally the series features double conductive shielding which filters out visible light and RFI disturbance.
Flexibility of wireless
The battery-operated QXI-R can be easily added on most wireless alarm systems and provides the benefit of protecting quickly and efficiently the boundary of the premises and of any outer buildings. Wireless transmitters can be powered by the sensor and it features easy access to the battery located at the front of the sensor
Applications
- Approach
- House
- Garden
- Driveway
Key Features
- 12m, 120 degree wireless outdoor PIR
- QUAD pyro elements providing double layered detection and pet tolerance
- high (2.2-2.7m) mount or low mount (0.8m-1.2m) for pet alley mode
- SMDA logic and double conductive shielding to minimise nuisance alarms
SPECS:
|
Model |
QXI-R |
|
Detection Method |
Passive Infrared |
|
PIR Coverage |
12.0m (40') 120°wide |
|
PIR Zones |
Multi Level: 40 zones - Pet alley: 18 zones |
|
Detectable Speed |
0.3 to 2.0 m/s (1' to 6'7''/s) |
|
Sensitivity |
2.0°C (3.6F) at 0.6m/s |
|
Pet Alley |
Remove lower area detection to avoid small animals |
|
Power Source |
CR123A (3V DC) *NOT INCLUDED |
|
Current Draw |
9 µA stand-by 11 mA max. at 3V DC |
|
Alarm Period |
2.0 ± 0.5s |
|
Warm-up Period |
Approx. 60s (LED blinks) |
|
Alarm Output |
N.C/N.O. switchable solid-state switch, 3V DC 0.01 A max. |
|
Trouble Output (with tamper) |
N.C/N.O. switchable solid-state switch, 3V DC 0.01 A max. |
|
LED Indicator |
[1] Warm up [2] Alarm [3] Walk test end |
|
Operation Temperature |
-40°C to +60°C (-40°F to +140°F) |
|
Environment Humidity |
95% max. |
|
Internation Protection |
IP54 |
|
Mounting |
Wall (outdoor, indoor) |
|
Mounting Height |
Multi level: 2.2 to 2.7m (7'3'' to 8'11'') Pet alley: 0.8 to 1.2m (2'7'' to 4') |
|
Weight |
215g (7.58oz) |
|
Accessories (included) |
[1] Dummy battery and connector for alarm |
