Product Description

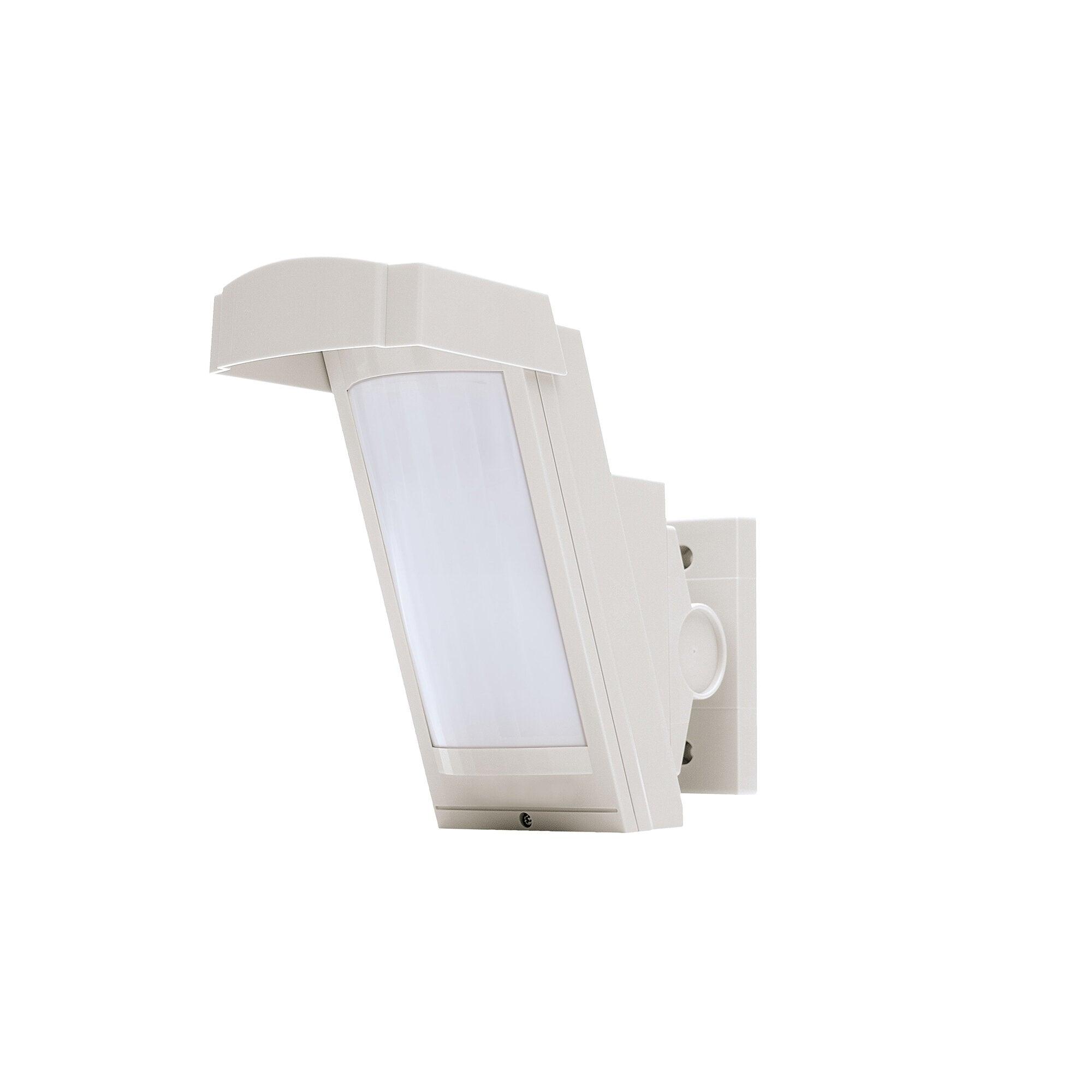

OPTEX HX 40 WIRELESS OUTDOOR PIR WITH AM

Experience unmatched security with the OPTEX HX 40 WIRELESS OUTDOOR PIR WITH AM! Mount these PIRs between 2.5 and 3 meters high to detect outdoor intrusions up to 12m.

Our HX-40 series is perfect for safeguarding your building's entrance and is specifically designed to distinguish between humans and small to medium-sized animals, minimizing the chances of false alarms. Don't miss out on the battery-powered HX-40RAM model with active infrared anti-masking. Place your trust in OPTEX for top-of-the-line protection.

Adjustability to the site configuration

The HX-40 series is designed to accommodate a variety of site configurations, taking into account the unique differences of each location.

With the ability to rotate horizontally by 180 degrees and tilt vertically, this wireless outdoor PIR can easily adapt to any slope of the ground. Additionally, the detection area can be adjusted to 9, 5.5, or 4 meters, and further modified with the included masking seals.

Anti-masking for peace of mind

If the HX-40AM sensor is sprayed, covered or obstructed while it is armed or disarmed, the active infrared anti-masking will be able to sense the threat when the alarm system is turned on and will send through a notification.

The convenience of wireless

The HX-40RAM is compatible with a range of universal batteries, such as CR123, CR2, and 1/2 AA. Its housing can accommodate most wireless radio transmitters on the market.

This battery-powered model offers a significant advantage in terms of installation flexibility, making it ideal for placement in remote or temporary locations.

Applications

Buildings
Approach
House
Garage

Key Features

Battery-powered volumetric outdoor sensor
Adjustable detection length and area
Animal tolerance and digital analysis
Active infrared anti masking

SPECIFICATIONS:

Model	HX-40	HX-40AM	HX-40DAM	HX-40RAM
Detection method	Passive infrared
Coverage	12 m (40 ft.) 85° wide / 94 zones
PIR distance limit	4 m, 5.5 m, 9 m, 12 m (13 ft, 18 ft, 30 ft, 40 ft.)
Detectable speed	0.3 – 1.5 m/s (1 – 5 ft/s)
Sensitivity	2.0°C (3.6°F) at 0.6 m/s
Power input	9.5 – 18VDC			2.5 – 9VDC, 3 - 7.2VDC Lithium Battery, (CR123A x 3, CR2 x 3, 1/2AA x 3, 1-2AA x 6)
Detectable speed	0.3 to 2.0 m/s (1' to 6'7/s)
Sensitivity	Normal : 2.0°C (3.6°F) at 0.6 m/s Extreme high : 1.0°C (1.8°F)at 0.6 m/s selectable for each side individually
Power input	9.5 to 18 VDC		3 to 9 VDC Lithium or Alkaline batteries
Current draw	35 mA (max) at 12 VDC	40 mA (max) at 12 VDC	50 mA (max.)at 12 VDC	30 μA (standby) / 4 mA (max.) at 3 VDC
Alarm period	2.0 ±1 sec
Warm-up period	Approx. 60 sec (LED blinks)			Approx. 90 sec. (LED blinks)
Alarm output	Form C 28 VDC 0.2 A max			Form C - Solid State Switch - 10 VDC 0.01 A max
Tamper output	N.C. 28 VDC, 0.1 A max. N.C. open when cover is removed.			Form C. 28 VDC, 0.1 A max. changes when cover is removed
Trouble output	-	N.C. 28 VDC, 0.1 A max		N.C./N.O. Selectable - Solid State Switch - 10 VDC 0.01 A
Aux input	N.C. 28 VDC, 0.1 A max			-
LED indicator	Red:Warm-up, Alarm	Red:Warm-up, Alarm, Trouble	Red:Warm-up, Alarm, Trouble Green:Warm-up, PIR detect, Trouble Yellow:Warm-up, MW detect	Disable : During normal operation. Enable : During WALK TEST or LED SW on. Red : Warm-up, Alarm, Trouble, Low battery
RF Interference	No alarm 10 V/m
Operating temperature	-20 – +60°C (-4 – +140°F)
Environment humidity	95% max.
International protection	IP55
Mounting	Wall (Outdoor, Indoor)
Mounting height	2.5 - 3.0 m (8.3 - 10 ft.)
Bracket adjust angle	Vertical: ±20° Horizon: ±95°
Weight	600 g (21.2 oz)		700 g (24.7 oz)	600g (21.2 oz)
Accessories	Bracket, Hood, Area masking seal, Screw kit (3×10-2, 4×20-4)			Bracket, Hood, Area masking seal,Screw kit (3×10-2, 4×20-4), Battery lead×2, Dummy battery kit
