- Vendor: OPTEX
- Type: ALARM SYSTEMS
- SKU: 10315

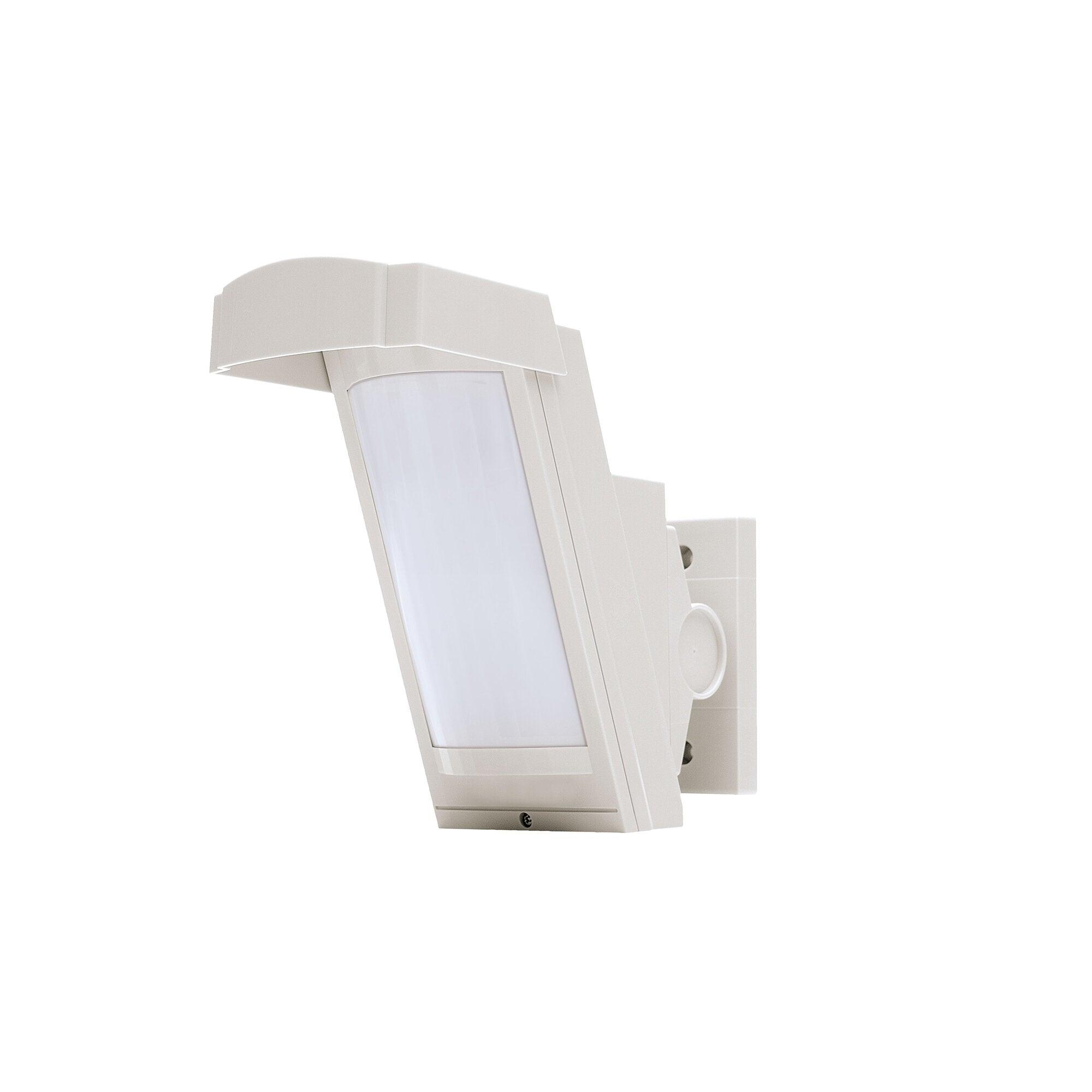

OPTEX HX 40 WIRED OUTDOOR DUAL PIR WITH AM
Safe & Secure Payment Options
Visa & Mastercard
Payfast By Network
Float
PayJustNow
Yoco Payment
Happy Pay
Payflex
OPTEX HX 40 WIRED OUTDOOR DUAL PIR WITH AM
The HX-40 PIRs are strategically placed between 2.5 to 3 meters high, providing outdoor security coverage of up to 12 meters. This series is ideal for safeguarding the perimeter of any building, with advanced features designed to accurately differentiate between humans and small to medium sized animals, significantly reducing false alarms. Additionally, the HX-40Am is the wired model that includes active infrared anti-masking technology.
Adjustability to the site configuration
Unleash infinite potential with the adaptable HX-40! Engineered to accommodate different setups, its bracket can rotate 180 degrees and vertically tilt to align with the terrain. Reduce the sensing distance to 9m, 5.5m, or 4m, and personalize it with the enclosed masking seals.
Anti-masking for peace of mind
This dual PIR outdoor sensor, the HX-40AM, has active infrared anti-masking to detect any attempts at sabotage, even if the sensor is armed or disarmed. You'll receive a notification when the alarm is activated.
Catch performance
The HX Series provides unparalleled Catch Performance. The key factor for a dependable outdoor detector is the ability to differentiate between humans and pets with precision. With an exclusive onboard pyro element, the HX produces an optimal detection pattern, resulting in highly accurate human detection and a reduction in false alarms.
Applications
- Buildings
- Approach
- House
- Garage
Key Features
- Advanced temperature compensation logic
- Volumetric detection sensor
- Adjustable detection range
- Animal tolerance
SPECIFICATIONS:
| Model | HX-40 | HX-40AM | HX-40DAM | HX-40RAM |
|---|---|---|---|---|
| Detection method | Passive infrared | |||
| Coverage | 12 m (40 ft.) 85° wide / 94 zones | |||
| PIR distance limit | 4 m, 5.5 m, 9 m, 12 m (13 ft, 18 ft, 30 ft, 40 ft.) | |||
| Detectable speed | 0.3 – 1.5 m/s (1 – 5 ft/s) | |||
| Sensitivity | 2.0°C (3.6°F) at 0.6 m/s | |||
| Power input | 9.5 – 18VDC | 2.5 – 9VDC, 3 - 7.2VDC Lithium Battery, (CR123A x 3, CR2 x 3, 1/2AA x 3, 1-2AA x 6) | ||
| Detectable speed | 0.3 to 2.0 m/s (1' to 6'7/s) | |||
| Sensitivity | Normal : 2.0°C (3.6°F) at 0.6 m/s Extreme high : 1.0°C (1.8°F)at 0.6 m/s selectable for each side individually |
|||
| Power input | 9.5 to 18 VDC | 3 to 9 VDC Lithium or Alkaline batteries | ||
| Current draw | 35 mA (max) at 12 VDC | 40 mA (max) at 12 VDC | 50 mA (max.)at 12 VDC | 30 μA (standby) / 4 mA (max.) at 3 VDC |
| Alarm period | 2.0 ±1 sec | |||
| Warm-up period | Approx. 60 sec (LED blinks) | Approx. 90 sec. (LED blinks) | ||
| Alarm output | Form C 28 VDC 0.2 A max | Form C - Solid State Switch - 10 VDC 0.01 A max | ||
| Tamper output | N.C. 28 VDC, 0.1 A max. N.C. open when cover is removed. | Form C. 28 VDC, 0.1 A max. changes when cover is removed | ||
| Trouble output | - | N.C. 28 VDC, 0.1 A max | N.C./N.O. Selectable - Solid State Switch - 10 VDC 0.01 A | |
| Aux input | N.C. 28 VDC, 0.1 A max | - | ||
| LED indicator | Red:Warm-up, Alarm | Red:Warm-up, Alarm, Trouble | Red:Warm-up, Alarm, Trouble Green:Warm-up, PIR detect, Trouble Yellow:Warm-up, MW detect | Disable : During normal operation. Enable : During WALK TEST or LED SW on. Red : Warm-up, Alarm, Trouble, Low battery |
| RF Interference | No alarm 10 V/m | |||
| Operating temperature | -20 – +60°C (-4 – +140°F) | |||
| Environment humidity | 95% max. | |||
| International protection | IP55 | |||
| Mounting | Wall (Outdoor, Indoor) | |||
| Mounting height | 2.5 - 3.0 m (8.3 - 10 ft.) | |||
| Bracket adjust angle | Vertical: ±20° Horizon: ±95° | |||
| Weight | 600 g (21.2 oz) | 700 g (24.7 oz) | 600g (21.2 oz) | |
| Accessories | Bracket, Hood, Area masking seal, Screw kit (3×10-2, 4×20-4) | Bracket, Hood, Area masking seal,Screw kit (3×10-2, 4×20-4), Battery lead×2, Dummy battery kit | ||
OPTEX HX 40 WIRED OUTDOOR DUAL PIR WITH AM
The HX-40 PIRs are strategically placed between 2.5 to 3 meters high, providing outdoor security coverage of up to 12 meters. This series is ideal for safeguarding the perimeter of any building, with advanced features designed to accurately differentiate between humans and small to medium sized animals, significantly reducing false alarms. Additionally, the HX-40Am is the wired model that includes active infrared anti-masking technology.
Adjustability to the site configuration
Unleash infinite potential with the adaptable HX-40! Engineered to accommodate different setups, its bracket can rotate 180 degrees and vertically tilt to align with the terrain. Reduce the sensing distance to 9m, 5.5m, or 4m, and personalize it with the enclosed masking seals.
Anti-masking for peace of mind
This dual PIR outdoor sensor, the HX-40AM, has active infrared anti-masking to detect any attempts at sabotage, even if the sensor is armed or disarmed. You'll receive a notification when the alarm is activated.
Catch performance
The HX Series provides unparalleled Catch Performance. The key factor for a dependable outdoor detector is the ability to differentiate between humans and pets with precision. With an exclusive onboard pyro element, the HX produces an optimal detection pattern, resulting in highly accurate human detection and a reduction in false alarms.
Applications
- Buildings
- Approach
- House
- Garage
Key Features
- Advanced temperature compensation logic
- Volumetric detection sensor
- Adjustable detection range
- Animal tolerance
SPECIFICATIONS:
| Model | HX-40 | HX-40AM | HX-40DAM | HX-40RAM |
|---|---|---|---|---|
| Detection method | Passive infrared | |||
| Coverage | 12 m (40 ft.) 85° wide / 94 zones | |||
| PIR distance limit | 4 m, 5.5 m, 9 m, 12 m (13 ft, 18 ft, 30 ft, 40 ft.) | |||
| Detectable speed | 0.3 – 1.5 m/s (1 – 5 ft/s) | |||
| Sensitivity | 2.0°C (3.6°F) at 0.6 m/s | |||
| Power input | 9.5 – 18VDC | 2.5 – 9VDC, 3 - 7.2VDC Lithium Battery, (CR123A x 3, CR2 x 3, 1/2AA x 3, 1-2AA x 6) | ||
| Detectable speed | 0.3 to 2.0 m/s (1' to 6'7/s) | |||
| Sensitivity | Normal : 2.0°C (3.6°F) at 0.6 m/s Extreme high : 1.0°C (1.8°F)at 0.6 m/s selectable for each side individually |
|||
| Power input | 9.5 to 18 VDC | 3 to 9 VDC Lithium or Alkaline batteries | ||
| Current draw | 35 mA (max) at 12 VDC | 40 mA (max) at 12 VDC | 50 mA (max.)at 12 VDC | 30 μA (standby) / 4 mA (max.) at 3 VDC |
| Alarm period | 2.0 ±1 sec | |||
| Warm-up period | Approx. 60 sec (LED blinks) | Approx. 90 sec. (LED blinks) | ||
| Alarm output | Form C 28 VDC 0.2 A max | Form C - Solid State Switch - 10 VDC 0.01 A max | ||
| Tamper output | N.C. 28 VDC, 0.1 A max. N.C. open when cover is removed. | Form C. 28 VDC, 0.1 A max. changes when cover is removed | ||
| Trouble output | - | N.C. 28 VDC, 0.1 A max | N.C./N.O. Selectable - Solid State Switch - 10 VDC 0.01 A | |
| Aux input | N.C. 28 VDC, 0.1 A max | - | ||
| LED indicator | Red:Warm-up, Alarm | Red:Warm-up, Alarm, Trouble | Red:Warm-up, Alarm, Trouble Green:Warm-up, PIR detect, Trouble Yellow:Warm-up, MW detect | Disable : During normal operation. Enable : During WALK TEST or LED SW on. Red : Warm-up, Alarm, Trouble, Low battery |
| RF Interference | No alarm 10 V/m | |||
| Operating temperature | -20 – +60°C (-4 – +140°F) | |||
| Environment humidity | 95% max. | |||
| International protection | IP55 | |||
| Mounting | Wall (Outdoor, Indoor) | |||
| Mounting height | 2.5 - 3.0 m (8.3 - 10 ft.) | |||
| Bracket adjust angle | Vertical: ±20° Horizon: ±95° | |||
| Weight | 600 g (21.2 oz) | 700 g (24.7 oz) | 600g (21.2 oz) | |
| Accessories | Bracket, Hood, Area masking seal, Screw kit (3×10-2, 4×20-4) | Bracket, Hood, Area masking seal,Screw kit (3×10-2, 4×20-4), Battery lead×2, Dummy battery kit | ||
