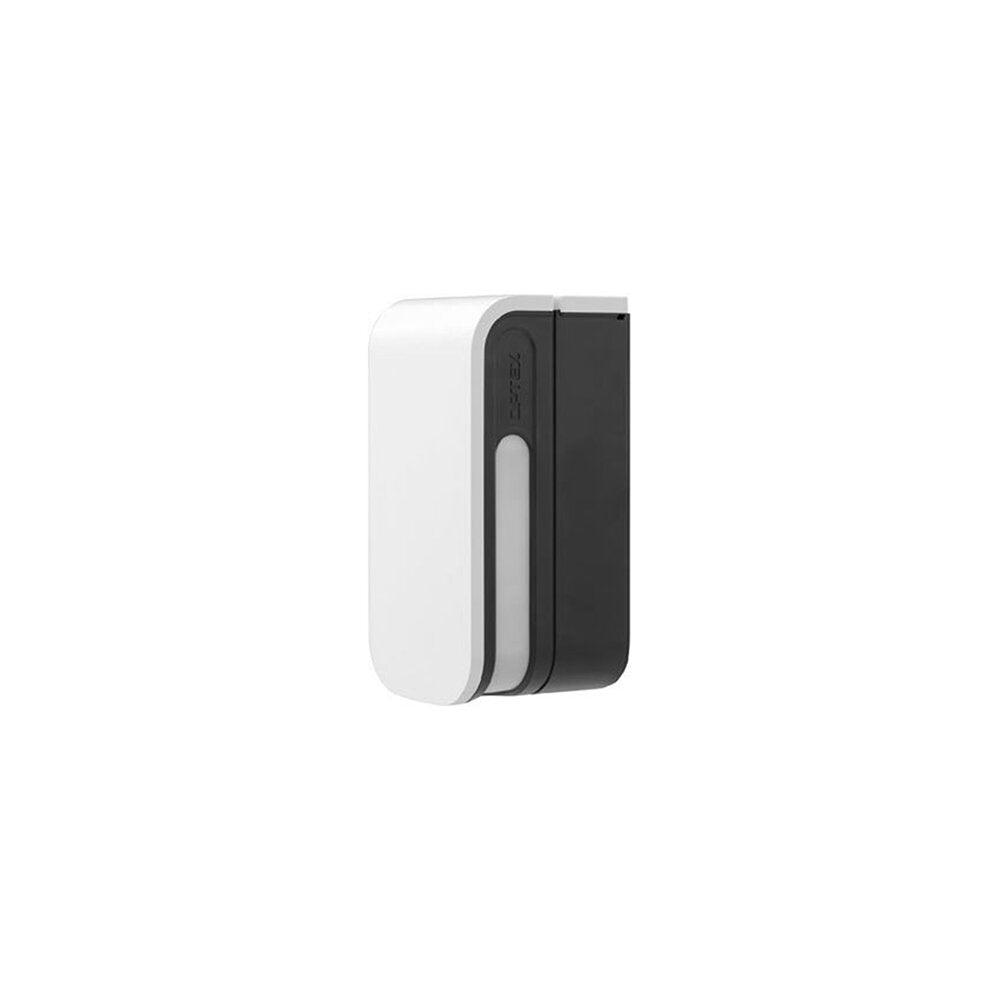

OPTEX BXS SHIELDWIRELESS OUTDOOR PIR

The BXS Shield is a top-of-the-line outdoor PIR that includes four PIRs, two on each side, with a 12m detection range. Perfect for monitoring your home or office perimeter, this advanced sensor can be configured independently for each side. Achieve ultimate security with the BXS-R, the ultimate wireless model.

Independent left/ right motion detection and CCTV connection

The OPTEX BXS SHIELDWIRELESS OUTDOOR PIR offers customizable settings for increased effectiveness. Easily adjust the detection range and sensitivity, and connect to a CCTV camera for visual alarms.

With a range of 2.5m to 12m and the ability to detect temperature differences as small as 1 degree Celsius, this device is perfect for securing any premises. Experience peace of mind with the BX Shield.

Versatile design

The BX Shield curtain sensor has been designed with the user in mind. A 90 degree unlocking system allows easy access to the settings area, a spirit level help fixing the sensor straight. A black and silver face covers are available as option making the look of the outdoor curtain sensor easy to blend with its environment.

Four PIRs in one sensor for best reliability

Why use two PIR on each side? By incorporating dual passive infrared beams into the design, the BX Shield motion sensor guarantees top-notch performance in outdoor settings.

These beams work in tandem, with one aimed at the ground and the other away from the sensor, ensuring reliable detection. This advanced system is able to distinguish larger pets from potential intruders, providing peace of mind for pet owners.

Applications

• Buildings
• Perimeter
• Approach
• House

Key Features

• Wireless curtain PIR up to 12m per side
• Completely independent detection setting per side
• Versatile and easy-to-install design
• Not affected by environment or small animals

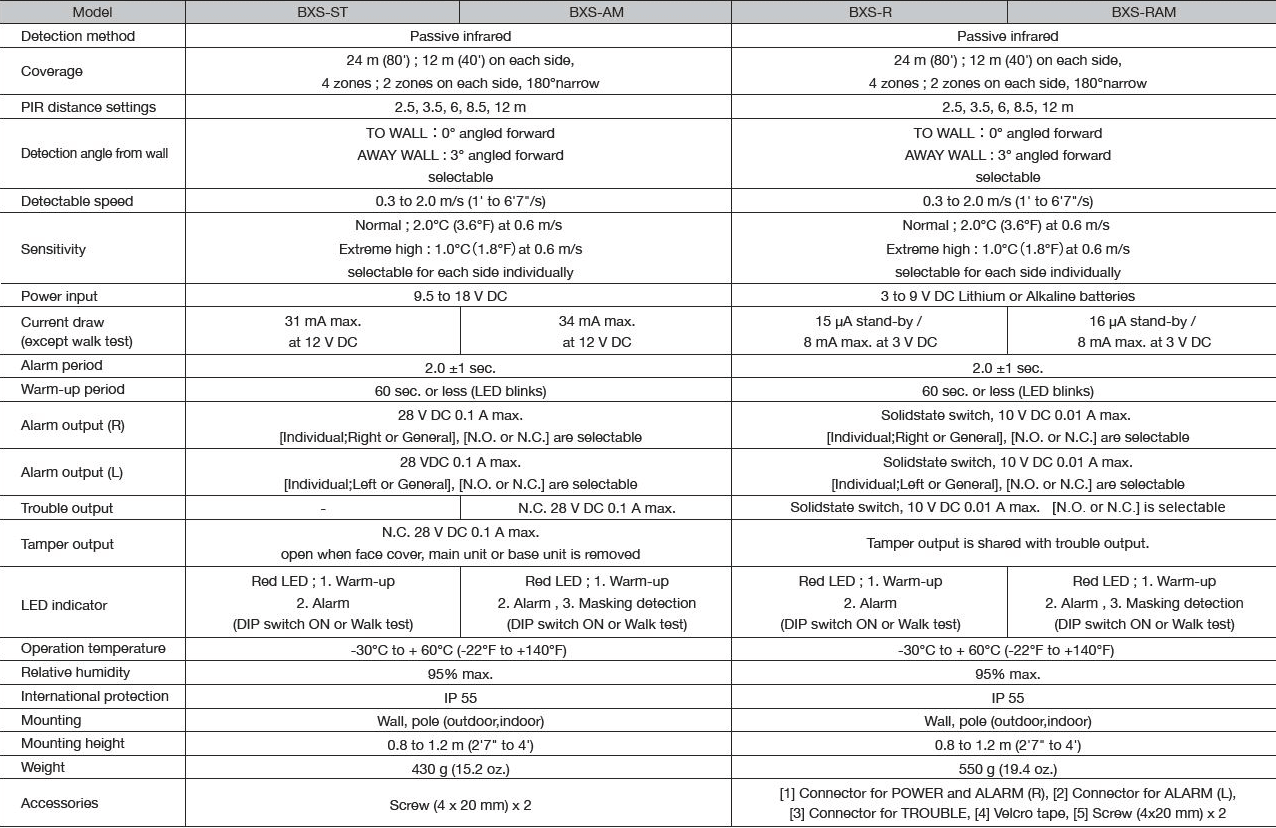

 - SPECIFICATIONS CAN BE FOUND ATTACHED BELOW>
