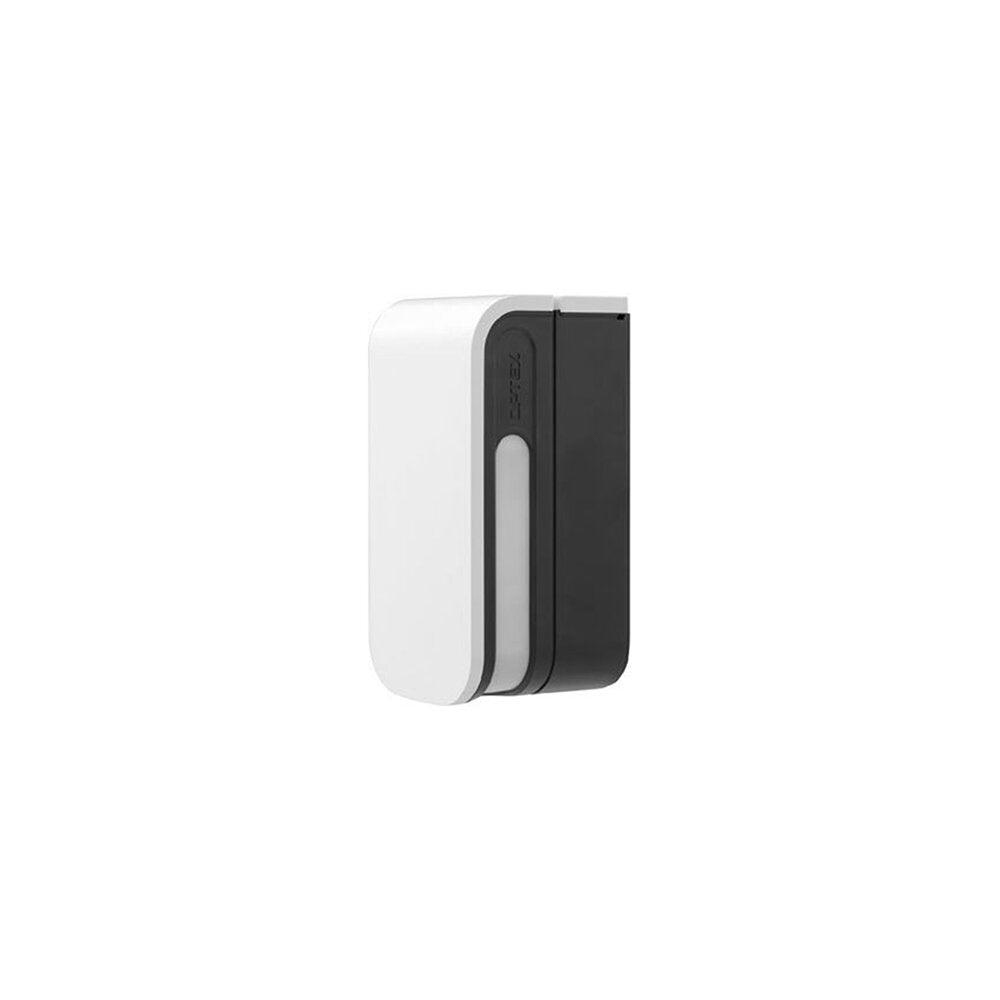

OPTEX BXS SHIELD WIRELESS OUTDOOR PIR WITH AM

The BX Shield series offers curtain outdoor motion sensors with a range of up to 12 meters on each side. It's perfect for detecting people within the immediate perimeter of your home or office. With four PIRs, two on each side, you have precise control over each detection area. The BXS-RAM is the wireless anti-masking model.

Independent left/ right motion detection and CCTV connection

The BX Shields detection range, sensitivity and alarm output can be set independently on the left and the right. Detection distance can be set at 2.5m, 3.5m, 6m, 8.5m to 12m on each side. The sensitivity can be set from low to extremely high, with the ability to detect only a 1 degree Celsius temperature difference. The sensor can be easily connected to a fixed or PTZ CCTV camera to send visual alarms when people are seen entering in the immediate boundary of the premises without authorisation.

Versatile design

The BX Shield series has been designed with the installer in mind. A 90 degree unlocking system allows easy access to the settings area, a spirit level aids fixing the sensor straight and important areas are colour coded in blue. Black and silver face covers are available as an option, making the look of this outdoor sensor very easy to blend with its environment.

Four PIRs in one sensor for best reliability

Why two PIR on each side ? To make sure we offer the best performance needed in outdoor environment. On each side, the BX Shield motion sensor features two passive infrared beams one pointing towards the floor and one pointing away from the sensor, both beams need to trigger to confirm the detection: this system allows to ignore small to middle size dog animals and detect only people.

Applications

• Buildings
• Perimeter
• Approach
• House

Key Features

• Wireless curtain PIR up to 12m per side with anti-masking
• Completely independent detection setting per side
• Versatile and easy-to-install design
• Not affected by environment or small animals

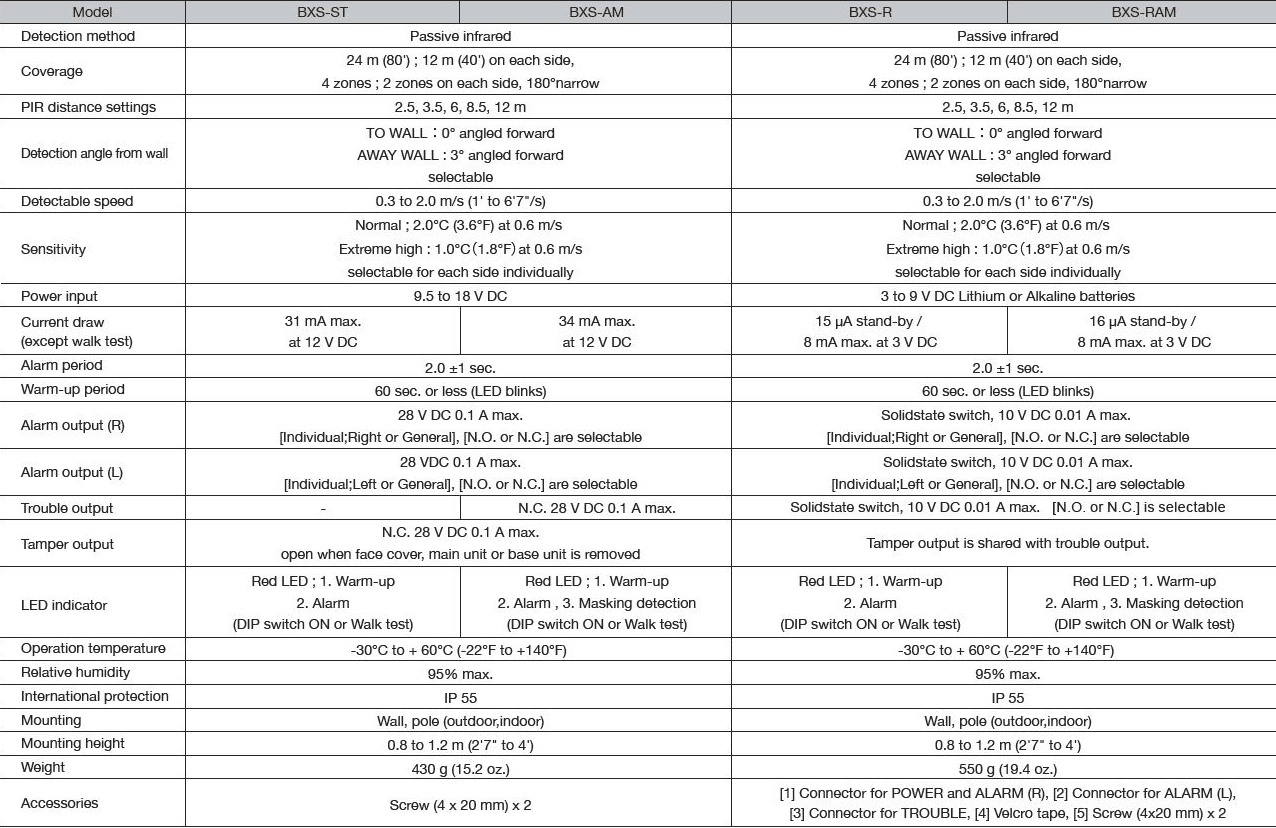

 - SPECIFICATIONS CAN BE FOUND ATTACHED BEFORE>
