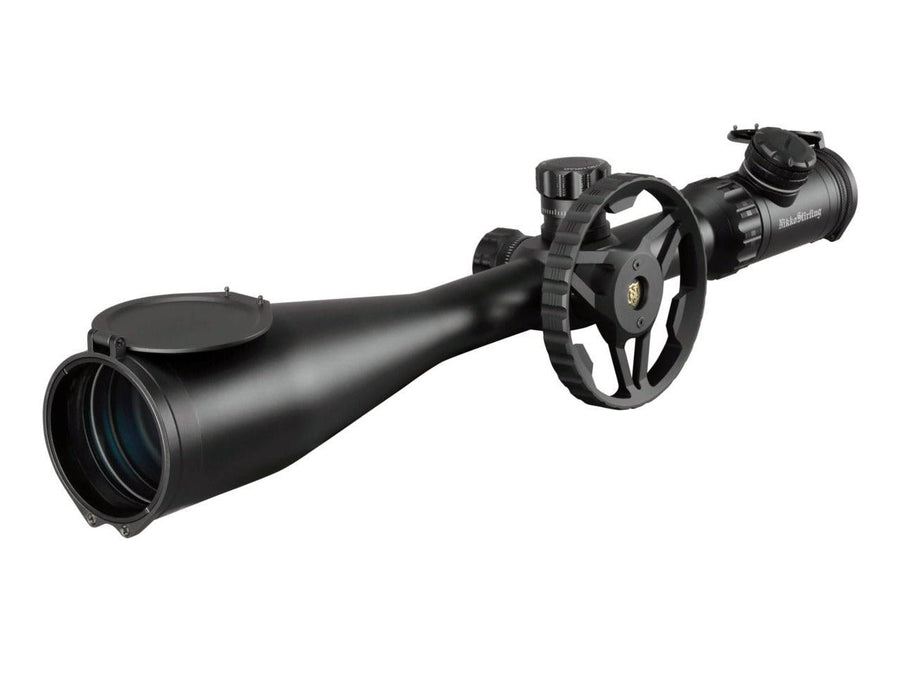

Hornet ED 10-50x60 SF
- ED glass – Extra Low Dispersion
- High-end optical system
- Precise Target turrets
- 1/20 MIL Click (5mm@100m)
- 30mm main tube
- Parallax adjustment - 10yds to infinity
- HMD-T reticle, based on MIL standard
- Sunshade
- Illumination-unit on ocular
- Extra side wheel (100mm)
- Fully multicoated lenses
- Fast focus on ocular
- Metal flip-up lens covers on objective and ocular
Nikko Hornet ED sitting just under the classic Diamond 10-50x60 is an excellent new offering from Nikko that is well suited to FT, HFT and long range centerfire. With a fairly complex reticle we feel it may appeal more to HFT and long range than to pure FT but will make an ideal all rounder.
Product Specifications;
ED glass - Extra low dispersion. This high-end glass offers unmatched optical performance and crisp images up to the top 50x magnification.
The Hornet ED 10-50x60i supports a precise parallax adjustment on the saddle and the advance MIL based HMD-T reticle.
Ideal for HFT, FT & Long Range center fire. Top mechanics allows perfect adjustments with 1/20 Mil clicks (5mm at 100m)
Precise Target turrets lock reset
HMD-T reticle based on MIL standard
Fully multicoated lenses
Fast focus on ocular
Illumination on ocular - may prevent use of some NV accessories.
Sunshade, Metal flip-up lens covers & 100mm sidewheel
Mount rings to fit it onto a rifle ARE NOT included
If you need mount rings you will need to purchase them in addition to the scope. See shop and look for high profile models for 30mm tube for whatever rifle base you have. Please ask if unsure. We can also help with picatinny adapter bases for rifles such as Tikka, SAKO, CZ, Ruger, Remington, Howa, Weatherby, Marlin etc.

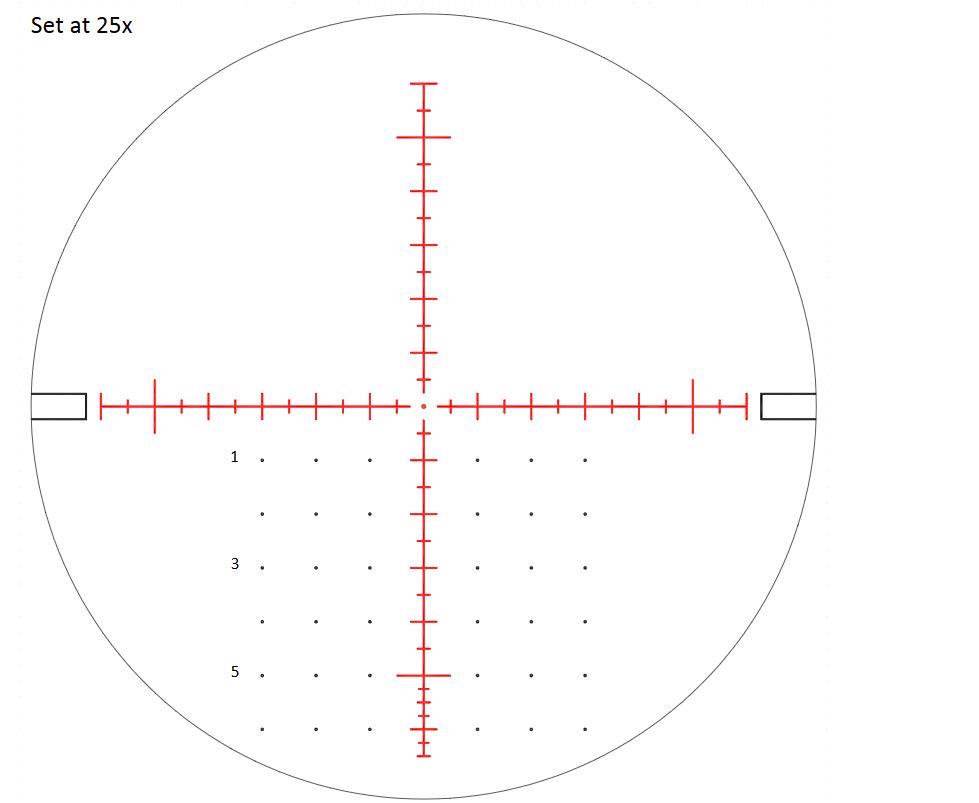

HMD-T Mil reticle - etched glass
Mil based. See main gallery images for detailed subtension pictures. For sure a lot of reference points for the advanced shooter!
Benefits of Glass Etched Reticles and Illumination
Etched glass reticle - The reticle is laser etched onto the lens glass giving a beautiful crisp and clear view, much more so than with a standard wire reticle.
The etching also makes it totally immune to recoil shock - it will never break or come loose as can happen with wire reticles.
In addition it eliminates all internal light reflection from use of the IR function, this again is a problem with wire reticle scopes.
Illuminated reticle function
- In low light or very bright light targets can appear dark and shadowed.
- The standard black reticle in such situations is very hard to contrast against the target, especially if you are taking a shot under pressure on a sudden target of opportunity and/or moving target.
Using illumination, red in low light helps you get sharp reticle over target contrast and massively improve the aim point and speed.
Specifications
- Chassis: 30mm Mono-tube
- Magnification range: 10-50x
- Objective: 60mm
- Reticle: HMD-T mil based etched glass
- Illumination: Red and off for black
- Focus/Parallax: 10 yards 9.1m to infinity
- FOV ft at 100 yards 2.3-11.3
- FOV m at 100m 0.8-3.8
- Eye relief 95mm / 3.7"
- Click Values - 5mm at 100 m / 1/20 Mil
- Adjustment range - 45 Mil
- Length - 458mm / 18"
- Weight - 980 grams / 34.6oz
Other Specification
- Material: Aluminum
- Ocular Type: Fast Focus
- Lens Coating: Fully Multi-Coated
- Power Selector Style: Easy Grip
- Turret Caps: No
- Turret Type: Target
Accessories included
- Metal flip up covers
- Sunshade
- 100mm sidewheel
- Lens Cloth
- Battery for illumination
Technical Specifications;
Optical Magnifications: |
10-50x |
Objective lens diameter: |
60mm |
Scope Tube diameter: |
30mm |
Length: |
458mm |
Weight: |
980g |
Reticle: |
HMD-T, Half Mil Dot-T |
Illuminated reticle: |
Yes, stepless adjustment in red via angled knob on occular bell |
Assembly: |
Mounts not included – we recommend HIGH mounts, w/ a riser |
Eye relief: |
95mm |
Focal Plane |
Second Focal Plane (SFP) |
Parallax: |
9.1 m to infinity |
Lens Compensation: |
Multi-coated lenses |
Field of view at 100m: |
0.8-3.8m |
Click Value: |
1⁄20 MRAD (4.9 mm at 100 m) |
Shockproof: |
Yes |
Water resistant: |
Yes, short of full water submersion |
Nitrogen Purged: |
Yes |
Included: |
Battery (CR2032 coin cell), High Quality Metal Dust Caps for each lens, Sun Shade, Side Focus Wheel, Lens cloth, Instruction manual |
