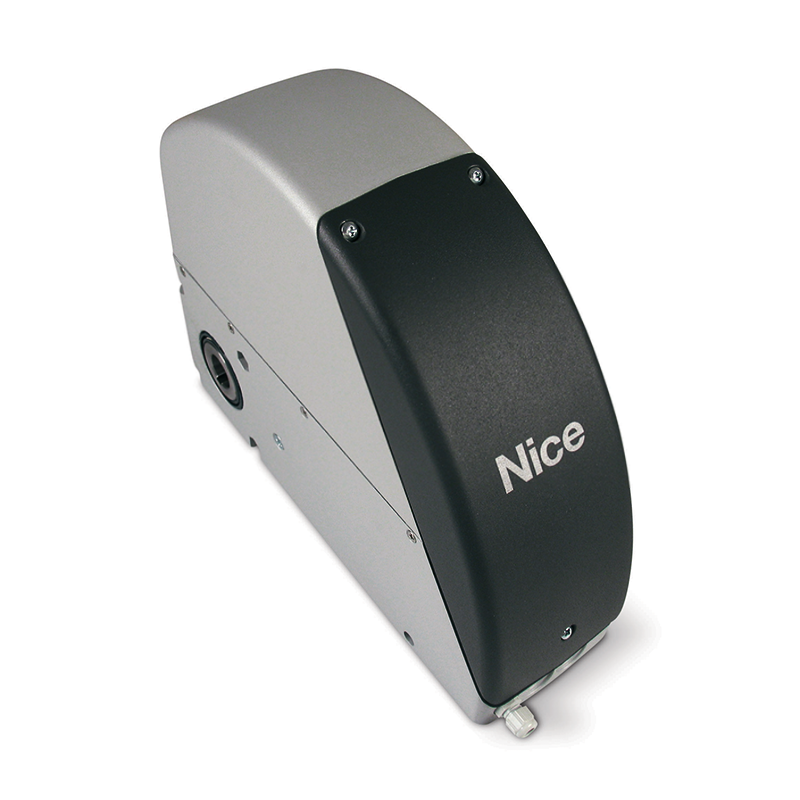

Heavy-Duty Sectional & Sliding Door Motor
High-torque motor kit for large doors up to 35m², ideal for sectional overhead or two-leaf sliding applications.
Technical Specifications
-
Input Voltage: 230VAC 50Hz-60Hz (standard)
-
Motor Supply: 24VDC toroidal transformer (not battery dependent)
-
Maximum Duty Cycle: 50% with mains present
-
Maximum Door Size: 35m²
-
Compatible Doors: Sectional overhead or two-leaf sliding doors
-
Torque: 120Nm
-
Shaft Speed: 16 rpm
-
Receiver: Optional ET-Blu Mix receiver
