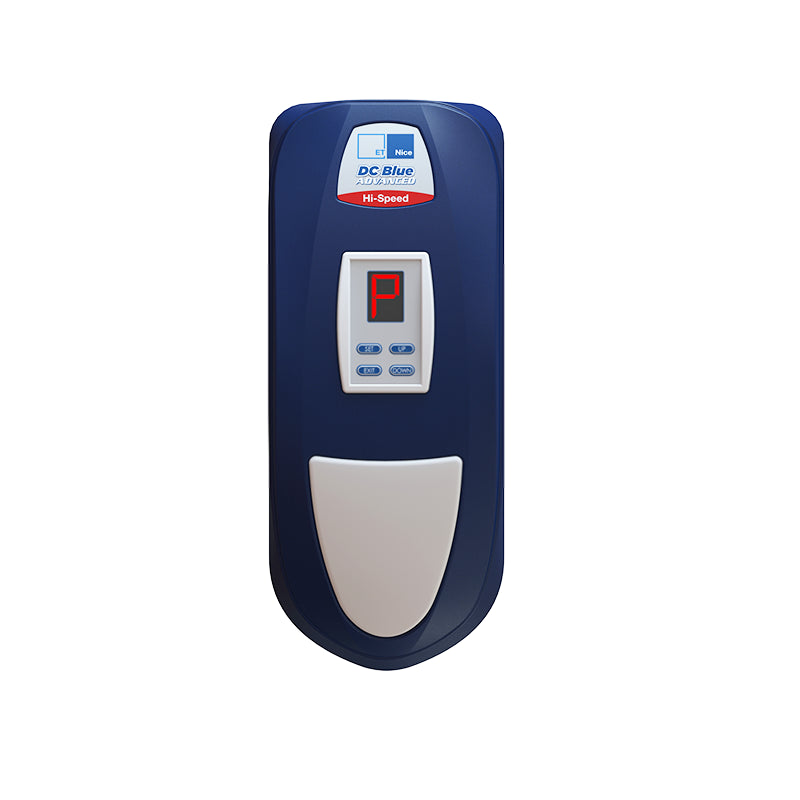

Sectional Overhead Door Motor
Efficient 24VDC motor system for spring-balanced sectional doors up to 10m², with battery backup capability.
Technical Specifications
-
Input Voltage: 220-240VAC 50Hz-60Hz
-
Motor Supply: 24VDC (not battery dependent)
-
Duty Cycle: 25 full cycles per 24 hours at max rate
-
Battery Operations: 100 cycles without AC mains
-
Maximum Door Size: 10m²
-
Compatible Doors: Spring-balanced sectional overhead doors
-
Running Distance: Up to 3m
-
Maximum Pull Force: 250N (before safety governing)
-
Rated Running Load: 25
