Nice Drive 300 Sliding Gate Motor Kit: Complete Automation for Residential Gates up to 300kg
Automating a sliding gate doesn't need to be a complex or expensive project. The Nice Drive 300 kit arrives with everything required to motorise a residential sliding gate weighing up to 300 kg with a leaf length of up to 5 metres. Motor, battery, racks, and two remotes in one box. Hand your installer a single package and the job gets done in a morning.
What's in the Kit
The package includes the Drive 300 motor unit, one 24V 3.5Ah battery, two 2-metre gear racks (4 metres total coverage), and two TX4 remote transmitters. The 4-metre rack length covers most standard residential driveway gates. For longer gates approaching the 5-metre maximum, additional rack sections can be added separately.
DC Motor with Removable Brushes
The Drive 300 runs on a 24V DC motor powered from the battery, which charges continuously from 230V AC mains (50/60 Hz) when available. DC motors run quieter than their AC equivalents and allow variable speed control for smoother gate travel, particularly during the opening and closing slow-down phases. The motor brushes are removable without disassembling the unit, which means routine brush replacement can be done on site in minutes rather than removing the entire motor for workshop service. Gate speed sits at 25 metres per minute with a rated gate load of 120N.
Load Shedding Performance
This is where the battery-driven architecture earns its keep for South African installations. When mains power drops, the 24V 3.5Ah battery keeps the gate operating for up to 100 cycles within the first 24 hours of a power failure. For a household averaging 8 to 10 gate operations per day, that's enough battery reserve to ride through multiple consecutive load shedding stages without the gate becoming a manual obstacle. The 25% maximum duty cycle with mains present means the motor is rated for sustained residential use patterns where the gate isn't cycling continuously but opens and closes multiple times per hour during busy periods.
Built-In Receiver and Security
The motor unit integrates a 434 MHz, 4-channel ET BLU MIX receiver with enhanced rolling code encryption and capacity for up to 32 users. Rolling code means every button press transmits a unique encrypted signal that changes with each use, preventing code grabbing by criminals using scanner devices to clone your remote frequency. This is not a theoretical concern in South Africa. It's an active threat, and rolling code is the minimum standard any gate motor should offer.
Additional security features include gate and safety beam tamper alarm monitoring that alerts you if someone interferes with the motor unit or the safety beam sensors, and electronic motor locking via remote control that prevents the gate from being manually forced open when the system is armed.
Programming and Diagnostics
An LED display on the motor unit provides clear feedback during setup and troubleshooting. Programming limit switches, adjusting motor parameters, and diagnosing faults all happen through the display interface rather than relying on cryptic sequences of blinking indicator lights that require a manual to interpret. For installers servicing the unit months or years after initial setup, that visual feedback saves significant time on site.
Specifications
| Model |
Nice Drive 300 |
| Input Voltage |
230V AC, 50/60 Hz |
| Motor Supply |
Battery dependent (24V 3.5Ah) |
| Max Gate Mass |
300 kg |
| Max Gate Leaf Length |
5 m |
| Rated Gate Load |
120N |
| Gate Speed |
25 m/min |
| Max Duty Cycle (mains present) |
25% |
| Battery Backup Cycles |
100 operations within first 24 hours of power failure |
| Built-In Receiver |
434 MHz, 4-channel, ET BLU MIX enhanced rolling code |
| User Capacity |
32 |
| Motor Type |
DC with removable brushes |
| Display |
LED (programming and diagnostics) |
Kit Contents
| Motor |
1 × Nice Drive 300 sliding gate motor |
| Battery |
1 × 24V 3.5Ah battery |
| Gear Rack |
2 × 2-metre rack sections (4 m total) |
| Remotes |
2 × TX4 transmitters (rolling code) |
A complete residential sliding gate automation kit with battery backup, rolling code security, and enough rack for most standard driveways. Buy the Nice Drive 300 kit online at NeonSales, delivered across South Africa.
What's in the Box

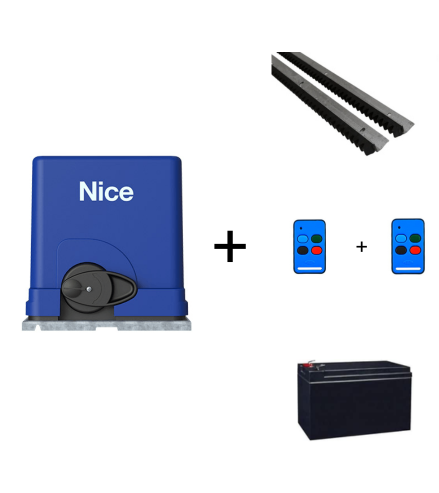

- 1 x NICE DRIVE 300 + 1 BATTERY + 2 RACKS + 2 TX4
