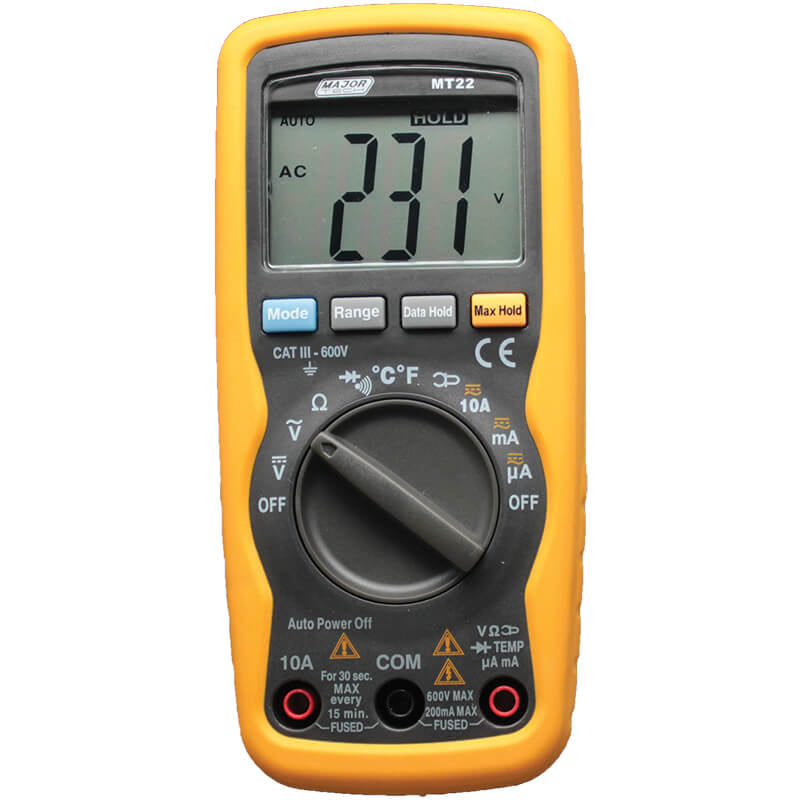

The Major Tech MT22 is a compact auto-ranging digital multimeter for electrical testing, troubleshooting and temperature measurement. It features a backlit 2000-count display and is rated to IEC 61010 CAT III 600V / CAT II 1000V.
Key Features
- Auto-ranging digital multimeter
- 2000-count backlit LCD
- AC/DC voltage up to 1000V
- AC/DC current up to 10A
- Resistance up to 20MΩ
- Frequency up to 10MHz
- Temperature range approximately -50°C to 1000°C
- Continuity and diode testing
- MIN/MAX and data-hold functions
- Auto power-off
- CAT III 600V / CAT II 1000V safety rating
- Approx. dimensions: 150 x 70 x 48mm
What's in the Box
- 1 x Major Tech MT22 digital multimeter
- 1 x set of test leads
- 1 x K-type temperature probe
- 1 x 9V battery
- 1 x user manual
