GX RED 4500 PSI PCP MINI COMPRESSOR, 12V/220V

Product Description;

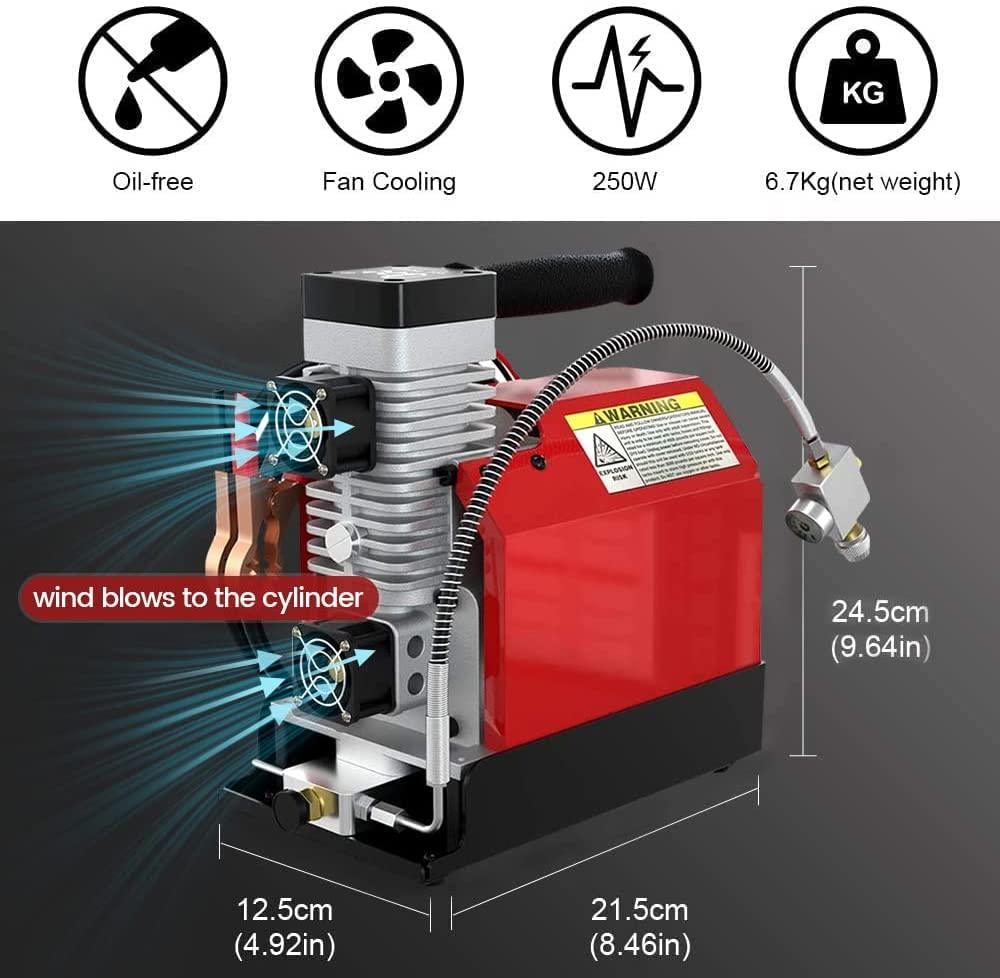

Oil-Free & Water-Free & Built-In Fan Cooling for Long Life : Unlike other electric high pressure air pump which needs the standard oil and cooling water when working in the market, this pcp air rifle compressor does not need oil, clean and hygienic, no need for external water pump to cool. This will save you a lot of energy in future using. We also put a black extra oil-moisture separator (not installed) in the package.

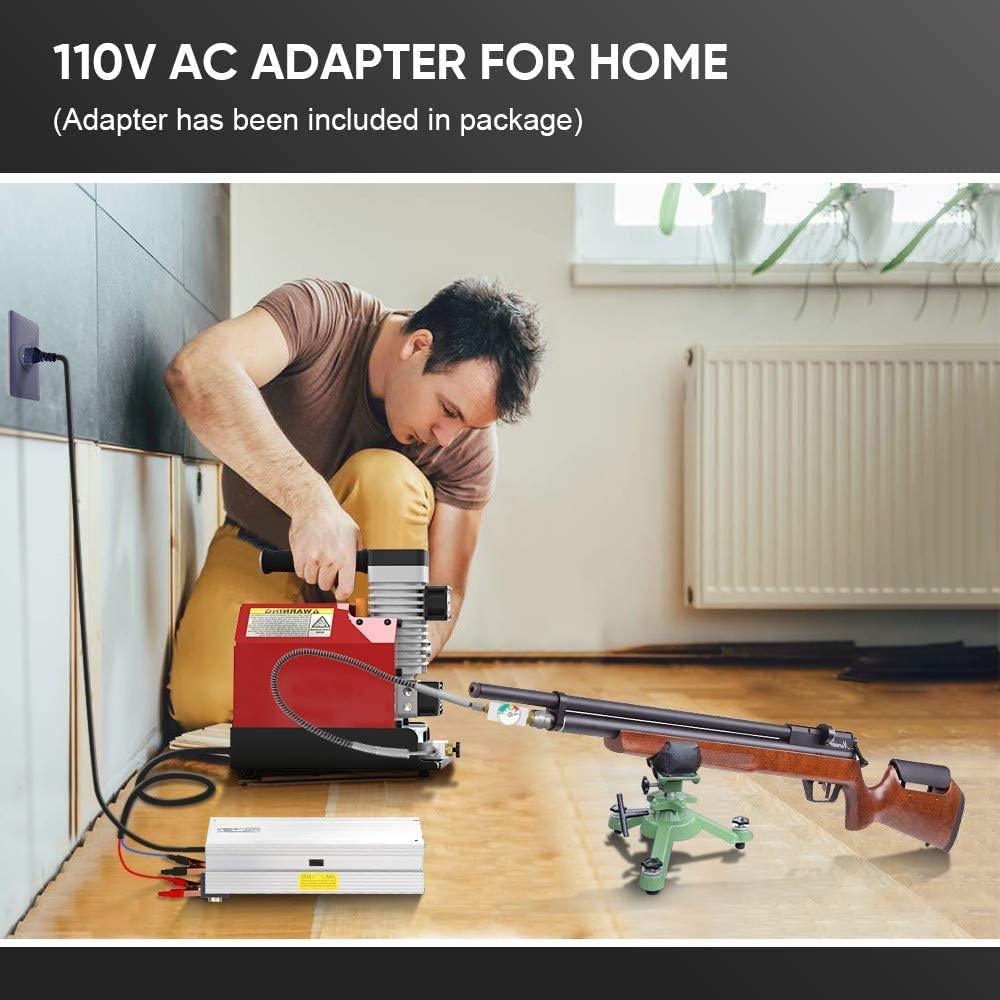

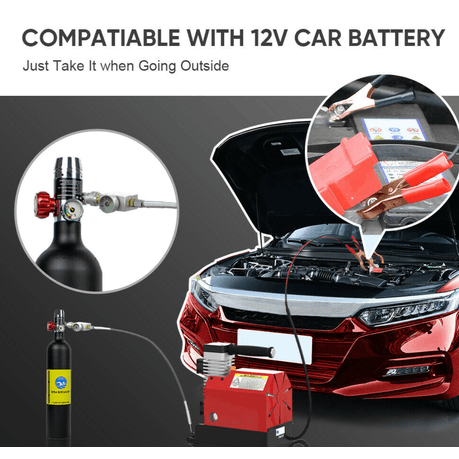

Convenient Car 12V DC or Home 110V AC Power Choice : This air compressor can be powered by the 12V car battery , aslo can be powered by the home AC outlet with the extra 110V transformer (included). This will make this pcp air pump more usefull as you can use it anywhere. Pls note this CS2 is manually stop version, if you need setting stop pressure function , pls choose our CS3 version.
Fast Inflating Speed and Powerful PCP Compressor : This new air compressor can provide up to 250W power. The inflation pressure can reach 4500 PSI/300 Bar and the air pump inflating speed can reach 2700r/min.Test Inflating Result : 0.5L container, from 200BARS to 300BARS takes about 8 minutes;Test Inflating result : 0.5L container, from 0BARS to 300BARS takes 18-20 minutes.
Note: We have exclusive design patent for the compression method, Patent No: US 9,726,165 B2 : This electric air pump was mainly designed to use for devices with less 60cubic inch tank, such like PCP airgun rifles .Note: Don't suggest to inflate over 1L tank . It can also inflate mini diving tank,Note: does not include scuba adapters and air filter for breathing, compressor output nut is M10*1 and 8mm quick connector,pls confrim if your scuba tank can fit.

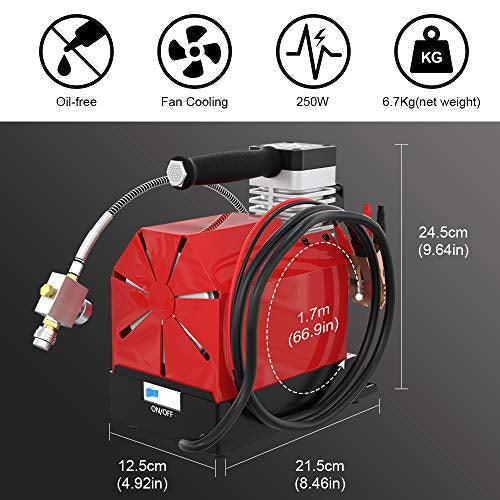

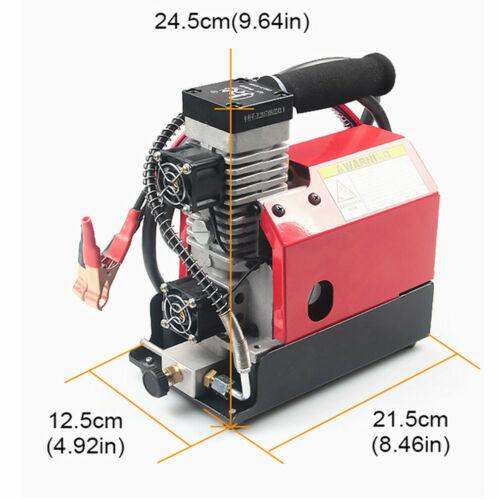

Light Weight, Compact Size,Easy to Carry: The net weight is just 6.7 kg.Wherever you go, whenever you need, just take it with you. You can also get a 1 year worry-free after-sale service( free exchange or full refund if product was defective as quality problems ). ATTENTION:Please release the bleed valve first after finishing the inflation, and do not start it when there is still air pressure inside your compressor.

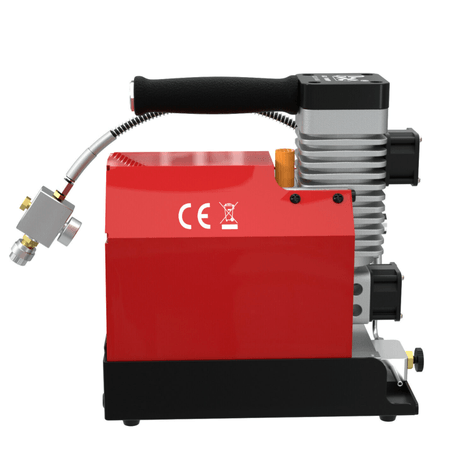

The GX CS2 pcp air rifle compressor is specially designed for PCP, Paintball, scuba diving inflating that with less than 60ci air tank.

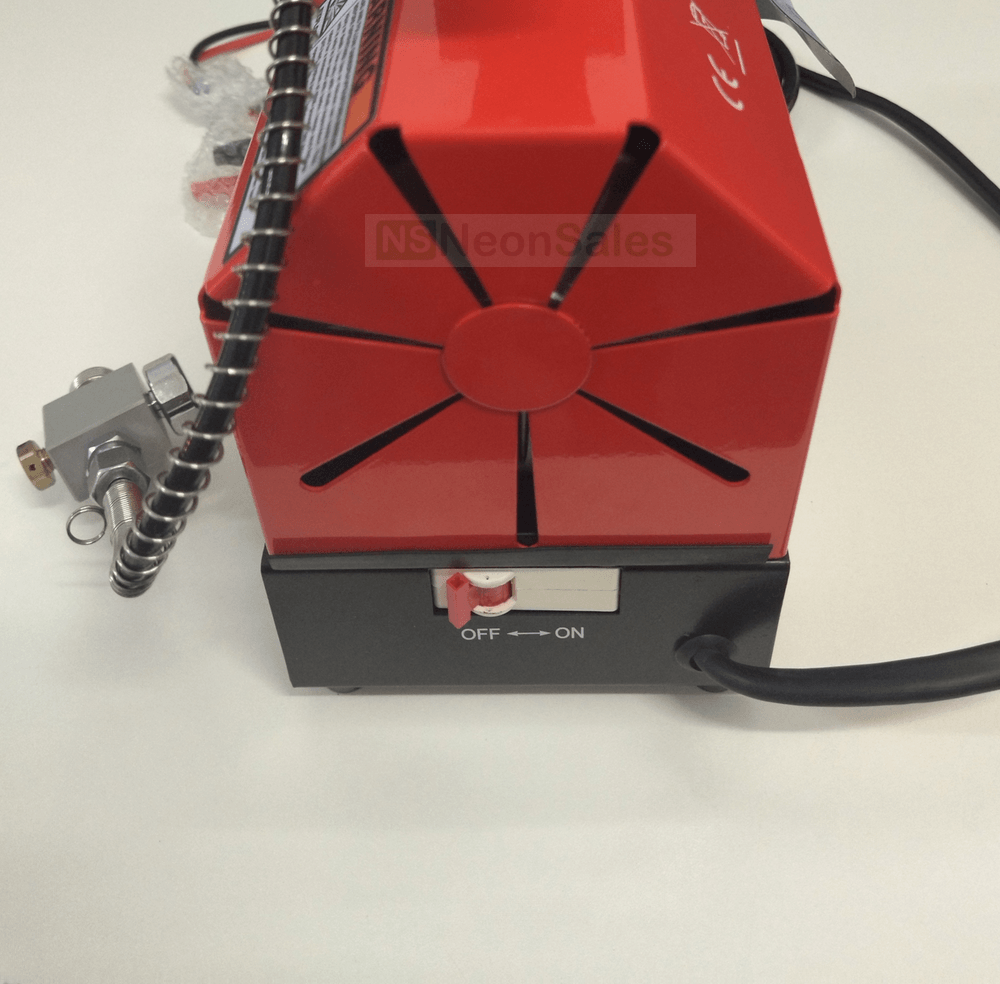

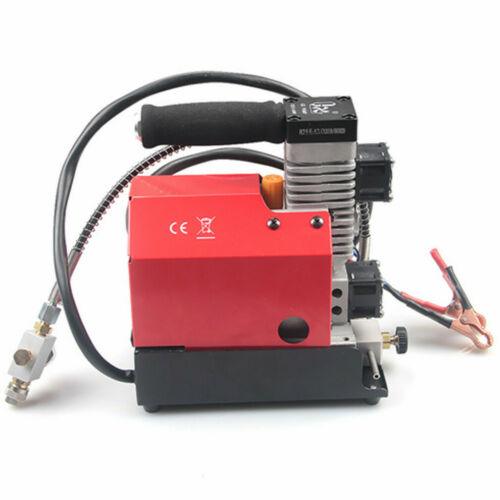

This is a portable oil-free and fan cooling pcp compressor pump.

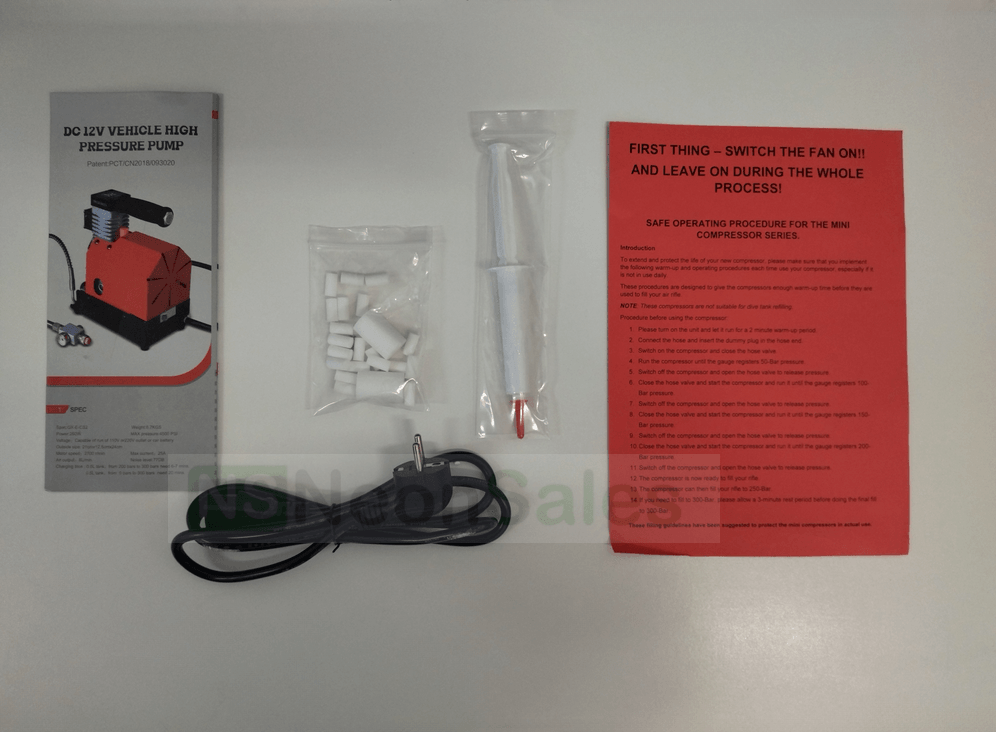

Package include:

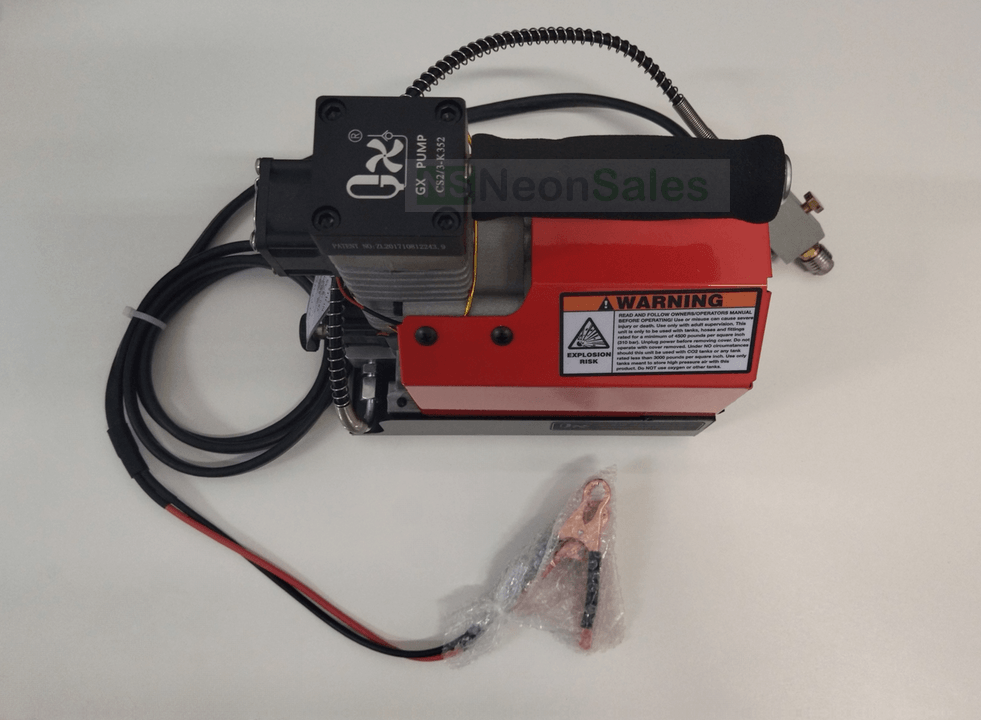

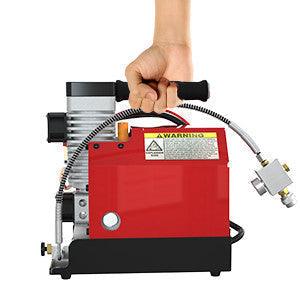

1x Compressor, Red w/ foam carry handle
1x Instruction manual w/ exploded parts diagram
1x Red A4 sheet w/ usage instructions and precautions from South African Distributor

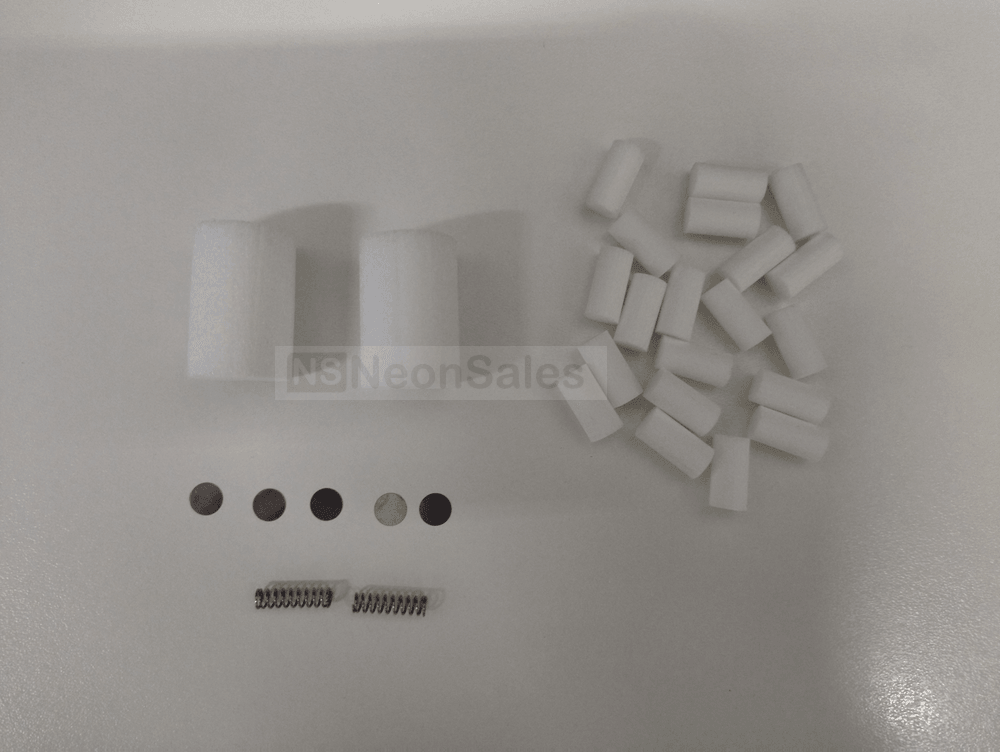

1x Bag w/ spare cotton filter buds - 2 larger diameter ones and a number of smaller diameter ones. a Set of springs are also included

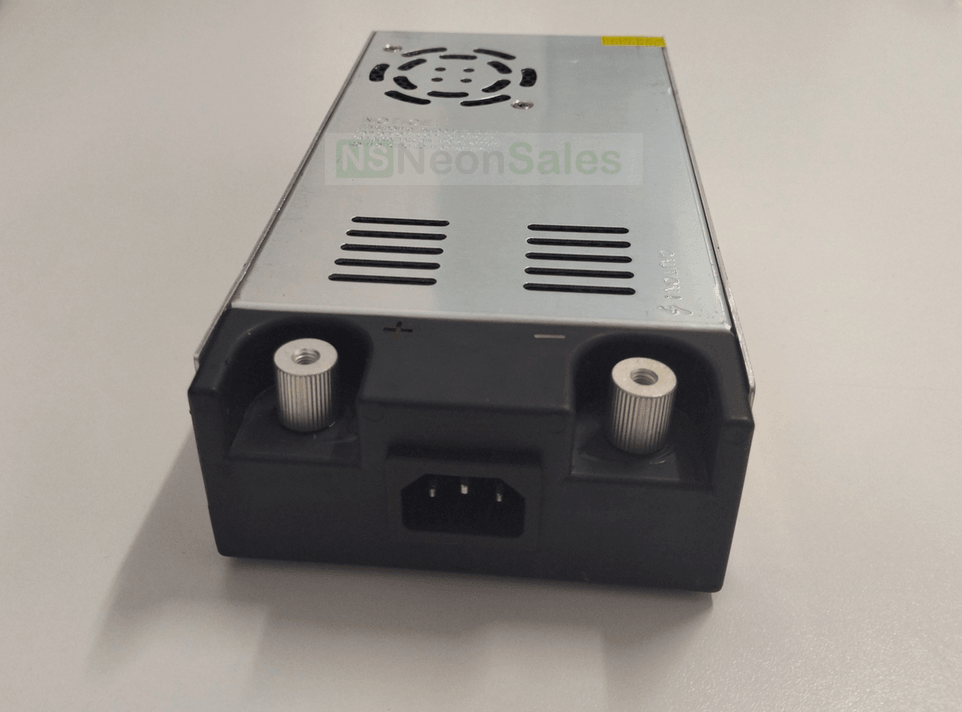

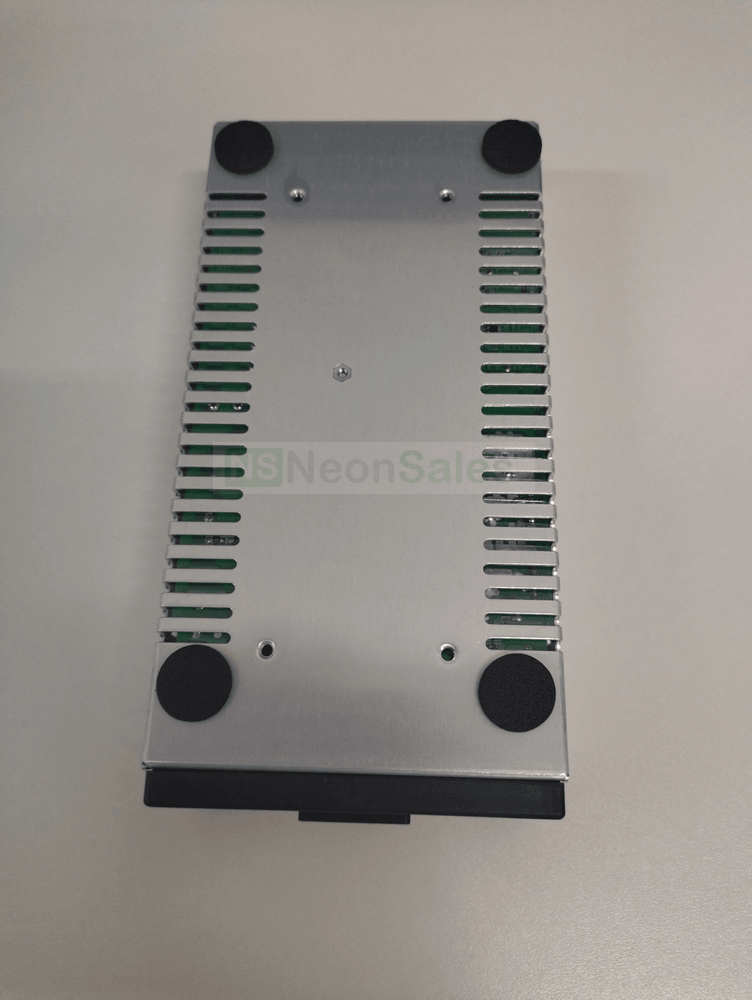

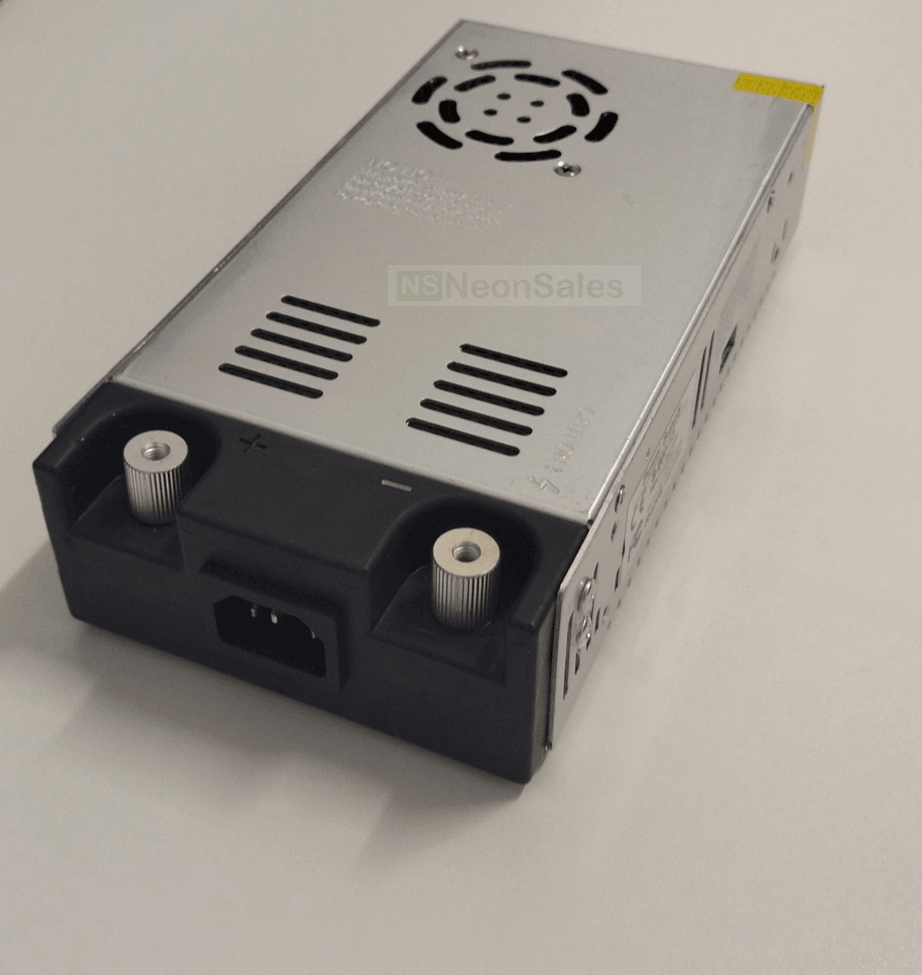

1x Metal enclosed 240 / 110V - 12V Power inverter w/ IEC power cord & Type C dedicated plug

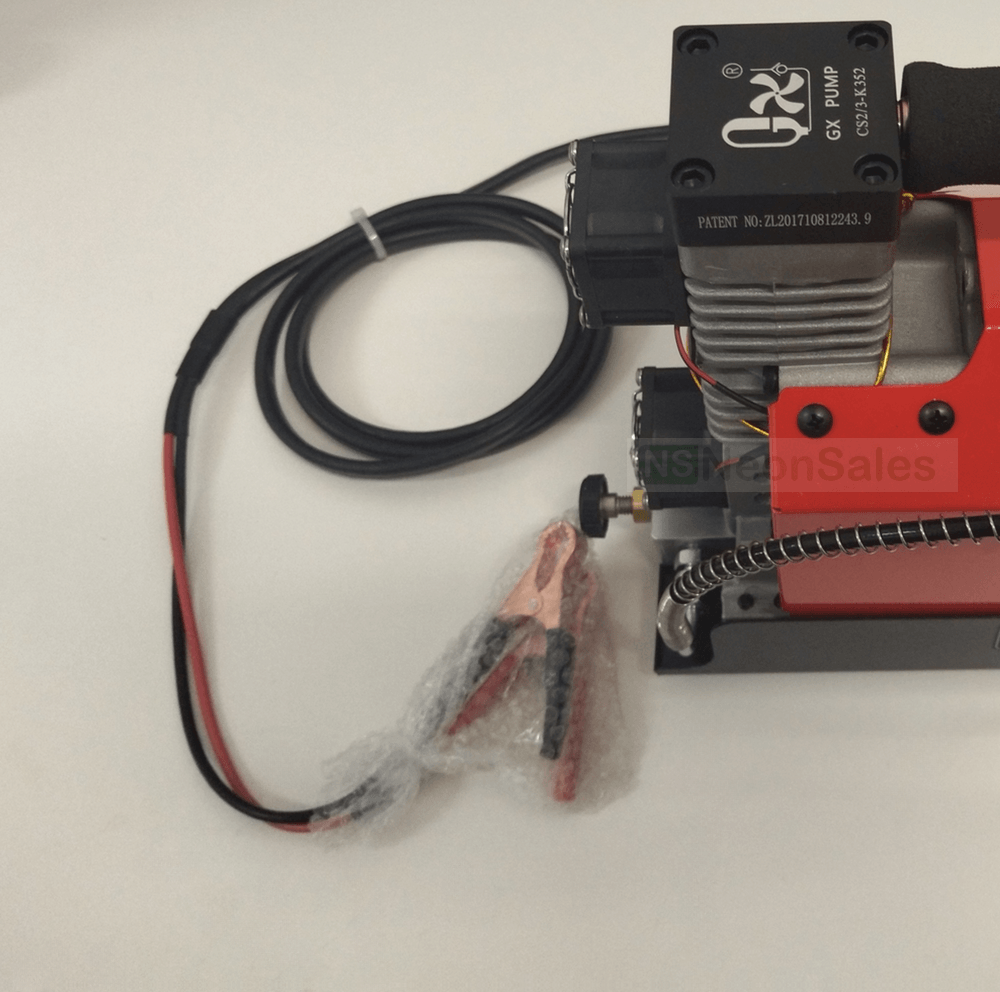

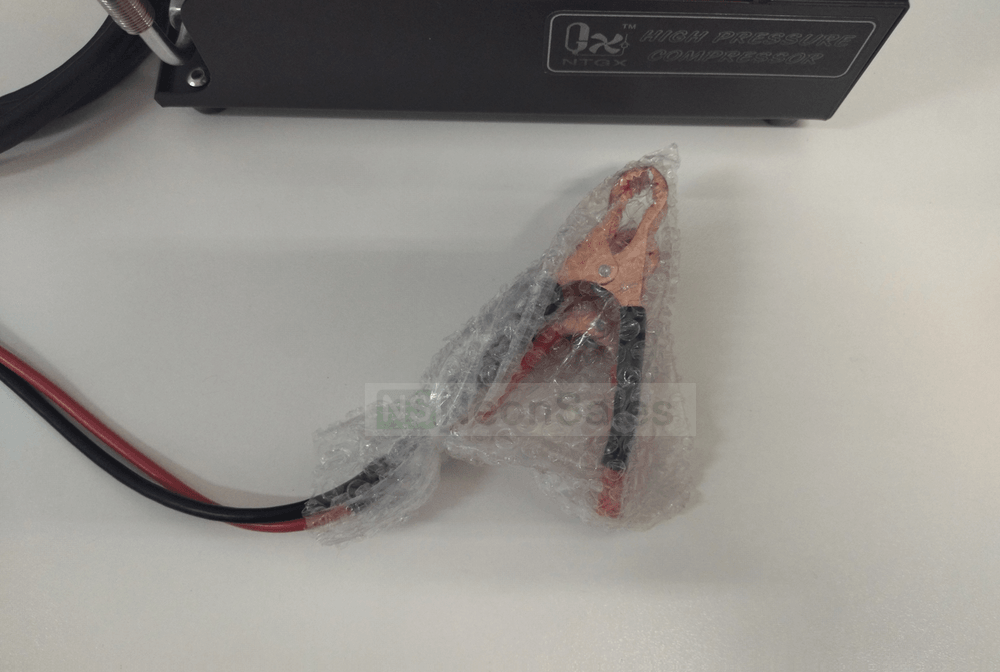

1x set of Jumper cables, thick guage, red & black colour coded w/ dedicated copper alligator clamps (insulated)

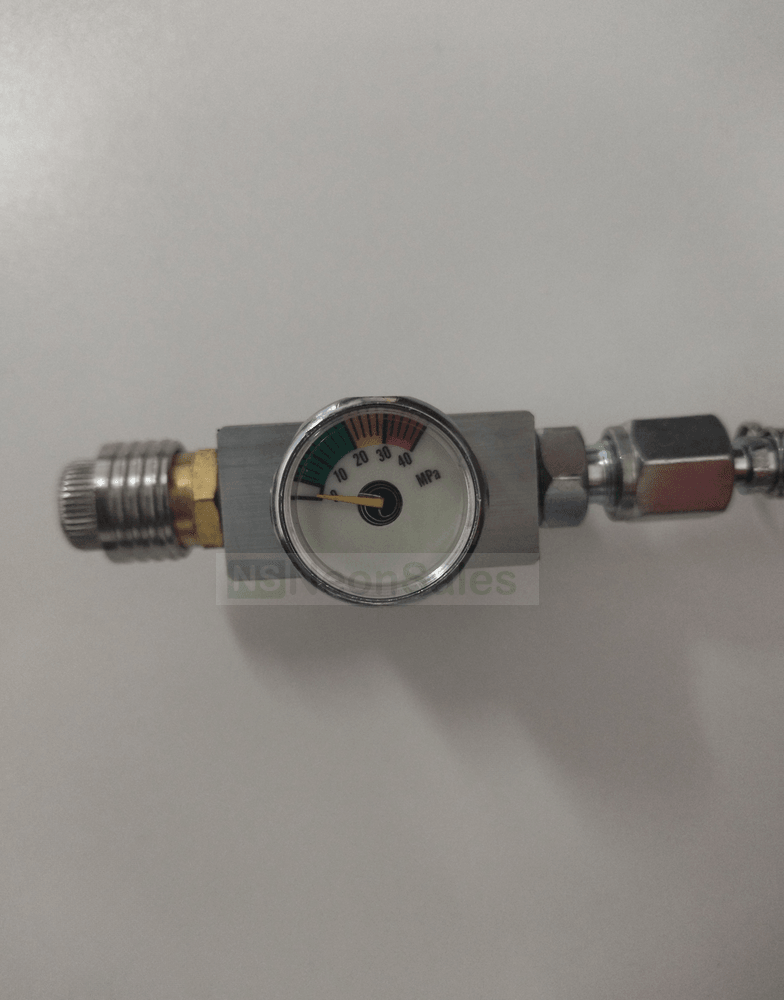

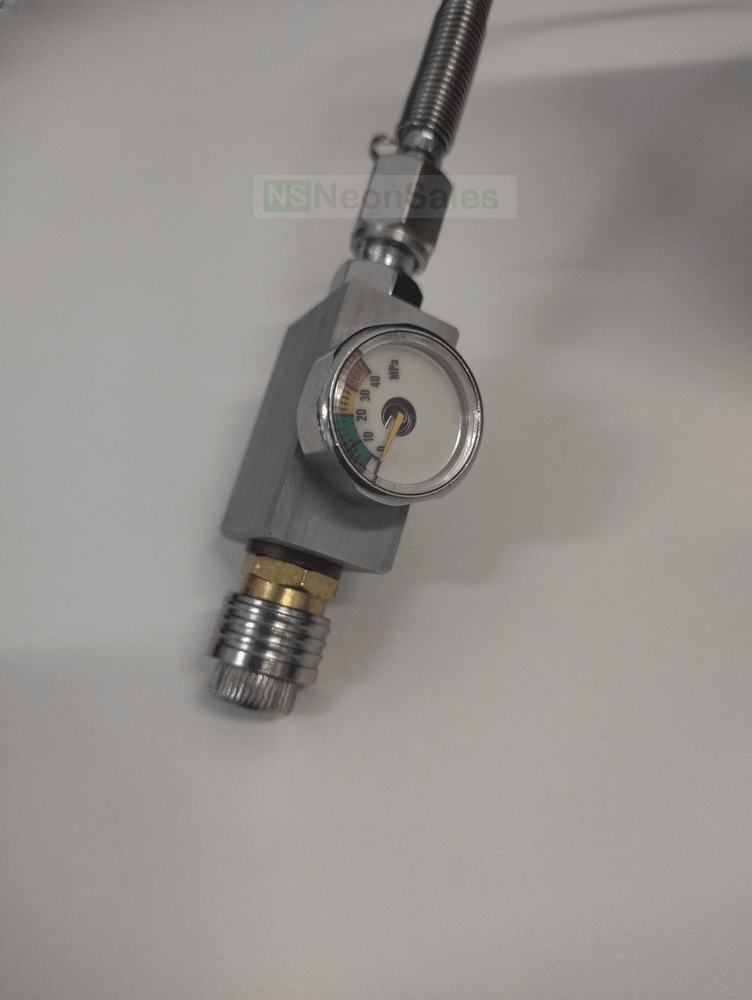

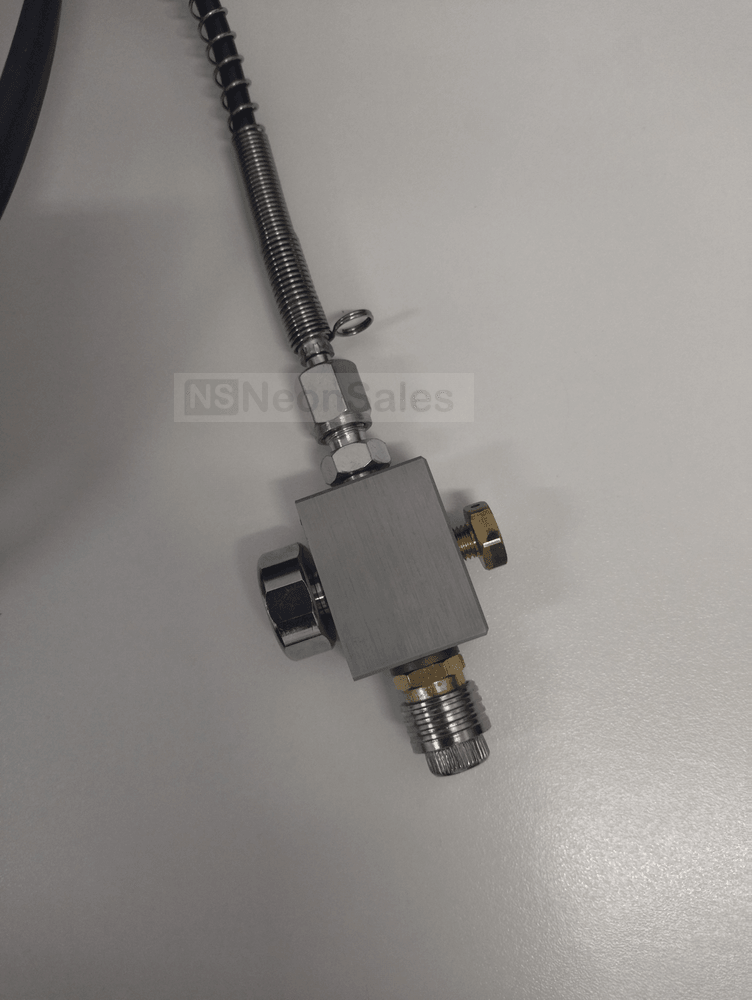

1x 4500 PSI steel coil shielded wire w/ M10x1 thread fittings, compatible w/ #14 hex drive / spanner. Attached to the guage housing where the burst disc housing is situated, along w/ the female Q/C as well as the pressure stop-end insert (supplied with)
1x Spare moisture-oil filter
5x Spare burst discs
1x Filled grease syringe

Note:

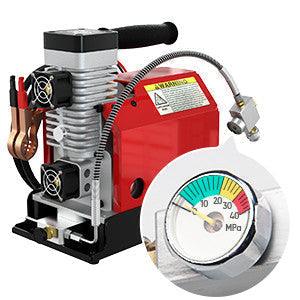

1. This version is not auto-stop version, please turn it off manually when the pressure gauge reach the value.
2. Note: Pls cool down after working 25-30 minutes. Not recommended to inflate over 60ci / 983cc tank / air reservoir as it will cause damage to the 12V compressor.
3. If your device can't be inflated or the speed is very slow,please check if the quick connector is normal, also that the cotton filters are not burnt up.
4. The machine cannot be started under internal pressure, otherwise, it will cause damage. Each time the power is turned off (including during the shutdown cooling cycle), the bleed valve must be released.
5. Keep your children away from it when working

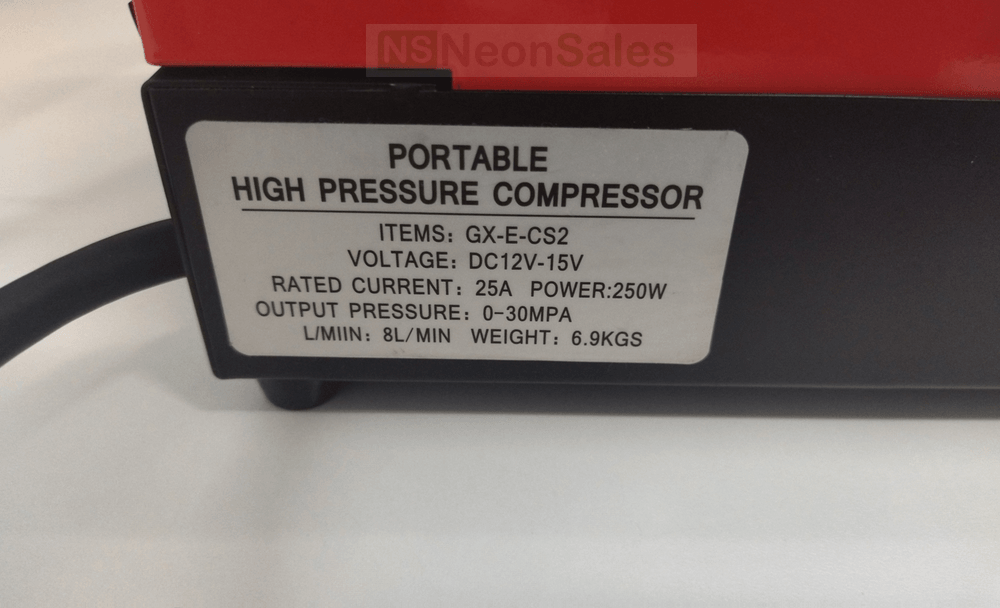

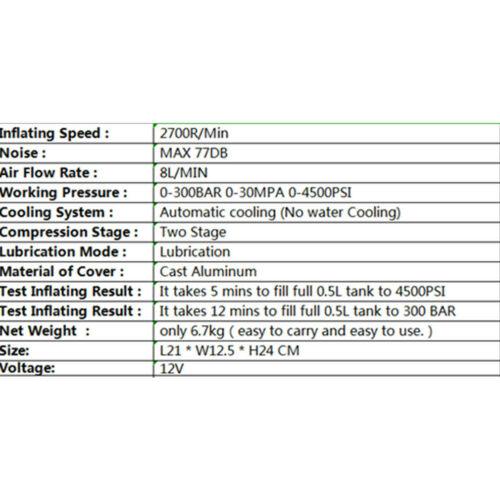

Technical Specifications

Voltage:	DC 12V for car battery, or AC 110V-220V for wall outlet
Inflating speed:	2700R/min
cable length	Ac cable :1.5m, DC cable : 2.35m.

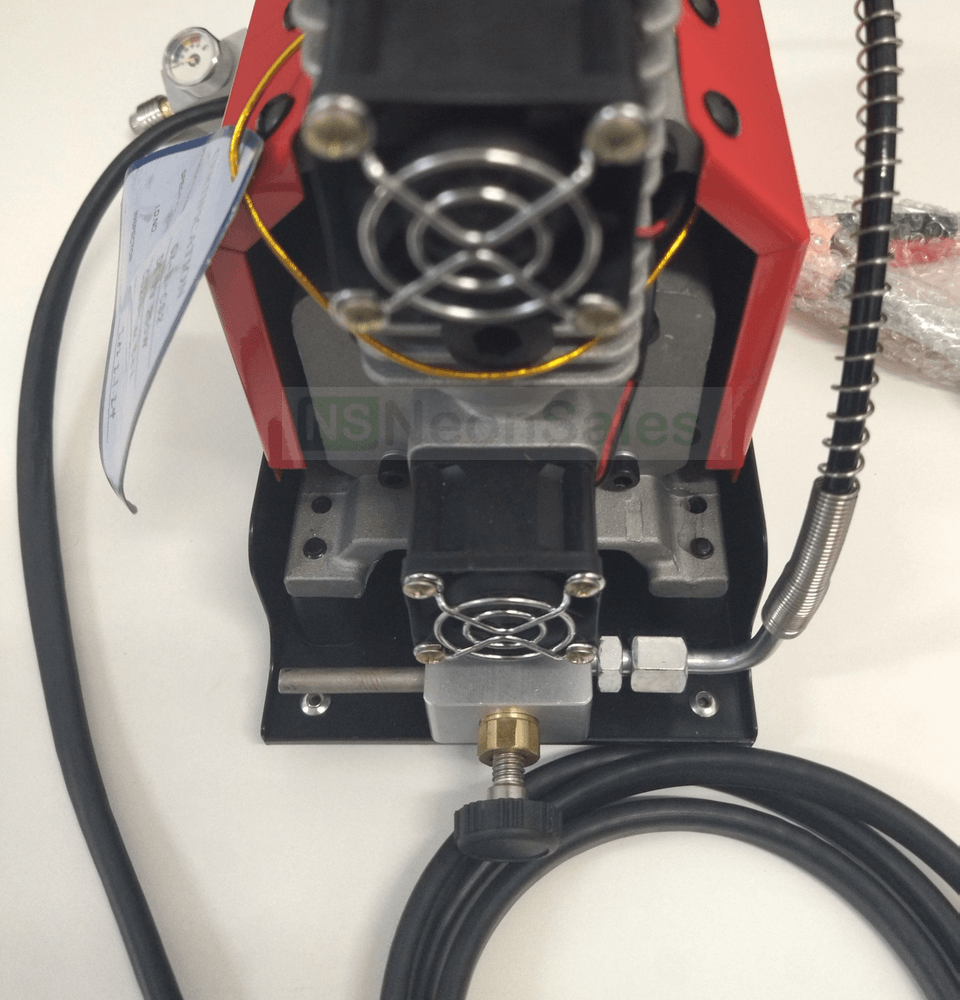

Cooling system:	Built-in fan cooling
Shut down:	manually at desired pressure

Noise:	75DB
Lubrication Mode:	added food-grade grease before factory. Don't add any oil or grease in future if the filling speed is normal. Otherwise will case bad performance.
Output nut:	M10*1 , Quick connector: 8mm
Power:	250W
Net weight:	6.7kg
